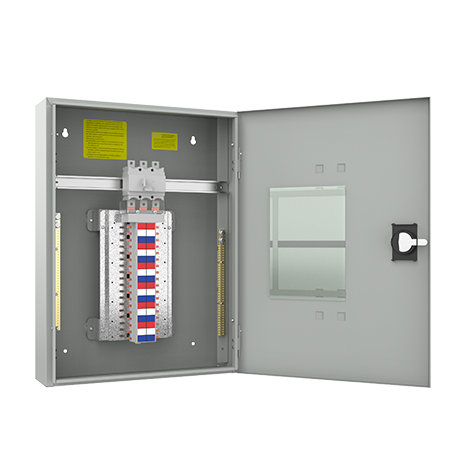

Econo Panelboard

Applications

A versatile and reliable distribution board system designed for general-purpose applications.

Features

• Designed and made in Australia for Australian conditions
• IP33 protection rating
• Compatible with leading MCB’s
• Includes integrated KATKO 250A Main Switch
• Field reversible door with stainless steel hinges
• 3 chassis sizes available – 24P, 36P, 48P
• 137mm of usable internal depth for wiring and fit-off
• AS/NZS 61439 compliant

Inclusions

• Schedule holder with distribution schedule card
• Switchboard keyed flush mounted lock (keyed 92268)
• 12 poles of additional DIN (6 pole each side of main switch)
• KATKO 250A Main Switch
• 4 x PF6TR (24 poles of pole fillers)
• Supplied with 3 interchangeable MCB mounting brackets to accommodate leading brands – see below for compatible models

Construction

• Manufactured from 1.0mm Galvabond® – RAL7035
• Stainless steel pintle style hinges for easy door removal

Compatible MCB’s

Bracket 1 fits:

• Schneider Acti 9 Long Body RCBO’s A9D61***, A9D11***, A9DC1 & A9DC6
• Schneider Acti 9 breaker up to 63A

Bracket 2 fits:

• NHP DIN T long body RCBO’s DIN-SAFE DSRCBH, DIN SAFE DSRCBT
• NHP DIN T circuit breakers up to 63A excluding DIN-T 2-in-1

Bracket 3 fits:

• Hager Long body RCBO’s ACC2***, ACA2***, ADD2***
• Hager circuit breakers up to 63A, NT, NDN
• Hager Add on Blocks BD, BE & BF
