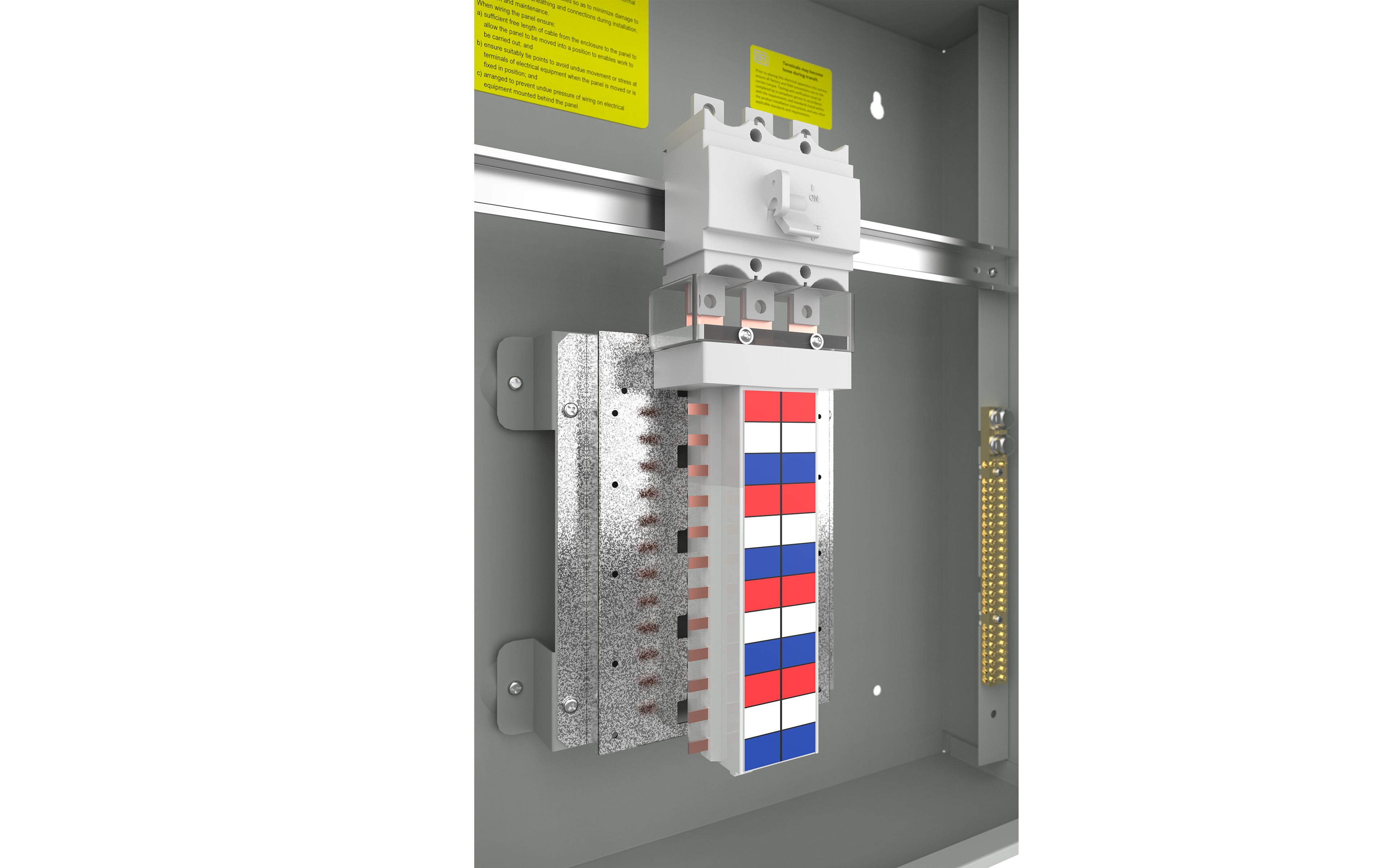

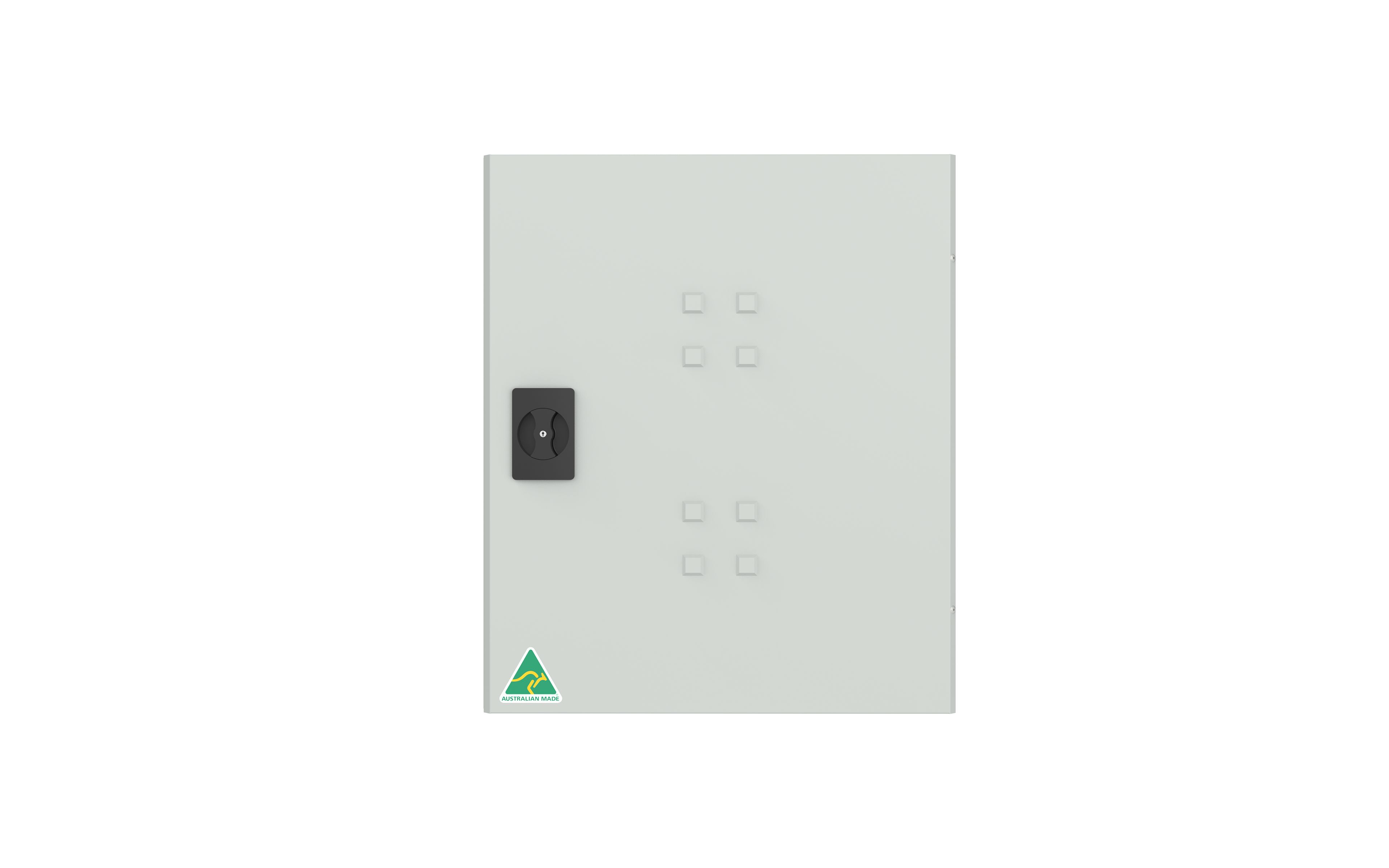

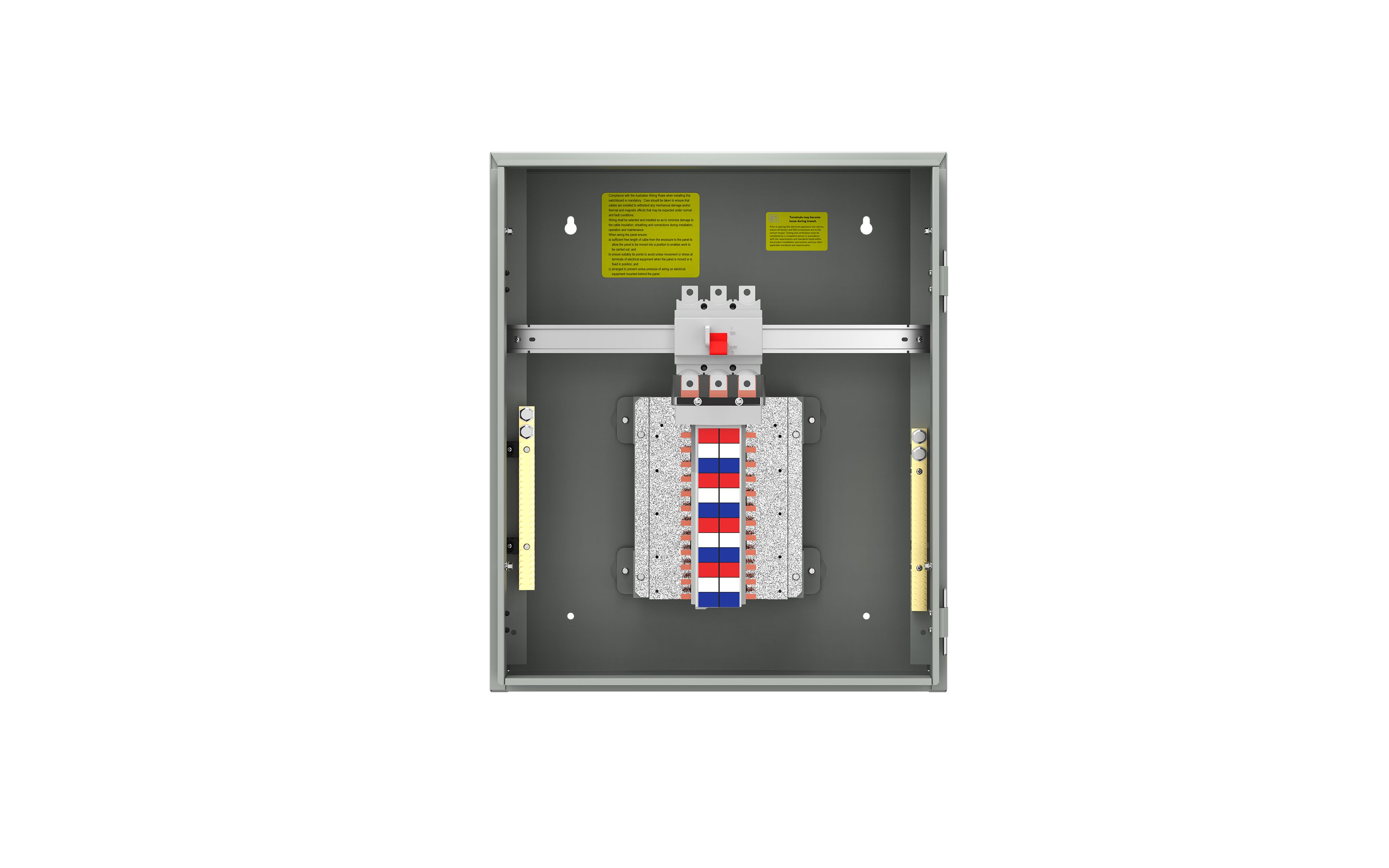

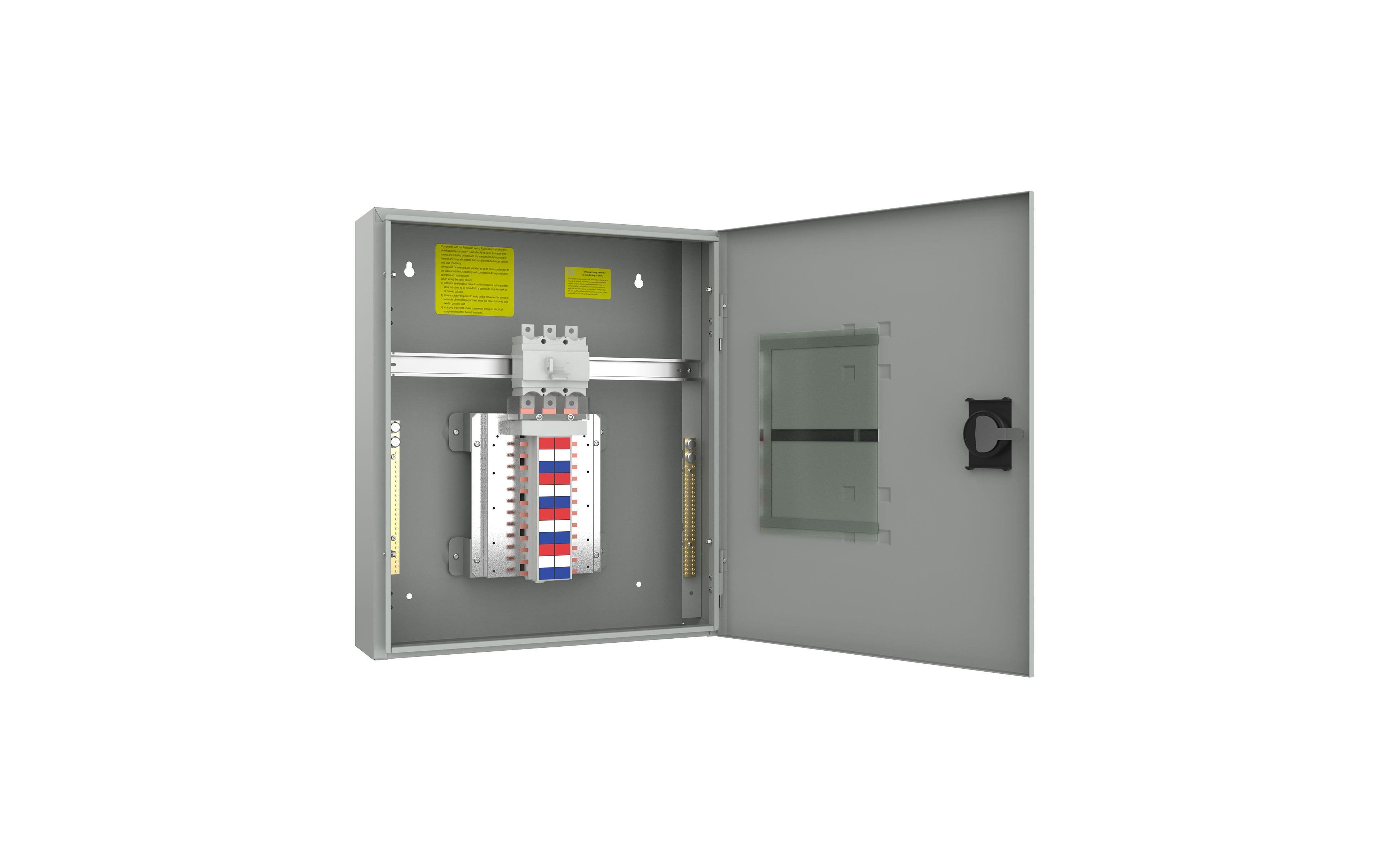

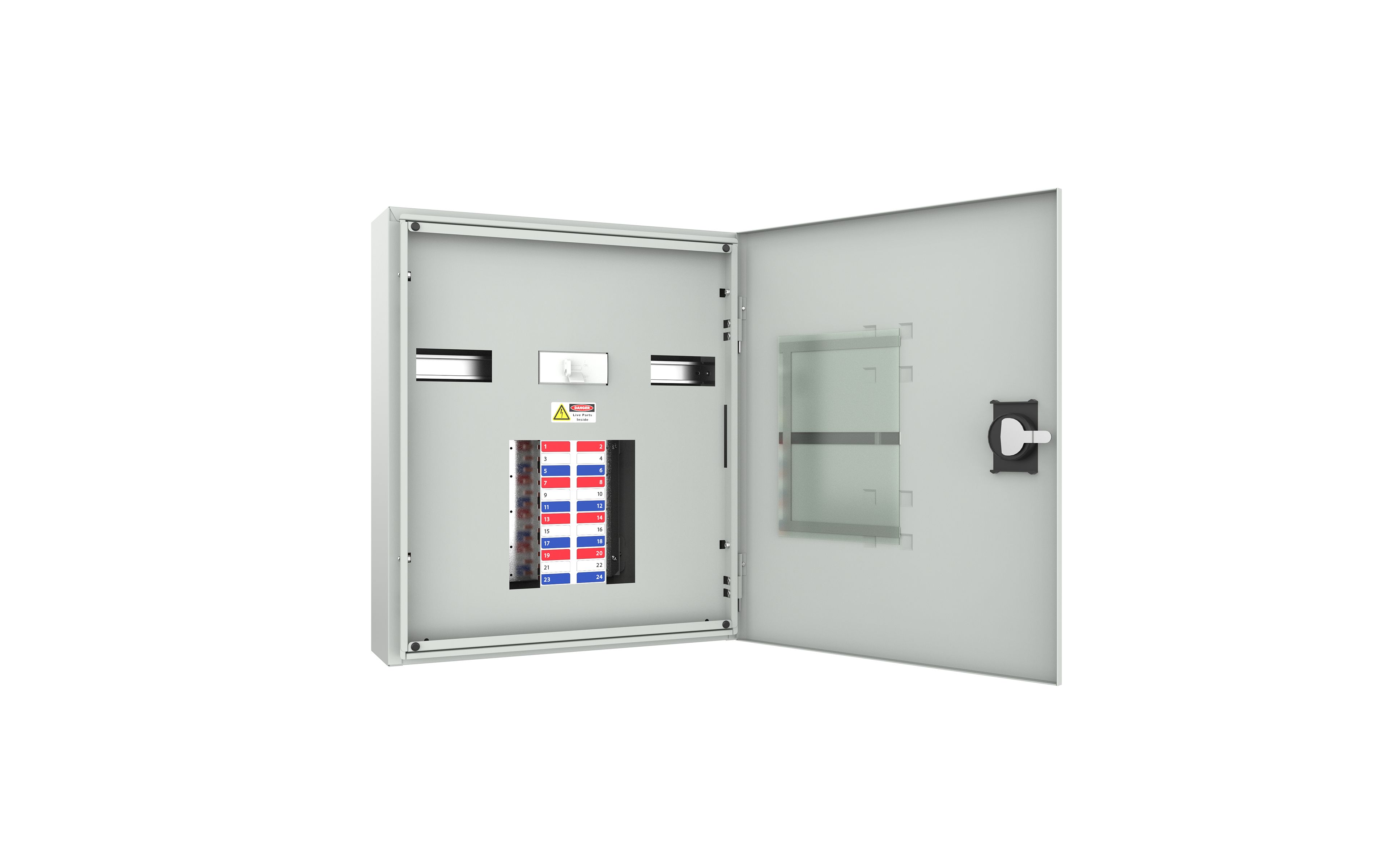

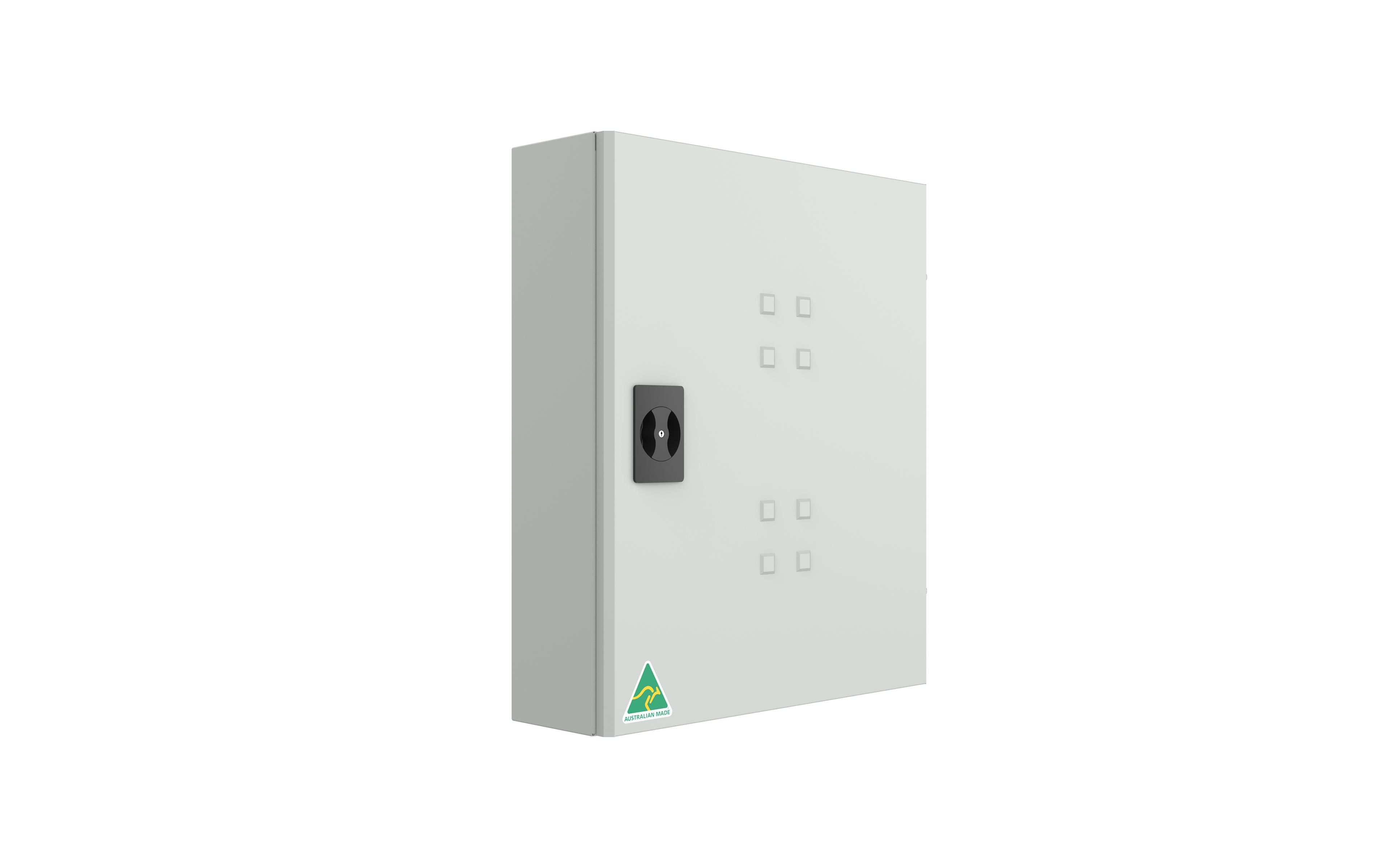

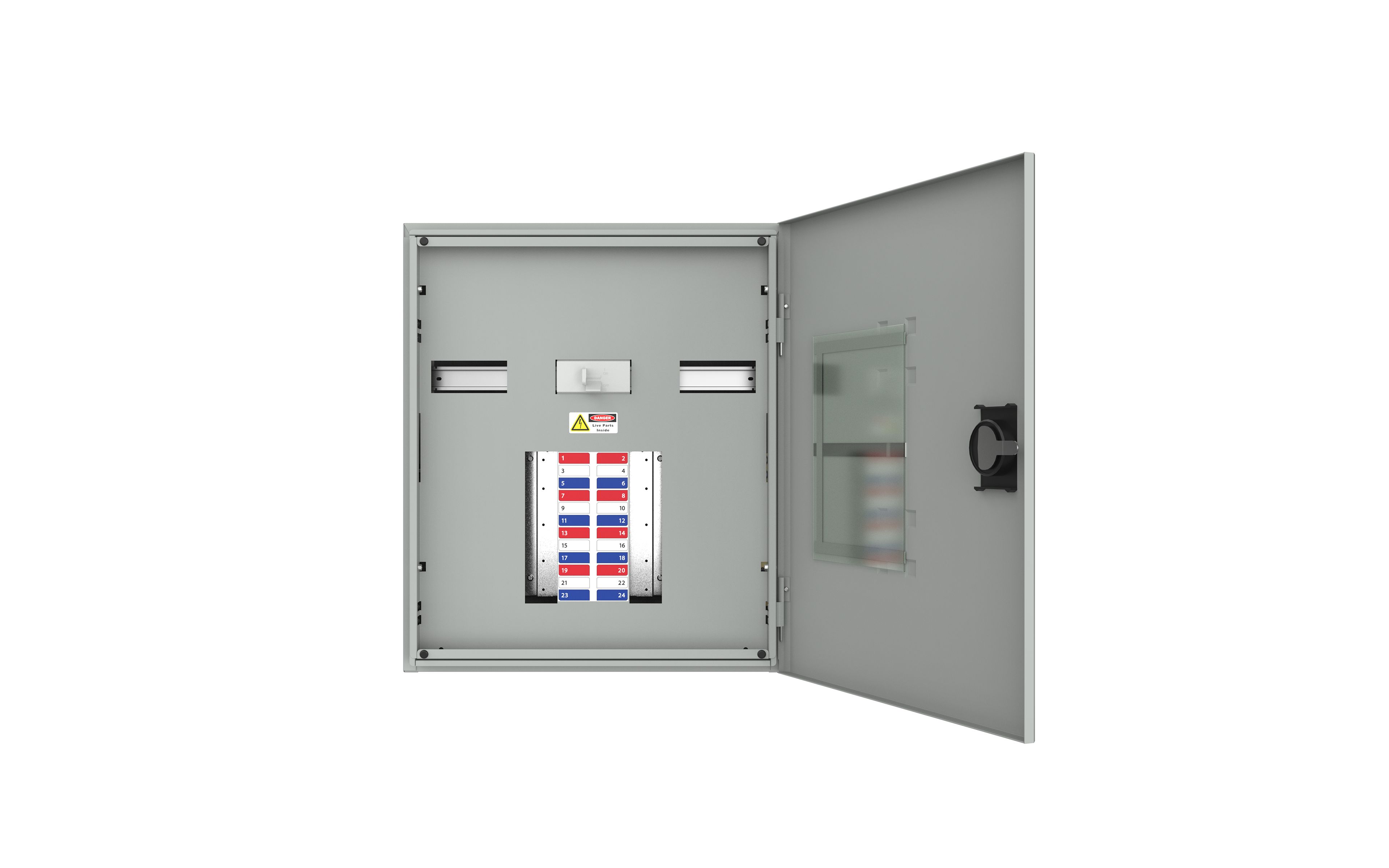

Panelboard Econo manufactured in Galvabond Steel with 24-pole of DIN space with interchangable mounting for Schneider, NHP and Hager MCB’s. The enclosure is 650Hx550Wx170D rated to IP33 and comes complete with a KATKO 250A Main Switch, 12-pole of additional DIN (6-pole each side of the main switch), 24-pole of pole fillers and reversible lift off hinges.
Part Number:
PBE24P
Error: Unable to load accounts at this time.
| IP Rating | IP33 |
|---|---|
| Inclusions | 12 poles of additional DIN (6+6) Beside Switch, 137mm of usable internal depth for wiring, 24 poles of pole fillers, 24-pole chassis with 3 interchangable MCB mounting brackets for Schneider, KATKO 250A Main Switch, NHP or Hager circuit breakers, Reversible Door with Lift off stainless steel hinges |
| Approvals | AS/NZS 61439, IP33 |
| Construction | Body – 1mm Galvanised Steel, RAL7035 surface finish |
| Material | Galvanised Steel |
| Colour | RAL7035 |
