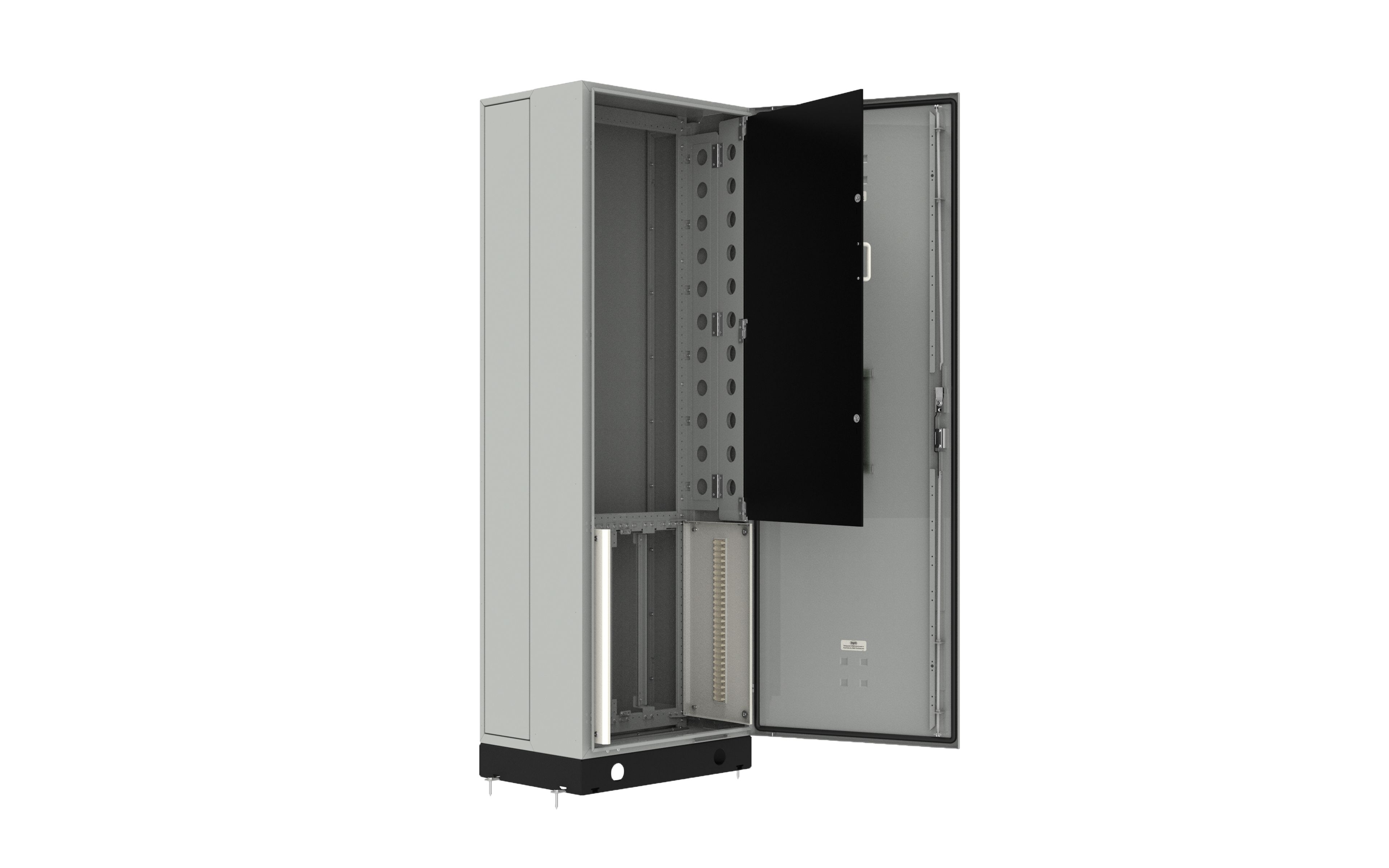

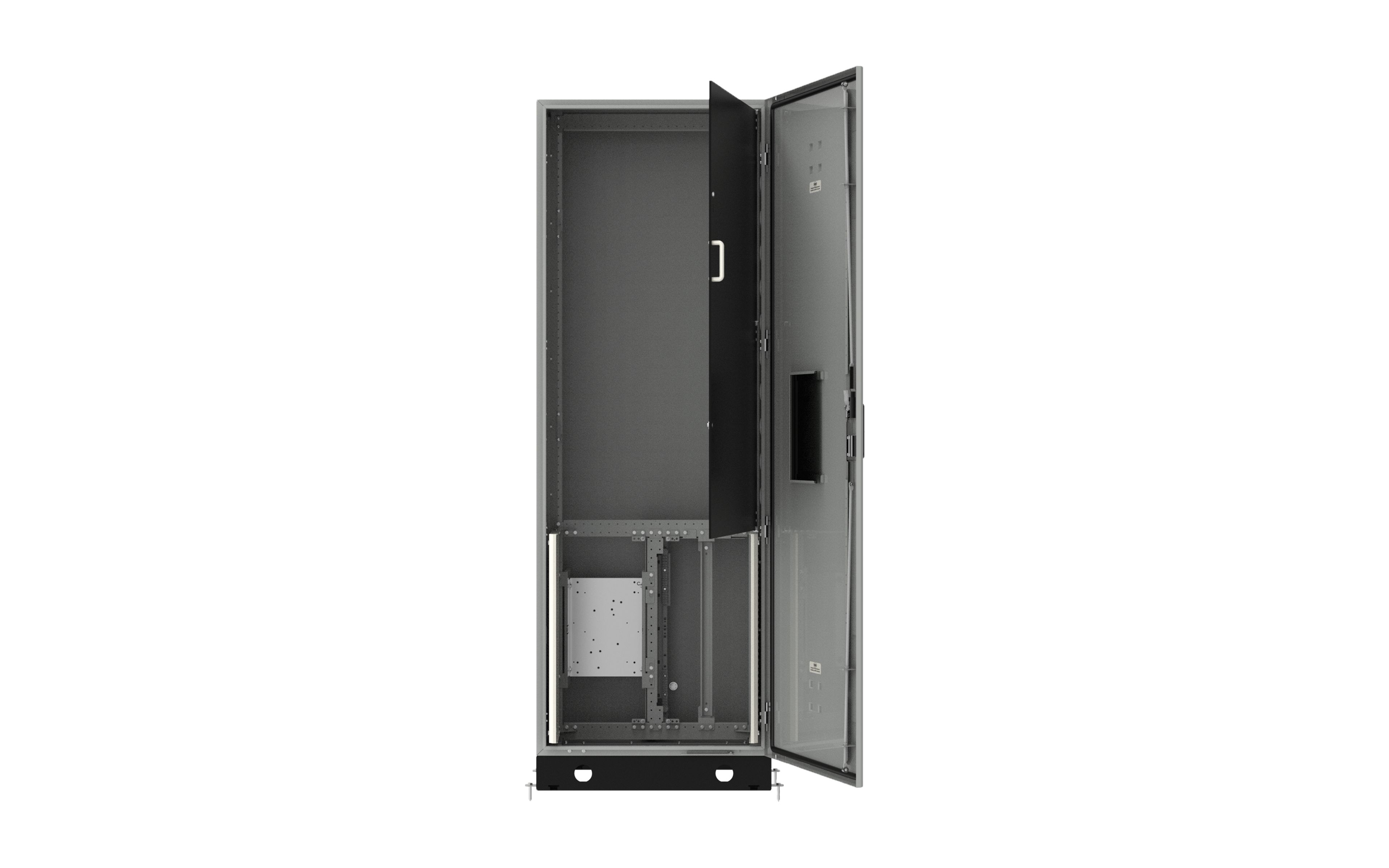

Infinity 3G – 1970Hx670Wx480D made from Zinc Coated Steel and rated to IP66. A pre-configured enclosure suitable for metering or power distribution in South Australia with all metalware assembled. This unit is plinth mounted on an included 100mm high plinth and is suitable for up to 11 x single phase or 5 x 3 phase. There is Space for Schneider MCCB Max 250A main switch section and a submain section containing 27-pole DIN (no devices included).
Part Number:
TGXS11M1P
Error: Unable to load accounts at this time.
| IP Rating | IP66 |
|---|---|
| Inclusions | 3-point locking, 3mm aluminium gland plate, Available metering configurations – 11 x single phase or 5 x 3 phase, Document Holder, Main Switch Section – Space for Schneider MCCB Max 250A, Multiple Earth Neutral provided, Plinth, Recessed padlockable swing handle keyed 92268, Roof Sunshade, Stainless Steel Door Hinges, Sub Main Section – 27-pole DIN (no devices included), Typical Incomer (mm2) – 95 |
| Approvals | AS/NZS 61439, IP66 Region C AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 powdercoated, Solid Steel Hinged Door |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
