Showing 1–12 of 13 results
Infinity 3G – 1970Hx670Wx480D made from Zinc Coated Steel and rated to IP66. A pre-configured enclosure suitable for metering or power distribution in South Australia with all metalware assembled. This unit is plinth mounted on an included 100mm high plinth and is suitable for up to 11 x single phase or 5 x 3 phase. There is Space for Schneider…
Group Metering Enclosure – South Australia – Pre-wired – 900Hx600Wx343D suitable for up to 6 tenancies (single phase), powdercoated RAL7035 and designed for use in South Australia. This unit comes ready to fit meters, includes 24-pole of DIN space, an authority section with lock-off devices for meter isolation and service protection and tenancy sub-main MCB’s.
Group Metering Enclosure – South Australia – Unwired – 900Hx600Wx343D suitable for up to 6 single phase or 2 three phase supply. Powdercoated in RAL7035 and designed for use in South Australia.
Horizon Meter Box for South Australia, single and multi-phase applications with an IP23 rating. Manufactured from Galvanised Steel and Powdercoated Light Grey RAL7035. The meterbox is 690Hx485Wx278D to better fit inside standard stud framing and has 24-pole of DIN space, includes a 63A MCB, Lock off and Meter Neutral Links.

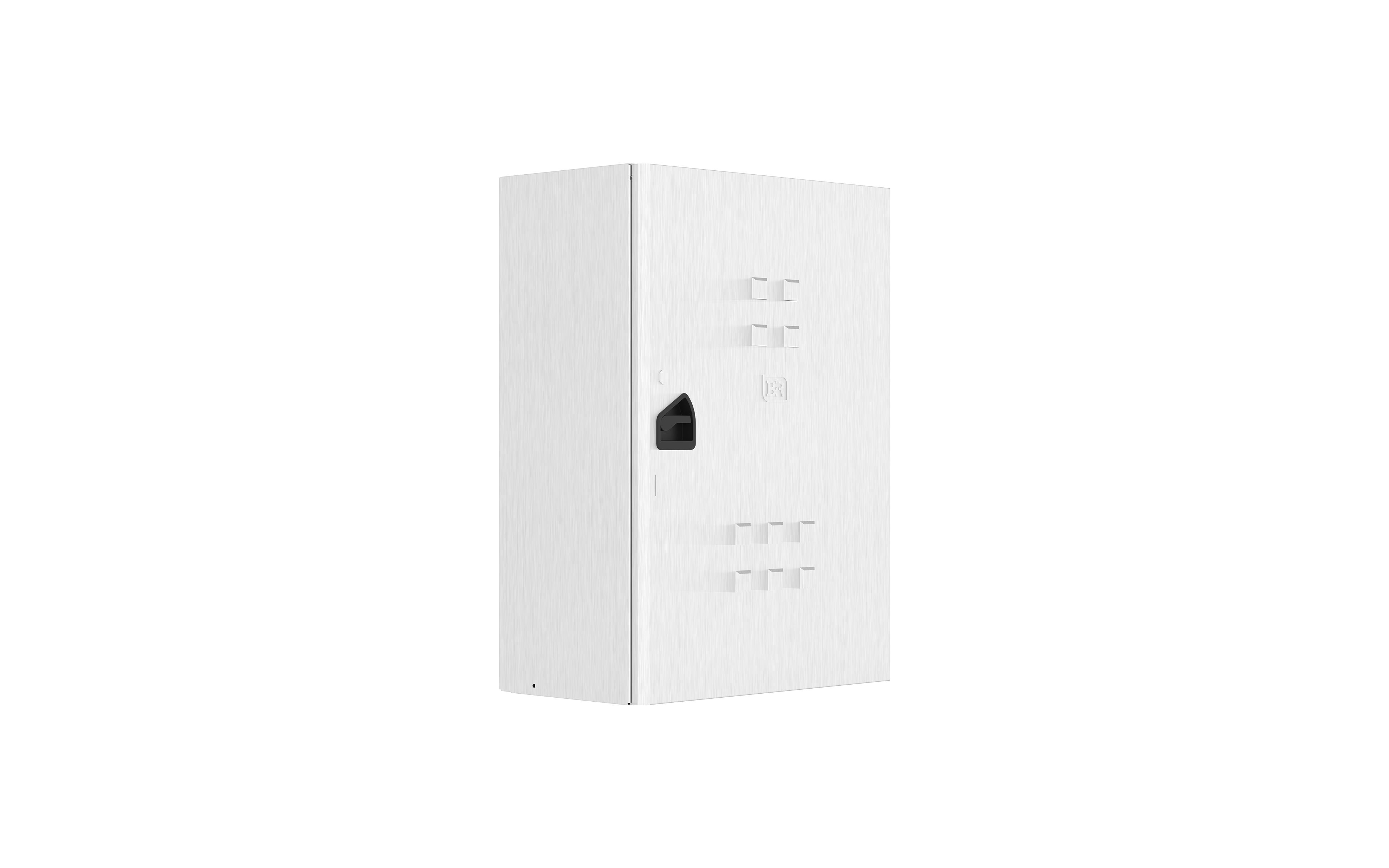

Horizon Meter Box for South Australia, single and multi-phase applications with an IP23 rating. Manufactured from 316 Stainless Steel with an N4 surface finish. The meterbox is 690Hx485Wx278D to better fit inside standard stud framing and has 24-pole of DIN space, includes a 63A MCB, Lock off and Meter Neutral Links.

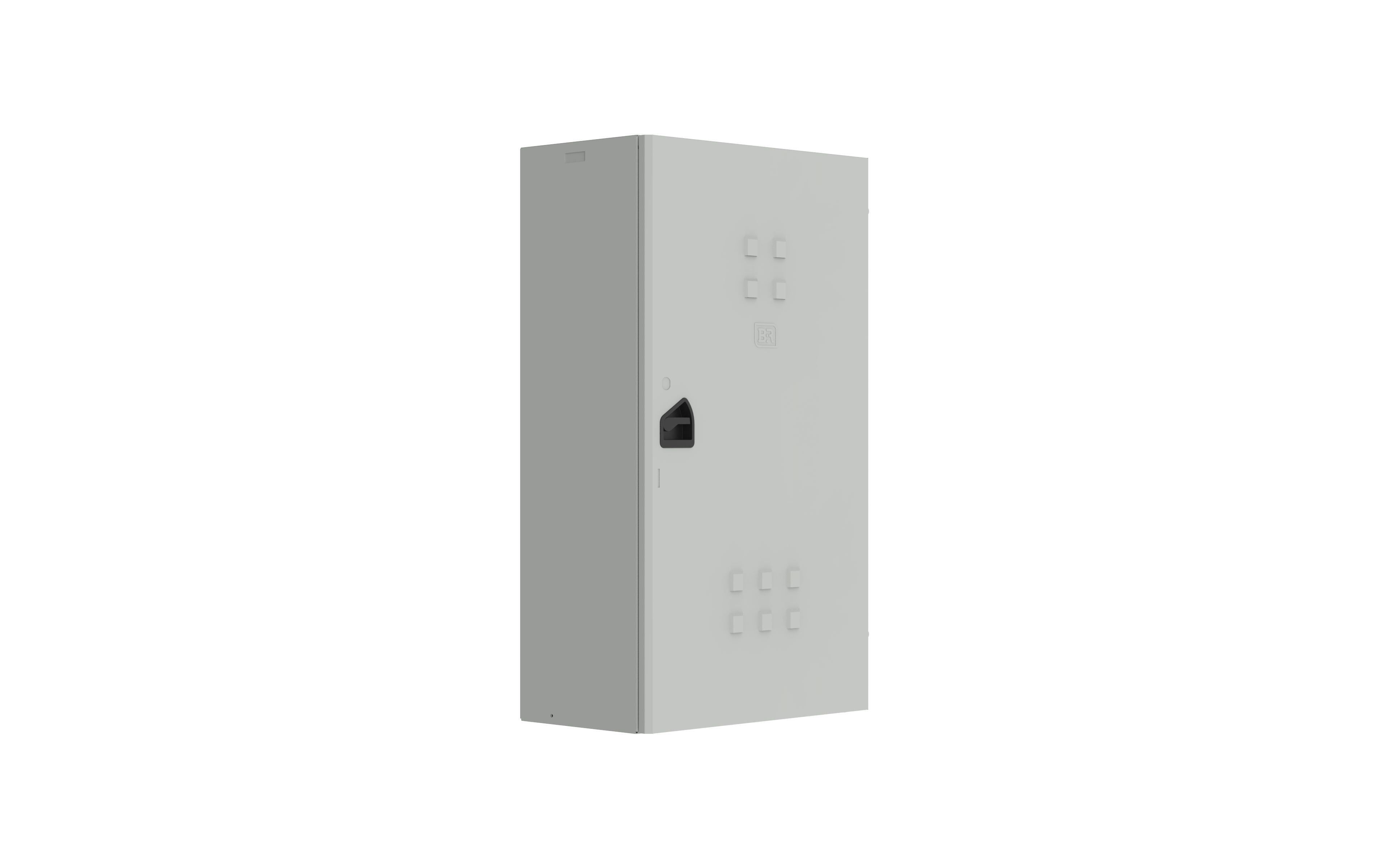

Horizon Meter Box for South Australia, single and multi-phase applications with an IP23 rating. Manufactured from Galvanised Steel and Powdercoated Light Grey RAL7035. The meterbox is 860Hx485Wx278D to better fit inside standard stud framing and has 24-pole of DIN space, includes a 63A MCB, Lock off and Meter Neutral Links.
South Australian Under Fascia Raiser Bracket for 1 phase. Provides and additional 1100mm of additional height for incoming power cables. Includes a mounting plate for the 1 phase mains connection box. Designed and tested to SA supply authority rules & regulations for single phase supply.
Northern Territory Under Fascia Raiser Bracket for 1 phase. Provides and additional 900mm of additional height for incoming power cables. Includes a mounting plate for the 1 phase mains connection box. Designed and tested to SA supply authority rules & regulations for single phase supply.
South Australia Rebated Sides Meter Box for Type 1, single and multi-phase applications. Manufactured from Galvanised Steel with an IP23 rating and rebated to allow the enclosure to be easily recessed into a wall. The enclosure is 600Hx470Wx265D and includes neutral links, earth with the earth being an M8 bolt welded to the body and a cable retainer.

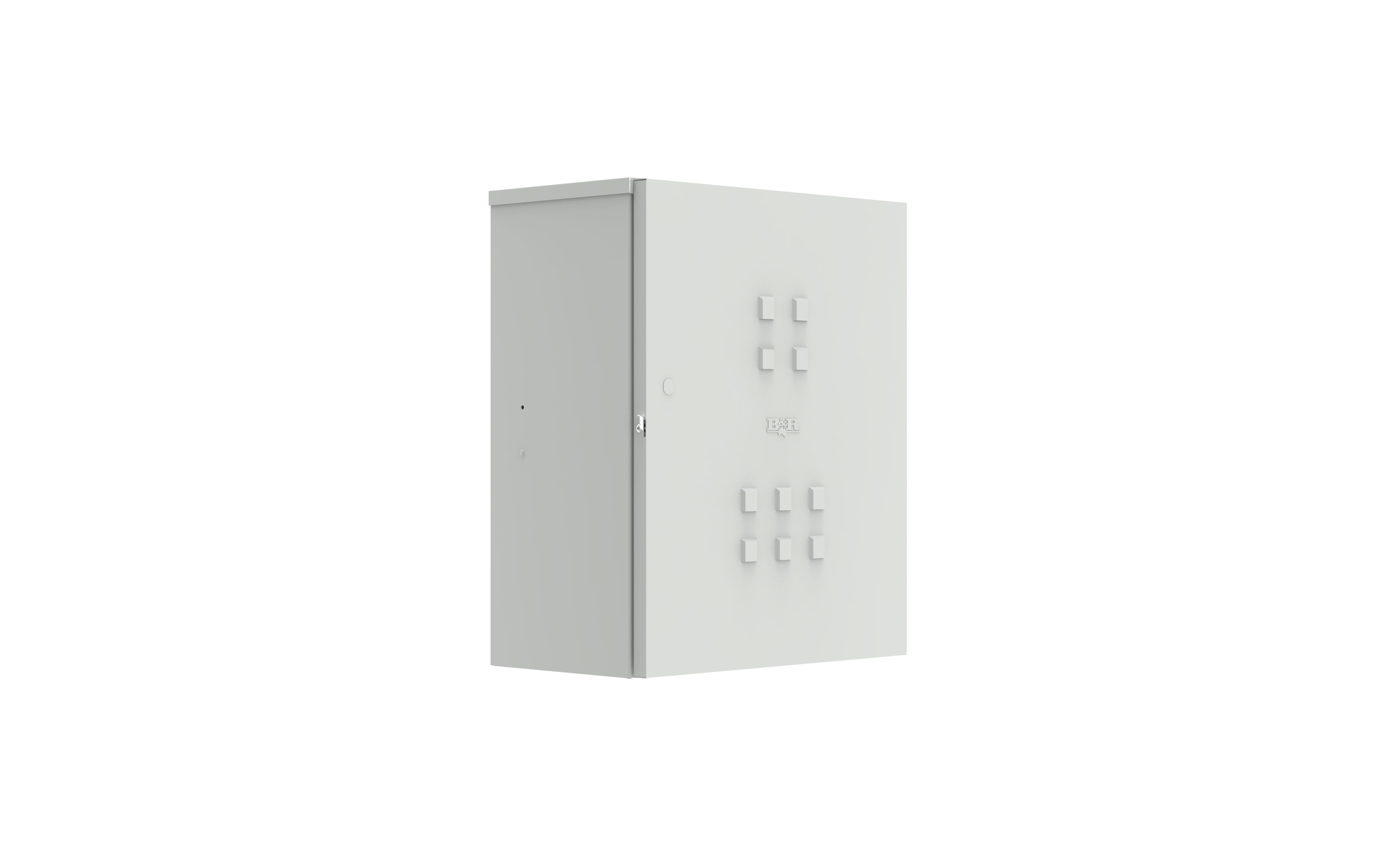

South Australia Straight Side Meter Box Meter Box for single and multi-phase applications. Manufactured from Galvanised Steel with an IP23 rating with a 550H x 430W panel. The enclosure is 600Hx485Wx265D and includes earth and neutral links and meter neutral links.
3 Phase Adapter Plate for South Australian Under Fascia Raiser Bracket. Requires the SA Raiser Bracket RB01/3 and is manufactured from galvanised steel.
