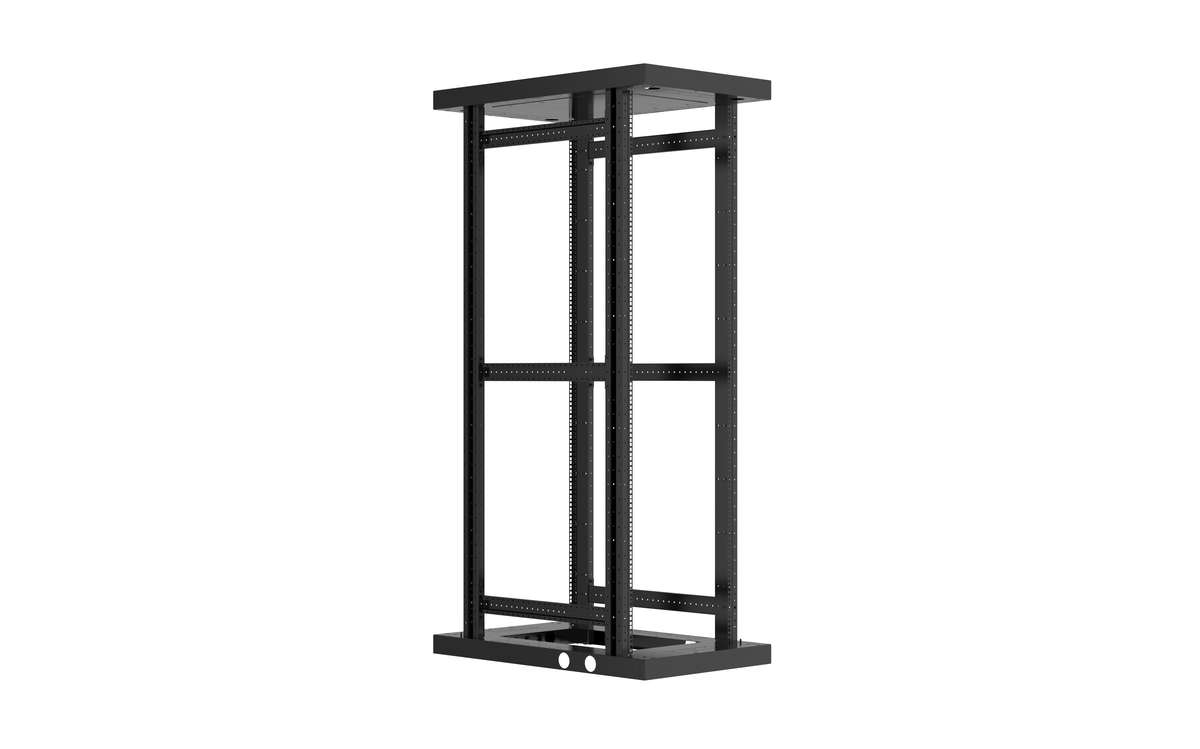

The Ausrack Plus Frame is a 19 inch server rack frame that can be configured into suites and clad as per the application requirements.
| Part No. | Height (mm) | Width (mm) | Depth (mm) | Material | Colour |
|---|---|---|---|---|---|
| AF18U606 | 936 | 600 | 600 | Zinc Coated Steel | Black |
| AF18U608 | 936 | 600 | 800 | Zinc Coated Steel | Black |
| AF18U609 | 936 | 600 | 900 | Zinc Coated Steel | Black |
| AF18U610 | 936 | 600 | 1000 | Zinc Coated Steel | Black |
| AF18U611 | 936 | 600 | 1100 | Zinc Coated Steel | Black |
| AF18U612 | 936 | 600 | 1200 | Zinc Coated Steel | Black |
| AF18U806 | 936 | 800 | 600 | Zinc Coated Steel | Black |
| AF18U808 | 936 | 800 | 800 | Zinc Coated Steel | Black |
| AF18U809 | 936 | 800 | 900 | Zinc Coated Steel | Black |
| AF18U810 | 936 | 800 | 1000 | Zinc Coated Steel | Black |
| AF18U811 | 936 | 800 | 1100 | Zinc Coated Steel | Black |
| AF18U812 | 936 | 800 | 1200 | Zinc Coated Steel | Black |
| AF24U606 | 1202 | 600 | 600 | Zinc Coated Steel | Black |
| AF24U608 | 1202 | 600 | 800 | Zinc Coated Steel | Black |
| AF24U609 | 1202 | 600 | 900 | Zinc Coated Steel | Black |
| AF24U610 | 1202 | 600 | 1000 | Zinc Coated Steel | Black |
| AF24U611 | 1202 | 600 | 1100 | Zinc Coated Steel | Black |
| AF24U612 | 1202 | 600 | 1200 | Zinc Coated Steel | Black |
| AF24U806 | 1202 | 800 | 600 | Zinc Coated Steel | Black |
| AF24U808 | 1202 | 800 | 800 | Zinc Coated Steel | Black |
| AF24U809 | 1202 | 800 | 900 | Zinc Coated Steel | Black |
| AF24U810 | 1202 | 800 | 1000 | Zinc Coated Steel | Black |
| AF24U811 | 1202 | 800 | 1100 | Zinc Coated Steel | Black |
| AF24U812 | 1202 | 800 | 1200 | Zinc Coated Steel | Black |
| AF27U606 | 1336 | 600 | 600 | Zinc Coated Steel | Black |
| AF27U608 | 1336 | 600 | 800 | Zinc Coated Steel | Black |
| AF27U609 | 1336 | 600 | 900 | Zinc Coated Steel | Black |
| AF27U610 | 1336 | 600 | 1000 | Zinc Coated Steel | Black |
| AF27U611 | 1336 | 600 | 1100 | Zinc Coated Steel | Black |
| AF27U612 | 1336 | 600 | 1200 | Zinc Coated Steel | Black |
| AF27U806 | 1336 | 800 | 600 | Zinc Coated Steel | Black |
| AF27U808 | 1336 | 800 | 800 | Zinc Coated Steel | Black |
| AF27U809 | 1336 | 800 | 900 | Zinc Coated Steel | Black |
| AF27U810 | 1336 | 800 | 1000 | Zinc Coated Steel | Black |
| AF27U811 | 1336 | 800 | 1100 | Zinc Coated Steel | Black |
| AF27U812 | 1336 | 800 | 1200 | Zinc Coated Steel | Black |
| AF40U606 | 1913 | 600 | 600 | Zinc Coated Steel | Black |
| AF40U608 | 1913 | 600 | 800 | Zinc Coated Steel | Black |
| AF40U609 | 1913 | 600 | 900 | Zinc Coated Steel | Black |
| AF40U610 | 1913 | 600 | 1000 | Zinc Coated Steel | Black |
| AF40U611 | 1913 | 600 | 1100 | Zinc Coated Steel | Black |
| AF40U612 | 1913 | 600 | 1200 | Zinc Coated Steel | Black |
| AF40U806 | 1913 | 800 | 600 | Zinc Coated Steel | Black |
| AF40U808 | 1913 | 800 | 800 | Zinc Coated Steel | Black |
| AF40U809 | 1913 | 800 | 900 | Zinc Coated Steel | Black |
| AF40U810 | 1913 | 800 | 1000 | Zinc Coated Steel | Black |
| AF40U811 | 1913 | 800 | 1100 | Zinc Coated Steel | Black |
| AF40U812 | 1913 | 800 | 1200 | Zinc Coated Steel | Black |
| AF42U606 | 2002 | 600 | 600 | Zinc Coated Steel | Black |
| AF42U608 | 2002 | 600 | 800 | Zinc Coated Steel | Black |
| AF42U609 | 2002 | 600 | 900 | Zinc Coated Steel | Black |
| AF42U610 | 2002 | 600 | 1000 | Zinc Coated Steel | Black |
| AF42U611 | 2002 | 600 | 1100 | Zinc Coated Steel | Black |
| AF42U612 | 2002 | 600 | 1200 | Zinc Coated Steel | Black |
| AF42U806 | 2002 | 800 | 600 | Zinc Coated Steel | Black |
| AF42U808 | 2002 | 800 | 800 | Zinc Coated Steel | Black |
| AF42U809 | 2002 | 800 | 900 | Zinc Coated Steel | Black |
| AF42U810 | 2002 | 800 | 1000 | Zinc Coated Steel | Black |
| AF42U811 | 2002 | 800 | 1100 | Zinc Coated Steel | Black |
| AF42U812 | 2002 | 800 | 1200 | Zinc Coated Steel | Black |
| AF45U606 | 2135 | 600 | 600 | Zinc Coated Steel | Black |
| AF45U608 | 2135 | 600 | 800 | Zinc Coated Steel | Black |
| AF45U609 | 2135 | 600 | 900 | Zinc Coated Steel | Black |
| AF45U610 | 2135 | 600 | 1000 | Zinc Coated Steel | Black |
| AF45U611 | 2135 | 600 | 1100 | Zinc Coated Steel | Black |
| AF45U612 | 2135 | 600 | 1200 | Zinc Coated Steel | Black |
| AF45U806 | 2135 | 800 | 600 | Zinc Coated Steel | Black |
| AF45U808 | 2135 | 800 | 800 | Zinc Coated Steel | Black |
| AF45U809 | 2135 | 800 | 900 | Zinc Coated Steel | Black |
| AF45U810 | 2135 | 800 | 1000 | Zinc Coated Steel | Black |
| AF45U811 | 2135 | 800 | 1100 | Zinc Coated Steel | Black |
| AF45U812 | 2135 | 800 | 1200 | Zinc Coated Steel | Black |
| AF47U606 | 2225 | 600 | 600 | Zinc Coated Steel | Black |
| AF47U608 | 2225 | 600 | 800 | Zinc Coated Steel | Black |
| AF47U609 | 2225 | 600 | 900 | Zinc Coated Steel | Black |
| AF47U610 | 2225 | 600 | 1000 | Zinc Coated Steel | Black |
| AF47U611 | 2225 | 600 | 1100 | Zinc Coated Steel | Black |
| AF47U612 | 2225 | 600 | 1200 | Zinc Coated Steel | Black |
| AF47U806 | 2225 | 800 | 600 | Zinc Coated Steel | Black |
| AF47U808 | 2225 | 800 | 800 | Zinc Coated Steel | Black |
| AF47U809 | 2225 | 800 | 900 | Zinc Coated Steel | Black |
| AF47U810 | 2225 | 800 | 1000 | Zinc Coated Steel | Black |
| AF47U811 | 2225 | 800 | 1100 | Zinc Coated Steel | Black |
| AF47U812 | 2225 | 800 | 1200 | Zinc Coated Steel | Black |
| AF48U606 | 2270 | 600 | 600 | Zinc Coated Steel | Black |
| AF48U608 | 2270 | 600 | 800 | Zinc Coated Steel | Black |
| AF48U609 | 2270 | 600 | 900 | Zinc Coated Steel | Black |
| AF48U610 | 2270 | 600 | 1000 | Zinc Coated Steel | Black |
| AF48U611 | 2270 | 600 | 1100 | Zinc Coated Steel | Black |
| AF48U612 | 2270 | 600 | 1200 | Zinc Coated Steel | Black |
| AF48U806 | 2270 | 800 | 600 | Zinc Coated Steel | Black |
| AF48U808 | 2270 | 800 | 800 | Zinc Coated Steel | Black |
| AF48U809 | 2270 | 800 | 900 | Zinc Coated Steel | Black |
| AF48U810 | 2270 | 800 | 1000 | Zinc Coated Steel | Black |
| AF48U811 | 2270 | 800 | 1100 | Zinc Coated Steel | Black |
| AF48U812 | 2270 | 800 | 1200 | Zinc Coated Steel | Black |
