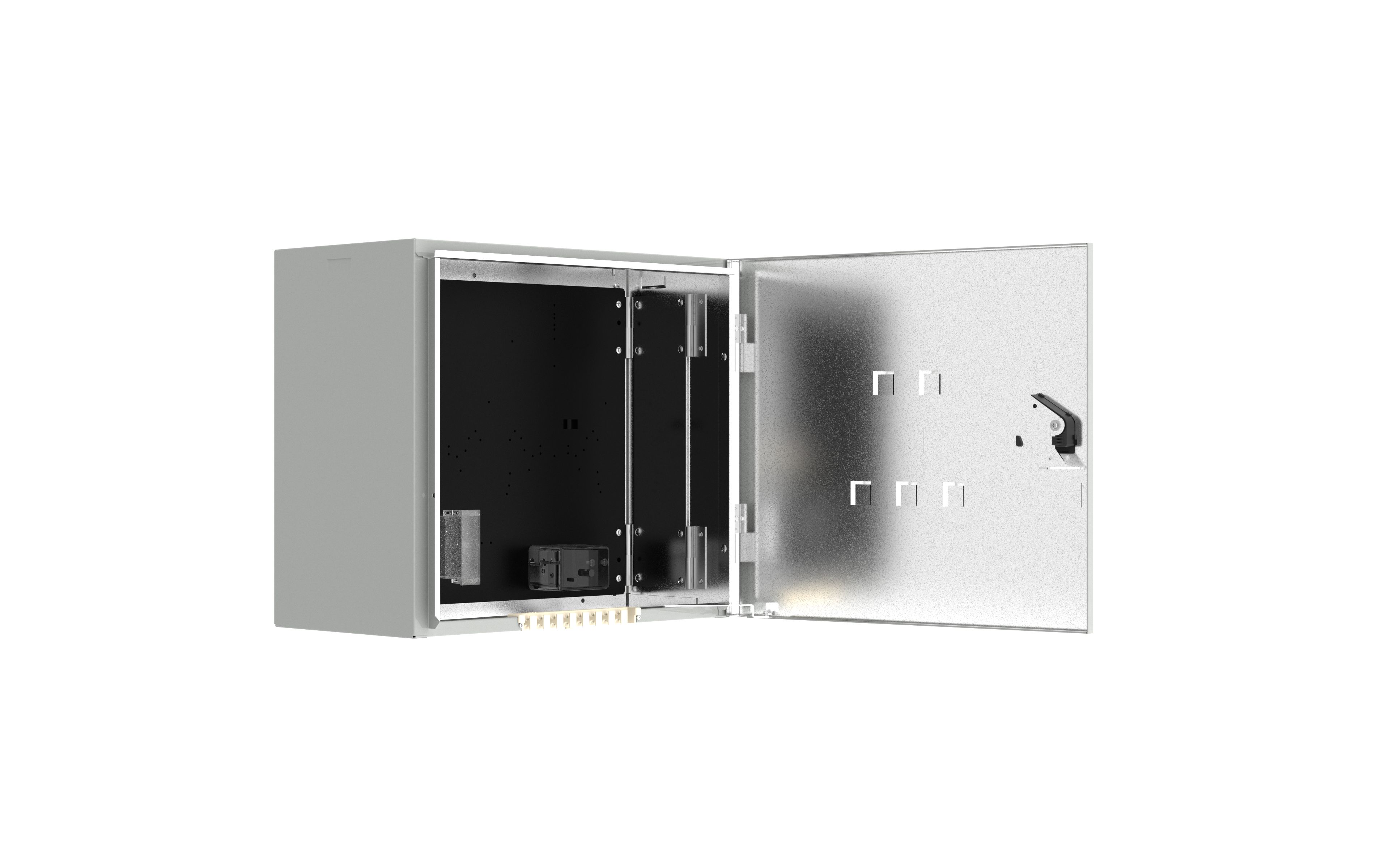

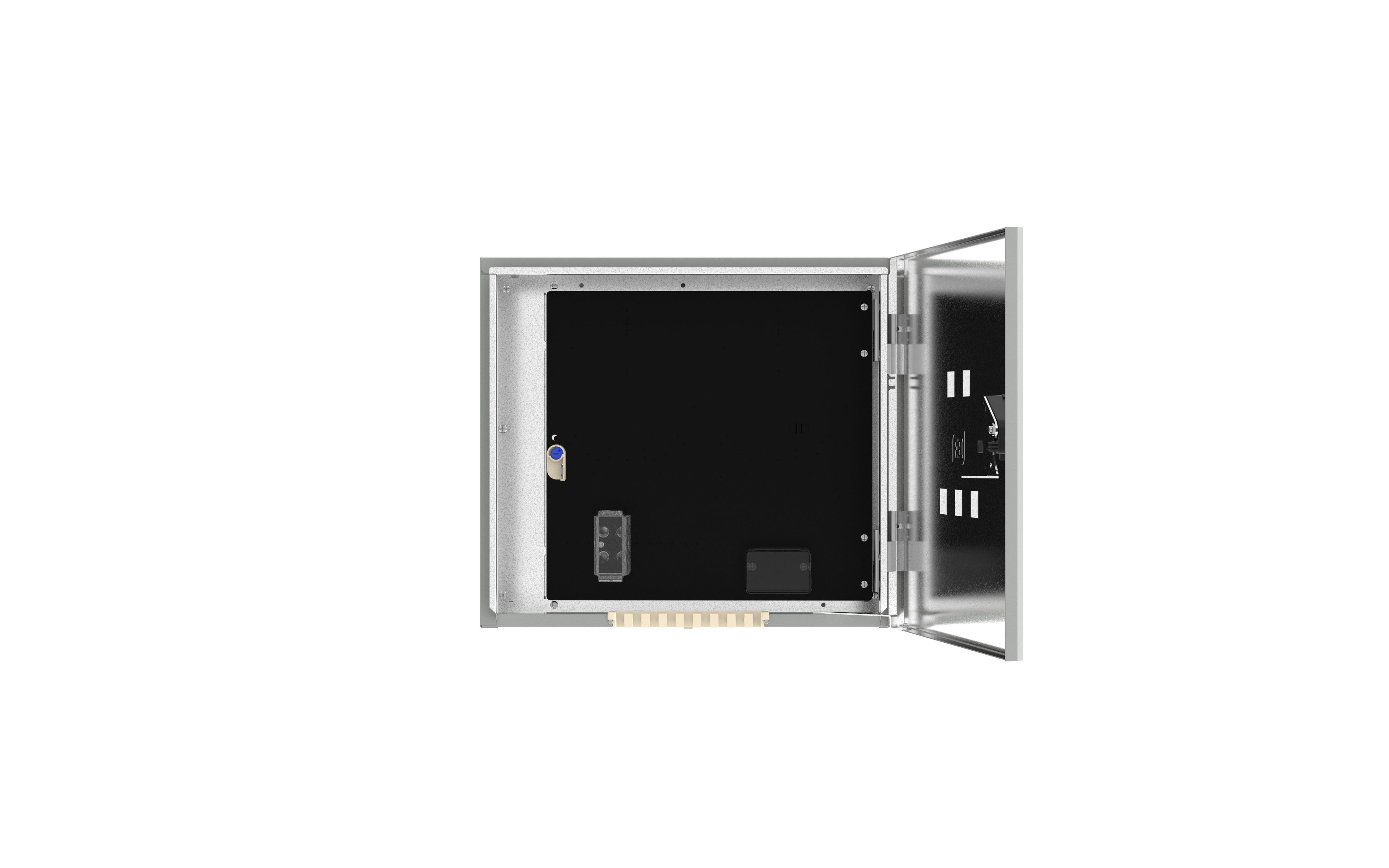

Horizon Meter Box for Victoria, single and multi-phase applications with an IP23 rating. Manufactured from Galvanised Steel and Powdercoated Light Grey RAL7035. The meterbox is 430Hx485Wx278D to better fit inside standard stud framing and has a panel and service fuse only. The V11/2 has also been designed to be compliant for constructure sites as standard and comes complete with innovative features like a flush gravity catch and safety cord retainer. Suitable for a maximum of 1 fuses and 1 meters in single phase, or 6 fuses and 2 meters in 3 phase.
Part Number:
V11/2
Error: Unable to load accounts at this time.
| IP Rating | IP23 |
|---|---|
| Inclusions | 380H x 400W Meter Panel (75mm depth behind), Captive Panel Retainer, Cord Retainer, External Frame Mounting Brackets, Padlock Facility, Self-closing Gravity Catch, Service Fuse, Shut-off Slide (ratchet) on Top Cable Entry, Weatherproof Installation Label |
| Approvals | AS/NZS3000 compliant weatherproof installation label, AS/NZS3012, AS1170.2-2002: Structural design actions – wind actions, IP23, VSIR approval #SIR140615B |
| Construction | Body – 1mm Galvanised Steel, RAL7035 powdercoat external surface finish |
| Material | Galvanised Steel |
| Colour | RAL7035 |
Horizon Meter Box Accessory – Roof – to suit 35Hx485Wx340D galvanised steel enclosure powdercoated to RAL7035. The roof is 35H at the highest point x 485W x 340D so includes an overhange to keep water away from the enclosure door.
Horizon Meter Box Accessory – Plinth – to suit 485W x 278D galvanised steel enclosure powdercoated to RAL7035. The plinth is 690mm high for easy access.
