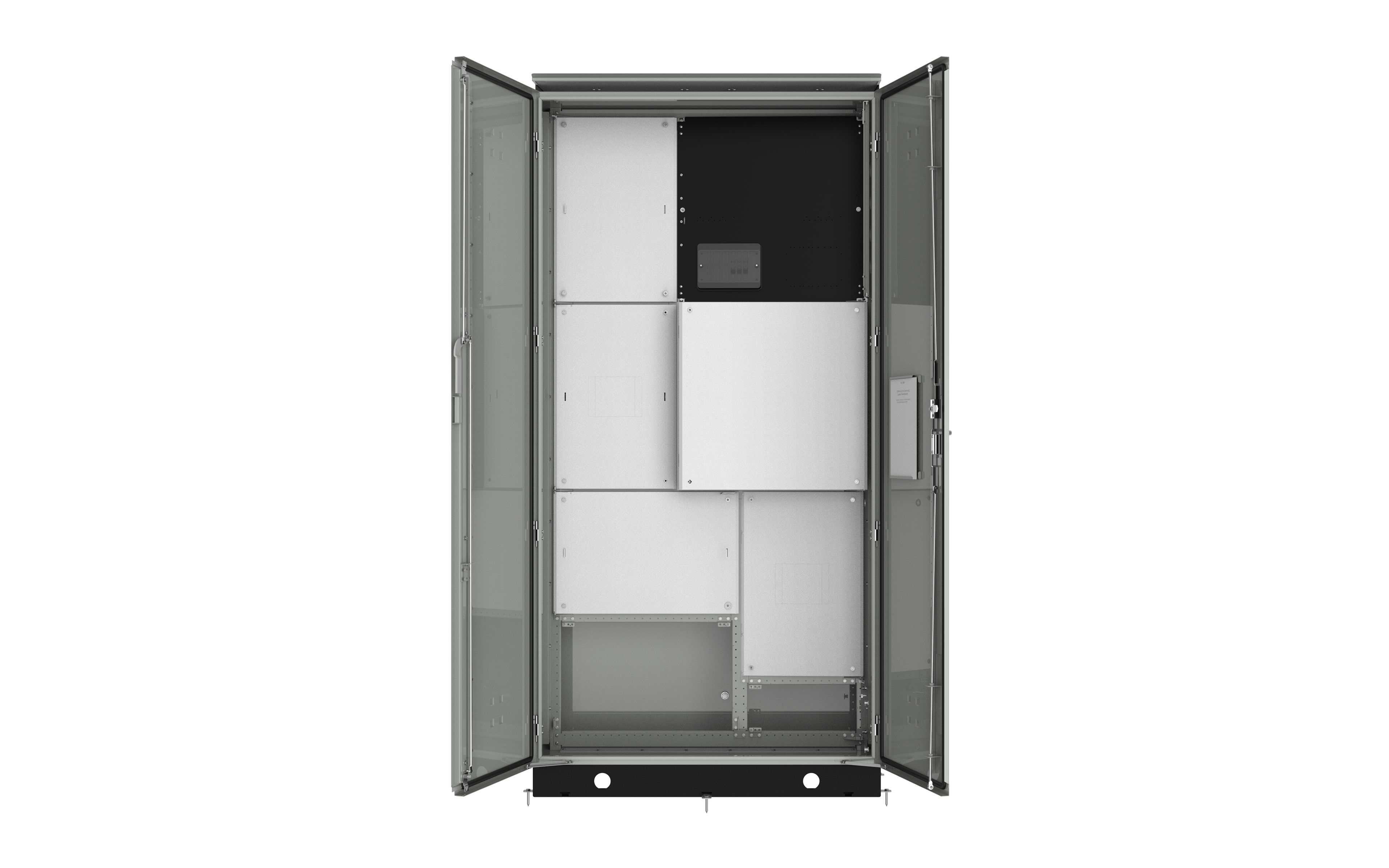

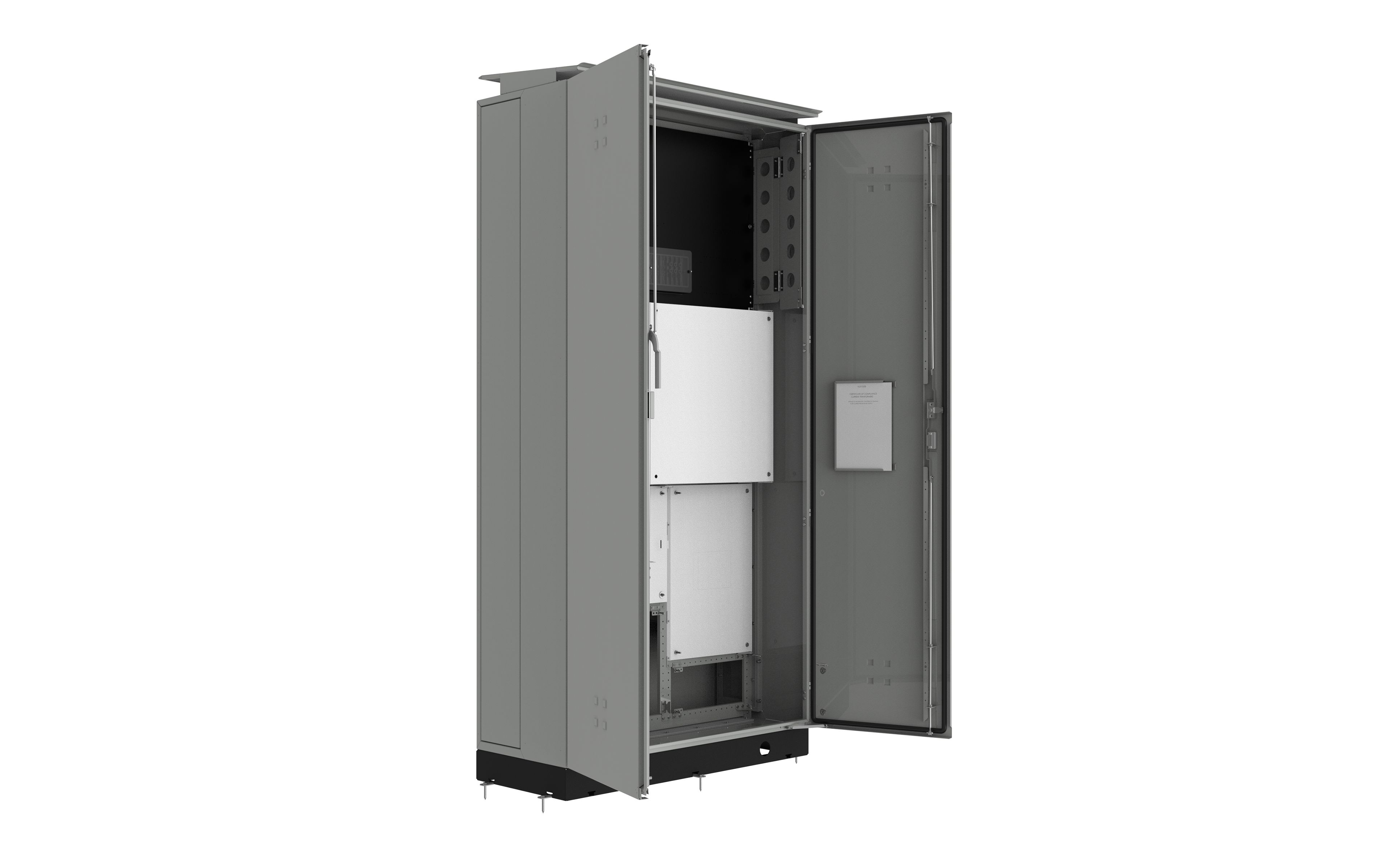

Infinity 3G – 2240Hx1070Wx480D made from Zinc Coated Steel and rated to IP66. A pre-configured enclosure suitable for metering or power distribution in Queensland with all metalware assembled. This unit is plinth mounted on an included 100mm high plinth and is suitable for 1 x CT tenant. Test block and CTs mounted. There is Space for Schneider MCCB Max 630A main switch section and a submain section containing Space for 1 x Schneider MCCB Max 630A. A sunroof is also supplied to be fitted on site and is recommended for all CT metering applications.
Part Number:
TGXQCT630
Error: Unable to load accounts at this time.
| IP Rating | IP66 |
|---|---|
| Inclusions | 3-point locking, 3mm aluminium gland plate, Available metering configurations – "1 x CT tenant. Test block and CTs mounted", Document Holder, Main Switch Section – Space for Schneider MCCB Max 630A, Multiple Earth Neutral provided, Plinth, Recessed padlockable swing handle keyed 92268, Roof Sunshade, Stainless Steel Door Hinges, Sub Main Section – Space for 1 x Schneider MCCB Max 630A, Typical Incomer (mm2) – 240 |
| Approvals | AS/NZS 61439, IP66 Region C AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 powdercoated, Solid Steel Hinged Double Doors |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
