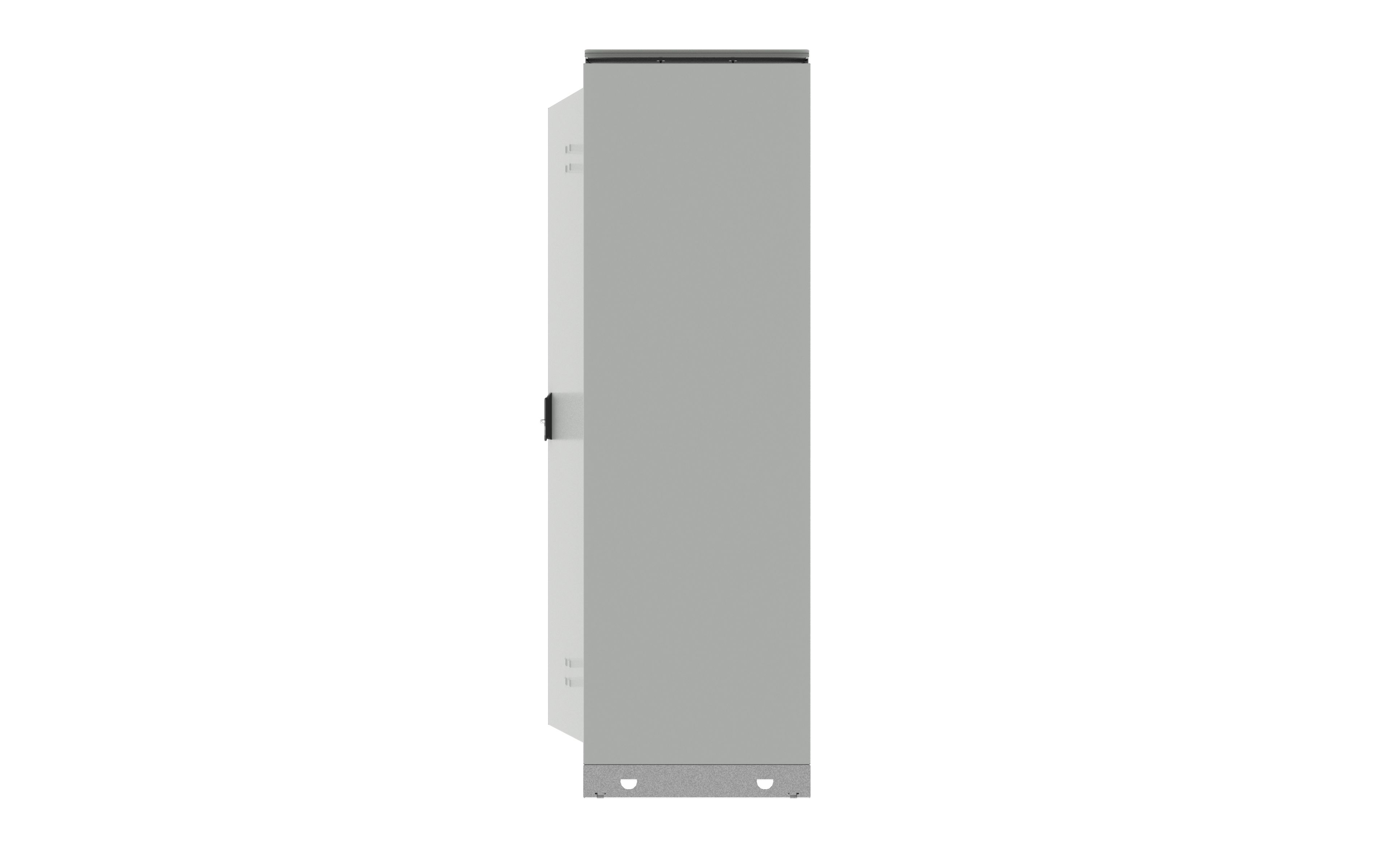

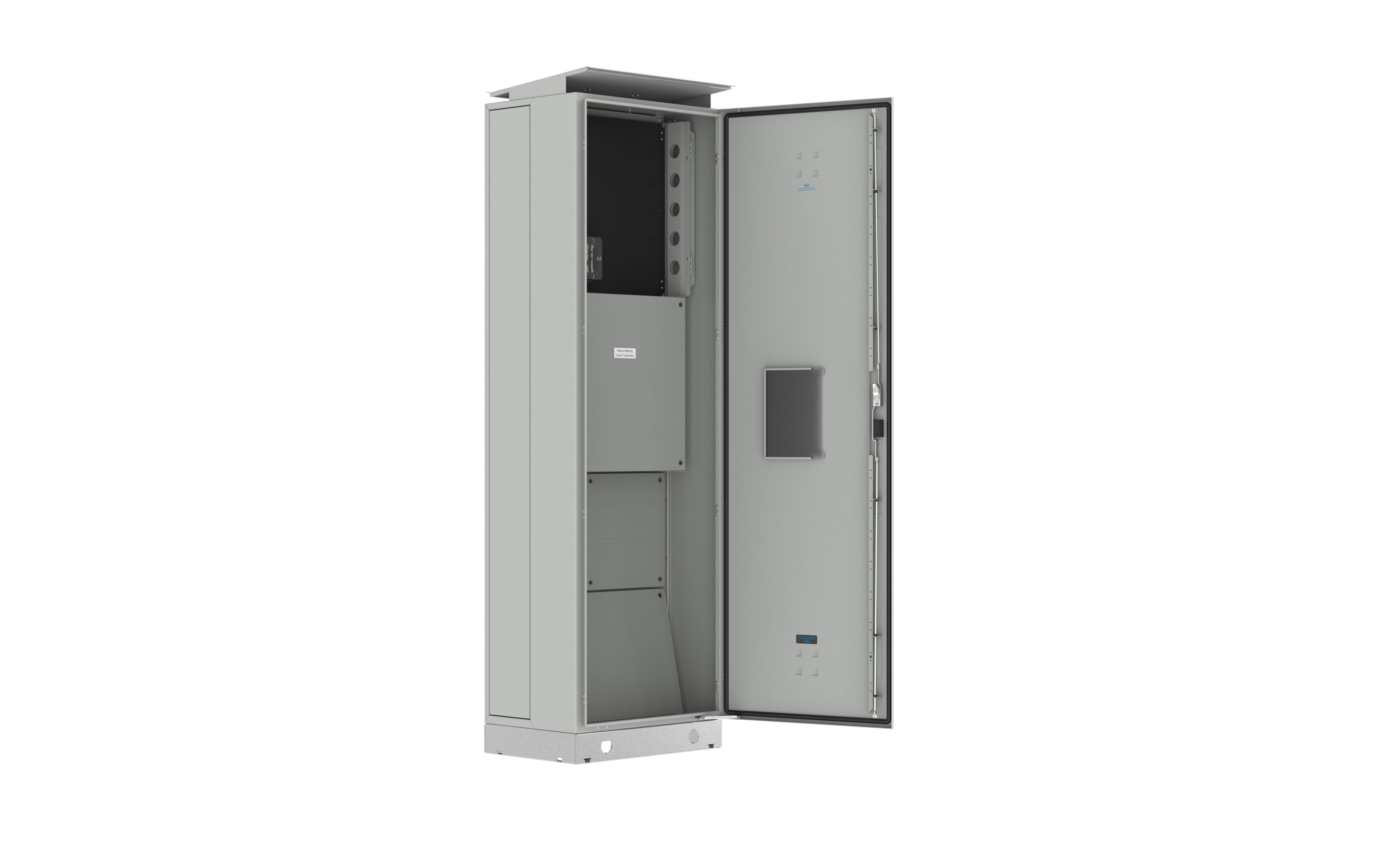

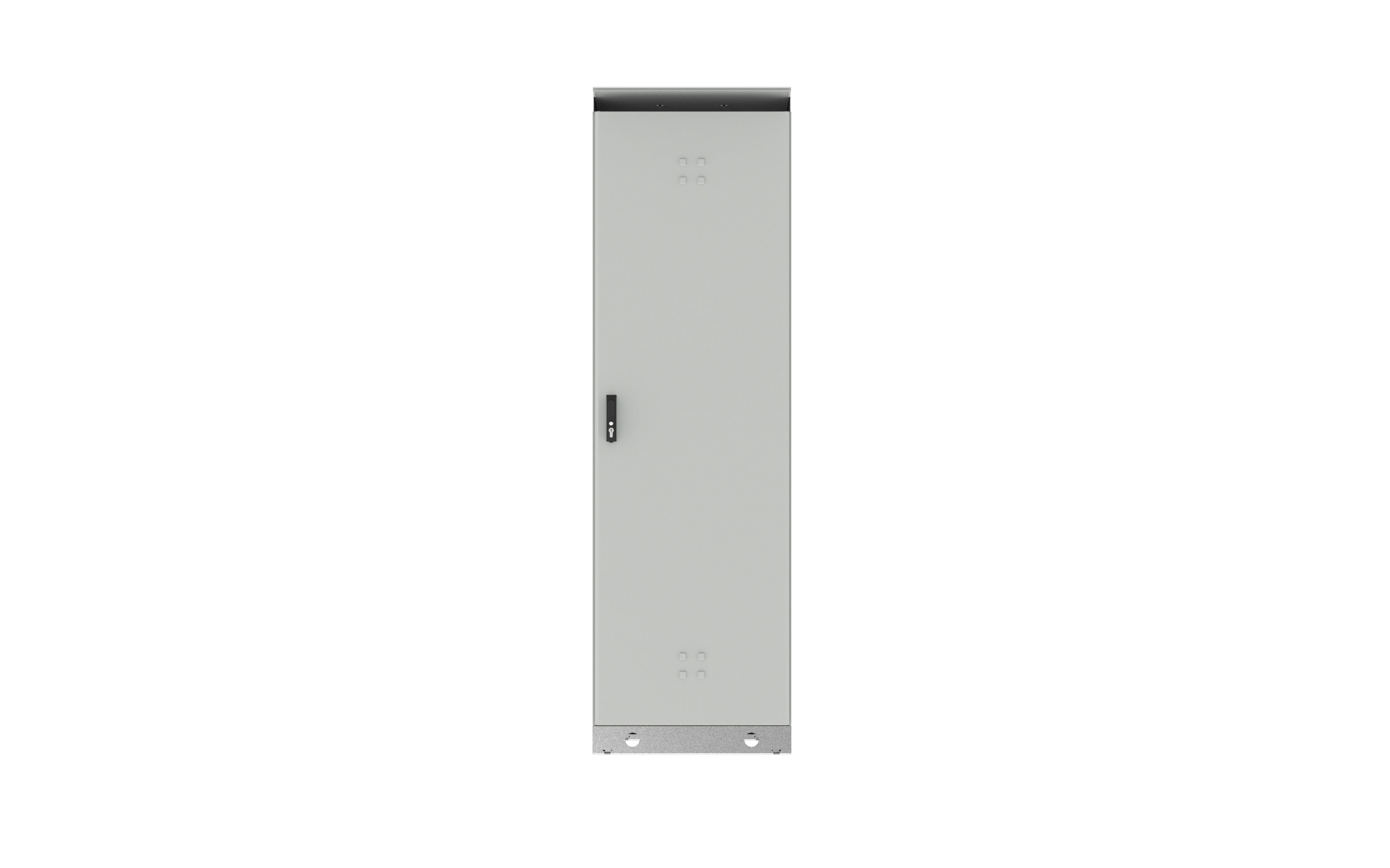

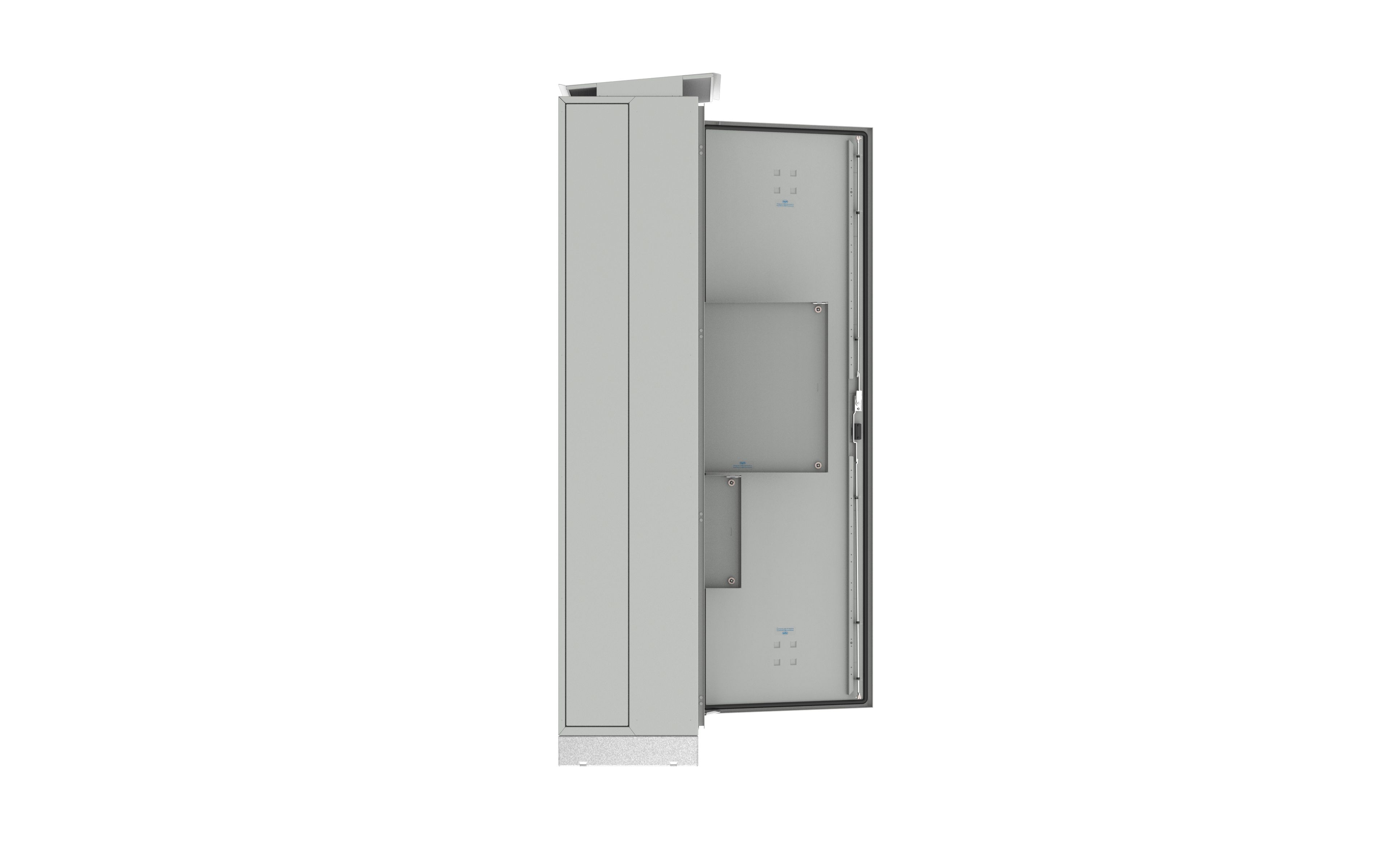

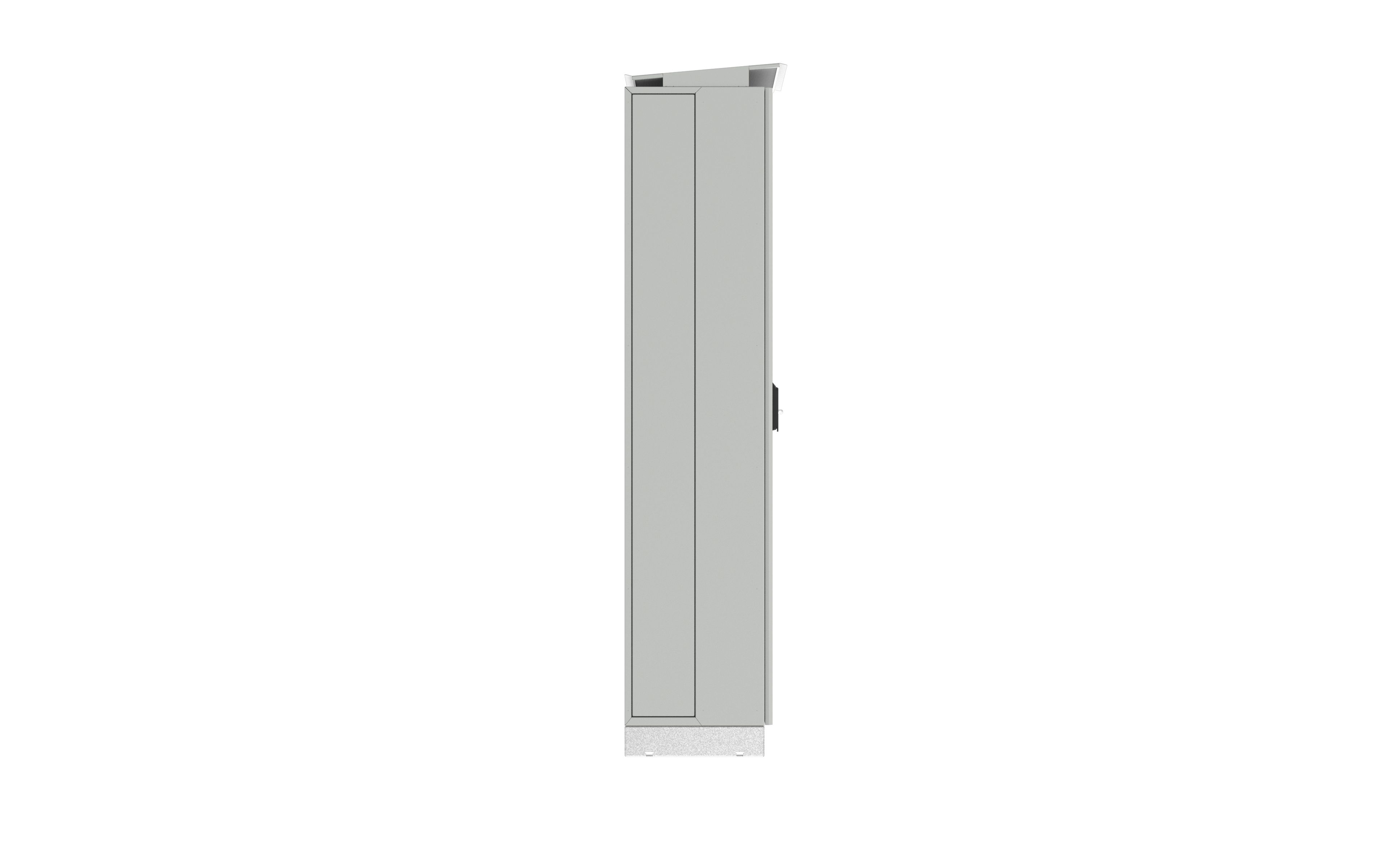

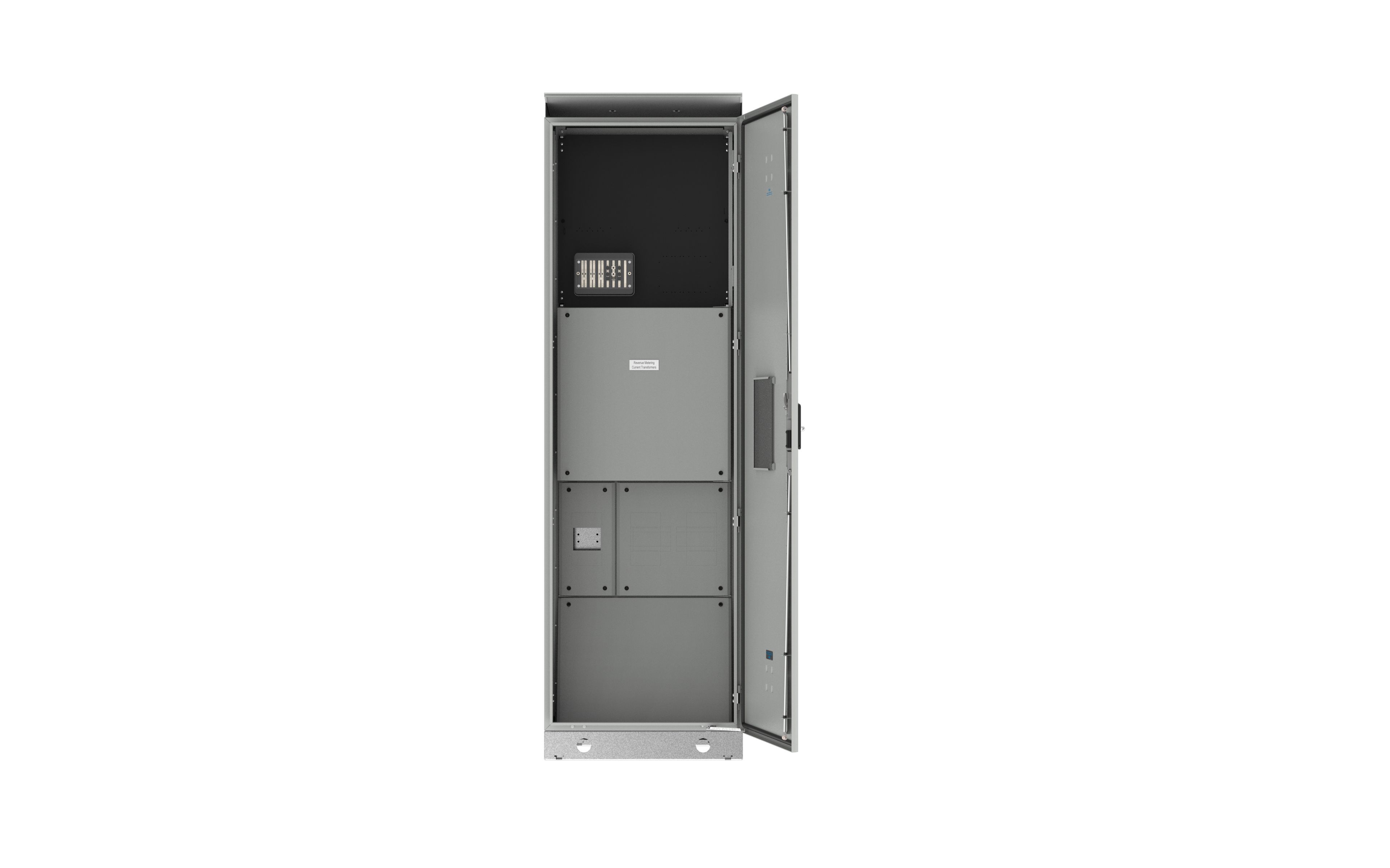

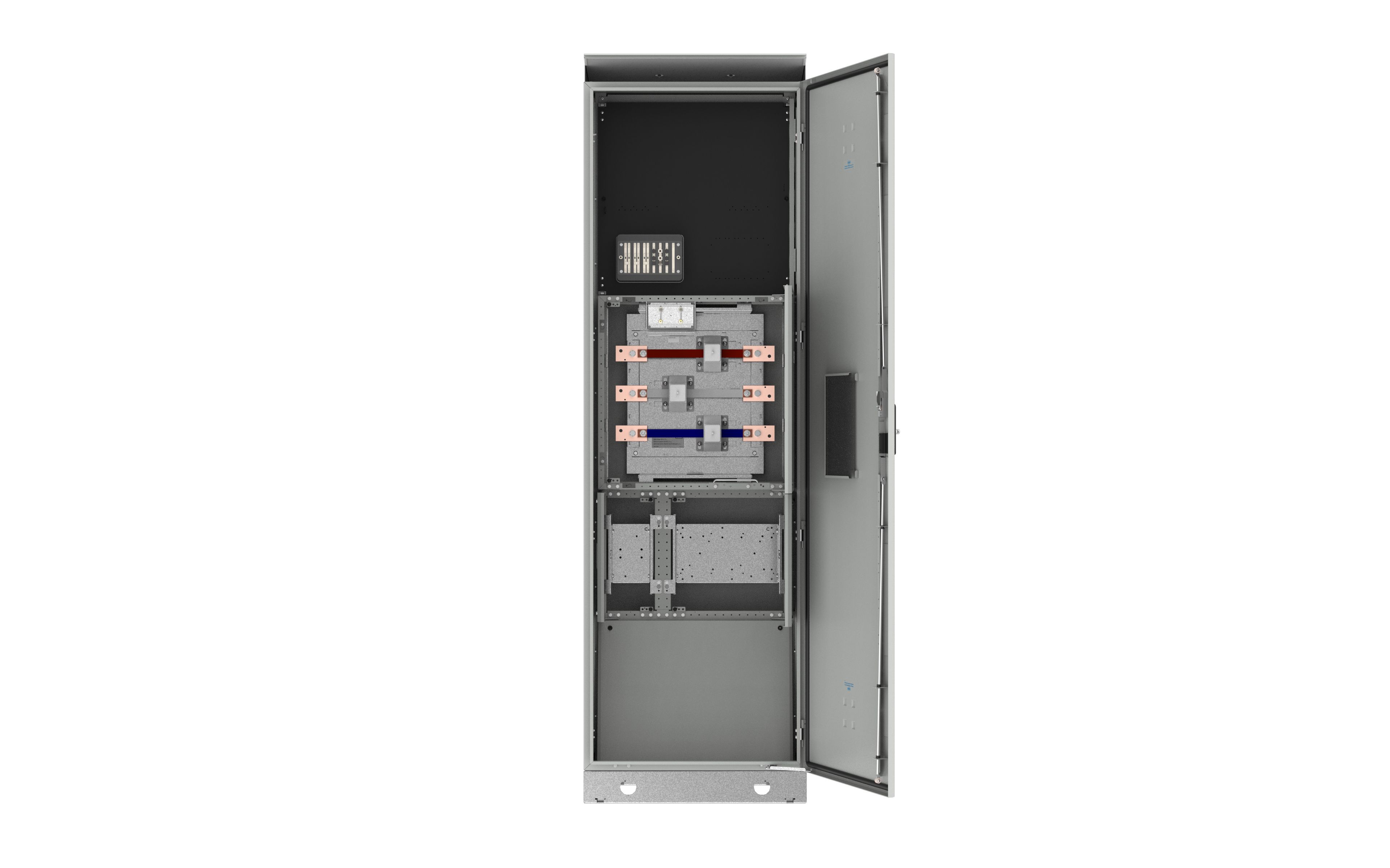

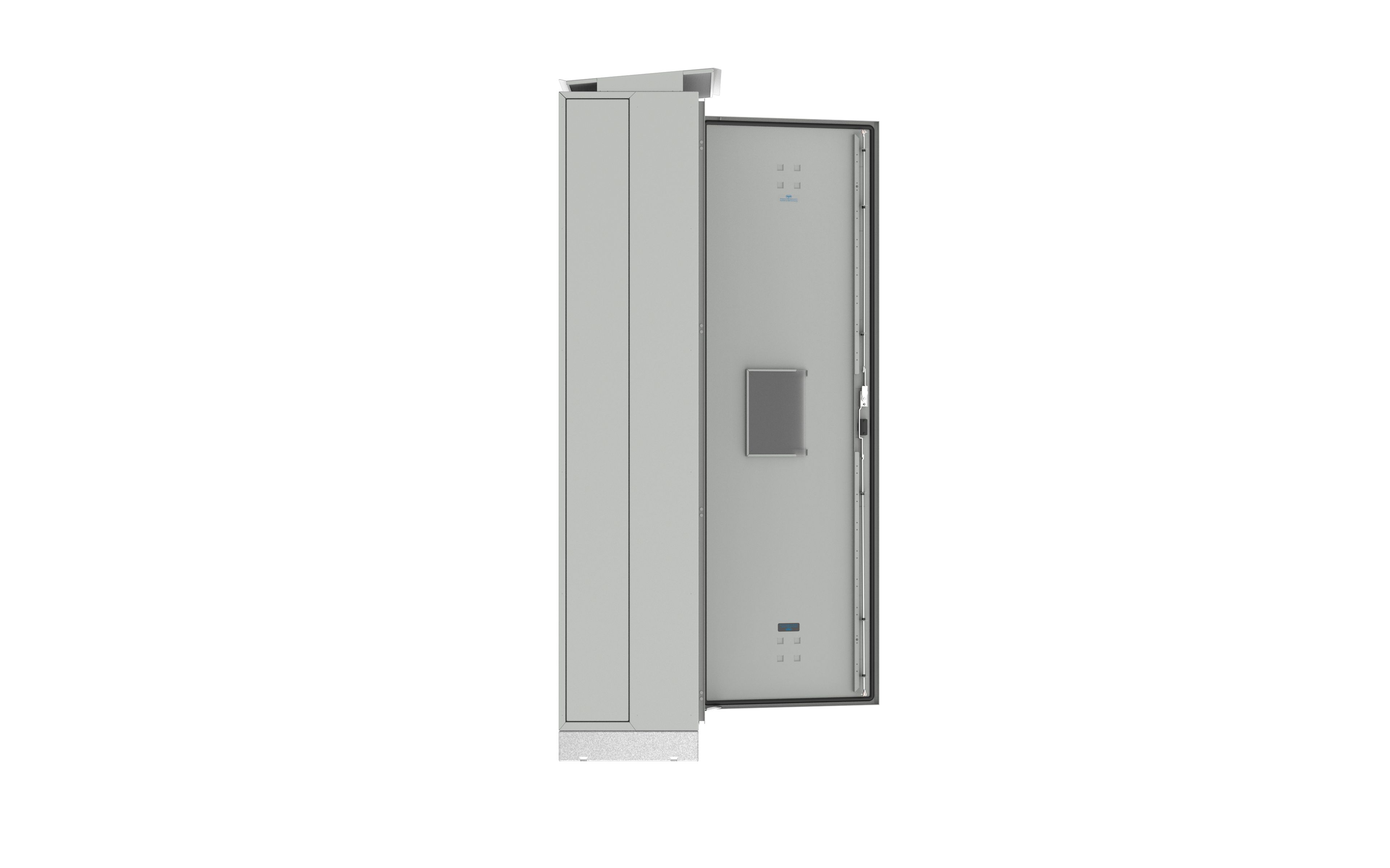

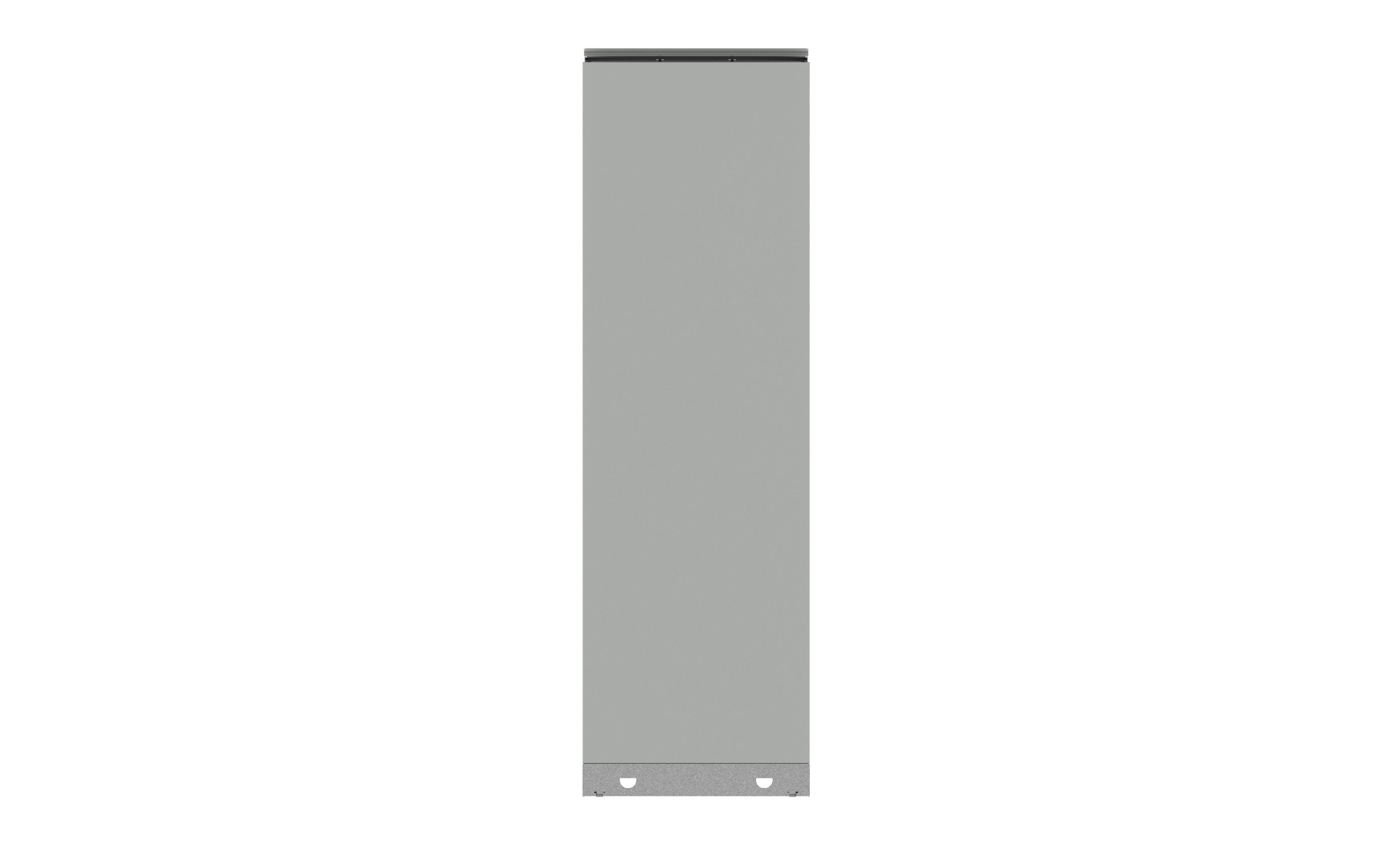

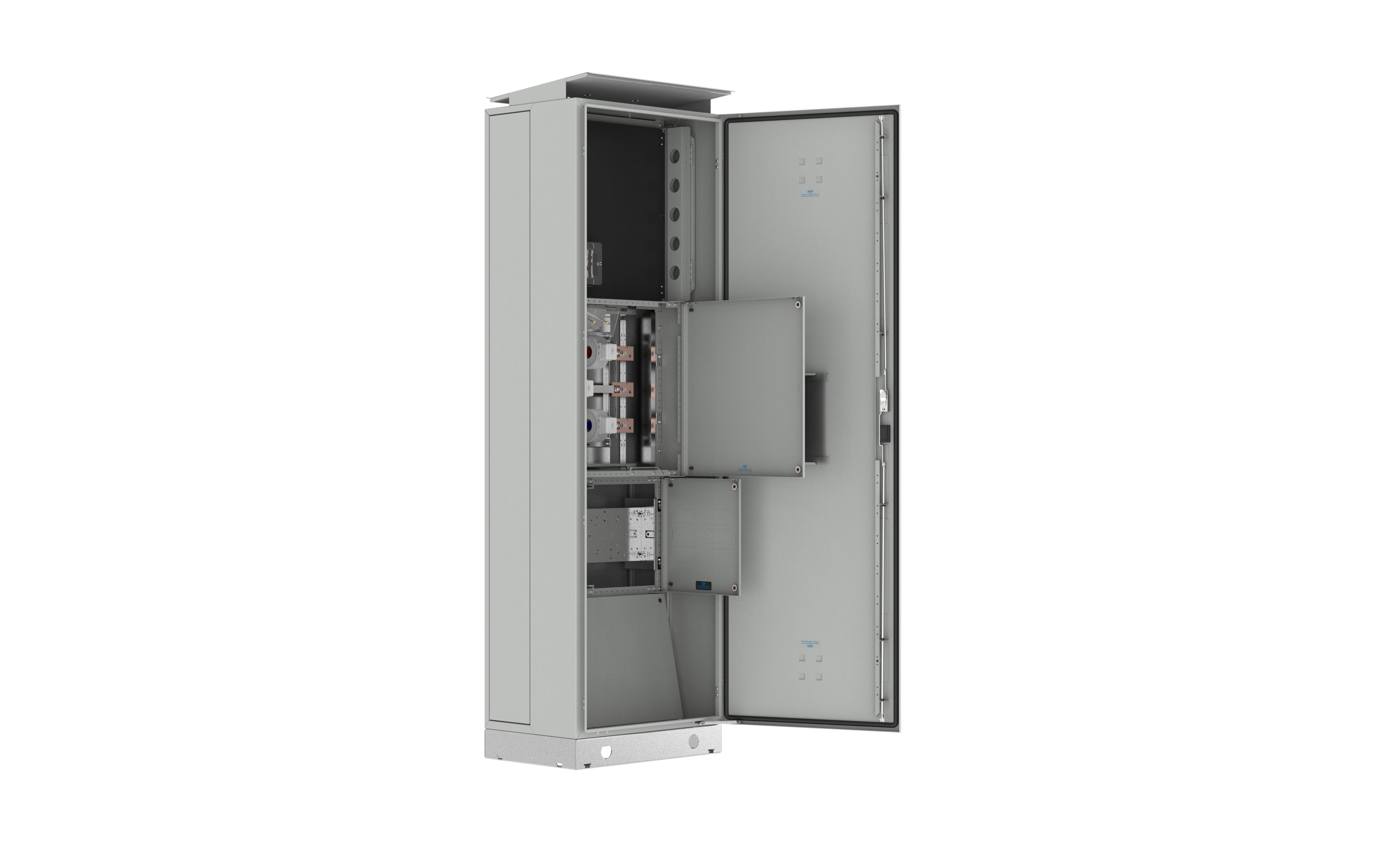

Infinity 3G – 2240Hx670Wx480D made from Zinc Coated Steel and rated to IP66. A pre-configured and pre-wired enclosure suitable for metering or power distribution in Queensland with all metalware assembled. This unit is plinth mounted on an included 100mm high plinth and is suitable for 1 x CT tenant. Test block and CTs mounted. It is Supplied with Schneider NSX250B 250A Micro 2.2 25kA main switch section and a submain section containing 250A rated tails (no devices). A sunroof is also supplied to be fitted on site and is recommended for all CT metering applications. Also supplied with the following switchgear – 1 x NSX rotary handle, 2 x NSX terminal shield, 1 x NSX 250B 25kA
Part Number:
TGXQCT250/CW
Error: Unable to load accounts at this time.
| IP Rating | IP66 |
|---|---|
| Inclusions | 1 x NSX 250B 25kA, 1 x NSX rotary handle, 10 x MCB 6kA, 10 x MCB padlock device, 2 x NSX terminal shield, 3-point locking, 3mm aluminium gland plate, Available metering configurations – "1 x CT tenant. Test block and CTs mounted", Document Holder, Main Switch Section – Supplied with Schneider NSX250B 250A Micro 2.2 25kA, Multiple Earth Neutral provided, Plinth, Recessed padlockable swing handle keyed 92268, Roof Sunshade, Stainless Steel Door Hinges, Sub Main Section – 250A rated tails (no devices), Typical Incomer (mm2) – 95 |
| Approvals | AS/NZS 61439, IP66 Region C AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 powdercoated, Solid Steel Hinged Door |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
