Enclosure – Connector TE – 400Hx200Wx120D – Stainless Steel – TE4212/S

Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 2
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 3
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 4
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 5
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 1
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 2
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 3
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 4
Enclosure - Connector TE - 400Hx200Wx120D - Stainless Steel - TE4212/S - 5

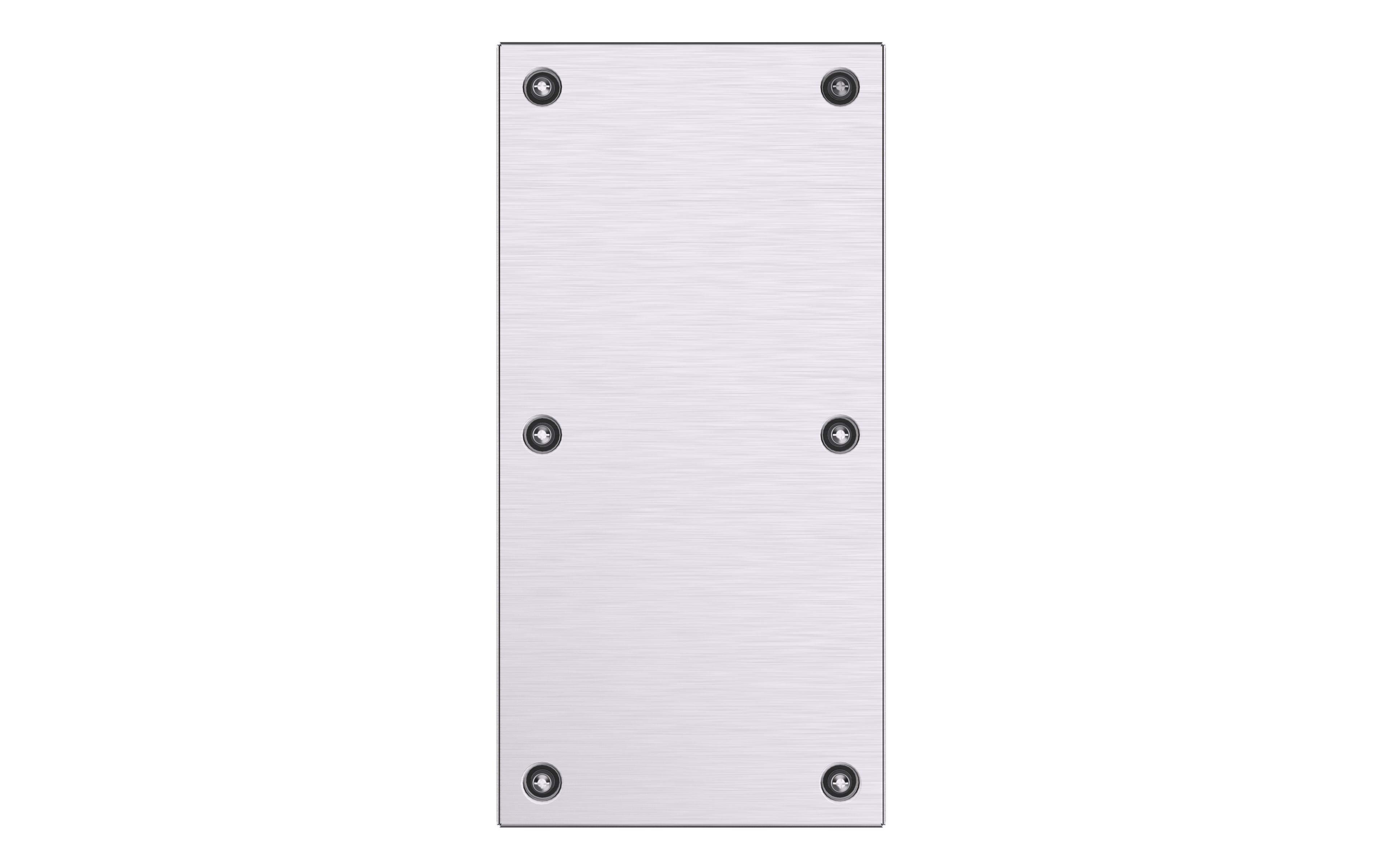

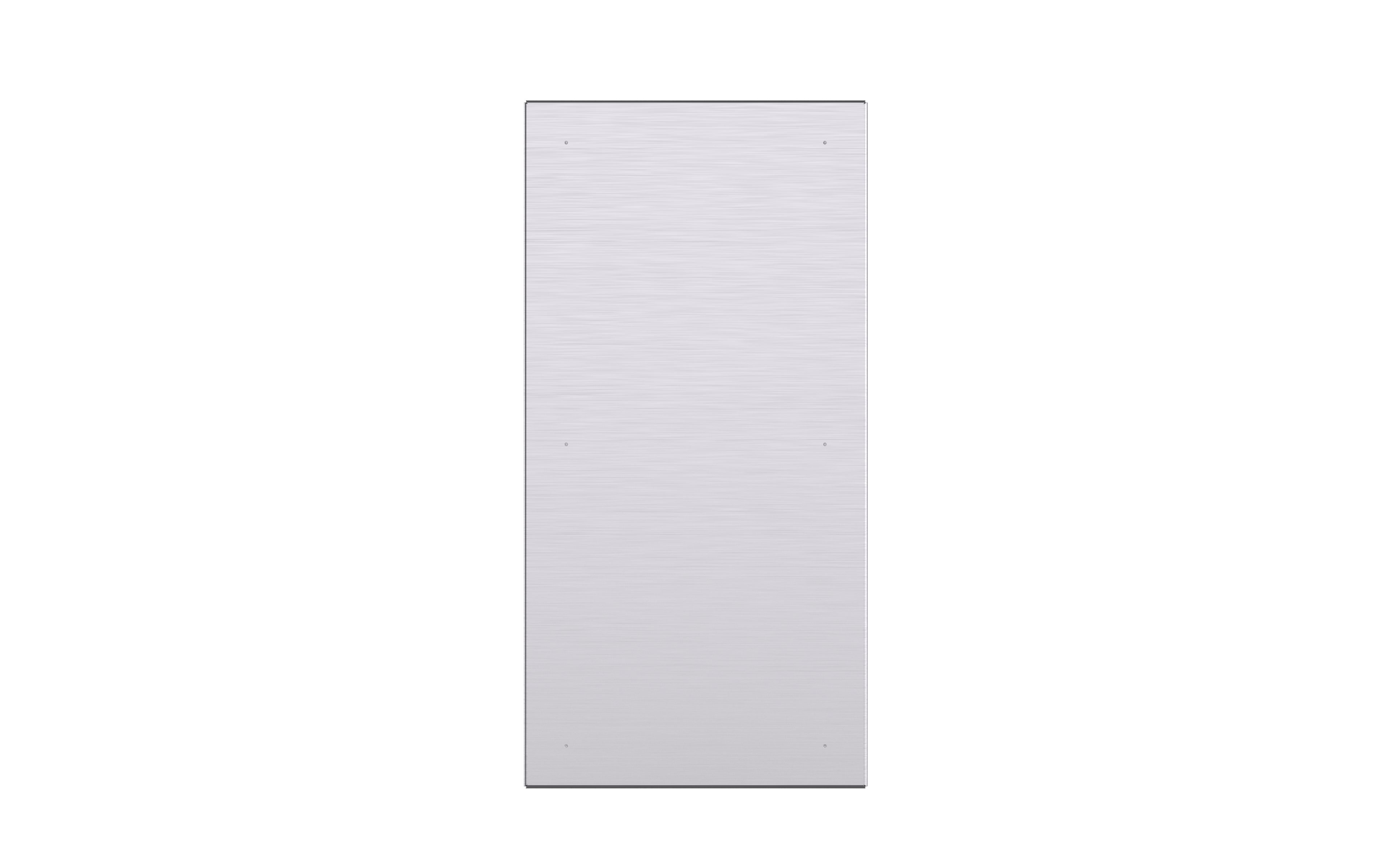

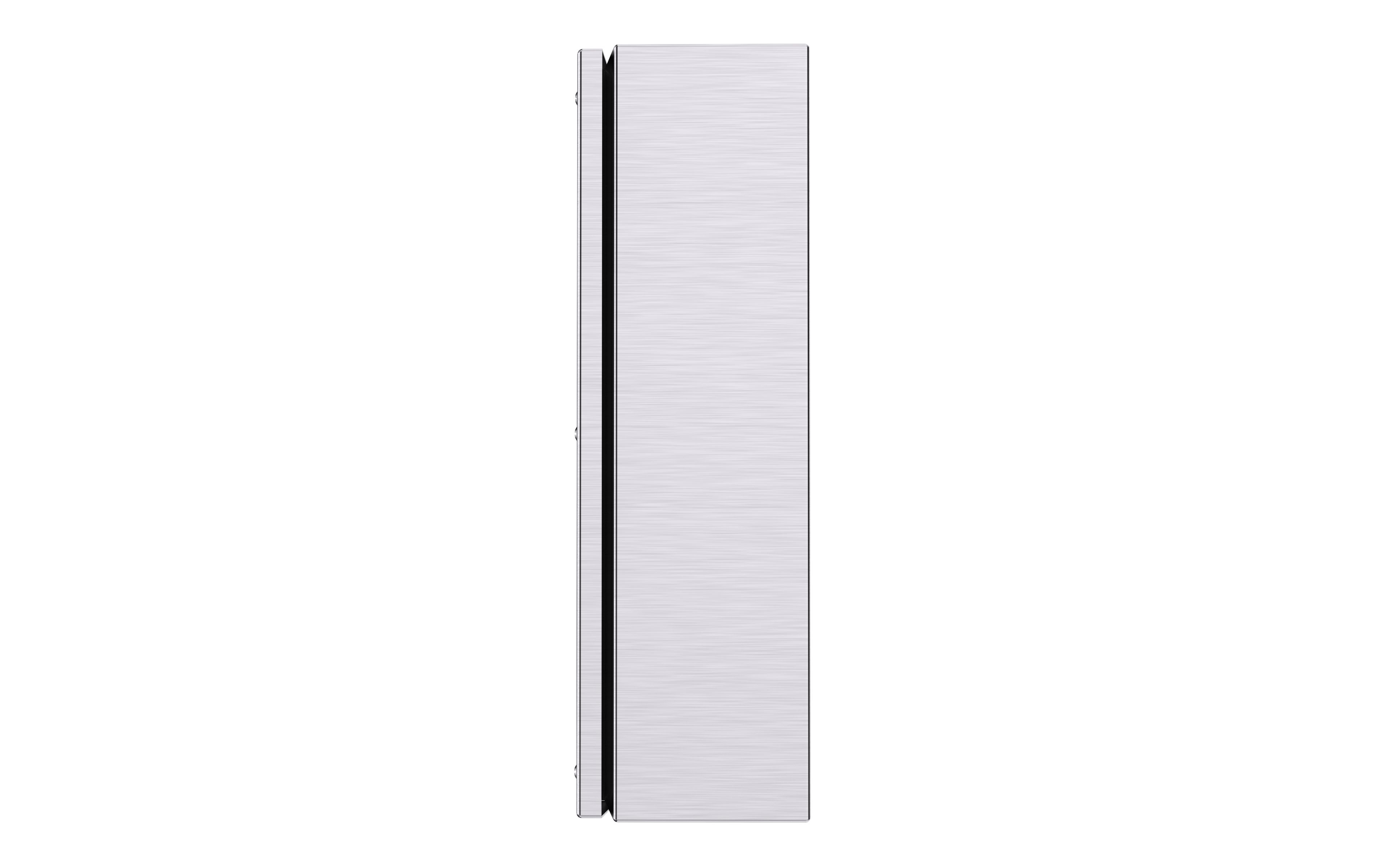

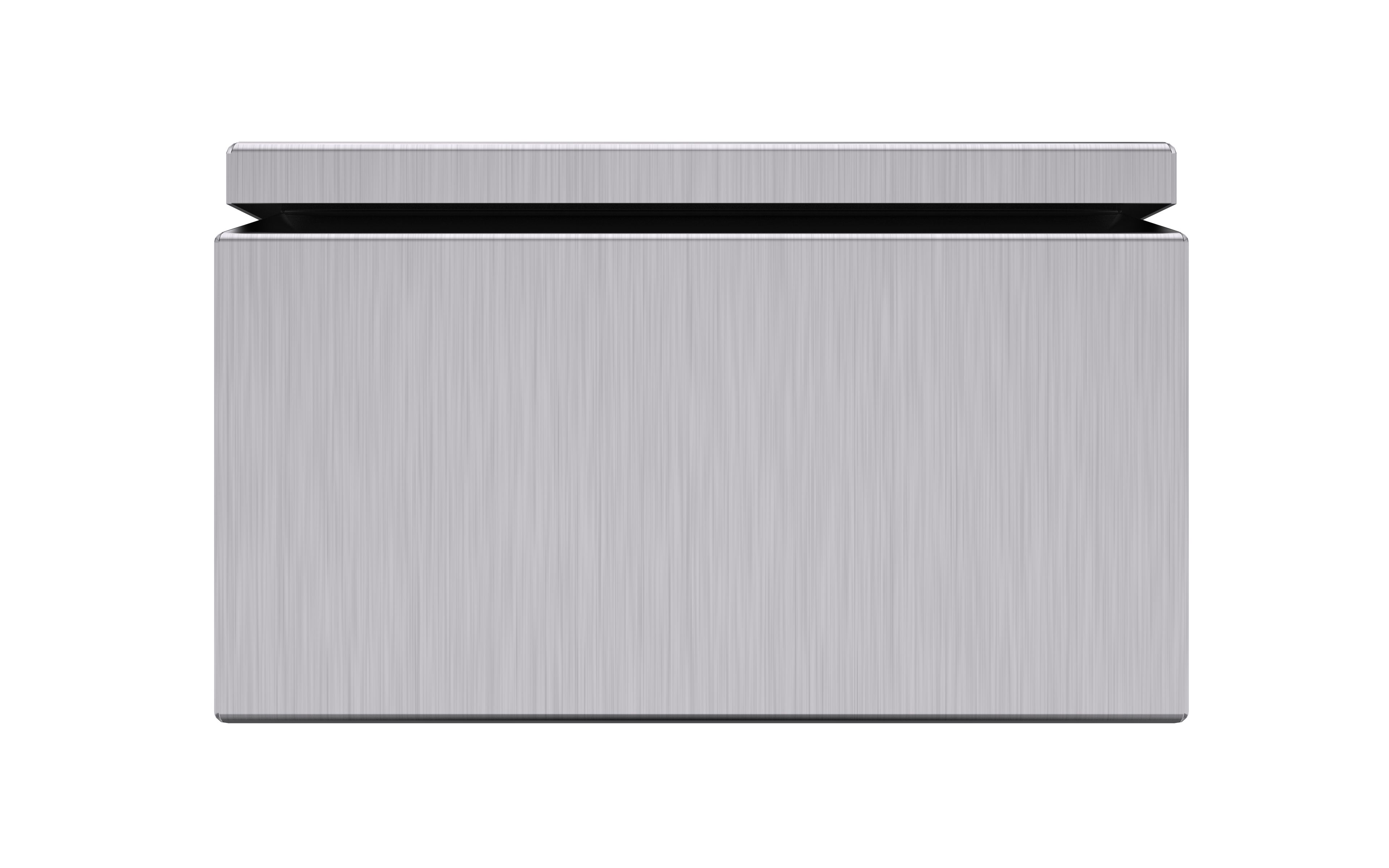

A 400Hx200Wx120D IP66 enclosure with a screwed lid, 316 stainless steel with an N4 surface finish, suitable for many applications where smaller enclosures are required and for installation of a mounting pan or DIN rail (supplied as optional extras).

Part Number:

TE4212/S

Error: Unable to load accounts at this time.

Add to quote

Download PDF of this page
Details
Dimensions

400 x 200 x 120mm
IP Rating

IP66
Weight (kg)

3.6
Inclusions

Earth strap kit
Approvals

Lloyds Register
Construction

1.2mm 316 Stainless Steel, Formed in place gaskets, Lid closing, N4 Surface Finish
Features
  • IP66 protection rating – more info on IP ratings
  • Fully welded construction
  • Captive 316 stainless steel combo head screws, used to prevent loss when fastening
  • Provision for mounting DIN rail or a mounting pan, increasing the application flexibility
  • Flat face gutter
  • Easy installation
  • Foamed in place polyurethane gasket
Downloads
CAD
Accessories
Category
Din Rail
Equipment Panel
Mounting Pan
Mounting Feet
Reset

TED4

TE DIN Rail for TE4212(S or MF/S) – 390mm long

Add to quote

TEMP42

Mounting Pan for TE4212(S or MF/S) – 373H x 170W

Add to quote

MEB/S

Wall Mounting Brackets (set of 4), 316 stainless steel for Universal NI, Monarch IP and Connector TE ranges

Add to quote
