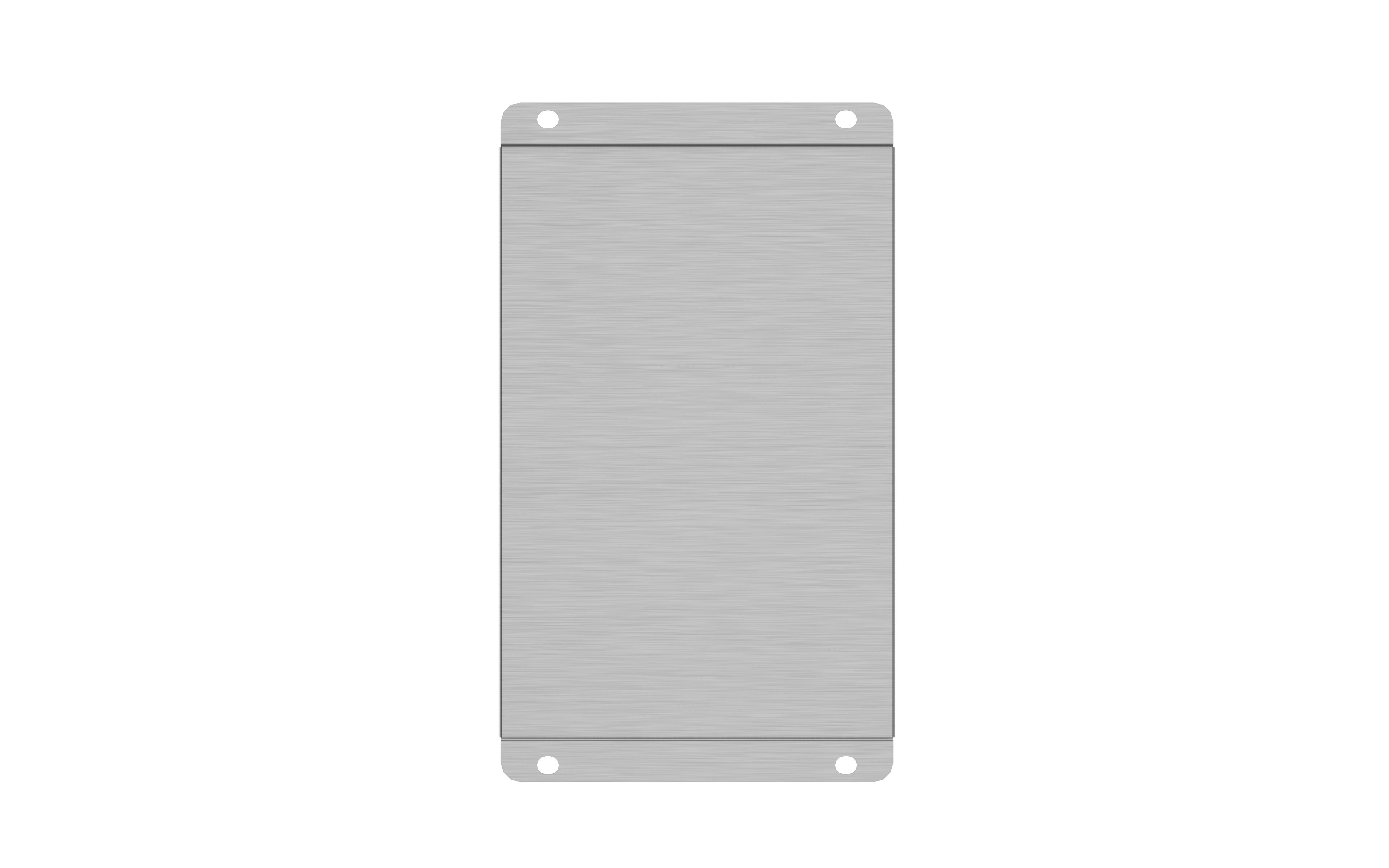

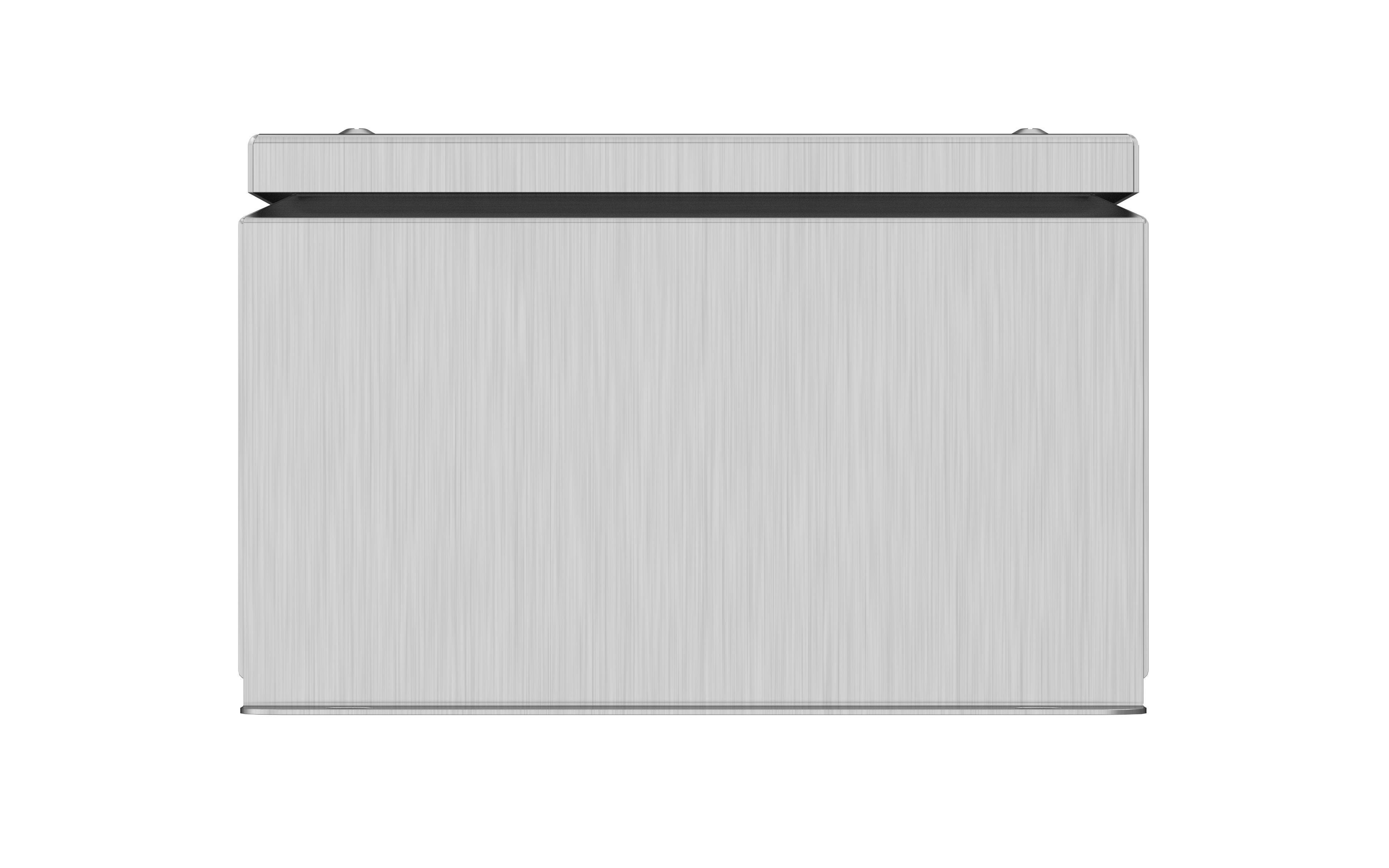

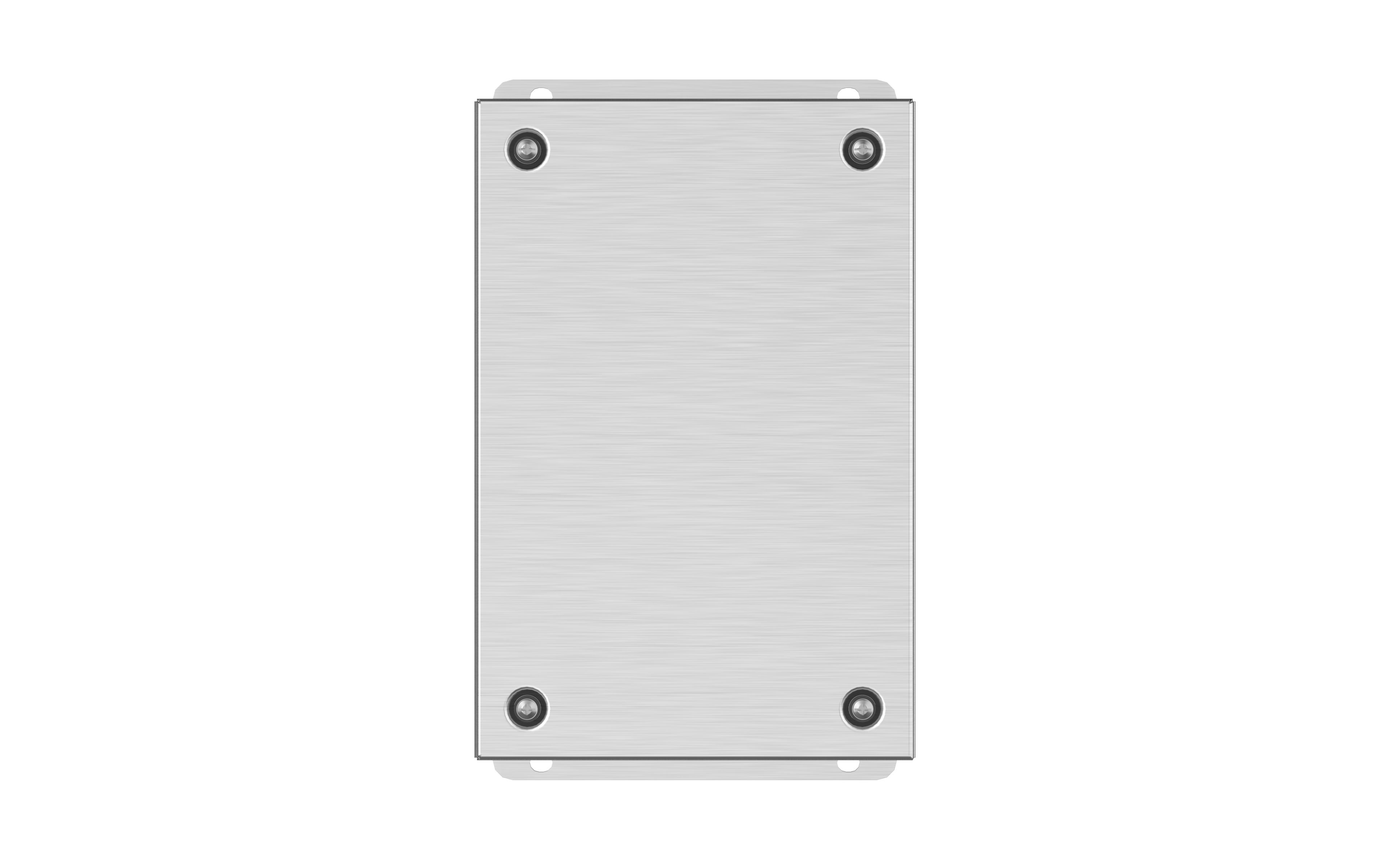

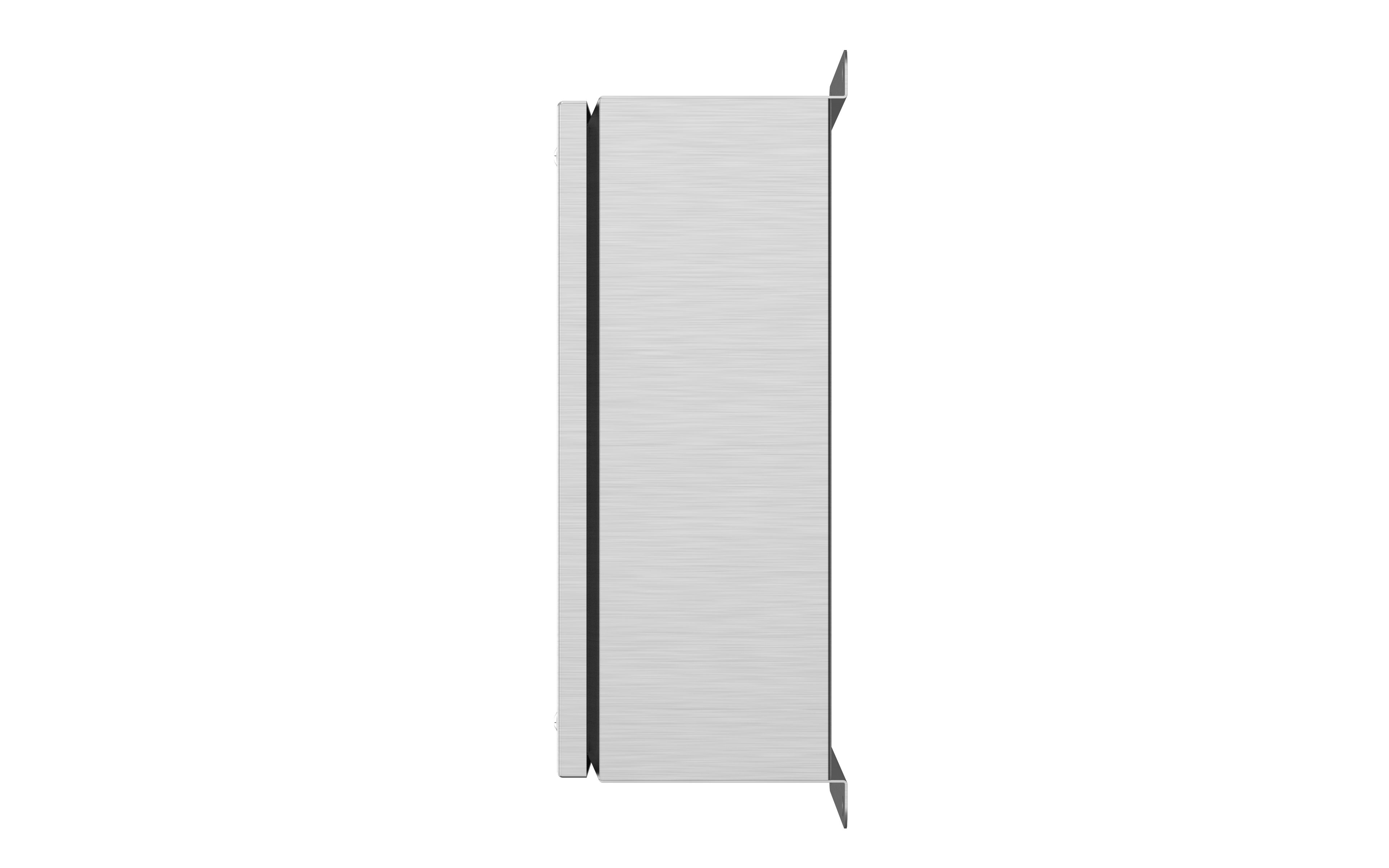

Enclosure – Connector TE – 300Hx200Wx120D – Stainless Steel – TE3212MF/S

Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 2
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 3
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 4
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 5
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 1
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 2
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 3
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 4
Enclosure - Connector TE - 300Hx200Wx120D - Stainless Steel - TE3212MF/S - 5

A 300Hx200Wx120D IP66 enclosure with a screwed lid, mounting feet, 316 stainless steel with an N4 surface finish, suitable for many applications where smaller enclosures are required and for installation of a mounting pan or DIN rail (supplied as optional extras).

Part Number:

TE3212MF/S

Error: Unable to load accounts at this time.

Add to quote

Download PDF of this page
Details
Dimensions

300 x 200 x 120mm
IP Rating

IP66
Weight (kg)

3.1
Inclusions

Earth strap kit
Approvals

Lloyds Register
Construction

1.2mm 316 Stainless Steel, Formed in place gaskets, Lid closing, N4 Surface Finish Stainless Steel
Features
  • IP66 protection rating – more info on IP ratings
  • Mounting flanges for easy installation
  • Captive 316 stainless steel combo head screws used to prevent loss when fastening
  • Provision for mounting DIN rail or a mounting pan, increasing the application flexibility
  • Flat face gutter ensure a reliable and long-lasting seal no matter what the application
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
Downloads
CAD
Accessories
Category
Din Rail
Equipment Panel
Mounting Pan
Mounting Feet
Reset

TED3

TE DIN Rail for TE3112 AND TE3213(S or MF/S) – 290mm long

Add to quote

TEMP32

Mounting Pan for TE3212(S or MF/S) – 273H x 170W

Add to quote

MEB/S

Wall Mounting Brackets (set of 4), 316 stainless steel for Universal NI, Monarch IP and Connector TE ranges

Add to quote
