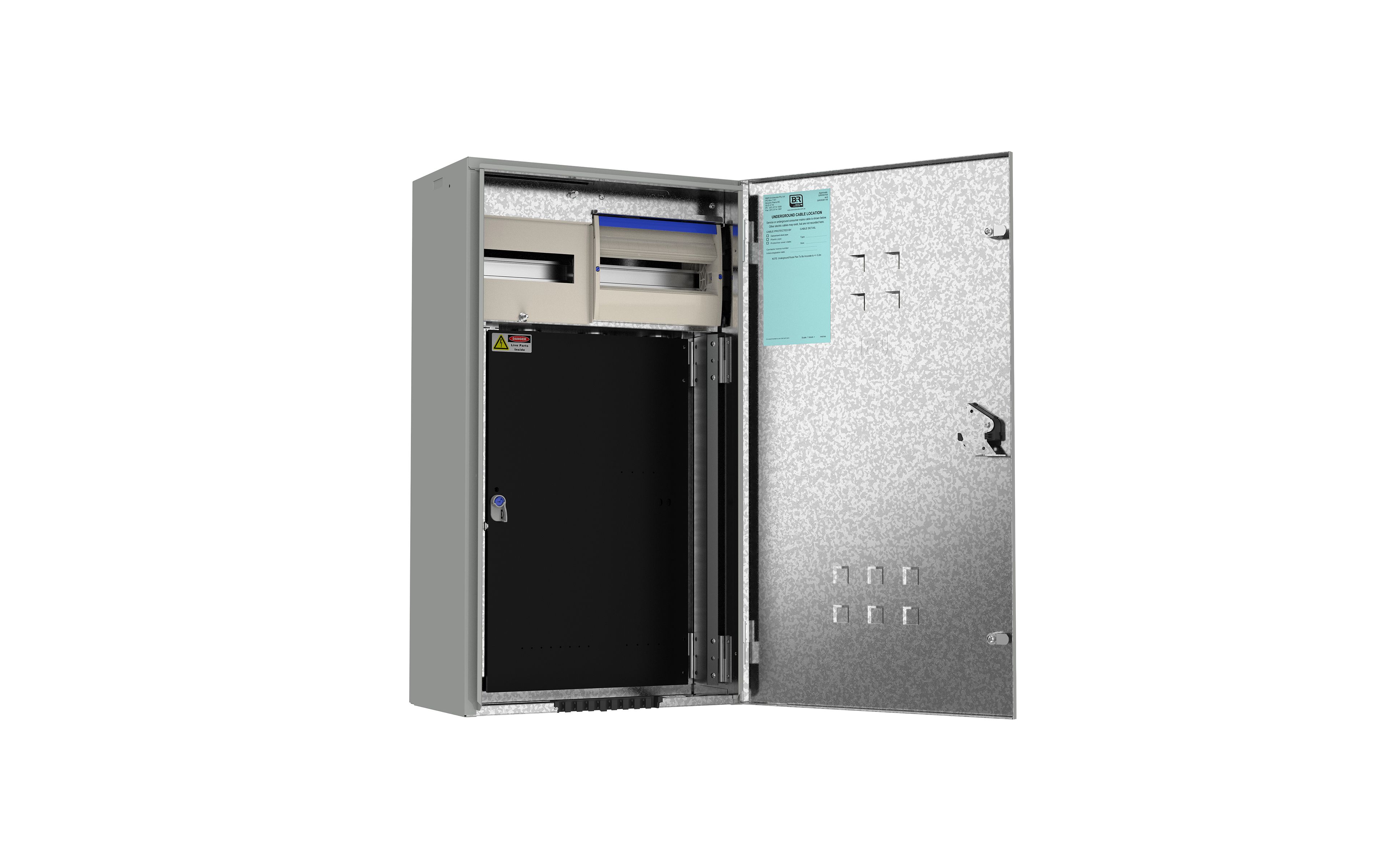

Horizon Meter Box / Main Switchboard for Tasmania, single and multi-phase – Galvanised Steel – IP23 – 860Hx485Wx278D – T25P

Horizon Meter Box / Main Switchboard for Tasmania, the panel complies with supply authority rules for sites with two separate multi‑phase meters (two NMIs) at the same property and has an IP23 rating. Manufactured from Galvanised Steel and Powdercoated Light Grey RAL7035. The meterbox is 860Hx485Wx278D to better fit inside standard stud framing and has 9 + 12-pole of DIN space. MEN Earth and Neutral bars are provided along with a sealable authority supply capacity control zone and consumer zone to feed individual submains. The T25P has also been designed to be compliant for constructure sites as standard and comes complete with innovative features like a flush gravity catch, safety cord retainer and RotaDIN, rotatable and removable DIN rails system to make cabling and inspection much easier. Suitable for a maximum of 3 fuses and 3 meters in single phase, or 3 fuses and 1 meters in 3 phase.
