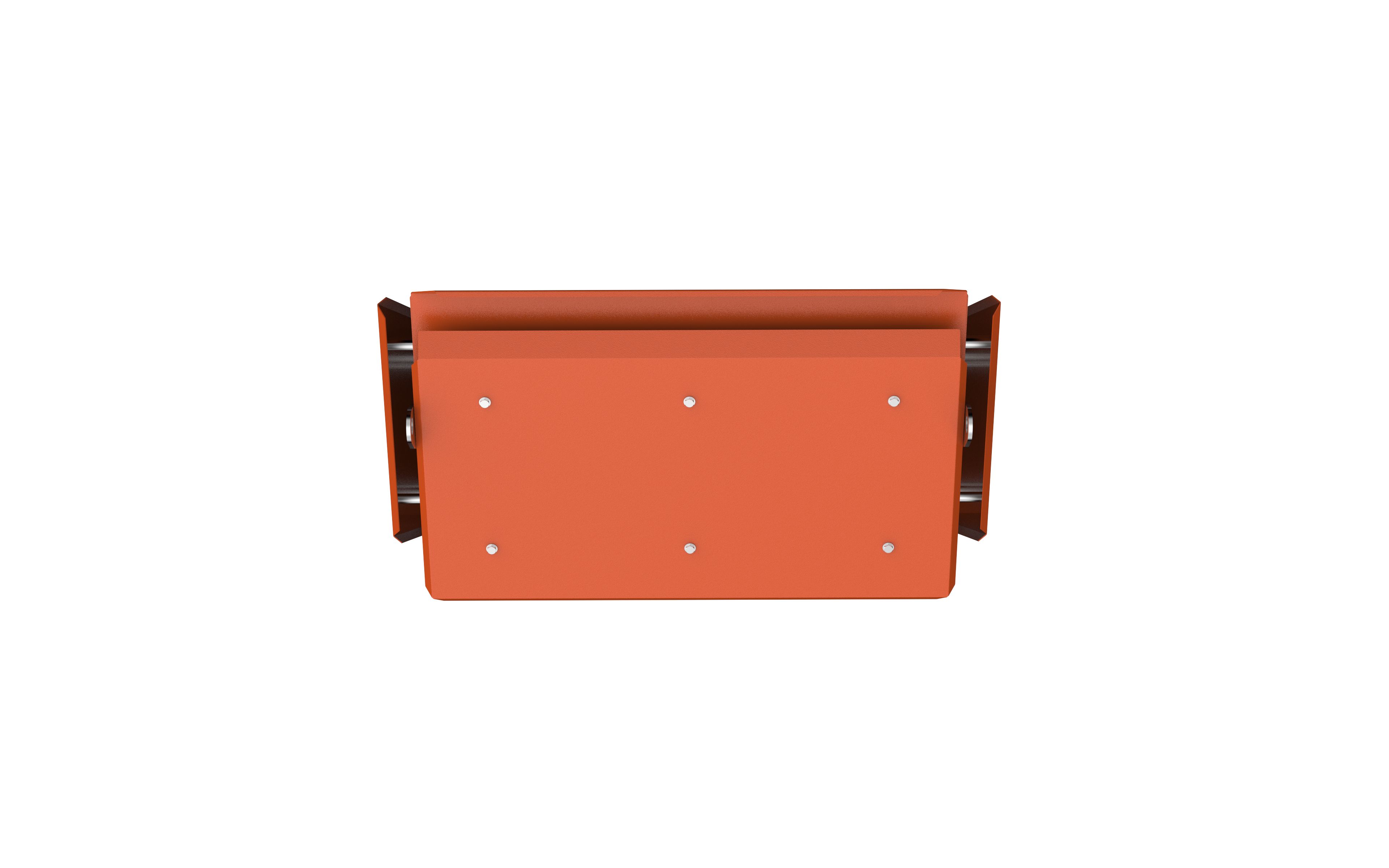

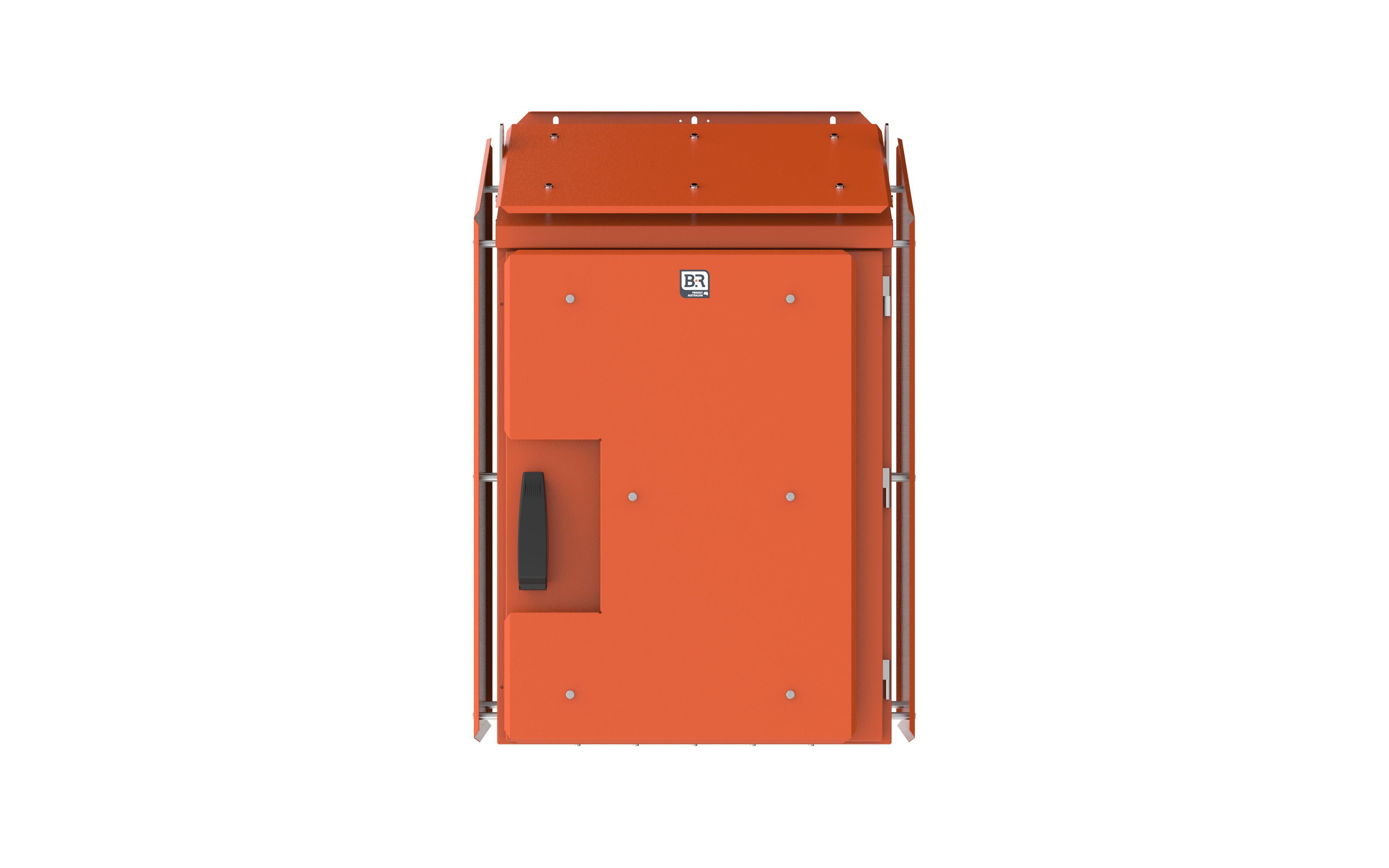

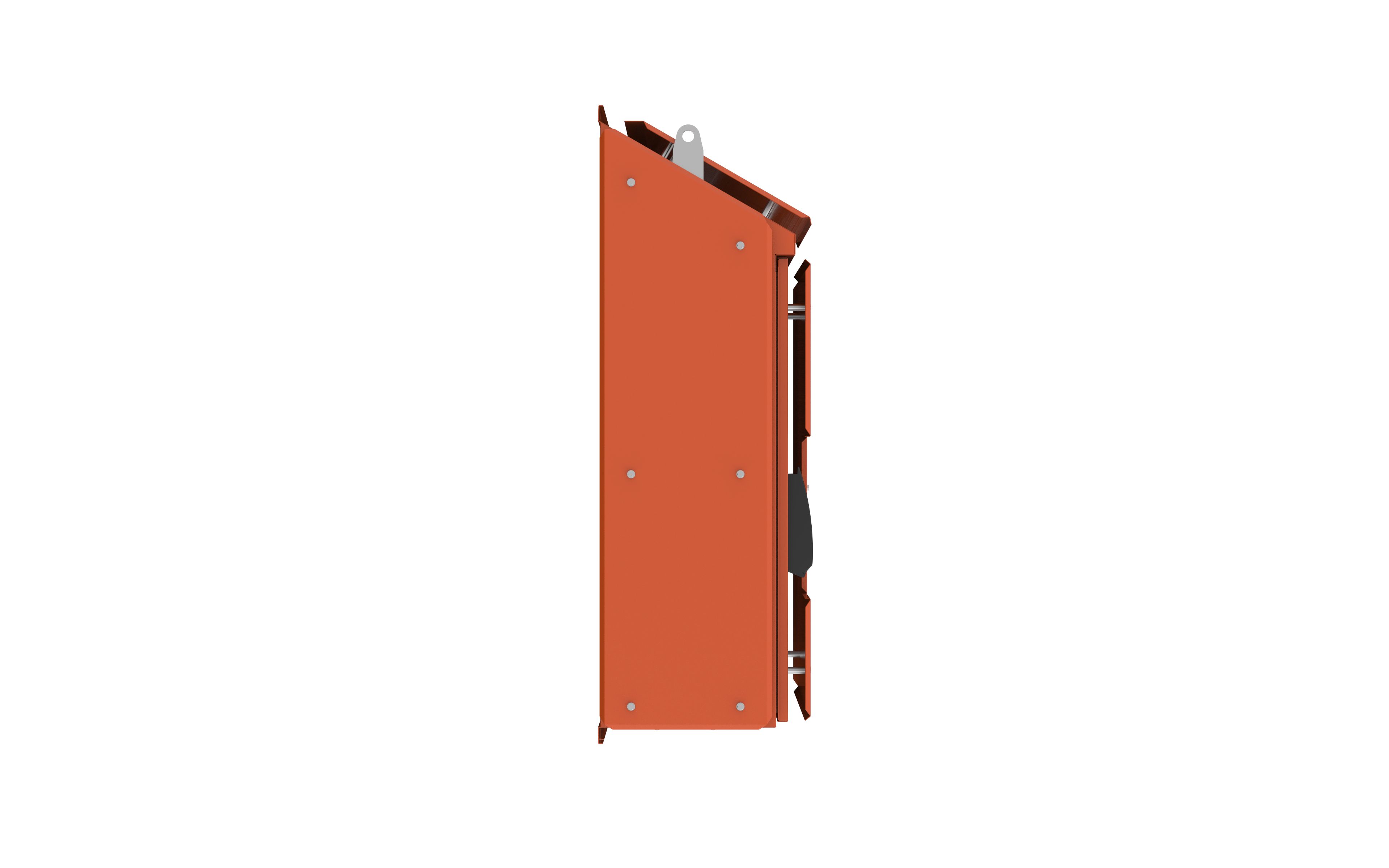

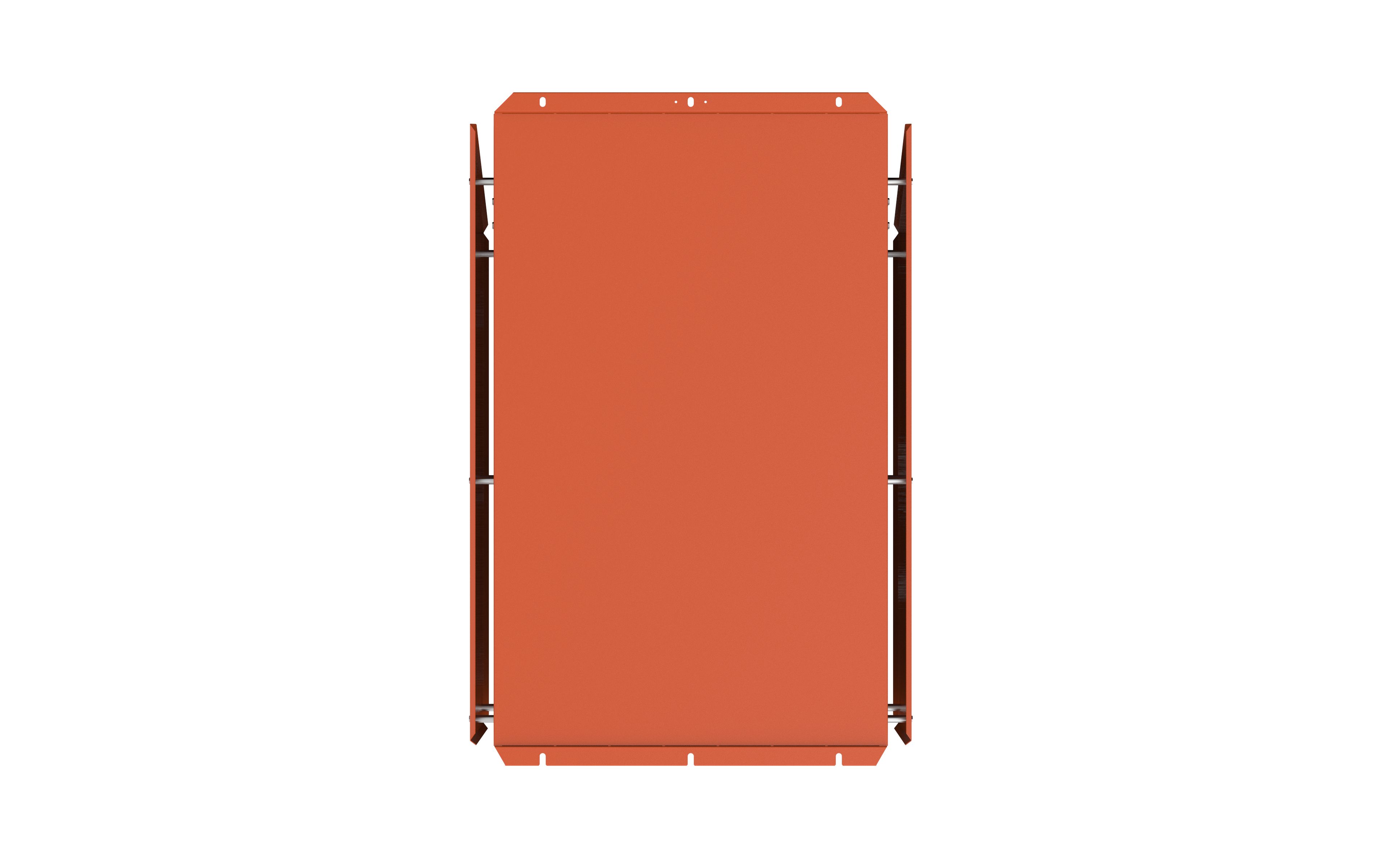

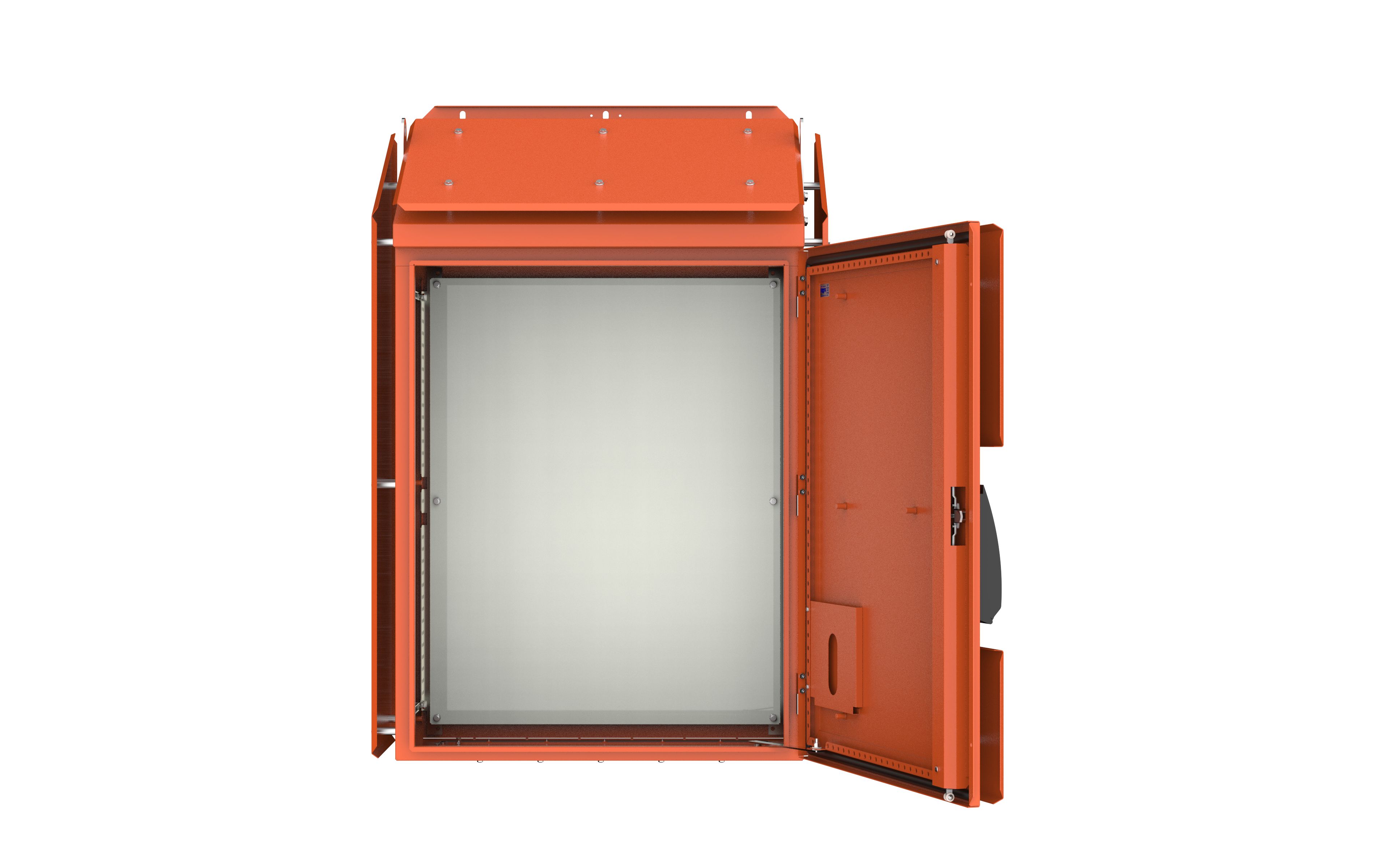

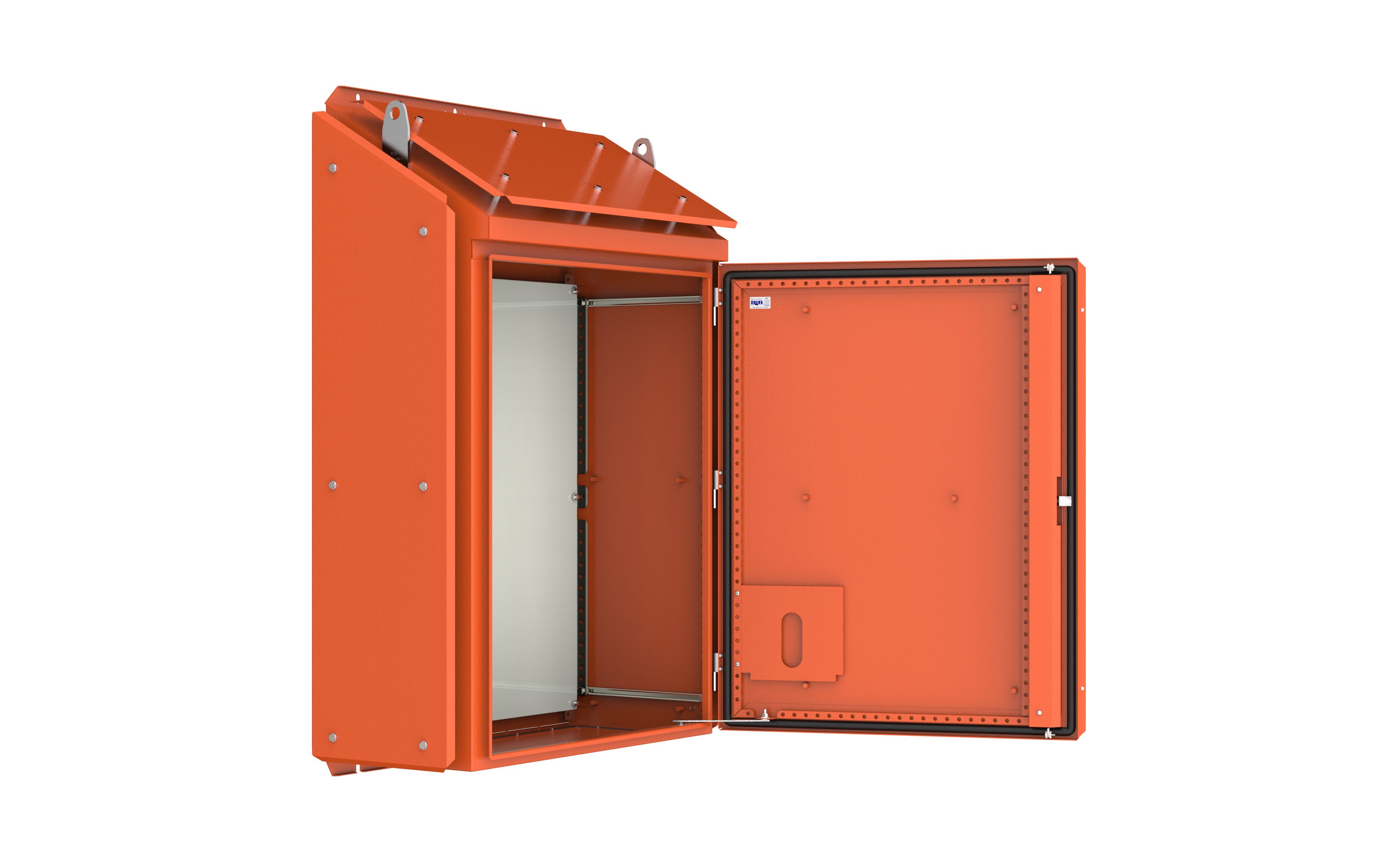

A 1000 x 800 x 400mm IP66, 30 degree sloping roof enclosure with sunshades and a total height of 1365 (including sloping roof), manufactured in zinc coated steel, powdercoated X15 ripple orange and complete with a 640 x 210mm aluminium gland plate and metal mounting pan. Pilbara SP are often used on mine sites, in mineral processing and infrastructure projects.
Part Number:
SP100840/SK
Error: Unable to load accounts at this time.
| Dimensions | 1000 x 800 x 400mm (1365mm total height) |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 180 |
| Inclusions | 1.6mm thick sunshade, 2mm steel mounting pan – 930 x 730 (HxW) – white, 4 Mounting points on mounting flanges, Chromed steel padockable swing handle with LockSockand 3 point locking, Earth strap kit, Gland Opening – 640 x 210mm with 6mm aluminium gland plate, Lifting Lugs |
| Approvals | AS/NZS 61439, Lloyds Register #06/10007 (E2), Region D Wind rated to AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 2mm Zinc Coated Steel, Surface finish – X15 orange |
Light mounting kit for 600mm wide Monarch IP / Pilbara SP enclosures – to suit LED light kits
