Enclosure – Pilbara SP with sunshade – 1365Hx800Wx400D – Stainless Steel – SP100840/S/SK

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 2

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 1

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 2

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 3

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 4

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 5

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 6

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 7

Enclosure - Pilbara SP with sunshade - 1365Hx800Wx400D - Stainless Steel - SP100840/S/SK - 8

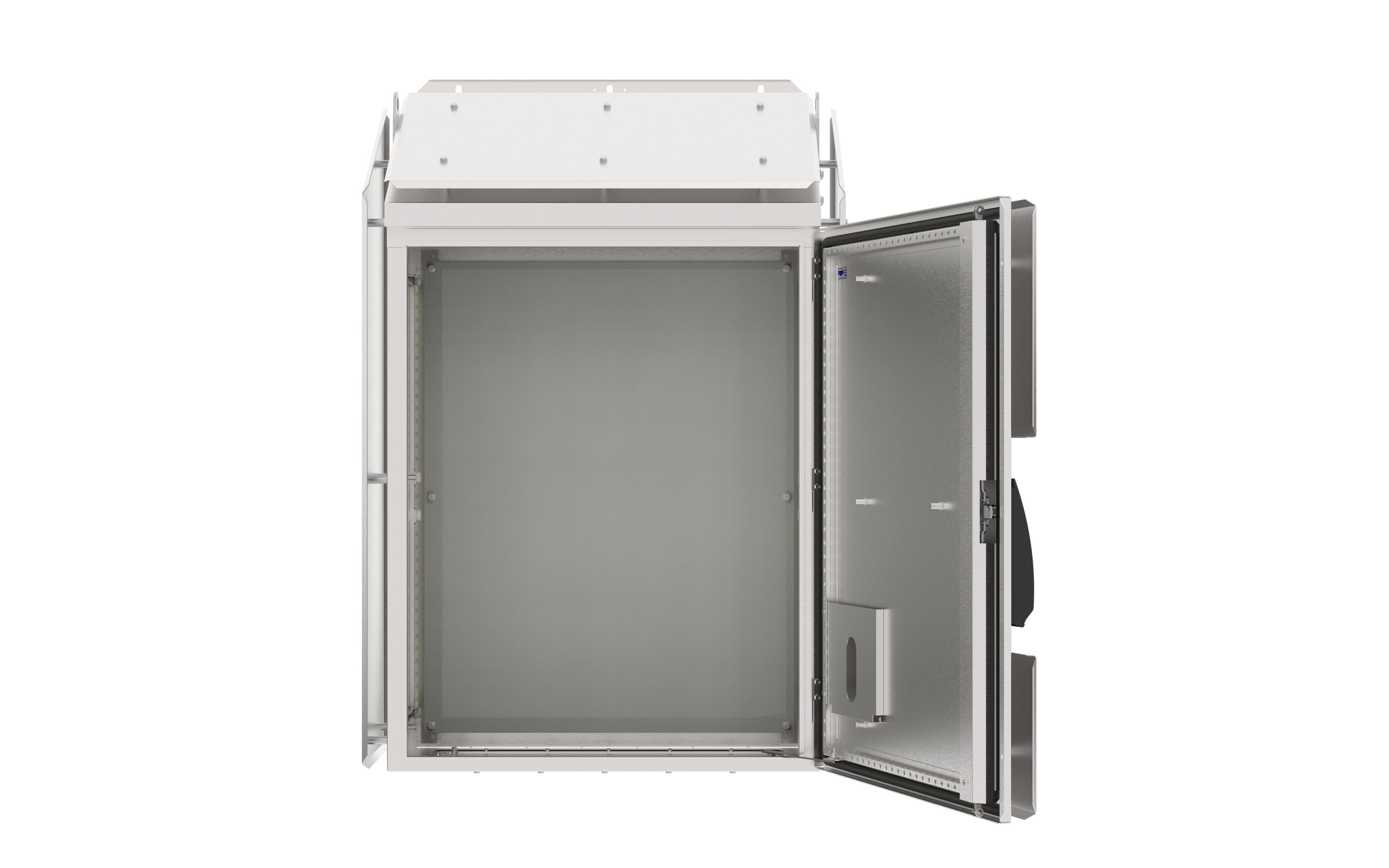

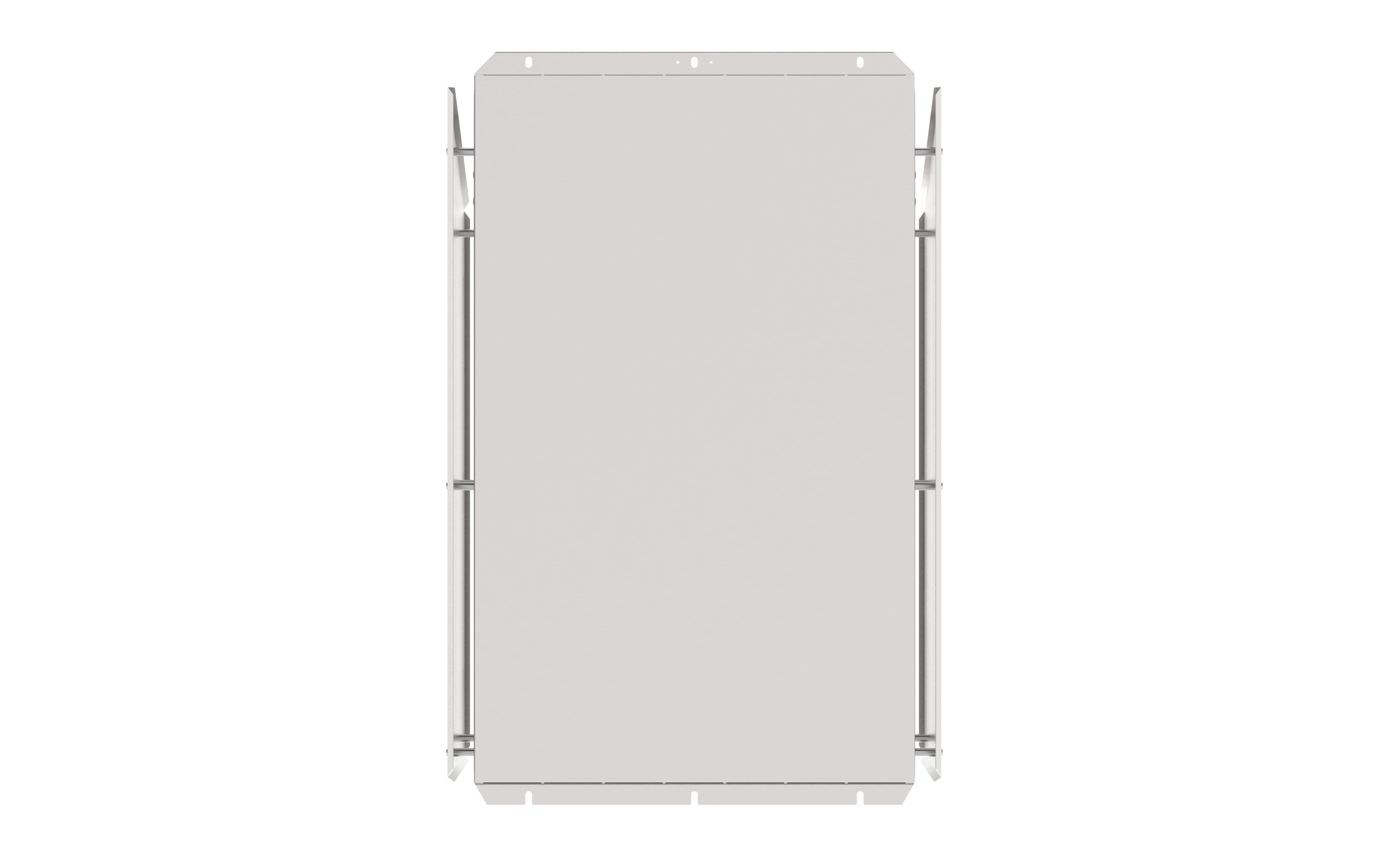

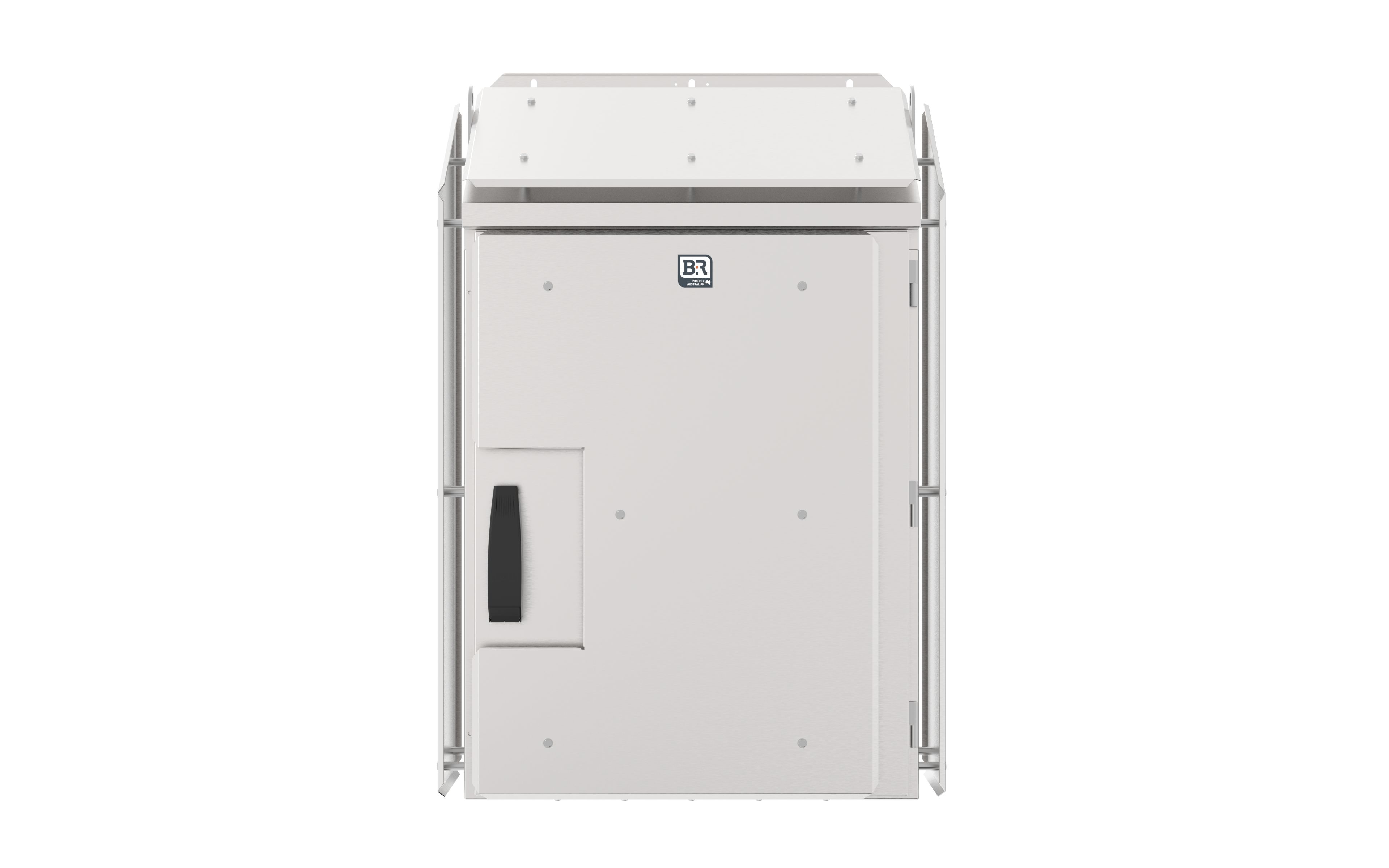

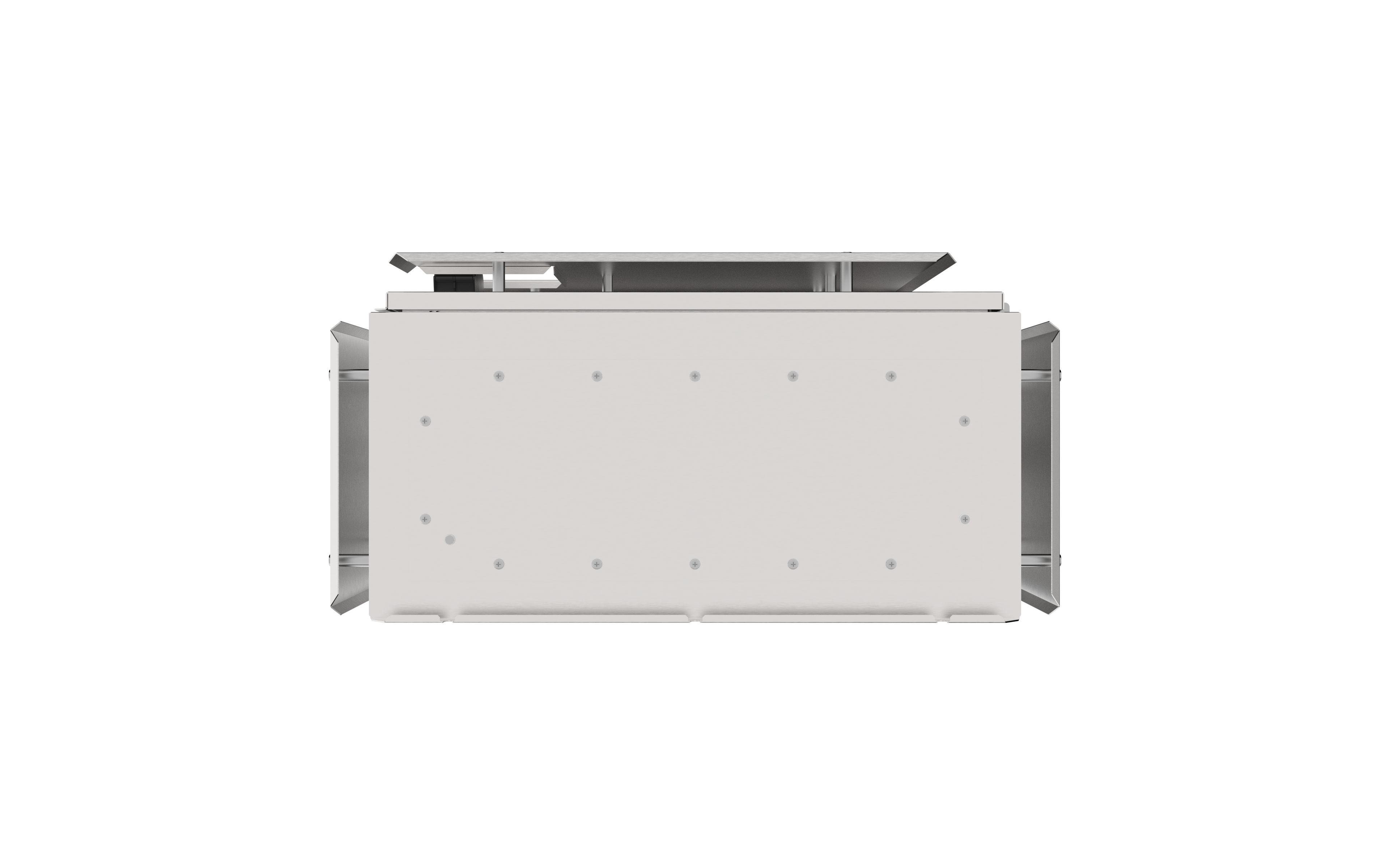

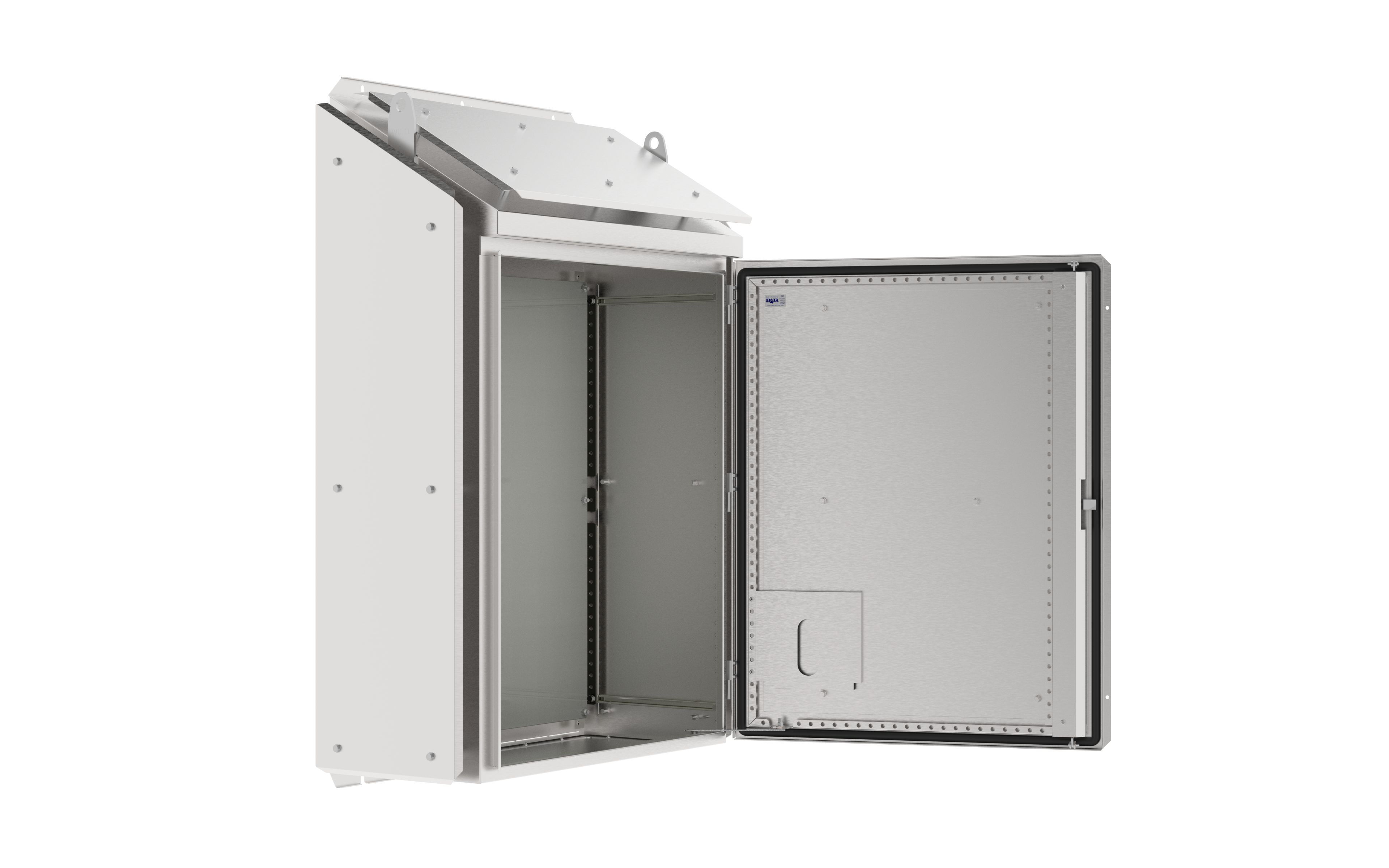

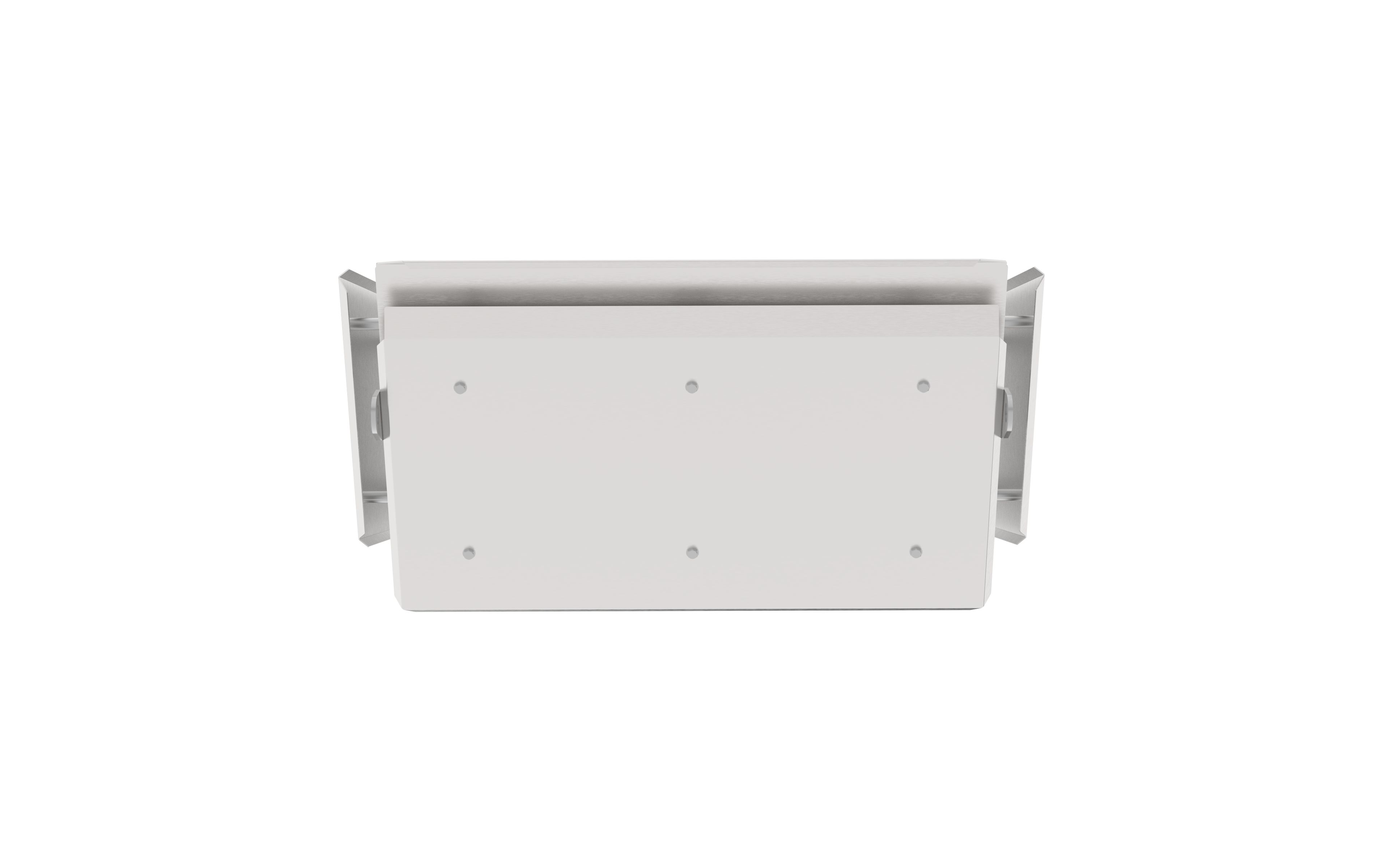

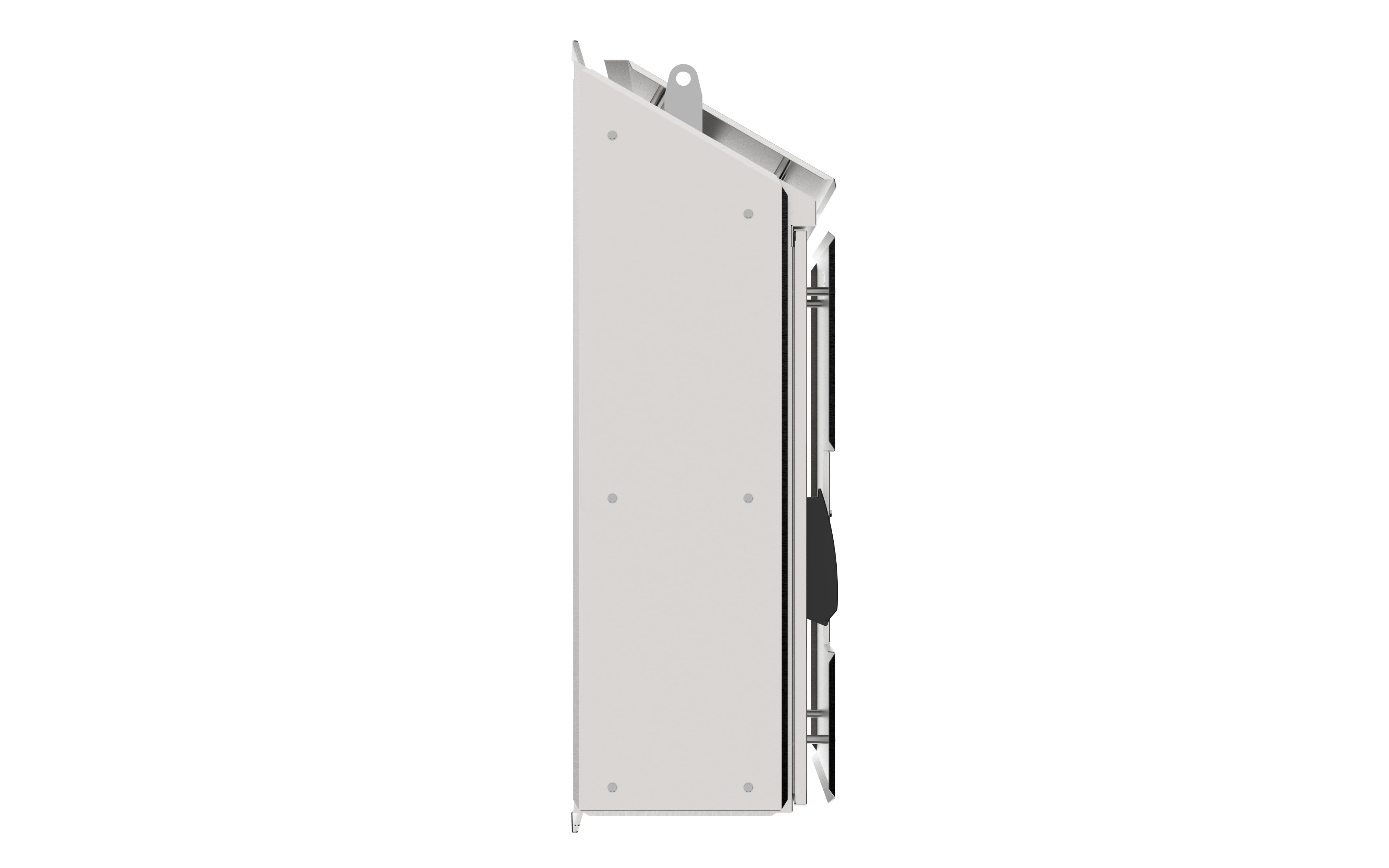

A 1000 x 800 x 400mm IP66, 30 degree sloping roof enclosure with sunshades and a total height of 1365 (including sloping roof), manufactured in 316 stainless steel, with an N4 surface finish and complete with a 640 x 210mm stainless steel gland plate and metal mounting pan. Pilbara SP are often used on mine sites, in mineral processing and infrastructure projects.

Part Number:

SP100840/S/SK

Error: Unable to load accounts at this time.

Download PDF of this page

Details

Dimensions	1000 x 800 x 400mm (1365mm total height)
IP Rating	IP66
Weight (kg)	180
Inclusions	1.5mm thick sunshade, 2mm steel mounting pan – 930 x 730 (HxW) – white, 4 Mounting points on mounting flanges, Earth strap kit, Gland Opening – 640 x 210mm with 2mm stainless steel gland plate, Lifting Lugs, Stainless steel padockable swing handle with LockSockand 3 point locking
Approvals	AS/NZS 61439, Lloyds Register #06/10007 (E2), Region D Wind rated to AS1170.2-2002: Structural design actions – Wind actions
Construction	Body – 1.5mm 316 Stainless Steel, N4 Surface Finish, Surface finish – Stainless Steel

Features

IP66 protection rating – more info on IP ratings
Sunshades protect the internal equipment from the effects of the sun.
Pilbara SP options without sunshades available – Pilbara SP
Pintle hinges
Door stay
Lifting lugs conform to AS4991:Lifting Devices
30° sloping roof to prevent build up of water and solids
IP55 LockSock protective cover
Easy installation with top and bottom mounting flanges
Includes schedule holder (excluding SP040425 range)
Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Downloads

Accessories

SPHE1008

Hinged Escutcheon for Pilbara SP – Steel, 925H x 720W

SPGB72/6

Gland Plate for Pilbara SP – Brass, 700H x 270W x 6mm thick

SPGA72/6

Gland Plate for Pilbara SP – Aluminium, 700H x 270W x 6mm thick

BRLED500

LED light kit, 500mm wide – 12V. Suitable for Universal DD, Pilbara SP and Bowen ranges

BRLED500/24

LED light kit, 500mm wide – 24V. Suitable for Universal DD, Pilbara SP and Bowen ranges

IPLKB08

Light mounting kit for 600mm wide Monarch IP / Pilbara SP enclosures – to suit LED light kits

Brands: Pilbara SP
