Monarch SMB – Small Main Board to 490A – Zinc Coated Steel – IP66 – 2075Hx800Wx500D – SMB1/15

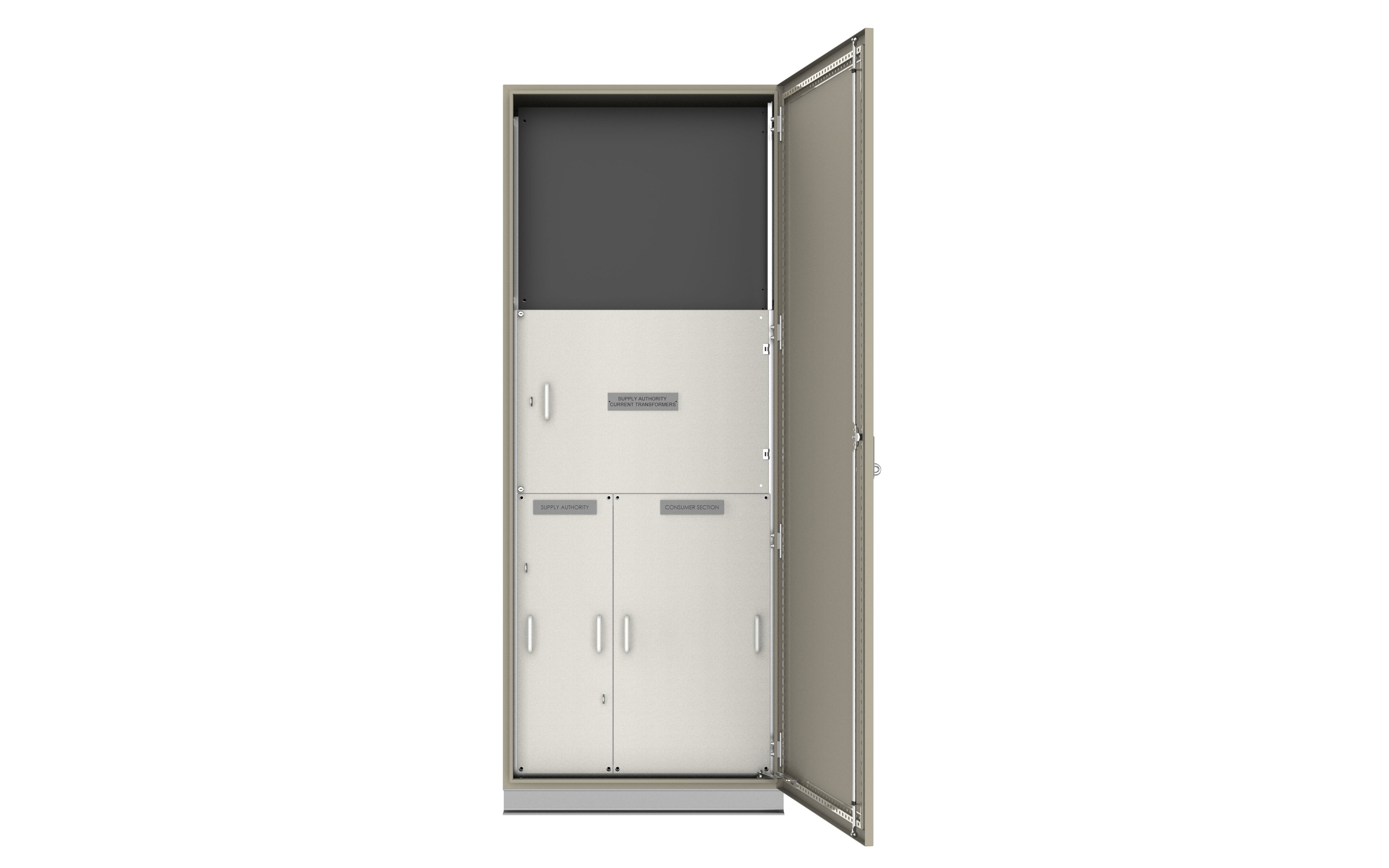

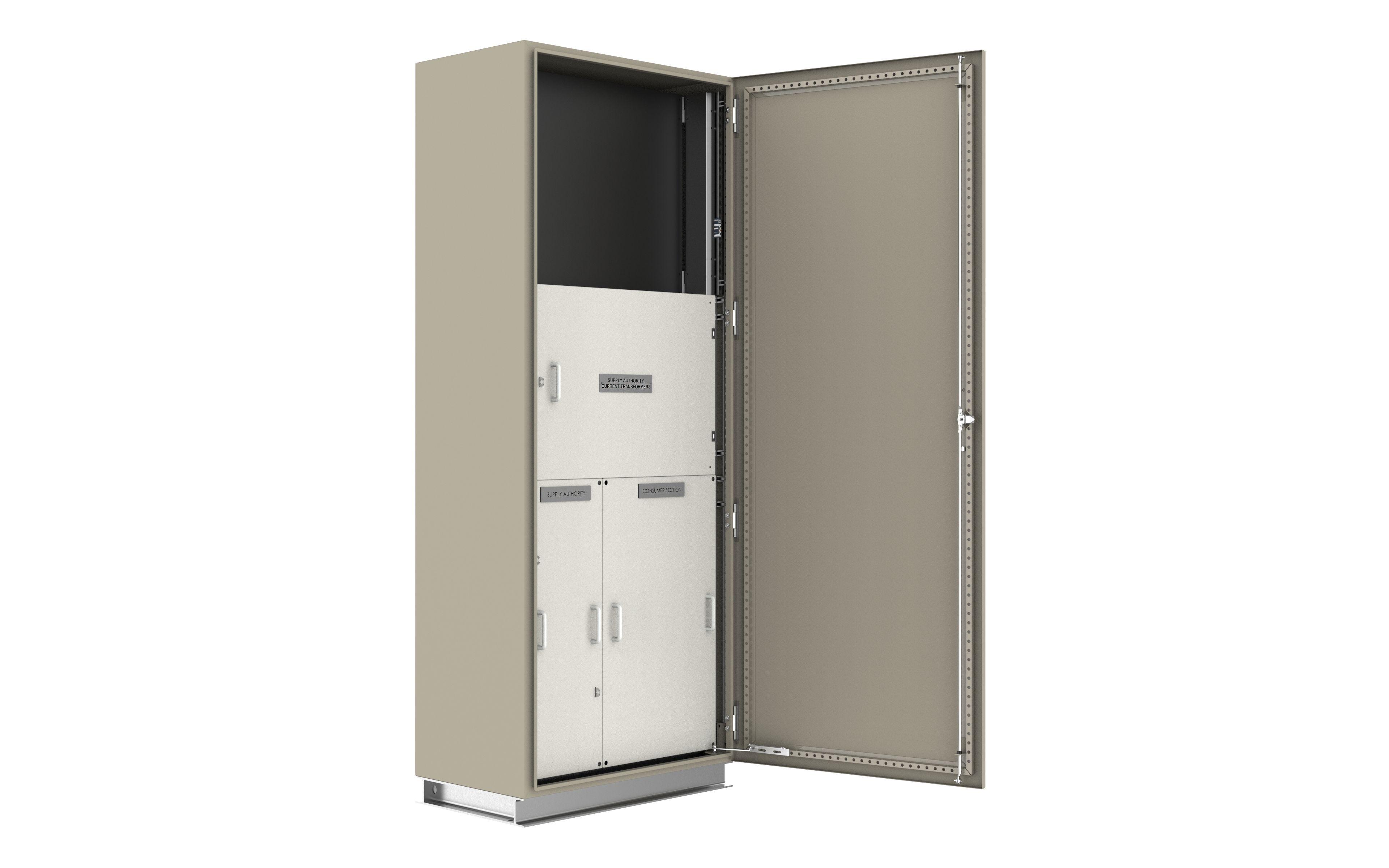

Small Main Board to 490A manufactured in zinc coated steel powdercoated RAL7032 and with a size of 2075Hx800Wx500D including the included channel iron plinth. The SMB1/15 includes a 600H x 725W segregated metering panel: supply authority CT with CT chassis, Lexan CT shroud, metering cable segregation on consumer side; consumer section with 700H x 423W insulated panel, neutral MEN and earth, separate gland plate 365W x 245D; supply authority section with main neutral, separate aluminium gland plate 245W x 245D, panel position 500mm from ground.

Part Number:

SMB1/15

Error: Unable to load accounts at this time.


Download PDF of this page
Details
IP Rating

IP66

Weight (kg)

175

Inclusions

Channel Iron Plinth, Consumer Section – 700H x 423W insulated panel, Gland Plate – 3mm thick Aluminium, Lexan CT Shroud, Metering Cable Segregation on consumer side, Metering Panel – 600H x 725W, Neutral MEN and earth, Panel position 195mm from door, Panel position 500mm from ground, Separate Aluminium Gland Plate 245W x 245D, Separate Gland Plate 365W x 245D, Supply Authority – Main neutral, Supply Authority Current Transformers – CT Chassis

Approvals

AS/NZS 61439, IP66

Construction

Body – 1.6mm Zinc Coated Steel, RAL7032 surface finish

Material

Zinc Coated Steel

Features
No content available
