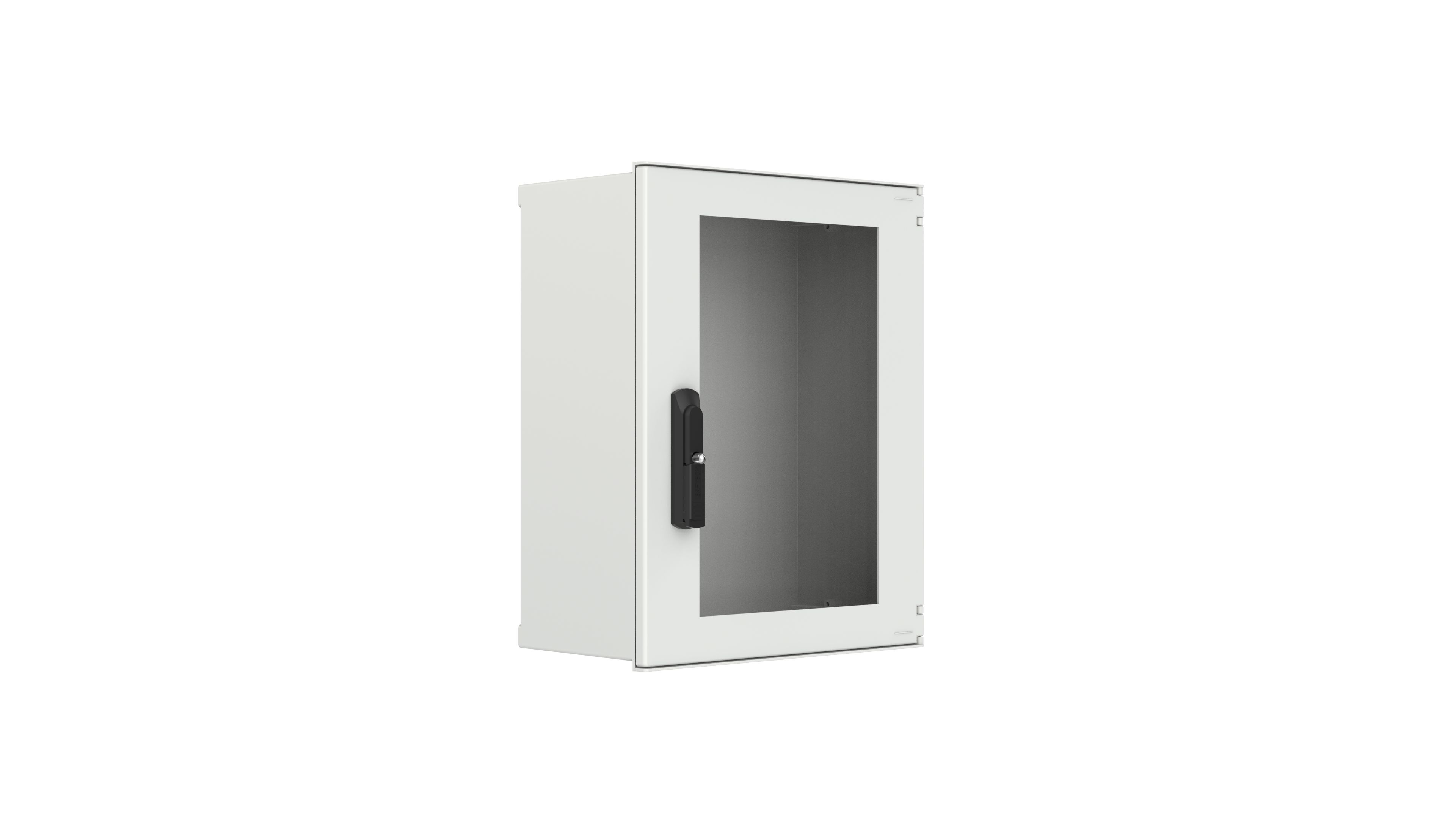

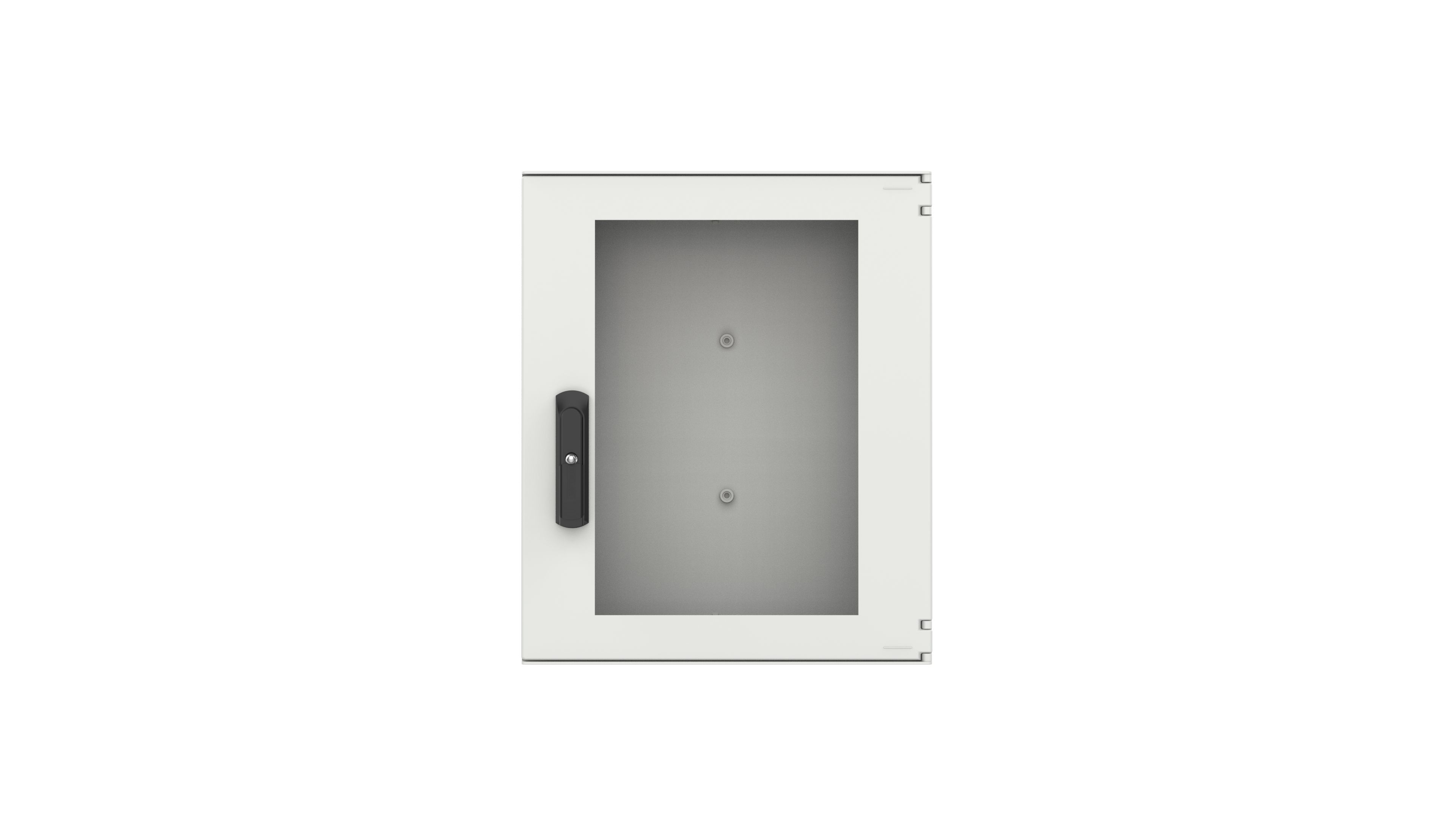

A 600 x 500 x 230mm (HxWxD) non-metal, IP66 enclosure suitable for harsh environments where easy visual inspection is required. Suitable for low voltage (LV) double insulated applications. The enclosure is fitted with a lockable swing handle – keyed 92268 lock and a window door – 480x320mm (HxW).
Part Number:
PU605023/W3L
Error: Unable to load accounts at this time.
| Dimensions | 600 x 500 x 230mm |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 8 |
| Inclusions | Insulated mounting pan, Lock – Lockable Swing Handle – keyed 92268, Roof extends over door opening, Window door |
| Approvals | Halogen free (LSZH), IEC695-2-1: 960º Glow Wire Test, UL94, UL94 – V1 rating, V1 rating |
| Construction | Body – Plastic – UV stabilised glass reinforced polyester with Polycarbonate transparent window., Surface finish – RAL7035 |
