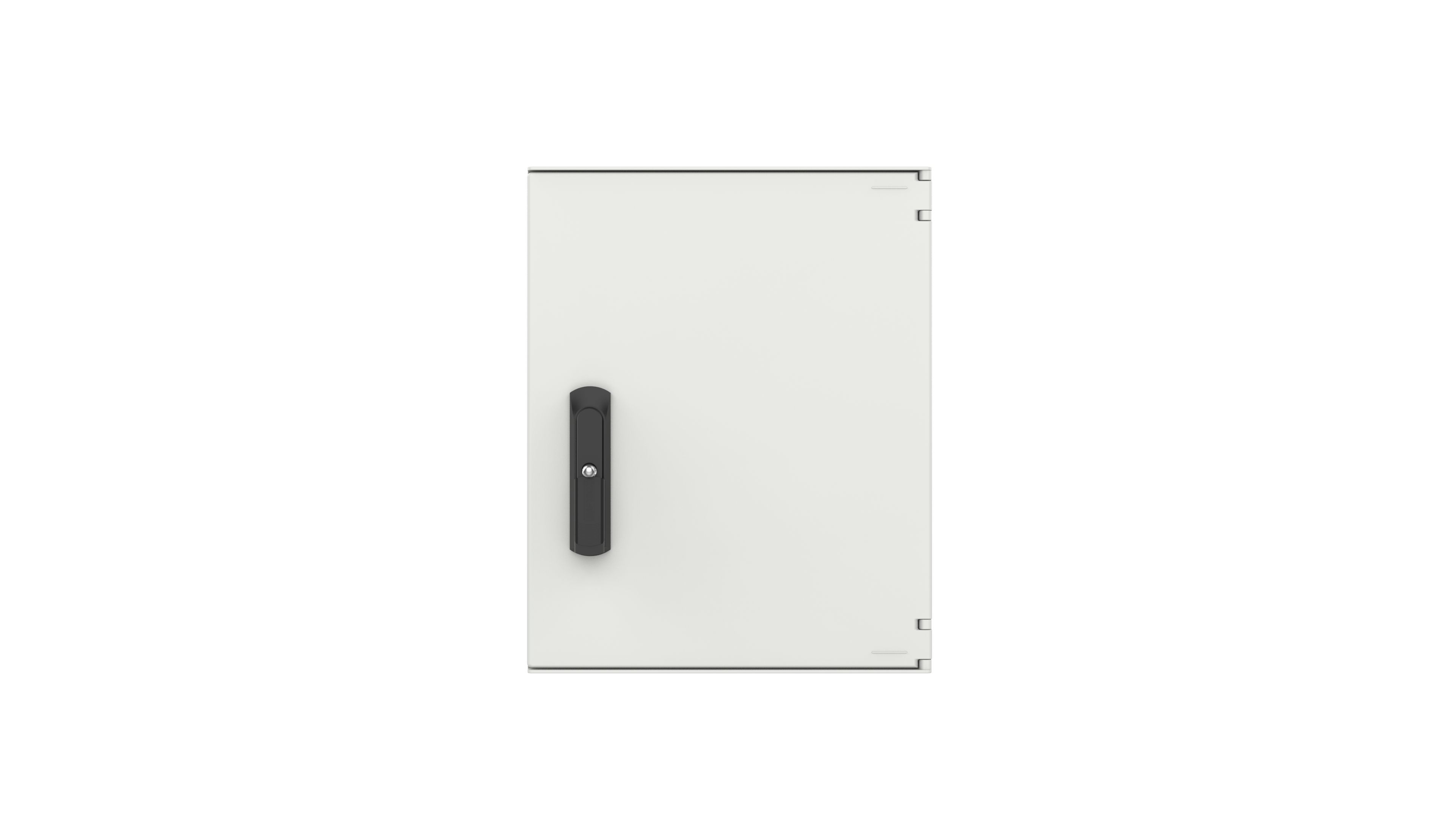

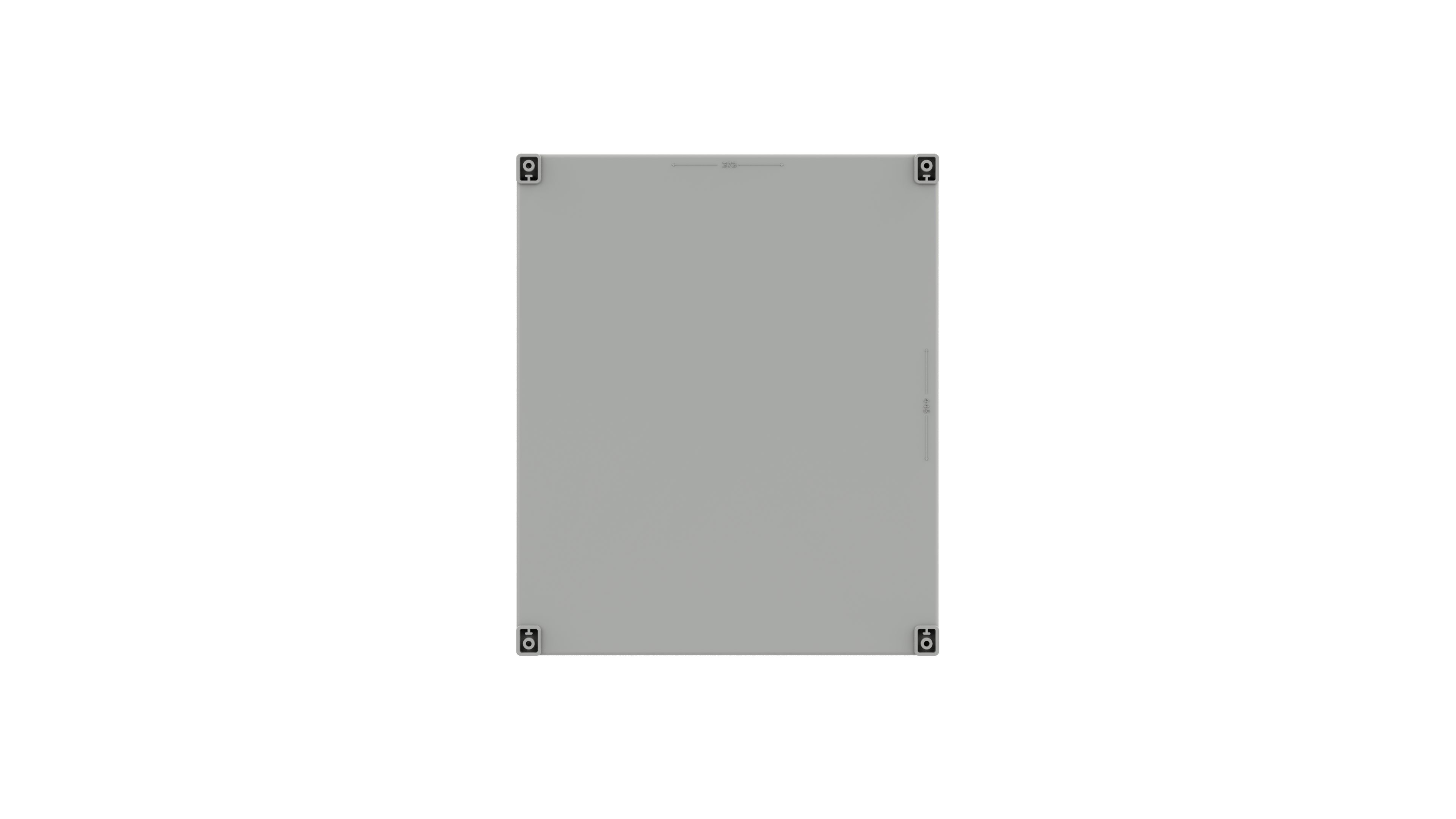

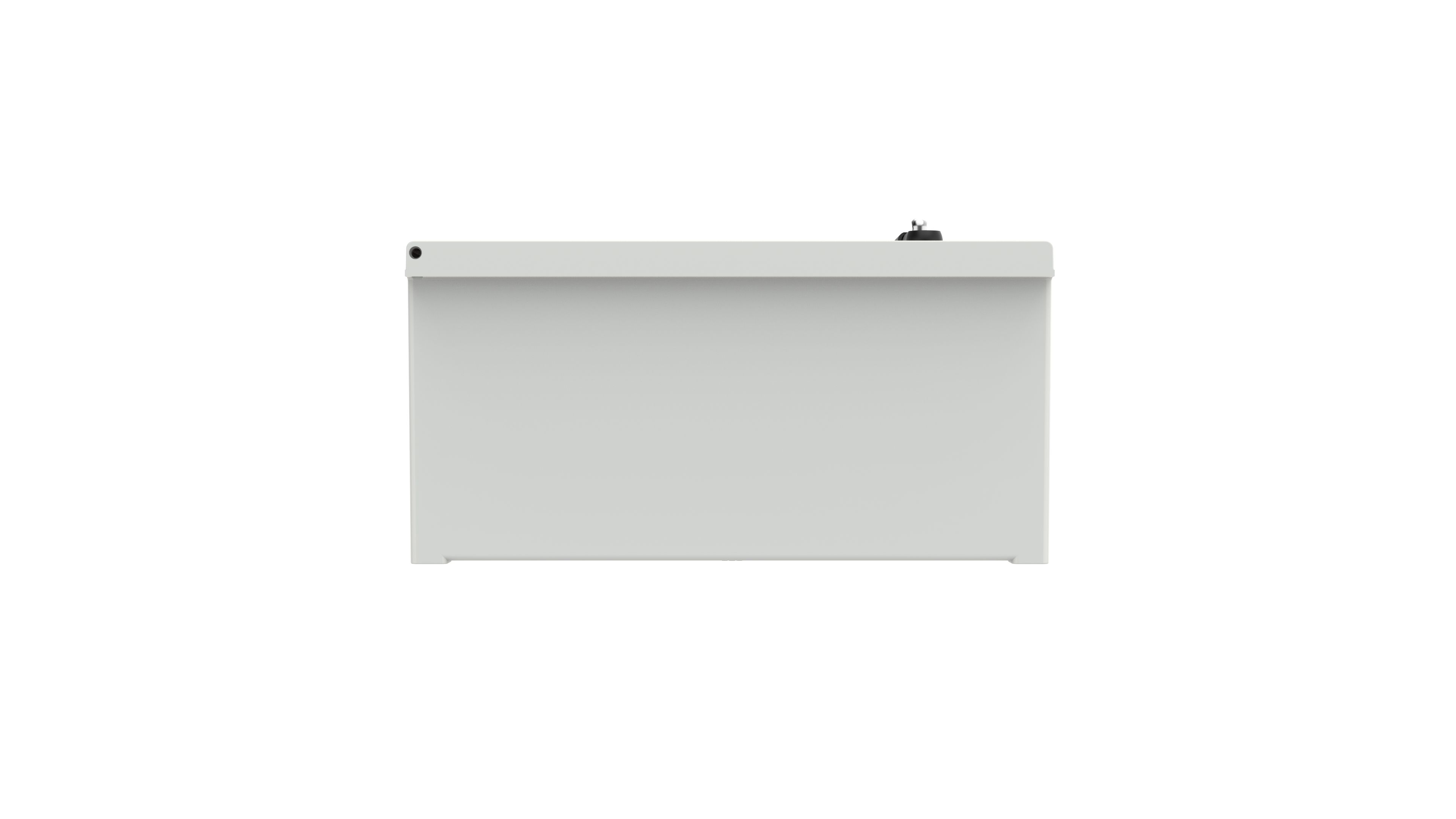

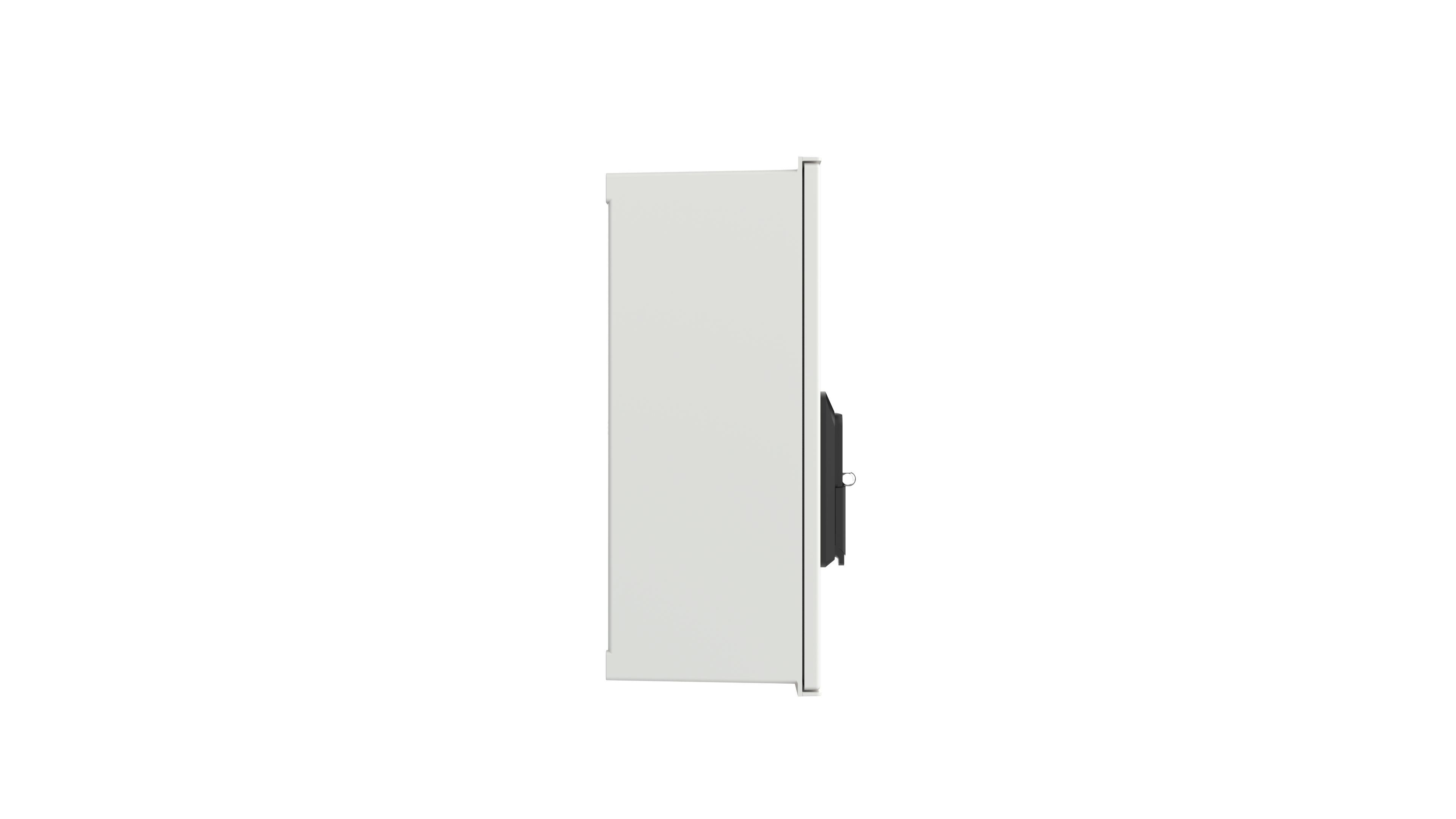

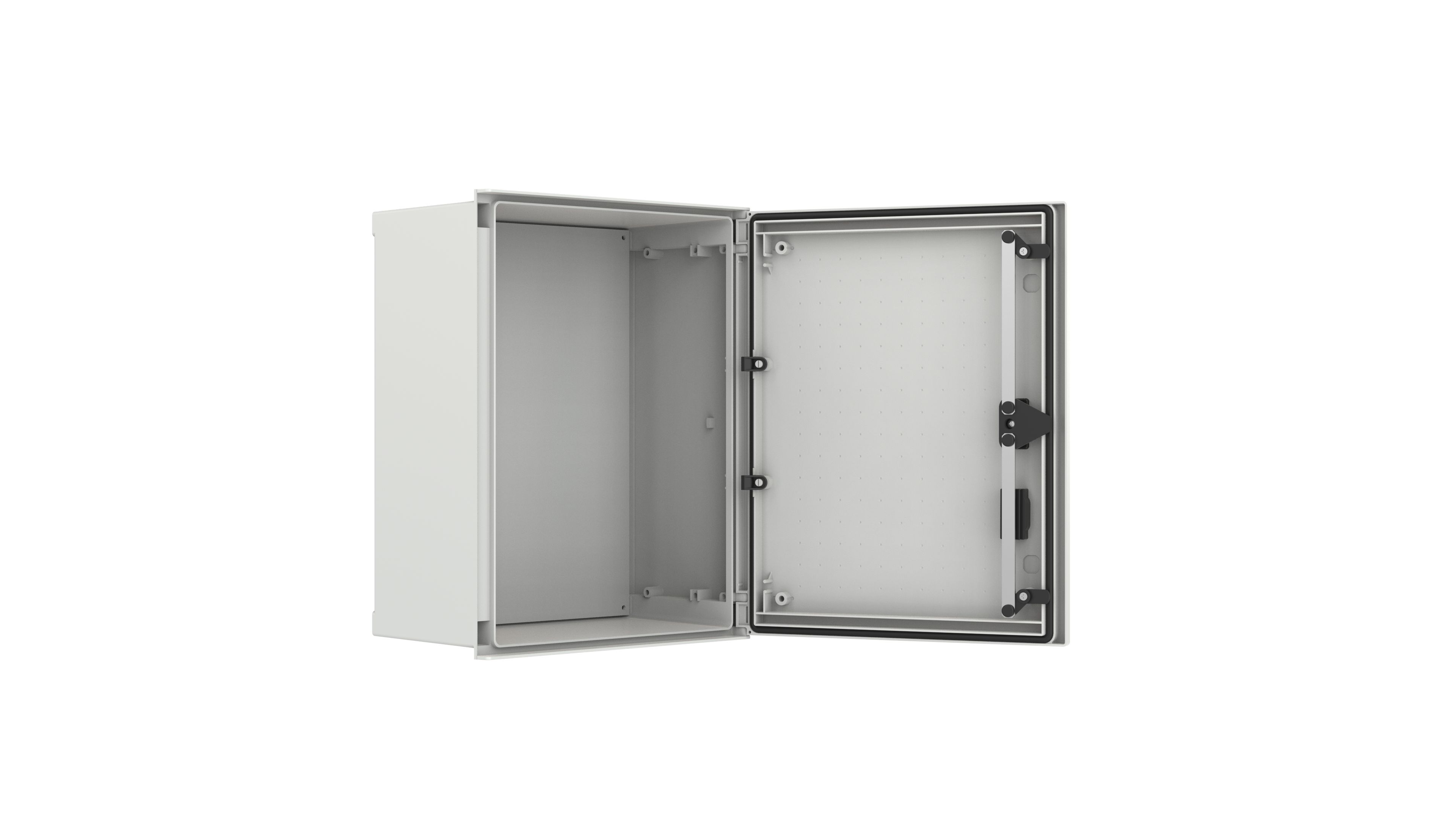

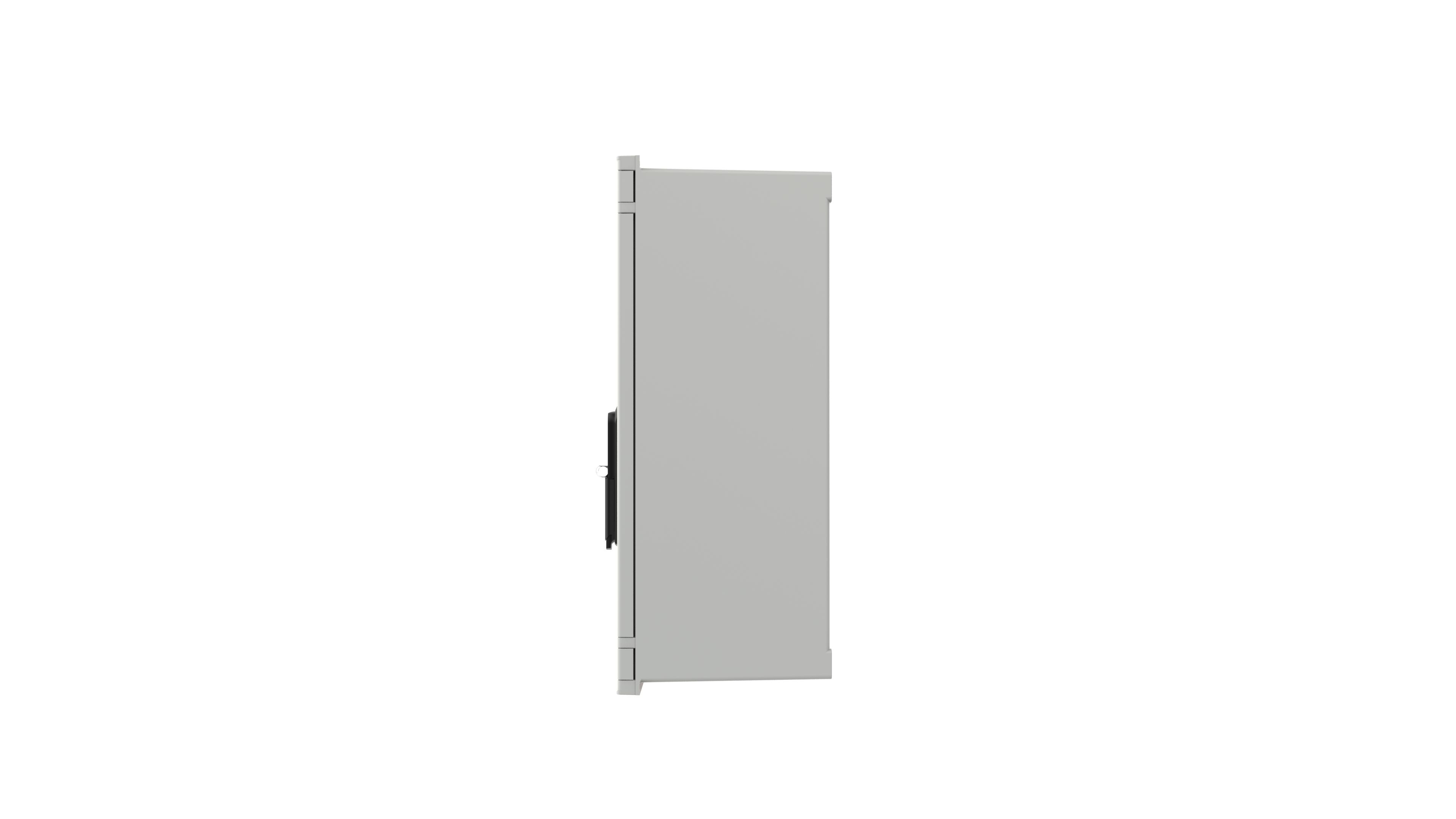

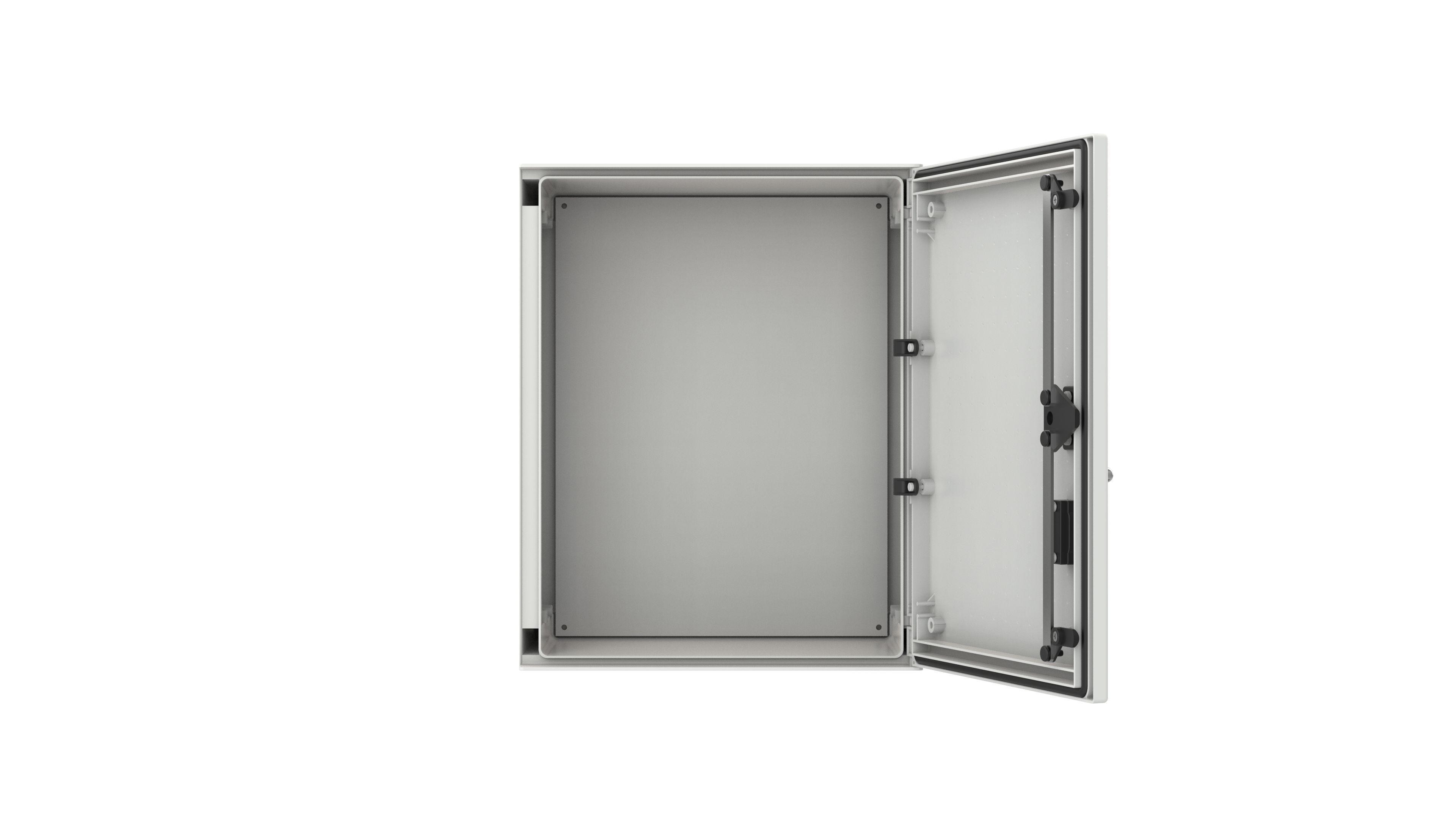

A 500 x 400 x 200mm (HxWxD) non-metal, IP66 enclosure suitable for harsh environments where easy visual inspection is required. Suitable for low voltage (LV) double insulated applications. The enclosure is fitted with a lockable swing handle – keyed 92268 lock and plain opaque door.
Part Number:
PU504020/3L
Error: Unable to load accounts at this time.
| Dimensions | 500 x 400 x 200mm |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 5 |
| Inclusions | Insulated mounting pan, Lock – Lockable Swing Handle – keyed 92268, Roof extends over door opening |
| Approvals | Halogen free (LSZH), IEC695-2-1: 960º Glow Wire Test, UL94, UL94 – V1 rating, V1 rating |
| Construction | Body – Plastic – UV stabilised glass reinforced polyester, Surface finish – RAL7035 |
