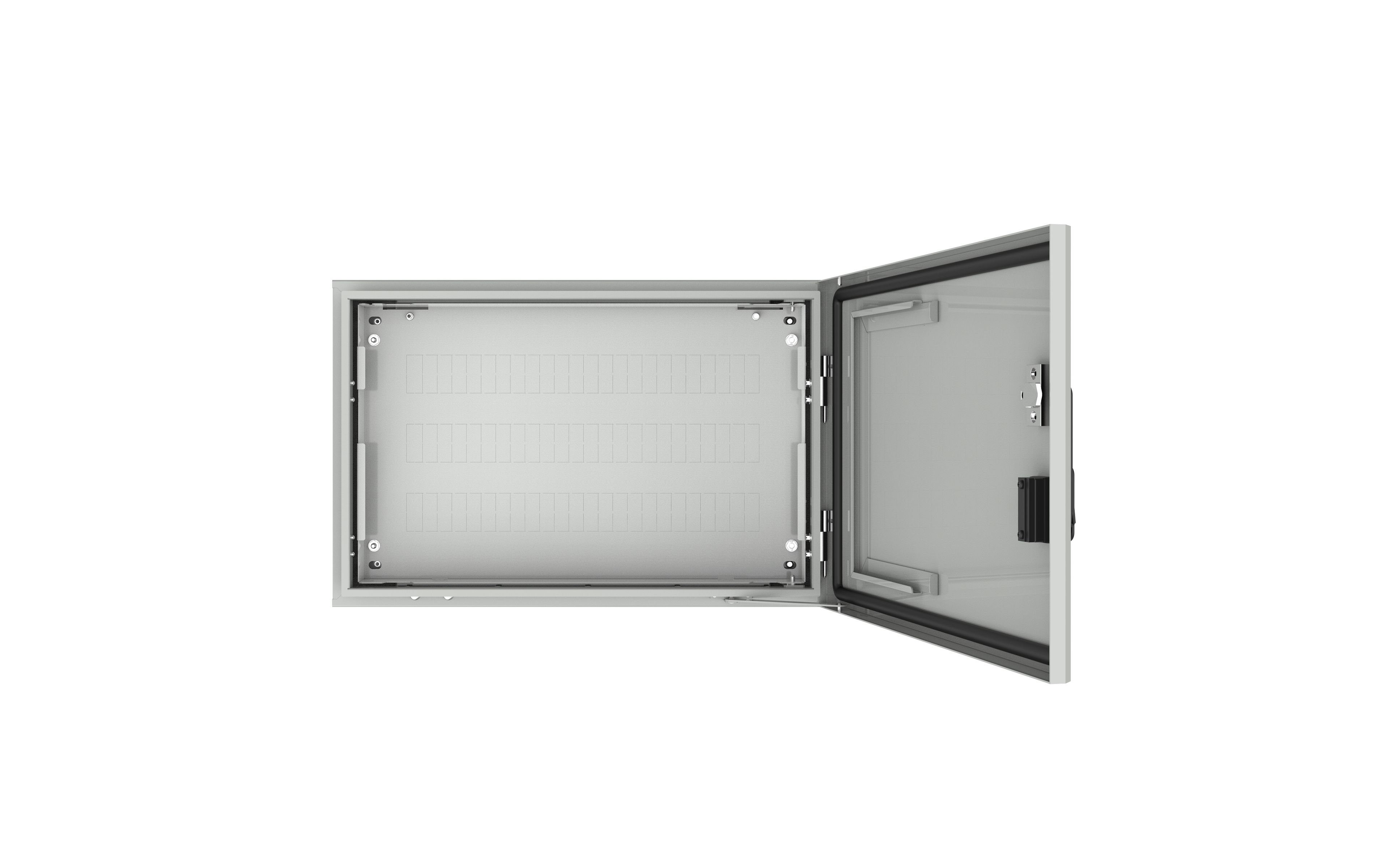

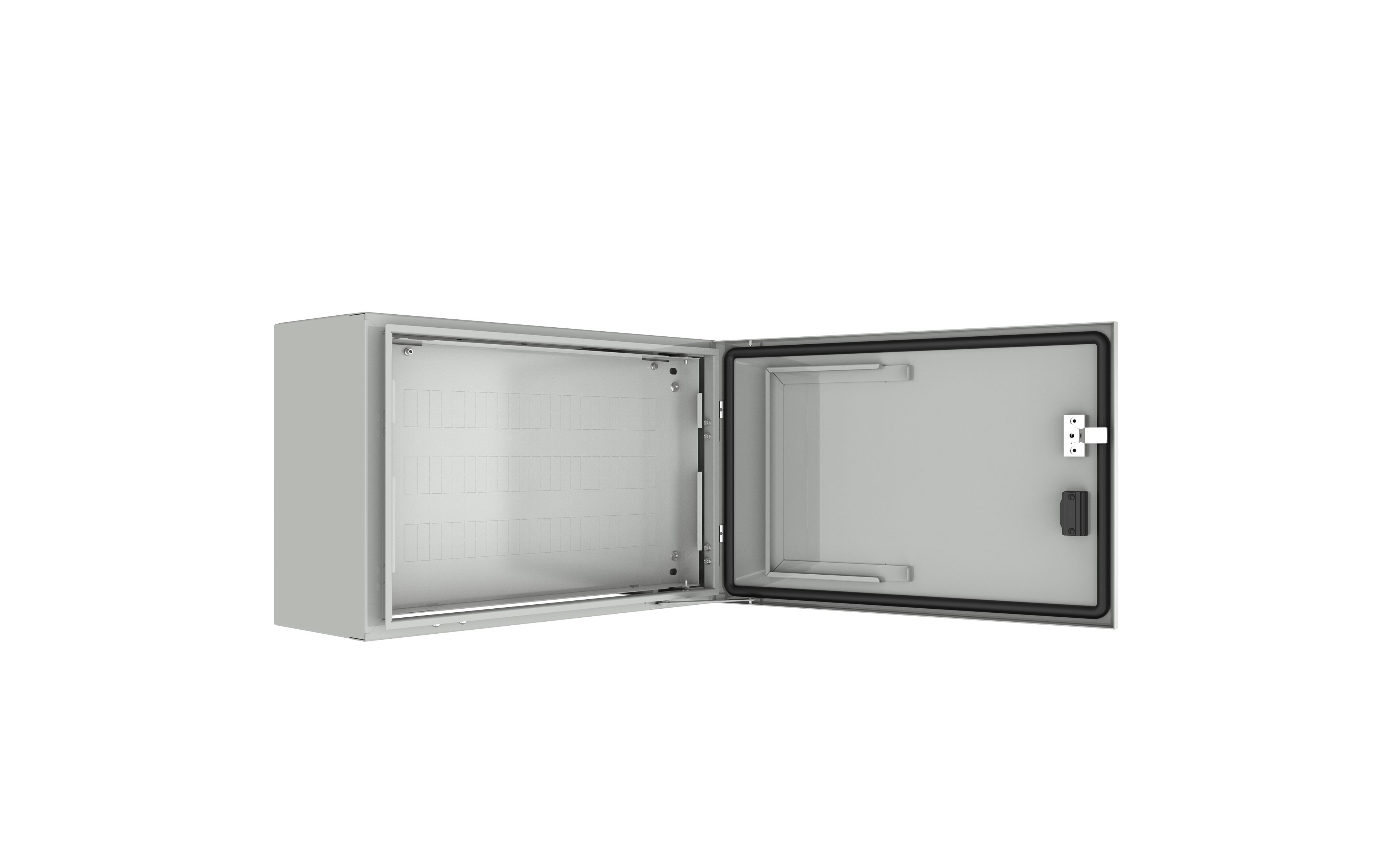

Panelboard Superior Extension Box manufactured in Zinc Coated Steel with 48-pole of DIN space. The enclosure is 400Hx600Wx250D rated to IP66 and can be reconfigured to a 24-pole DIN section or the DIN rail can be removed entirely and replaced with an included mounting pan. Gland plates are not included as standard as if used as an extension box, the enclosure gland plate can be used. The extension box can also be used an a standalone enclosure if purchased with 2 x PBS-GPK gland plate kits.
Part Number:
PBSEXT
Error: Unable to load accounts at this time.
| IP Rating | IP66 |
|---|---|
| Inclusions | 48 poles of DIN which can be reconfigured to 24 pole for more cabling space, 48-pole chassis suitable for Schneider NHP and Hager MCBs, Field reversible Door and escutcheon, Option of Mounting Pan included as alternate mounting method, Schedule holder, Swing handle lock with half-euro cylinder keyed 92268, Three point locking |
| Approvals | AS/NZS3000 compliant weatherproof installation label, AS/NZS3012, AS1170.2-2002: Structural design actions – wind actions, IP23 |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 surface finish |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
