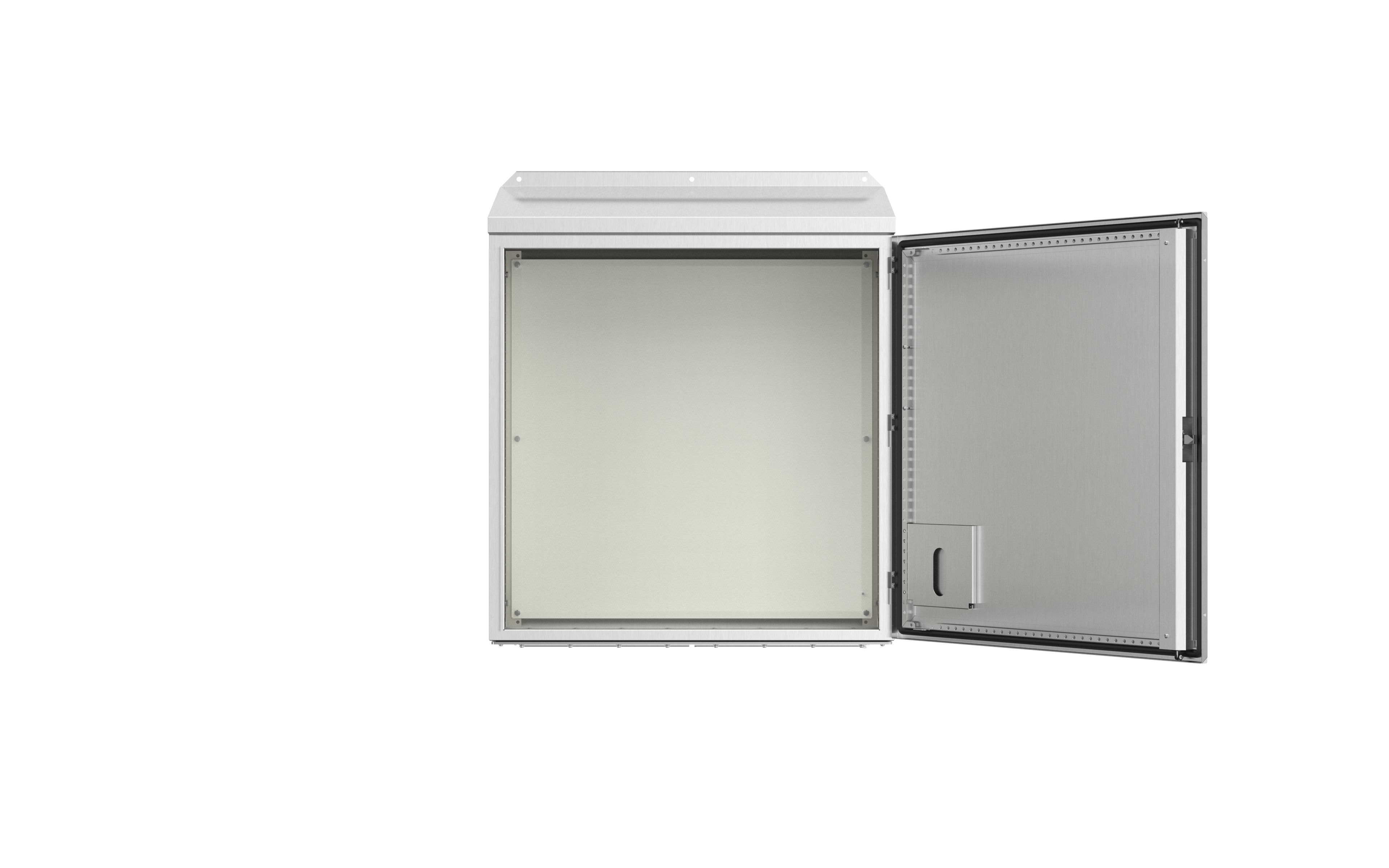

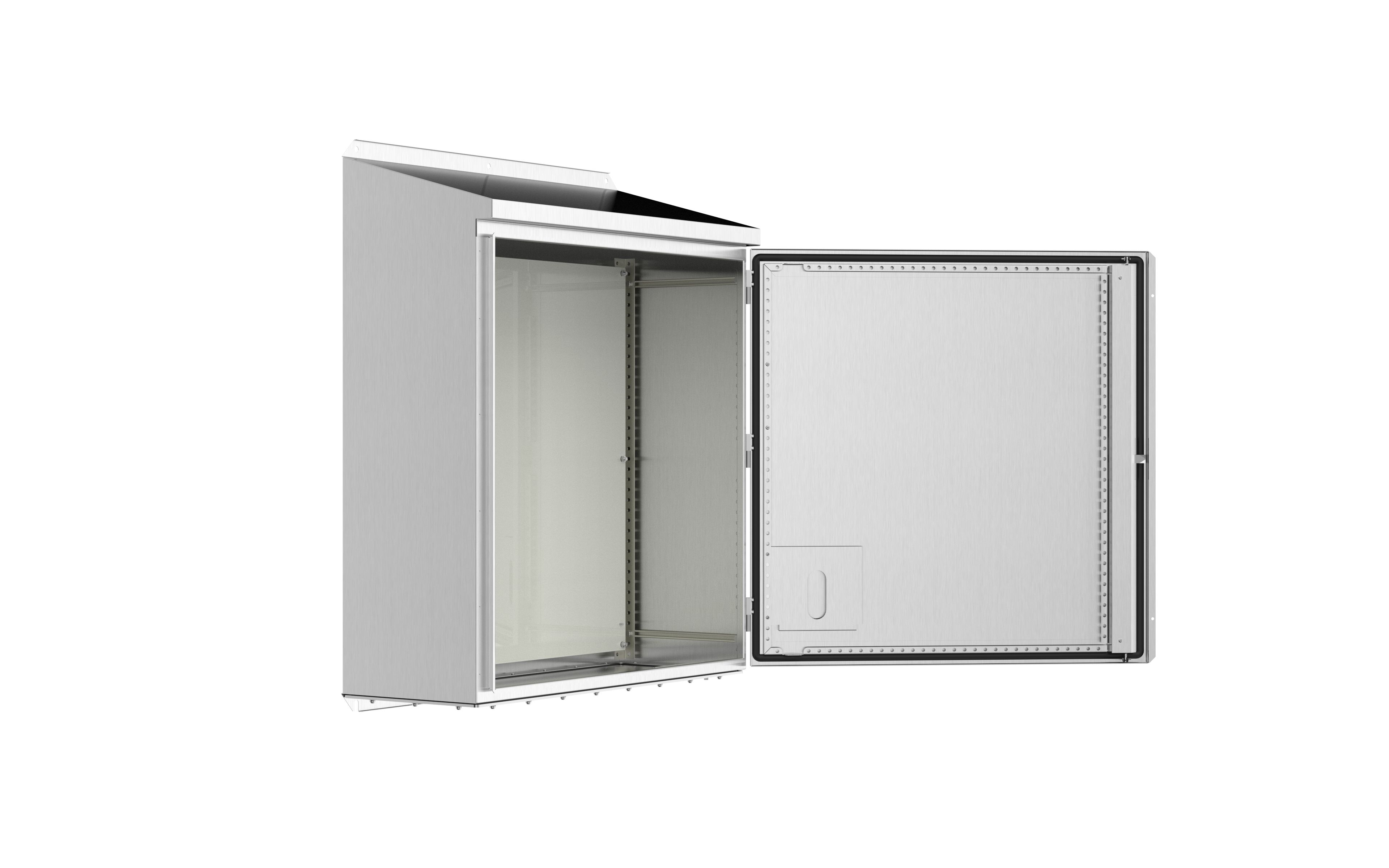

An IP66, 316 stainless steel, 15 degree sloping roof enclosure designed for rugged, dusty industrial applications. The enclosure comes complete with a metal – 930 x 934 (HxW) – 2mm thick mounting pan and 970 x 353mm x 6mm brass gland plate (930 x 313mm opening). The enclosure comes complete with top and bottom wall mounting flanges, door rails, Stainless steel padlockable swing handle (IP060/S) removable doors (with pintle hinges) and earth strap kit.

Part Number:

FI101040/S

Error: Unable to load accounts at this time.

Add to quote

Download PDF of this page

Details

Dimensions	1000 x 1000 x 400mm (1240mm total height)
IP Rating	IP66
Weight (kg)	65

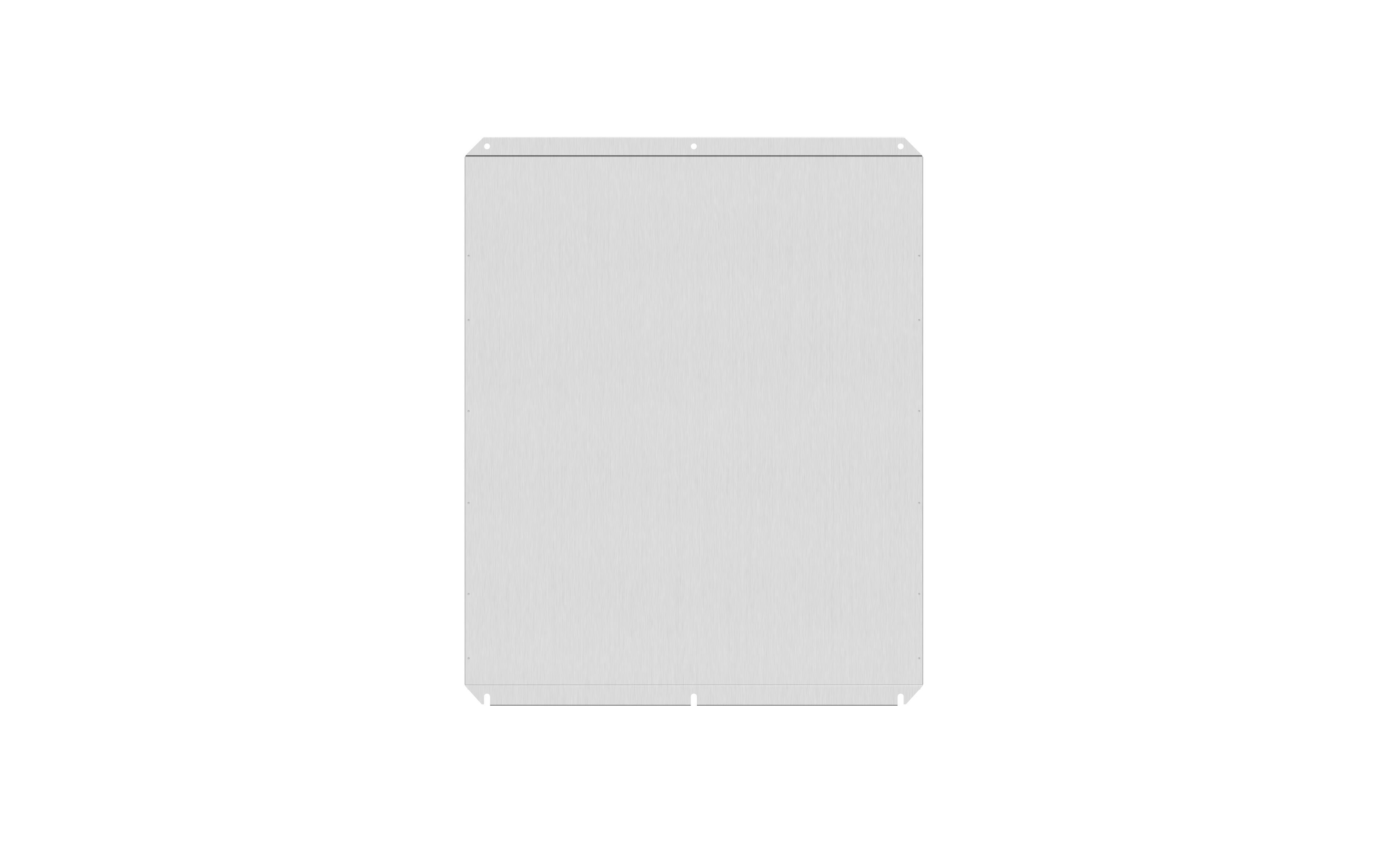

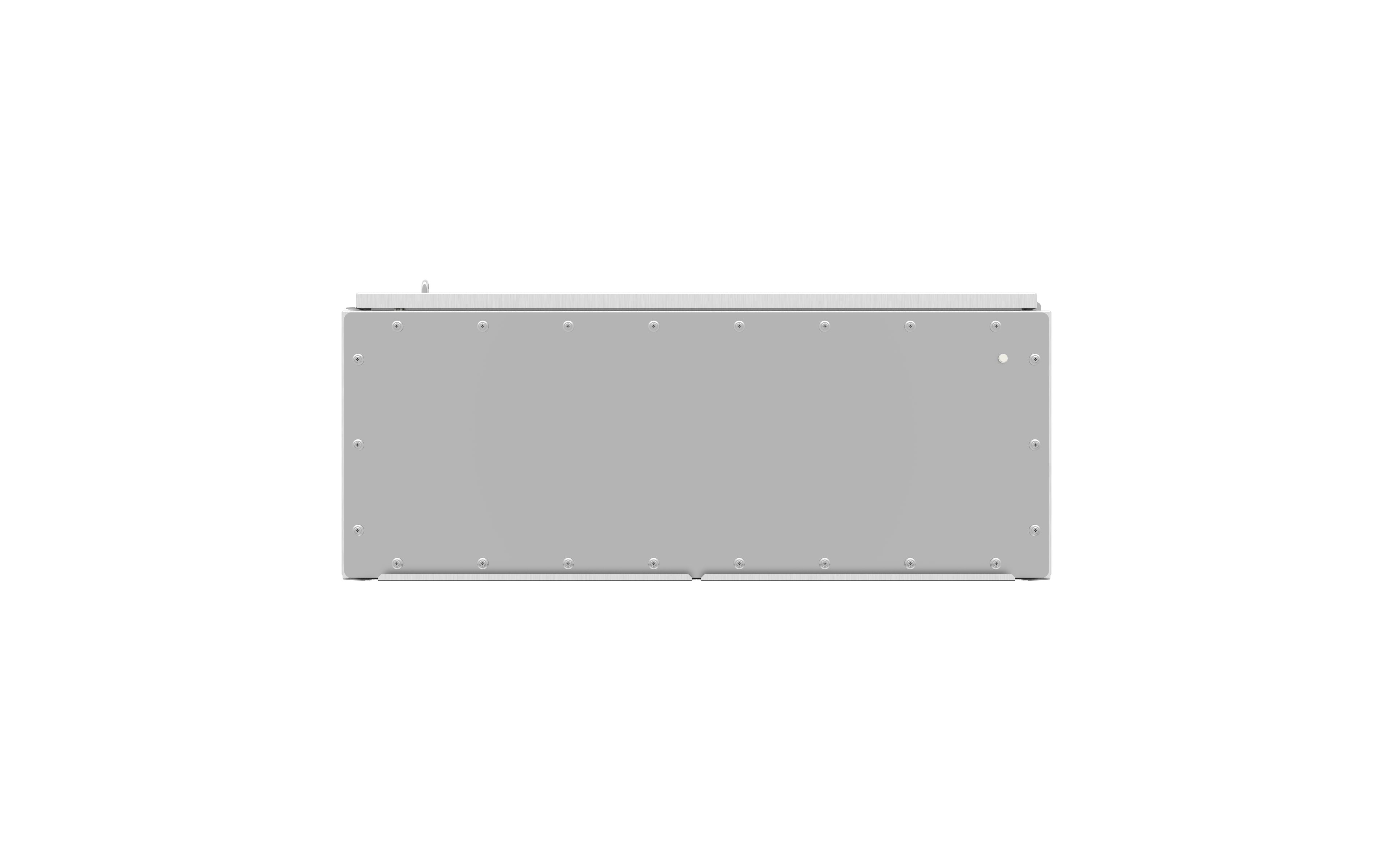

Inclusions	2mm steel mounting pan – 930 x 934 (HxW) – white, Door rails, Earth strap kit, Gland Opening – 930 x 313mm gland opening with 6mm thick aluminium plates, Stainless steel padlockable swing handle (IP060/S), Top and bottom mounting flanges
Approvals	AS/NZS 61439, Lloyds Register #06/10007 (E2)
Construction	Body – 1.5mm 316 Stainless Steel, N4 Surface Finish

Features

Enclosure

IP66 protection rating – more info on IP ratings

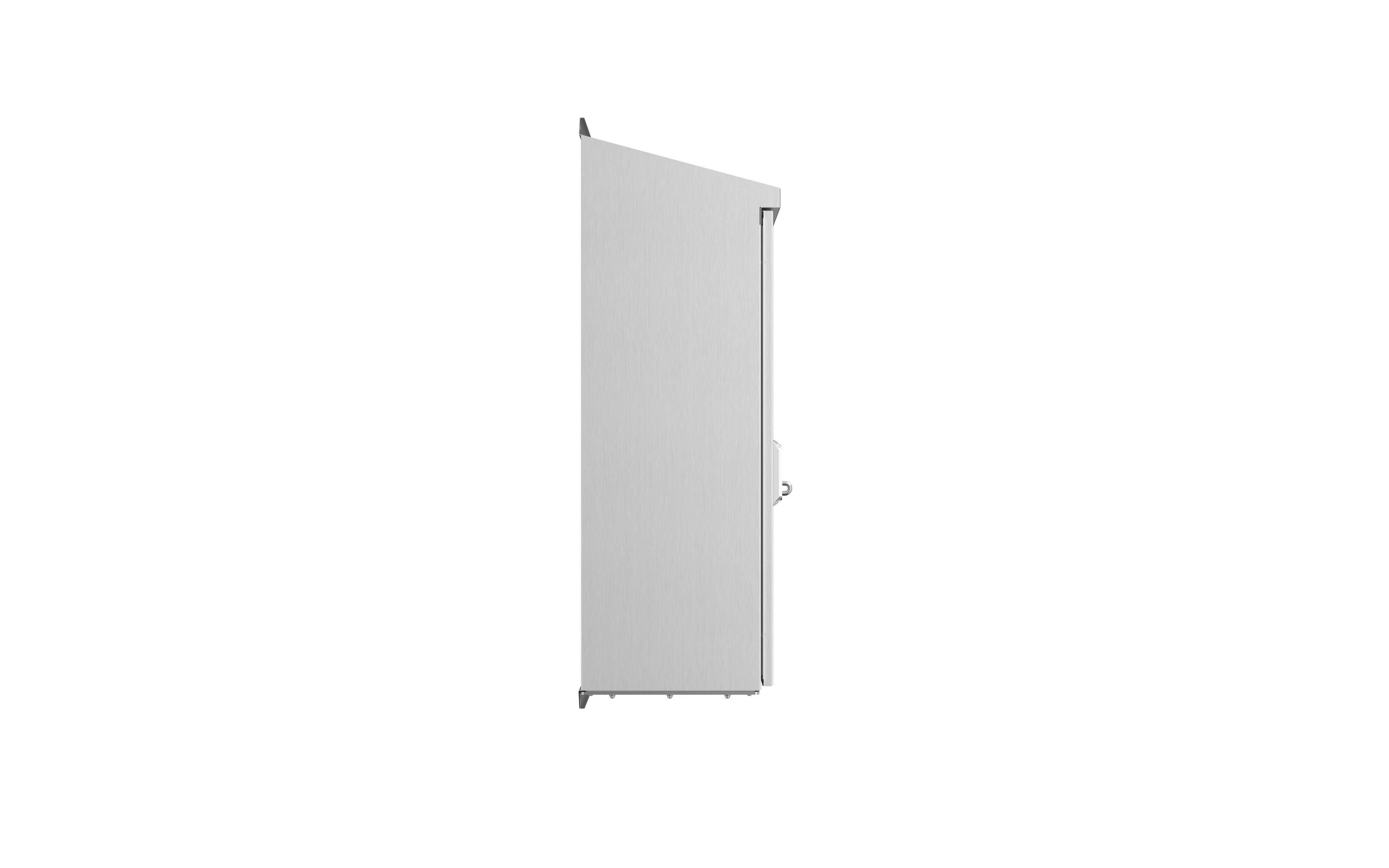

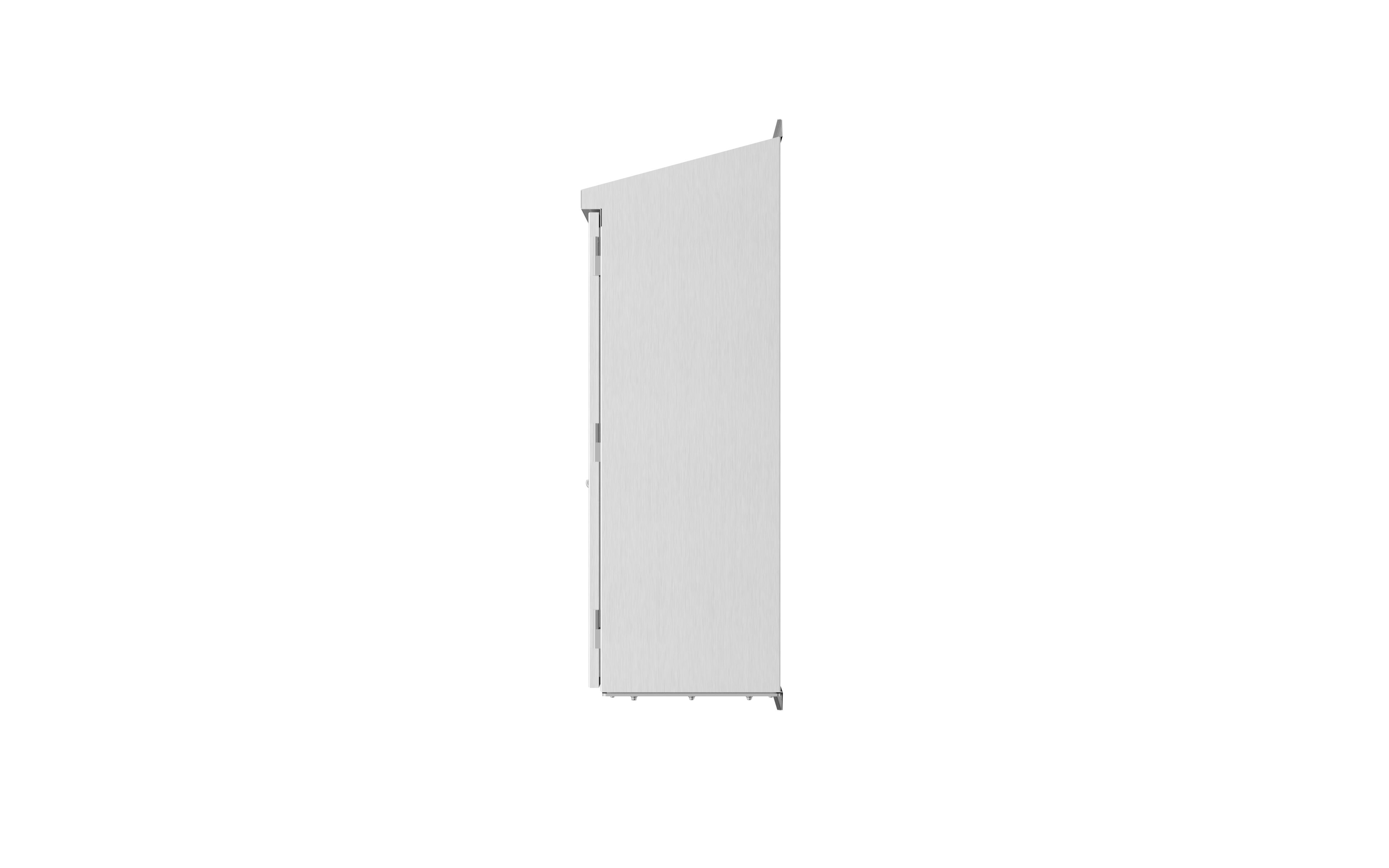

15º forward sloping roof to prevent build up of water and solids
Extended roof and gutter system to inhibit water from entering the enclosure on opening
Mounting pan depth adjustable to provide flexibility for cable glands
Removable doors with pintle hinges

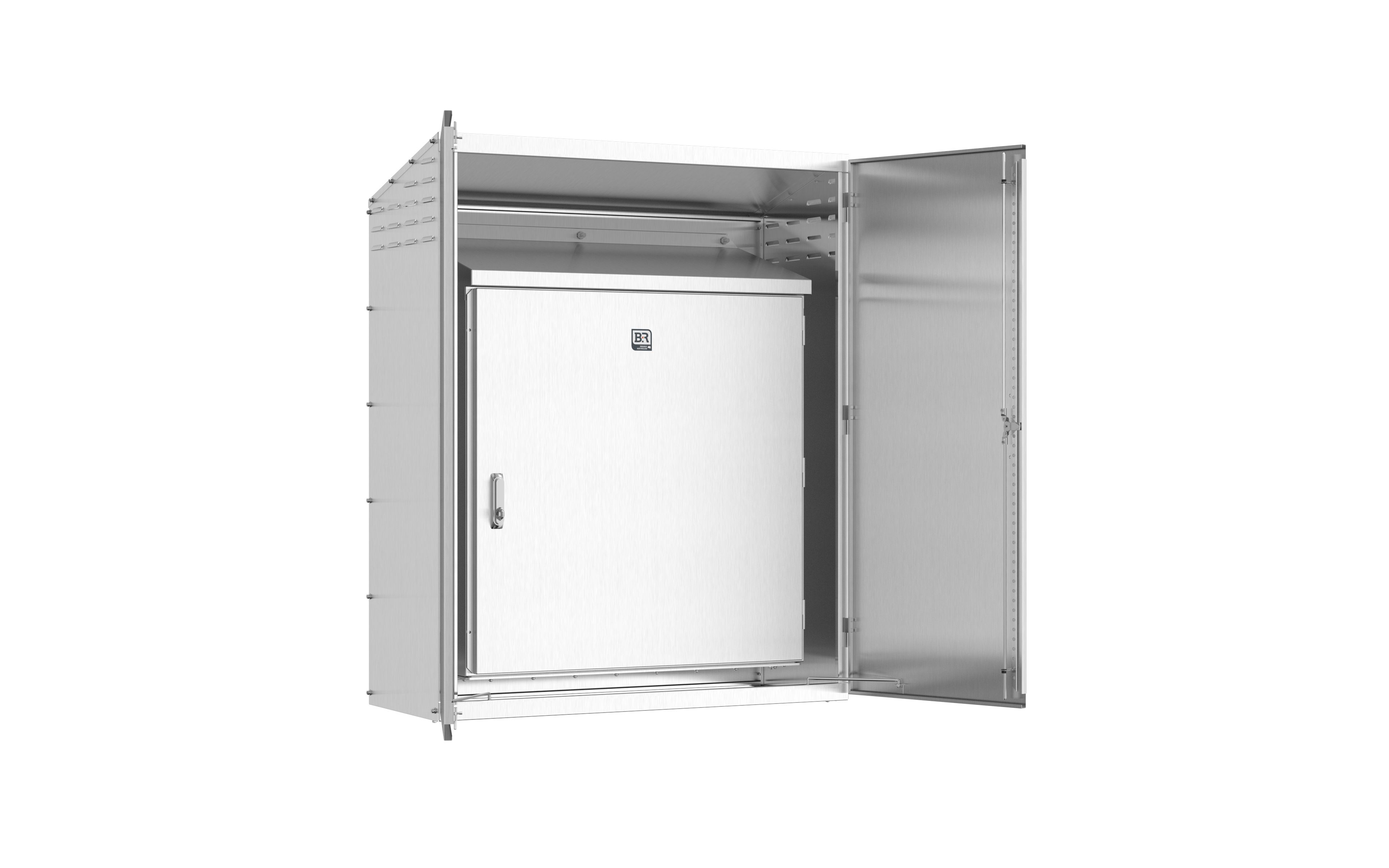

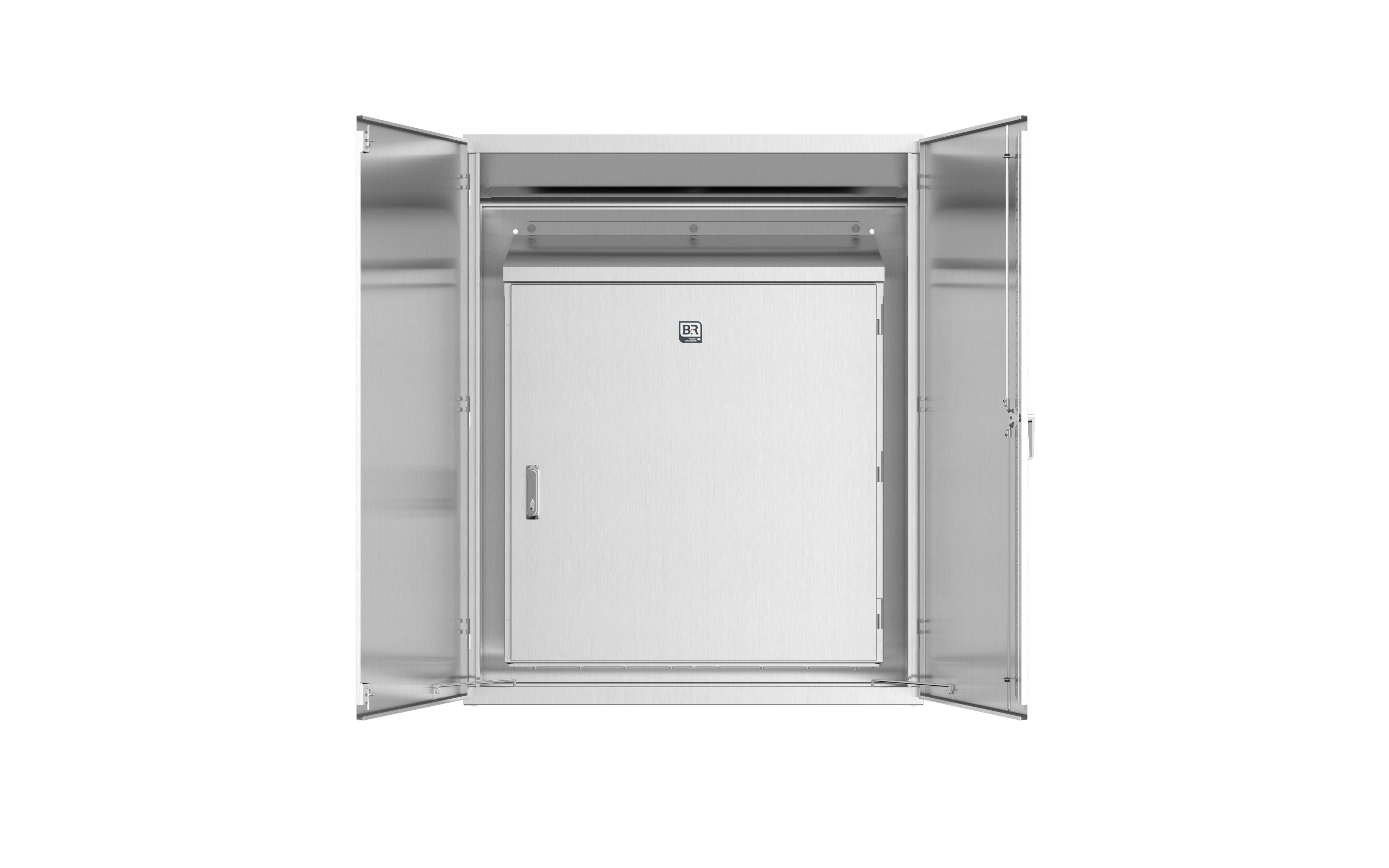

Sunshade

15º reverse angle sloping roof to prevent the build
of water and solids
Large opening in bottom for maximum cable access
Designed to protect enclosure from direct sunlight
and reducing temperatures inside the enclosure

Downloads

CAD

SoC

Accessories

LPC221

Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 215W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss

Add to quote

LPC231

Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 315W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss

Add to quote

LPC261

Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 615W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss

Add to quote

Brands: Finucane FI

Category: 15 Degree Sloping Roof, 316 Stainless Steel, Enclosure, Finucane FI, Industrial, Industrial Enclosures, Mining, Stainless Steel

Tags: 15 degree, Control Station, Door Rails, Gland Plate, Hinged Door, IP66, Lloyds Certified, Mounting Pan, Sloping Roof, Wall Mounting
