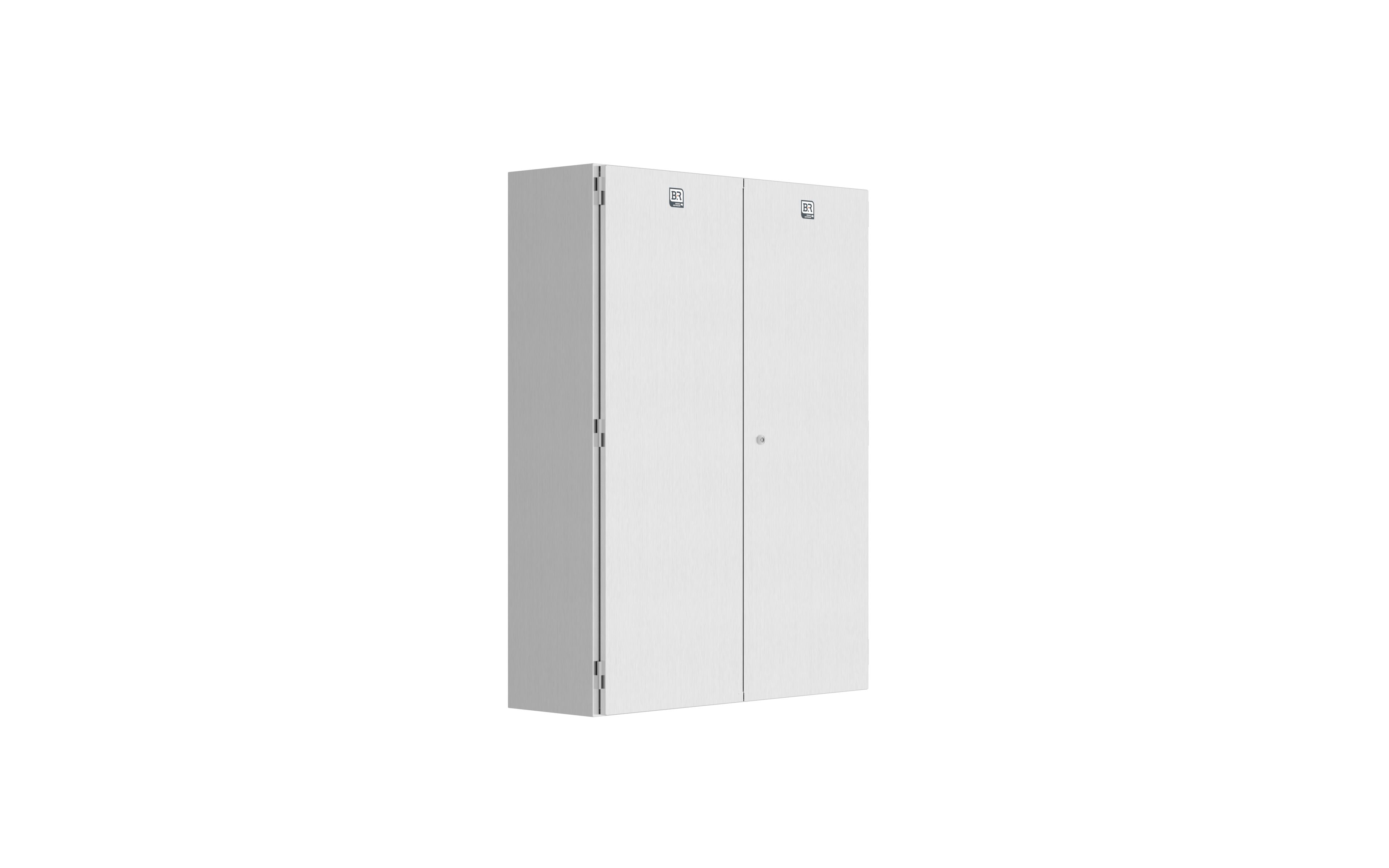

A 1200 x 1000 x 300mm (H x W x D) IP55 double door, 316 stainless steel enclosure, complete with 1140 x 915mm (H x W), 2mm white, white painted mounting pan, a single gland plate and DD020/S turnbuckle lock with 3-point locking. The enclosure is designed with no centre mullion and has an N4 surface finish.
Part Number:
DD12103/S
Error: Unable to load accounts at this time.
| Dimensions | 1200 x 1000 x 300mm |
|---|---|
| IP Rating | IP55 |
| Weight (kg) | 74 |
| Inclusions | 2mm steel mounting pan – 1140 x 915 (HxW) x 2mm thick – white, Chromed steel lock with 7mm square steel insert (DD020)and 3 point locking, Door rails, Earth strap kit, Gland Opening – 440 x 120 gland opening with 1.5mm thick plate |
| Approvals | AS/NZS 61439, Lloyds Register #06/10007 (E2) |
| Construction | Body – 1.6mm Zinc Coated Steel, Surface finish – Stainless Steel N4 Surface Finish |
Gasket – Neoprene – 4m length for use with channel iron plinth in Monarch IP and Universal DD ranges
Vent kit (louvres) 130 x 130mm – 316 stainless steel, N4 surface finish to suit Monarch IP, Universal NI, Incline SR, Universal DD and Hedland PH ranges
Vent kit (louvres) 260 x 260mm – 316 stainless steel, N4 surface finish to suit Monarch IP, Incline SR, Universal DD, Hedland PH and Universal NI ranges
