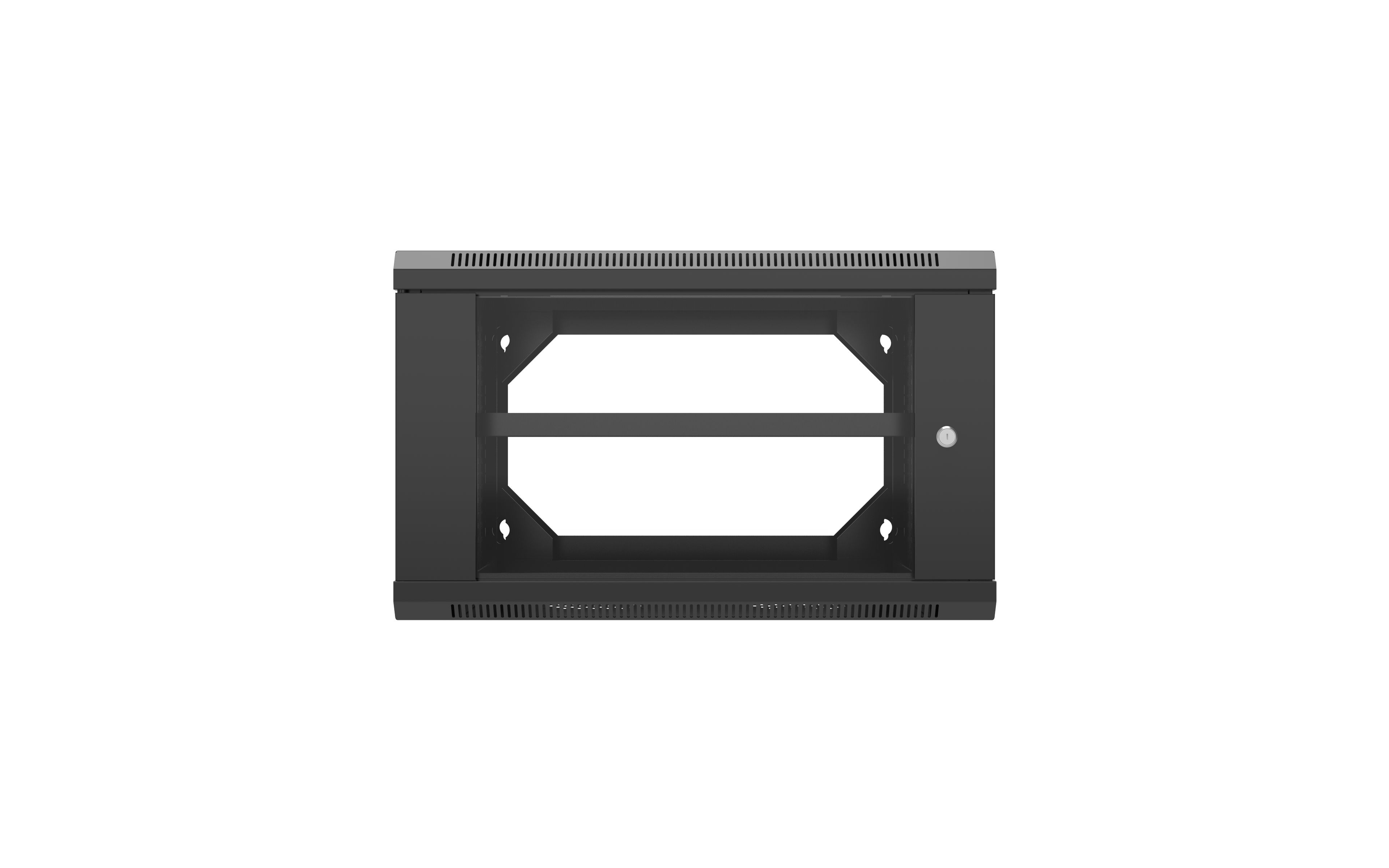

onyX Wall 19 inch Cabinet, 370H x 600W x 550D, 6RU, SPCC rolled steel Powdercoated textured matt black with Tempered Safety Glass Tinted Window Door and steel side panels. The unit includes 4 x 1.5mm thick 19inch depth adjustable rails and a 1.0 / 1.2mm thick 4 post frame tested to a static load of 60kg. onyX Wall also includes a 1 fixed shelf and key locks on the door, side wall and mounting frame.This onyX Wall is often used in home automation applications and often houses patch panels, modems and routers.This onyX Wall is mounted using it’s swing frame, which makes installation and ,maintenance easier.
Part Number:
ARWX6U450
Error: Unable to load accounts at this time.
| Dimensions | 370 x 600 x 550mm |
|---|---|
| RU | 6 |
| Weight (kg) | 23 |
| Inclusions | 19 inch rails (x4) adjustable, Fixed shelf, Front door with safety glass, Lockable swing frame, Locks keyed to 92268 (door and side panels) |
| Approvals | AS62208-2006 – load rating, Australian Standards, EIA-310-D Compliant, SSI Compliant |
| Construction | 1.0/1.2mm SPCC rolled steel, 3-point locking on doors, 4 rail, Adjustable rail position, Black, IP66 rated, Key lock on front door, Removable back, side panels and swing frame (92268), Tempered Safety Glass Tinted Window Door |
Brush strips – Ezibrush with tool-less installation. Supplied as 5 x 1RU brush strips. The brush overhangs the 1RU size by 5mm.
Cable management – Horizontal Network Cabinet – 90mm finger length – 2RU – Mounts on 19 inch rails.
Metal Horizontal Cable management ring for 19 inch Cabinet – 120mm x 41.5mm ring. Occupies 1RU of rack space.
Metal Horizontal Cable management ring for 19 inch Cabinet – 120mm x 83mm ring. Occupies 2RU of rack space.
Plastic Horizontal Cable management ring for 19 inch Cabinet – 55mm x 30mm ring. Occupies 1RU of rack space.
Fan kit for onyX Wall – 2 unit with integrated thermostat. The fan unit can be fitted to the roof of the rack for additional ventilation.
Horizontal Power Rail with 6 x 10A SAA Outlets, 10A plug – 1RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 6 x 10A SAA Outlets, 15A plug – 1RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 10 x 10A SAA Outlets, 10A plug – 2RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 10 x 10A SAA Outlets, 15A plug – 2RU. Suitable for all 19 inch cabinets and racks.
Surge Protected Horizontal Power Rail with 6 x 10A SAA Outlets, 10A Plug – 1RU. Suitable for all 19 inch cabinets and racks.
Surge Protected Horizontal Power Rail with 6 x 10A SAA Outlets, 15A Plug – 1RU. Suitable for all 19 inch cabinets and racks.
Fixed Shelf for onyX Wall rack – 270mm deep – 1RU – suitable for 450mm deep enclosures, 550mm deep including the swing frame.
