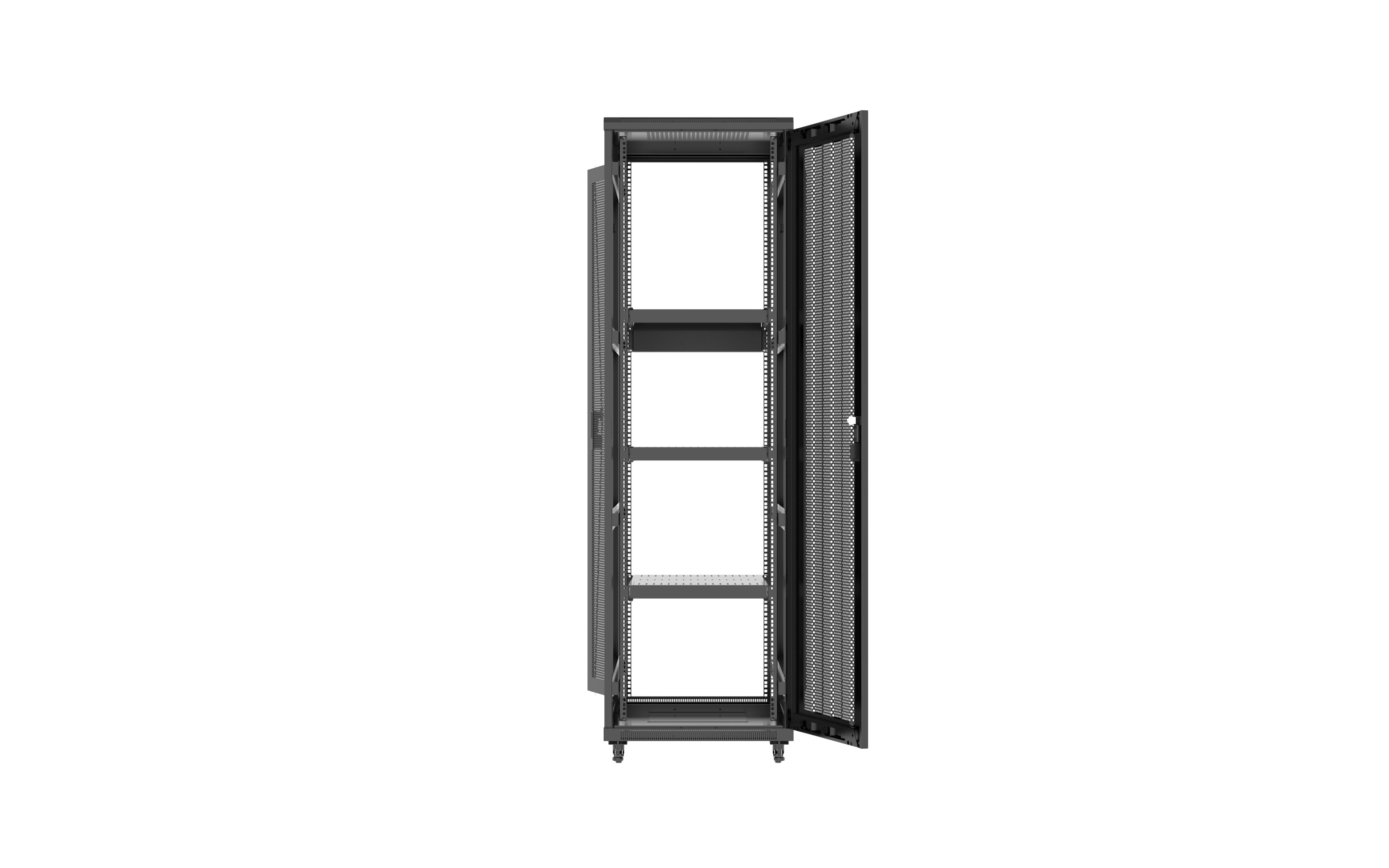

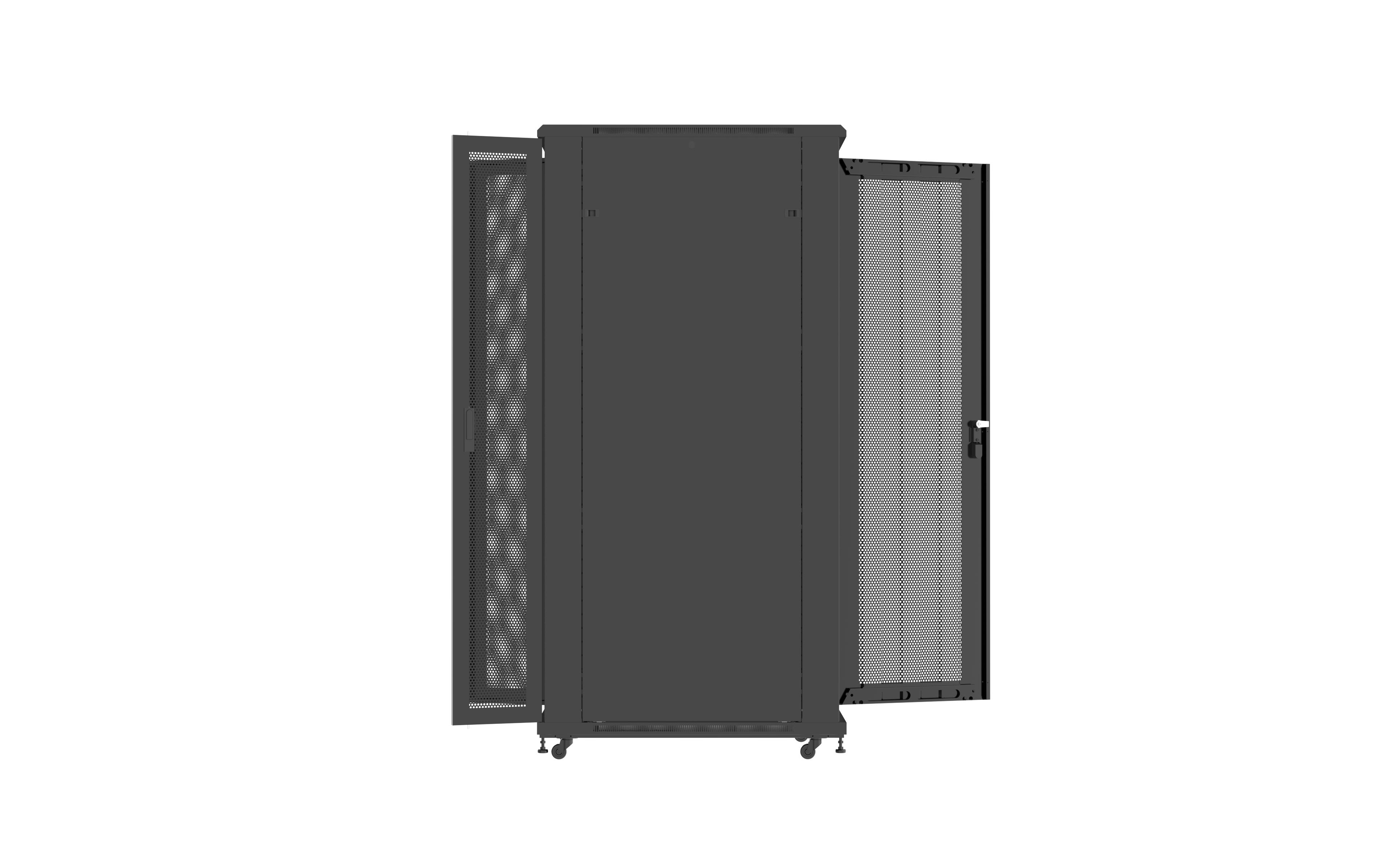

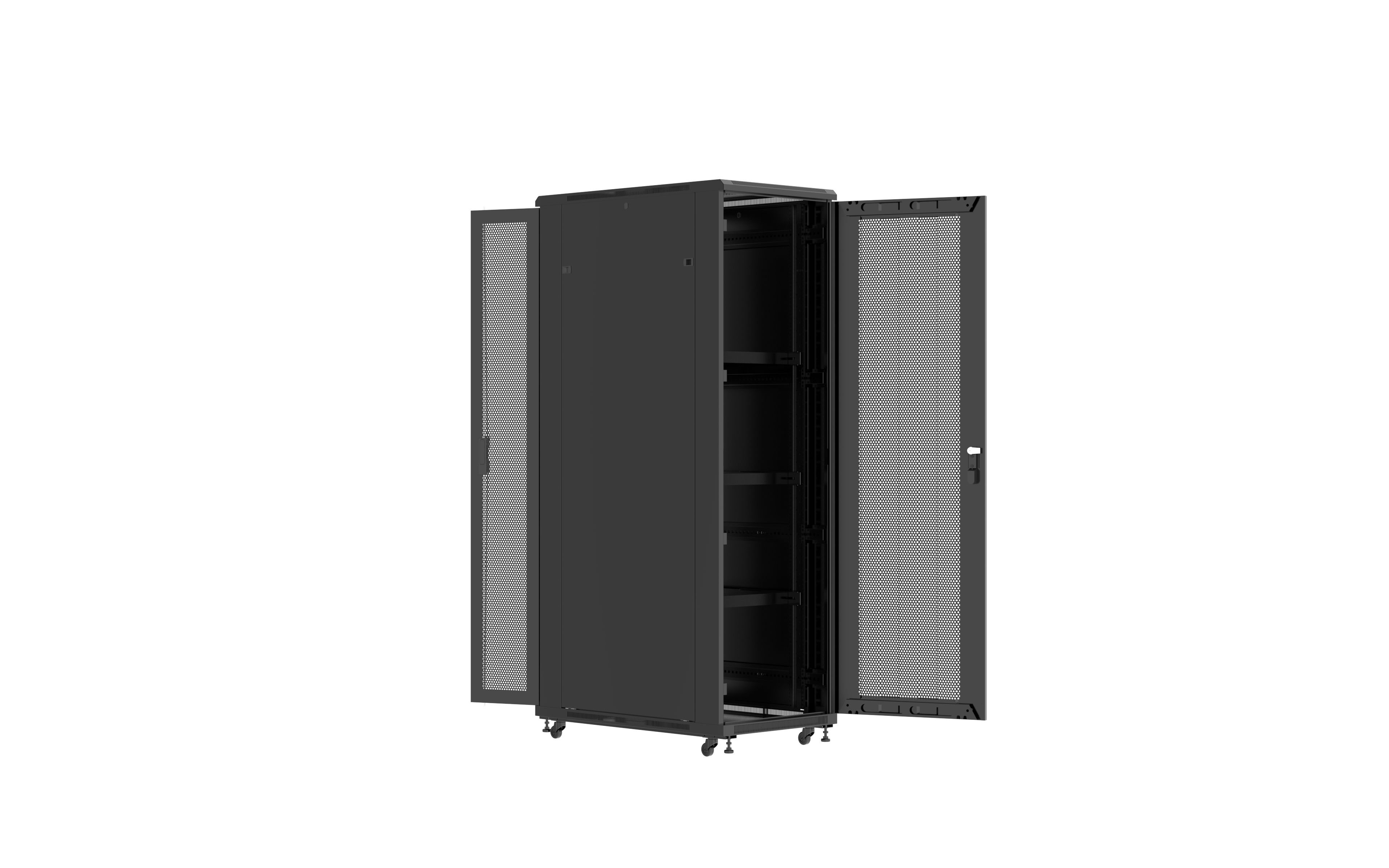

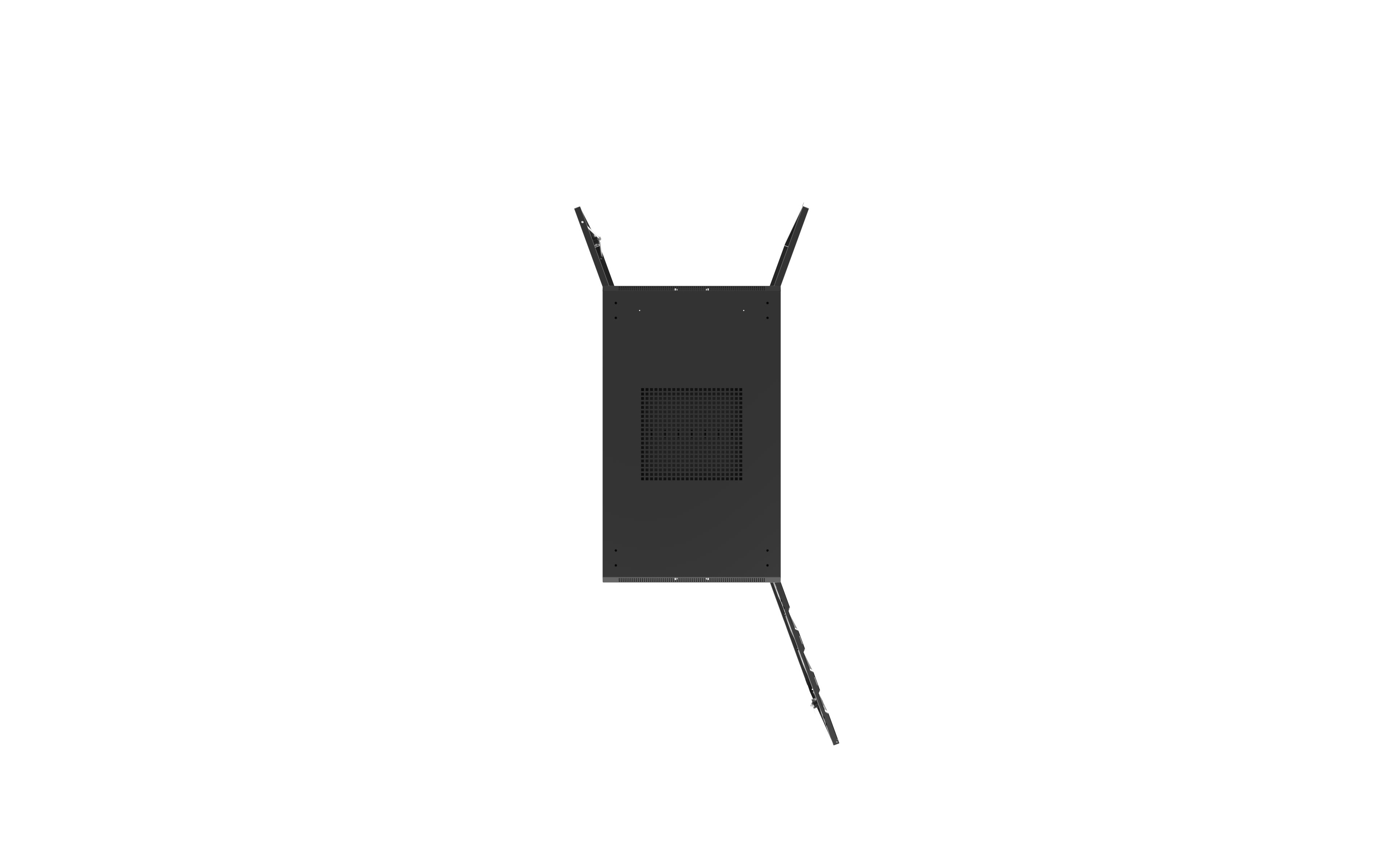

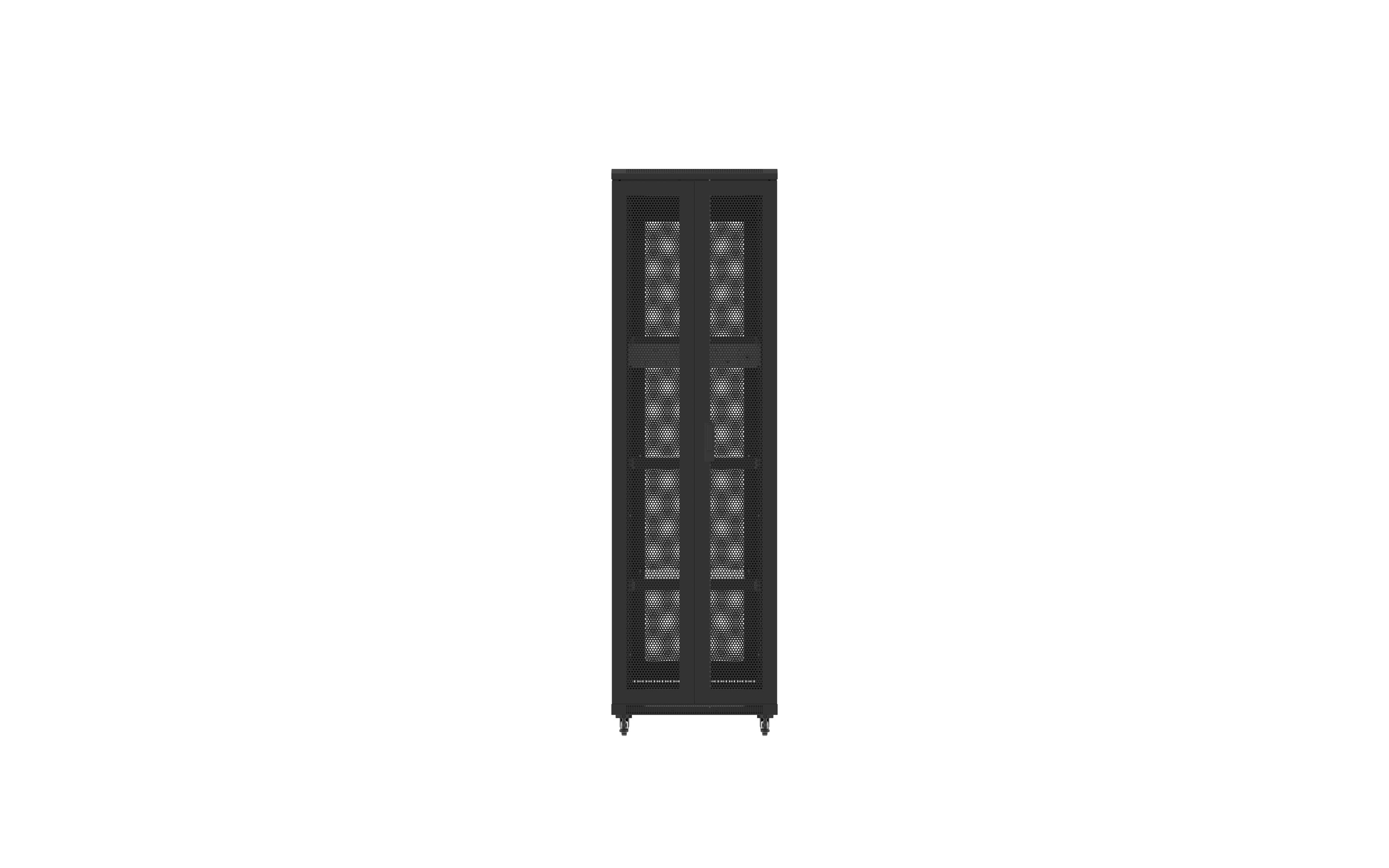

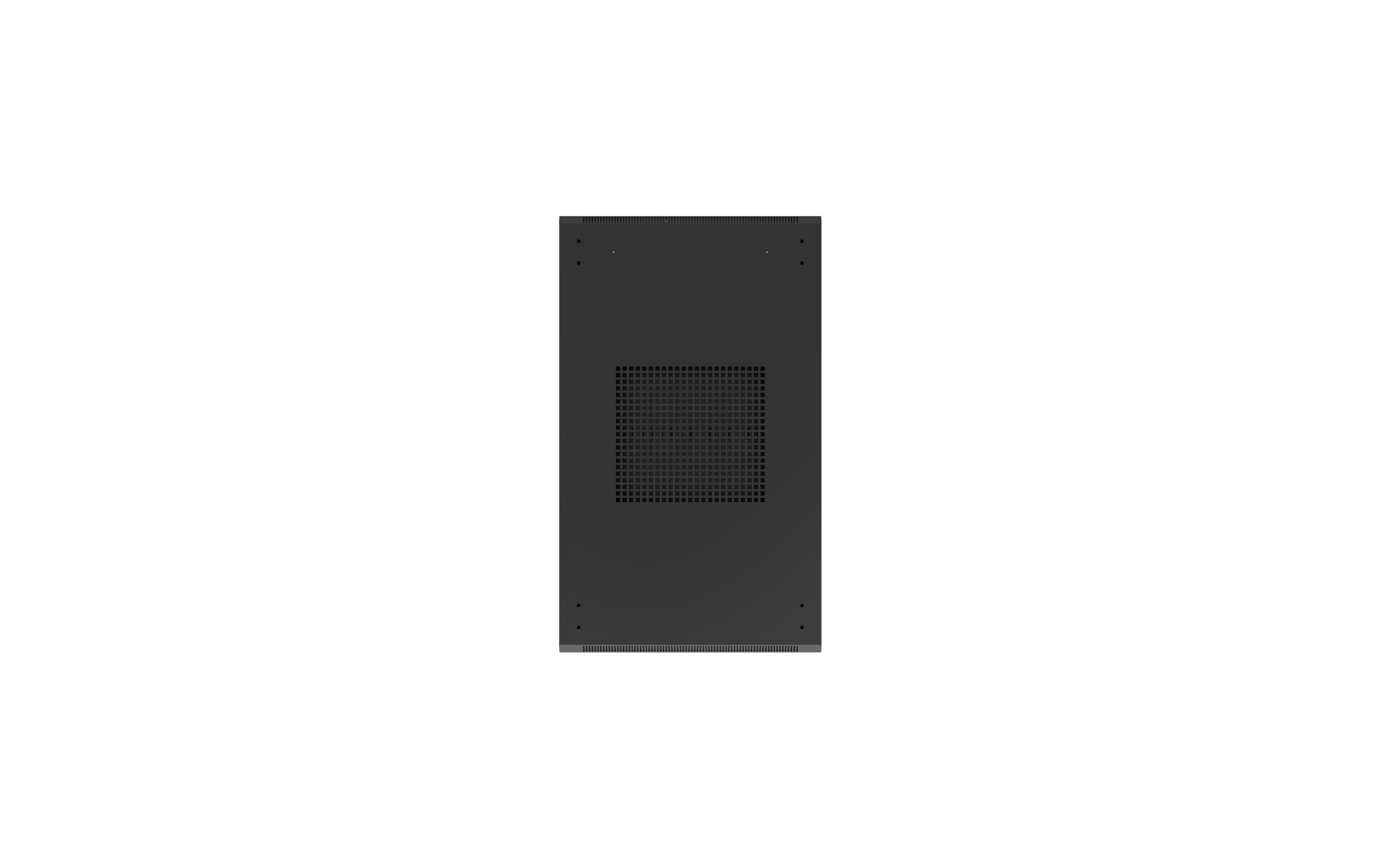

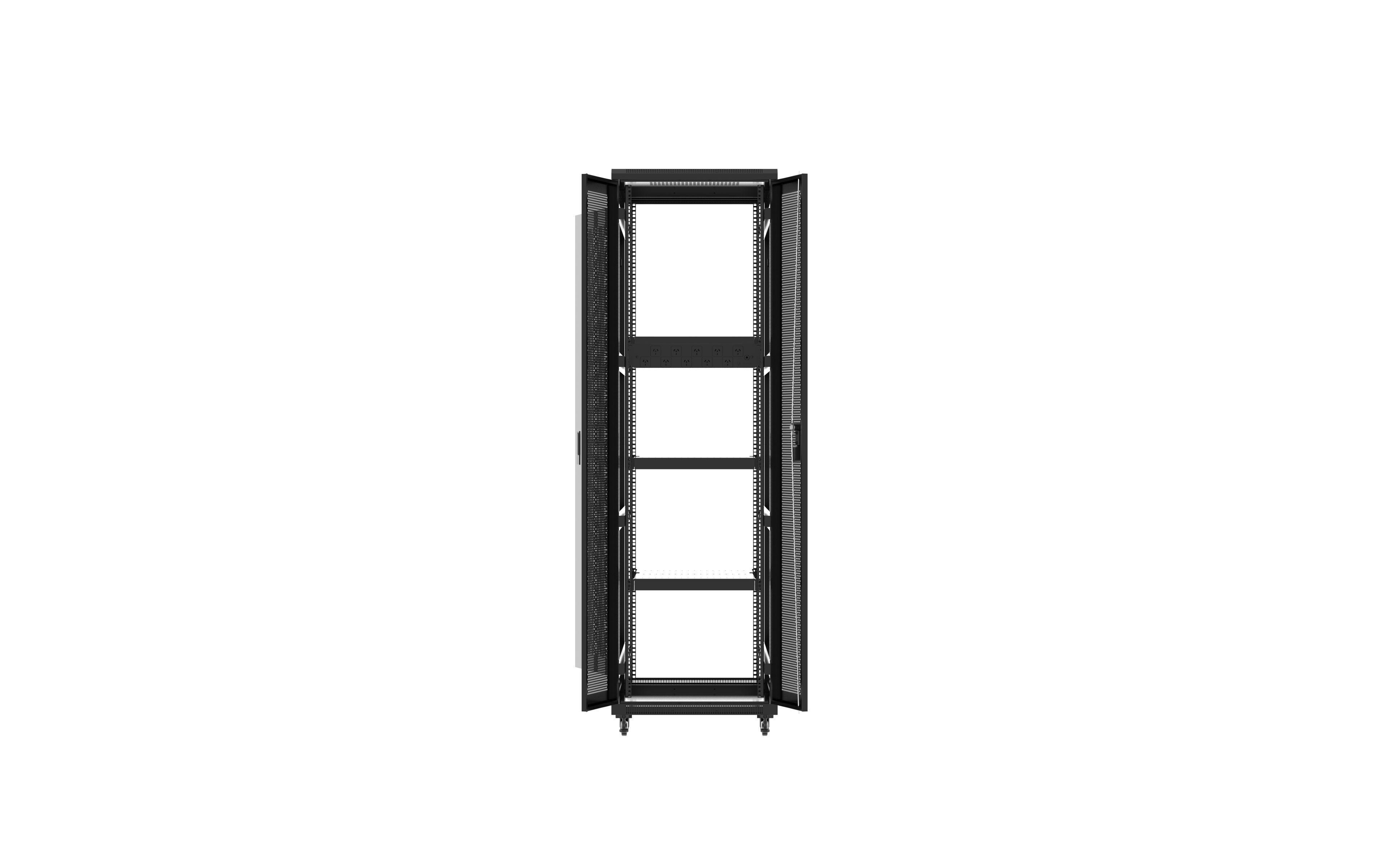

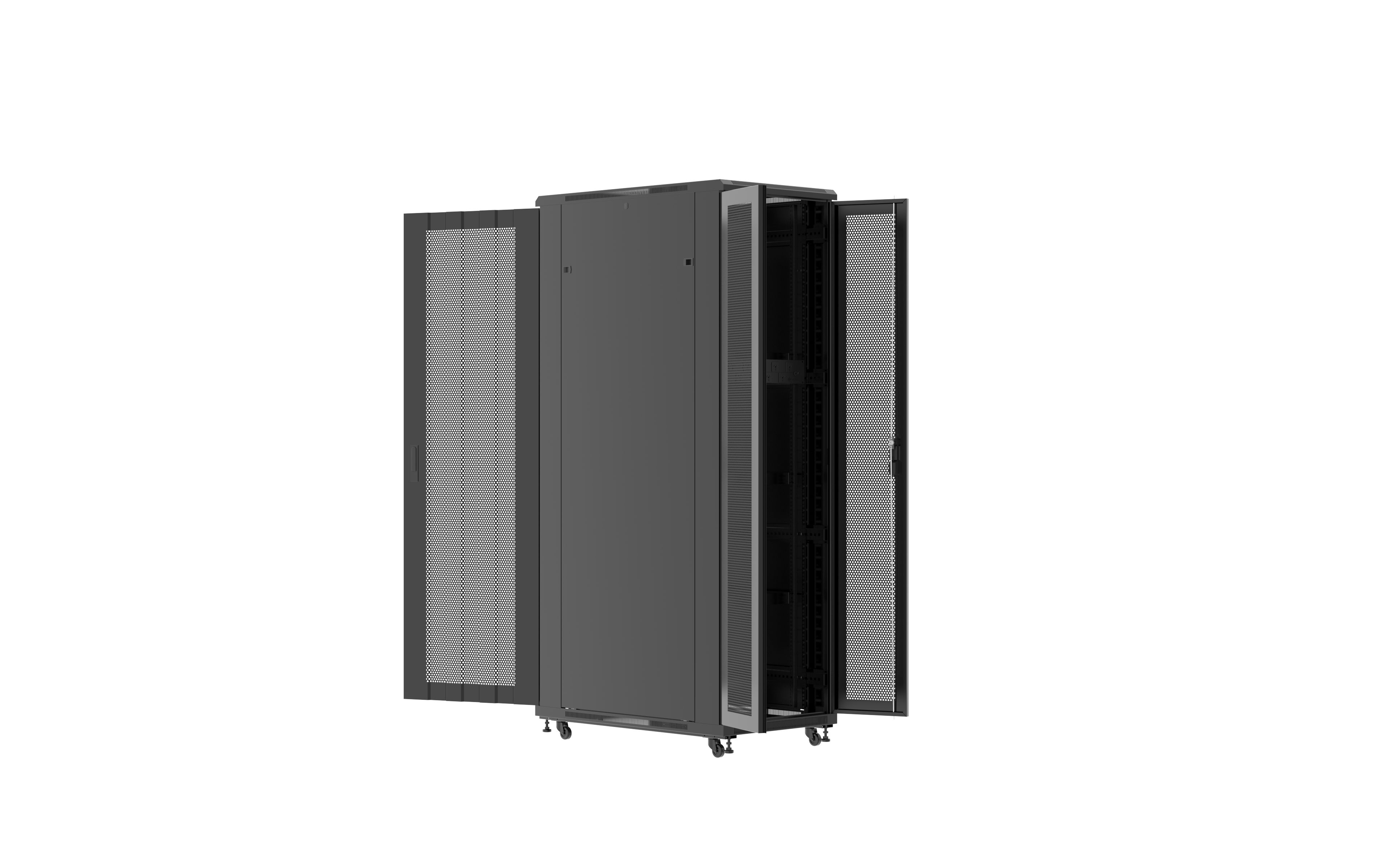

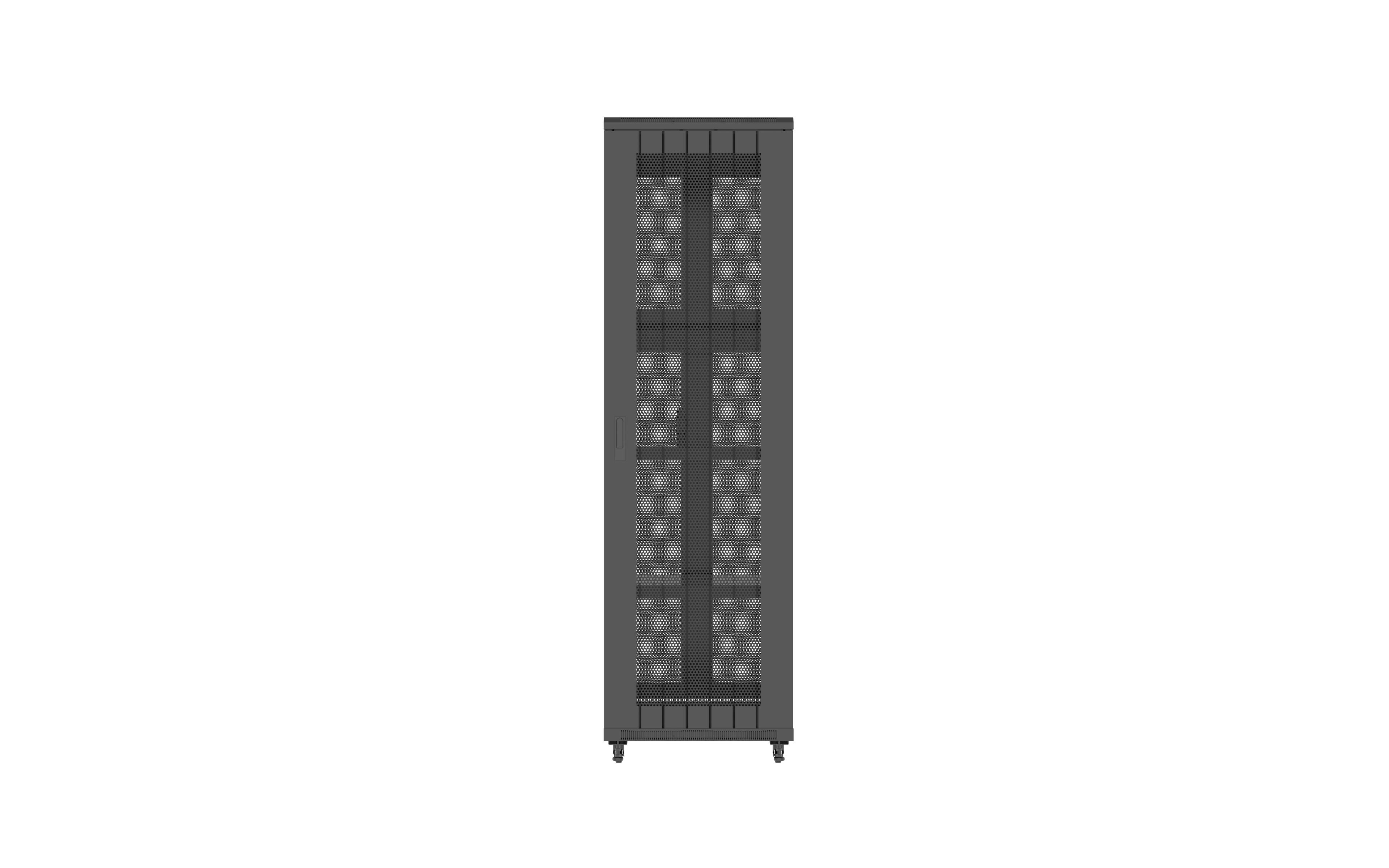

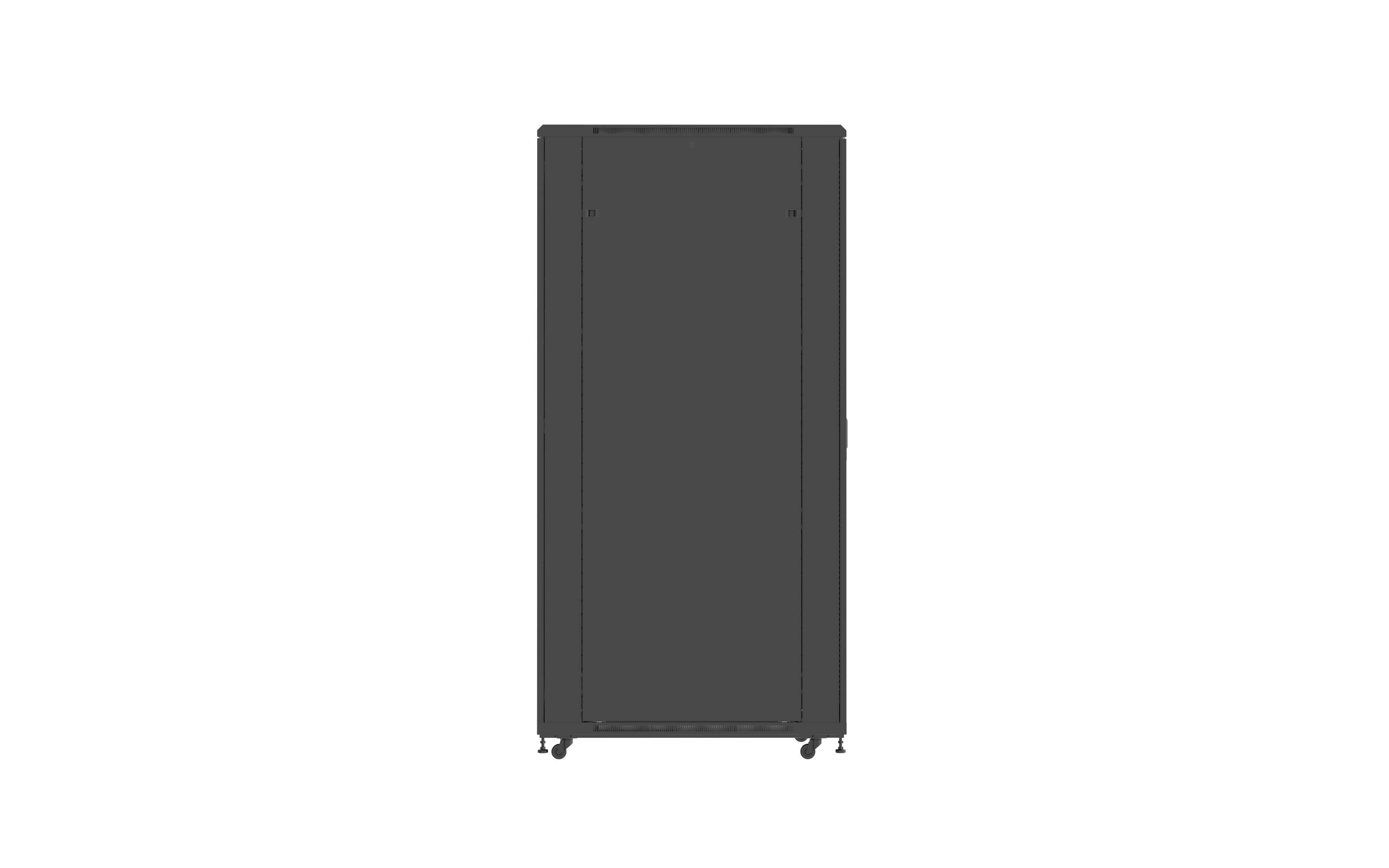

onyX Floor Server 19 inch Cabinet, 2130H x 600W x 1000D, 45RU, SPCC rolled steel Powdercoated textured matt black with Front – Mesh Door, Back – Split Mesh Door and steel side panels. The unit includes 4 x 2mm thick 19inch depth adjustable rails and a 1.2mm thick 4 post frame tested to a static load of 1000kg. onyX Floor Server also includes a 10-way power rail, adjustable feet and a braked castor kit, 3 fixed shelves and a 4-way roof mounted fan kit. Doors include key lockable swing handles keyed to 92268.
Part Number:
ARSX61045U
Error: Unable to load accounts at this time.
| Dimensions | 2130 x 600 x 1000mm |
|---|---|
| RU | 45 |
| Weight (kg) | 168 |
| Inclusions | 10-way horizontal power rail (Australian 3-pin), 4 corner posts, 4 x RU marked and notched adjustable 19 inch rails, Adjustable Feet, Braked castors, Cage nuts (x20) and screws with insertion / removal tool, Fan unit roof mounted with thermostat (4-way), Fixed shelf (x3), Key lockable swing handles, Mesh front door, Side panels (x2), Split mesh rear door (2 doors locking at centre) |
| Approvals | AS62208-2006 – load rating, Australian Standards, EIA-310-D Compliant, SSI Compliant |
| Construction | 1.2mm SPCC rolled steel frame, 2 point locking on doors, 2mm thick 19 inch rails, 4 post, 4 rail, 600mm wide, Adjustable rail position, Back Split Mesh Door, Black, Corner posts, Flat top cover, Front Mesh Door, Indoor, Keylockable Swing Handle (92268), Network cabinet, Steel side panels |
Brush strips – Ezibrush with tool-less installation. Supplied as 5 x 1RU brush strips. The brush overhangs the 1RU size by 5mm.
Cable management – Horizontal Network Cabinet – 90mm finger length – 2RU – Mounts on 19 inch rails.
Metal Horizontal Cable management ring for 19 inch Cabinet – 120mm x 41.5mm ring. Occupies 1RU of rack space.
Metal Horizontal Cable management ring for 19 inch Cabinet – 120mm x 83mm ring. Occupies 2RU of rack space.
Plastic Horizontal Cable management ring for 19 inch Cabinet – 55mm x 30mm ring. Occupies 1RU of rack space.
onyX Floor Server Mesh Door – 45RU – 800 wide. Used for onyX Foor and Floor Server racks and features a 60% mesh for improved air flow.
onyX Floor Server Split Mesh Door – 45RU – 600 wide. Used for onyX Foor and Floor Server racks and features a 60% mesh for improved air flow. Used where locations do not allow opening of full width doors.
Set of keys for key locable wing knobs (03 type), T-handles (040 type) and L-handle (050 type) locks.
Horizontal Power Rail with 6 x 10A SAA Outlets, 10A plug – 1RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 6 x 10A SAA Outlets, 15A plug – 1RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 10 x 10A SAA Outlets, 10A plug – 2RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 10 x 10A SAA Outlets, 15A plug – 2RU. Suitable for all 19 inch cabinets and racks.
Surge Protected Horizontal Power Rail with 6 x 10A SAA Outlets, 10A Plug – 1RU. Suitable for all 19 inch cabinets and racks.
Surge Protected Horizontal Power Rail with 6 x 10A SAA Outlets, 15A Plug – 1RU. Suitable for all 19 inch cabinets and racks.
Full Extension Telescopic Shelf for 19 inch Cabinet – 45Hx483Wx750D. Suitable for loads up to 20kg and for 900+mm deep racks/cabinets
Half Extension Telescopic Shelf for 19 inch Cabinet – 45Hx483Wx750D. Suitable for loads up to 40kg and for 900+mm deep racks/cabinets
Keyboard Pivot Tray Network Cabinet – for Half Extension Telecopic Shelf. 2RU high when fitted to shelf and finished in Textured matt black
Cantilever Shelf for onyX Wall rack – 450mm deep – 2RU – suitable for 600mm deep enclosures, 700mm deep including the swing frame.
Keyboard Shelf for onyX Floor rack – 710mm deep – 1RU – suitable for 1000mm deep cabinets and has a load rating of 10kg
Fixed Shelf for onyX Floor rack – 710mm deep – 1RU – suitable for 1000mm deep cabinets and has a load rating of 20kg
Light Duty Fixed Shelf for 19 inch Cabinet – 45Hx483Wx850D. Suitable for loads up to 50kg and for 1000mm racks/cabinets
Heavy Duty Fixed Shelf for 19 inch Cabinet – 45Hx483Wx850D. Suitable for loads up to 160kg and for 1000mm racks/cabinets
