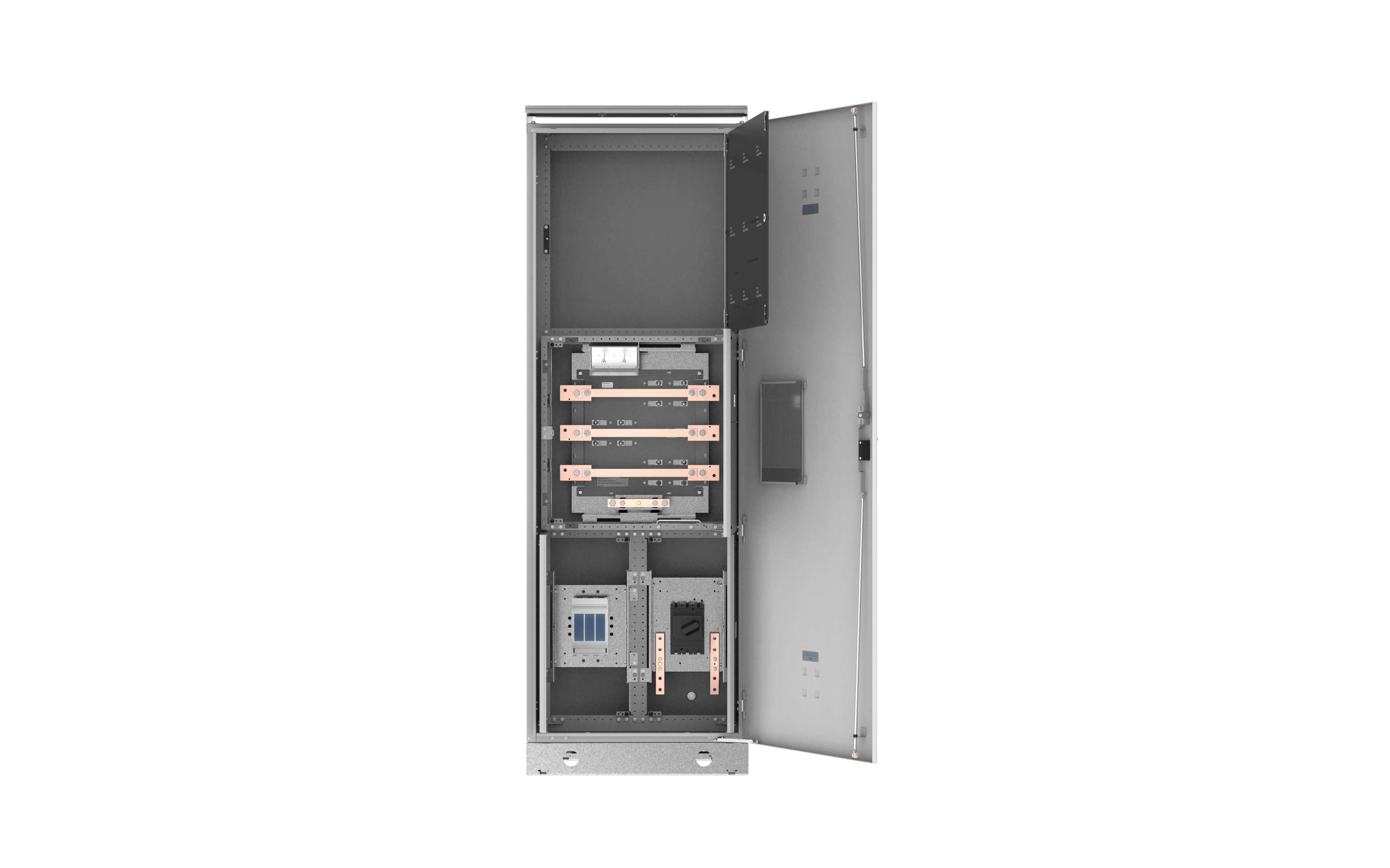

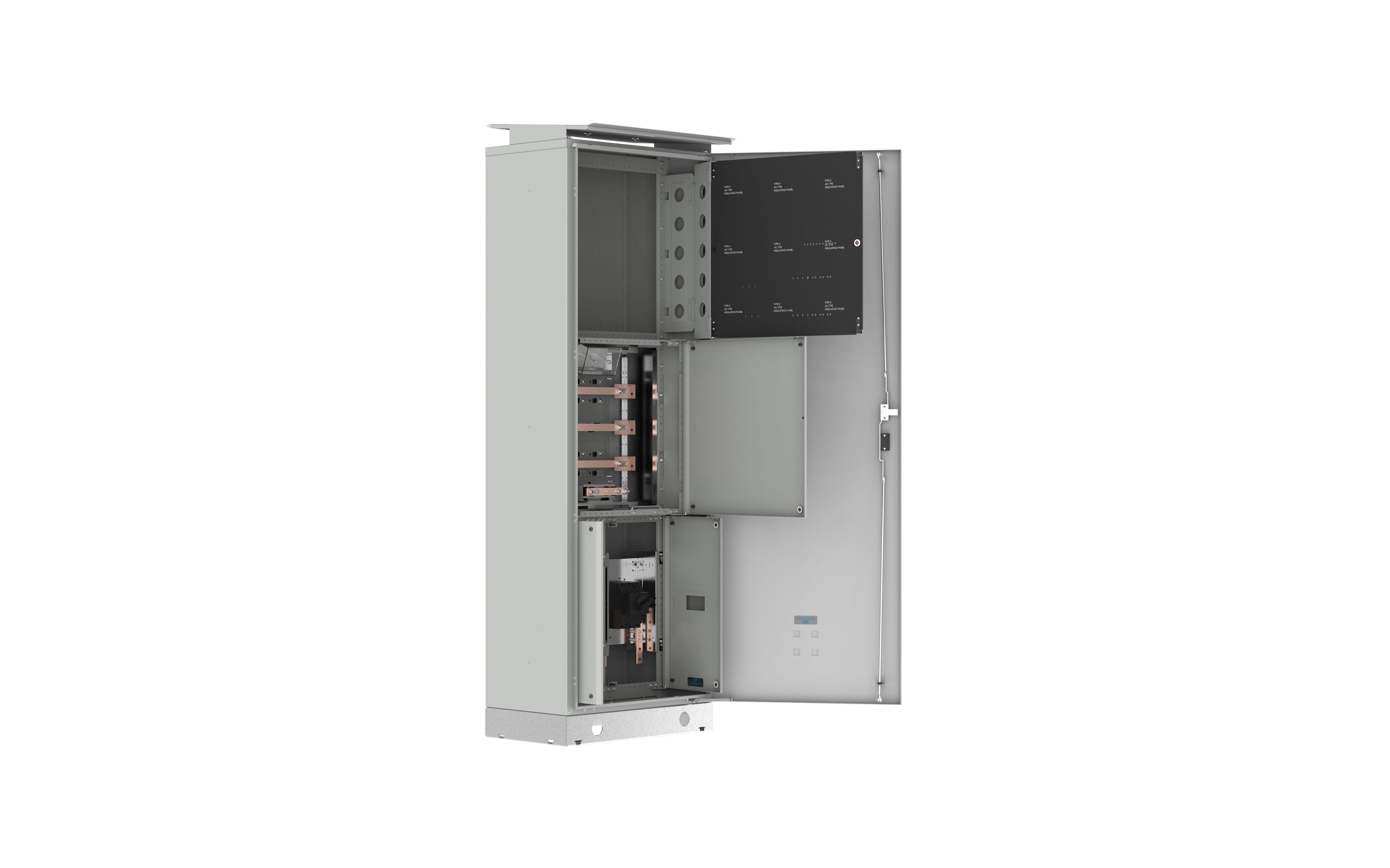

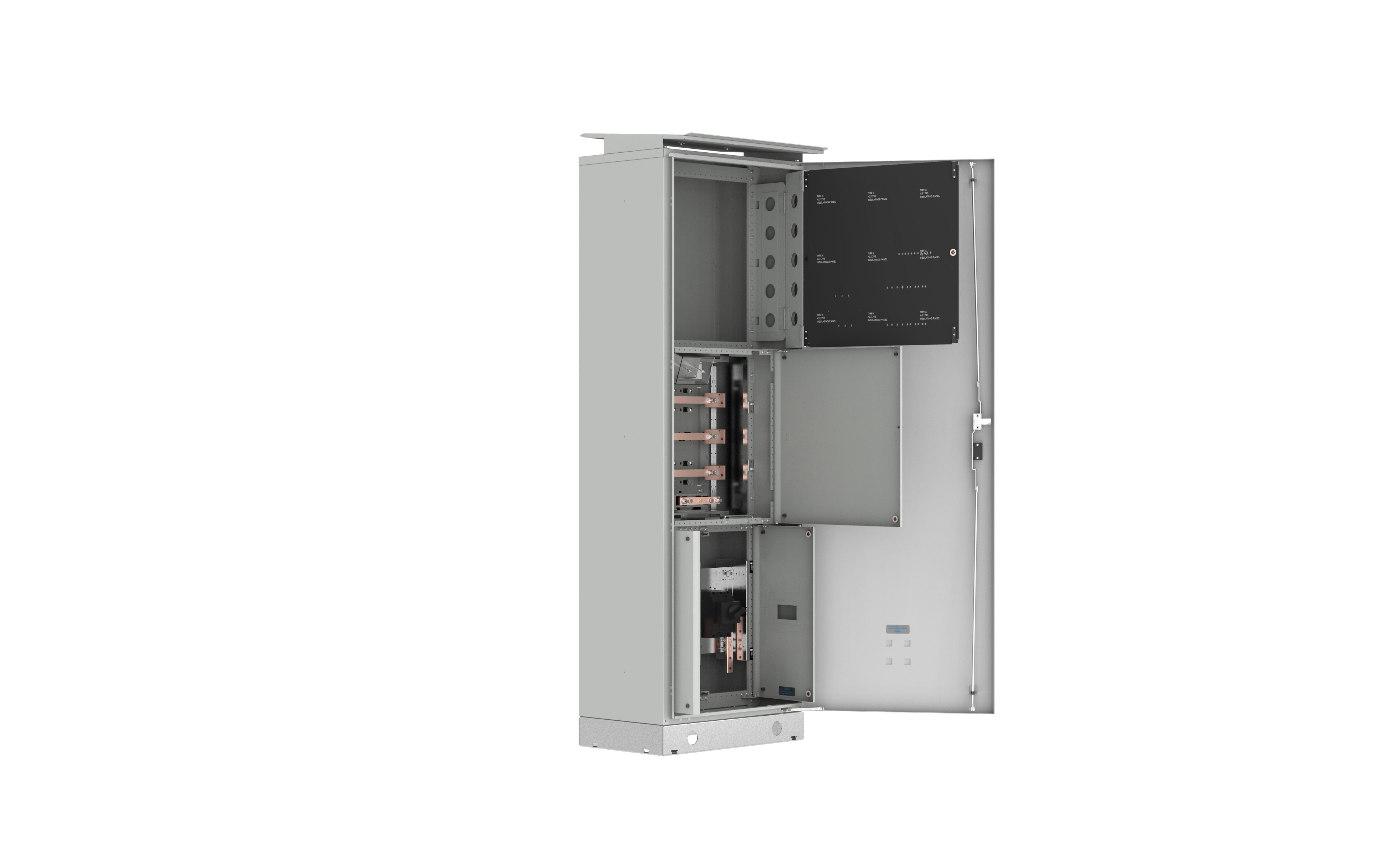

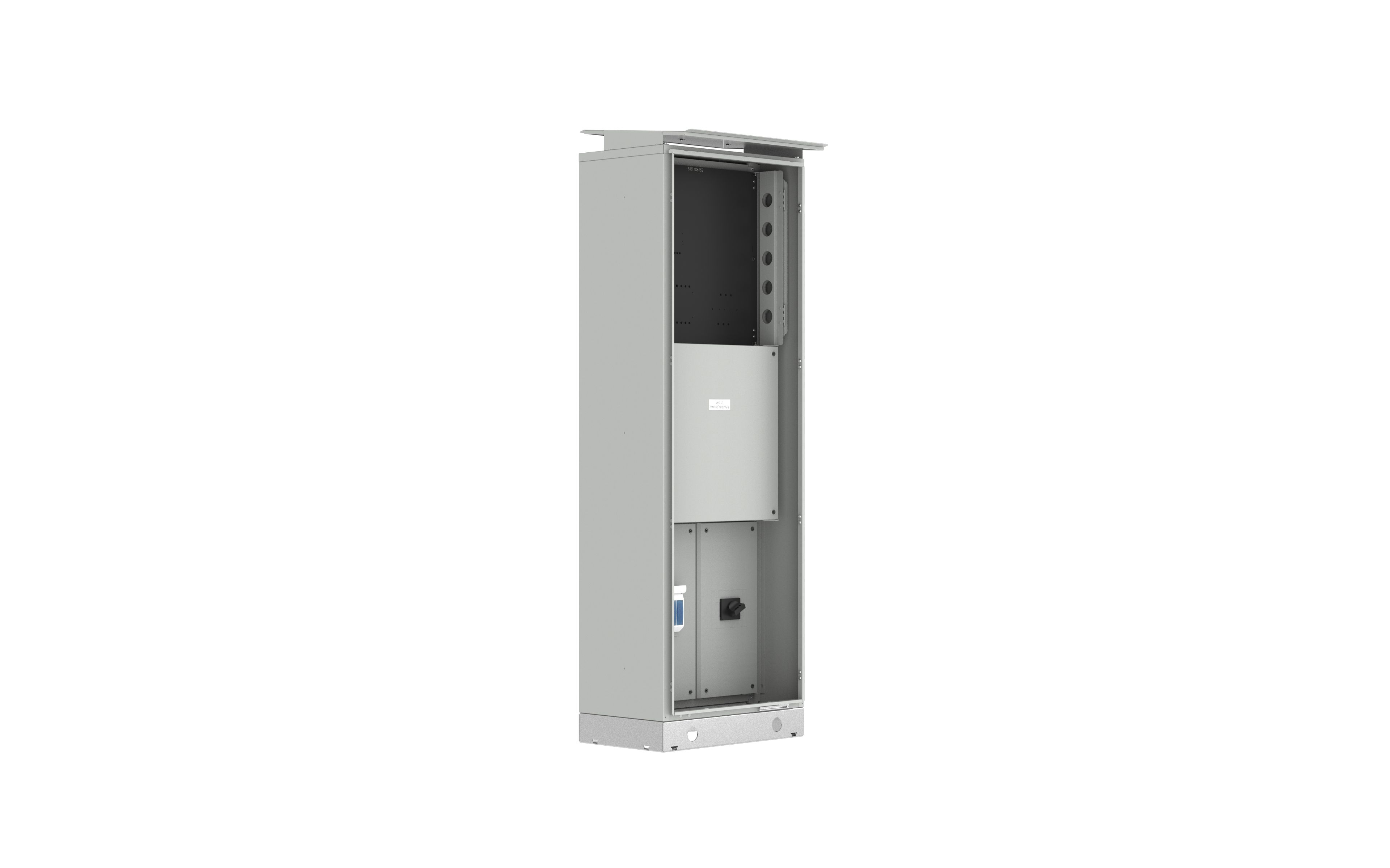

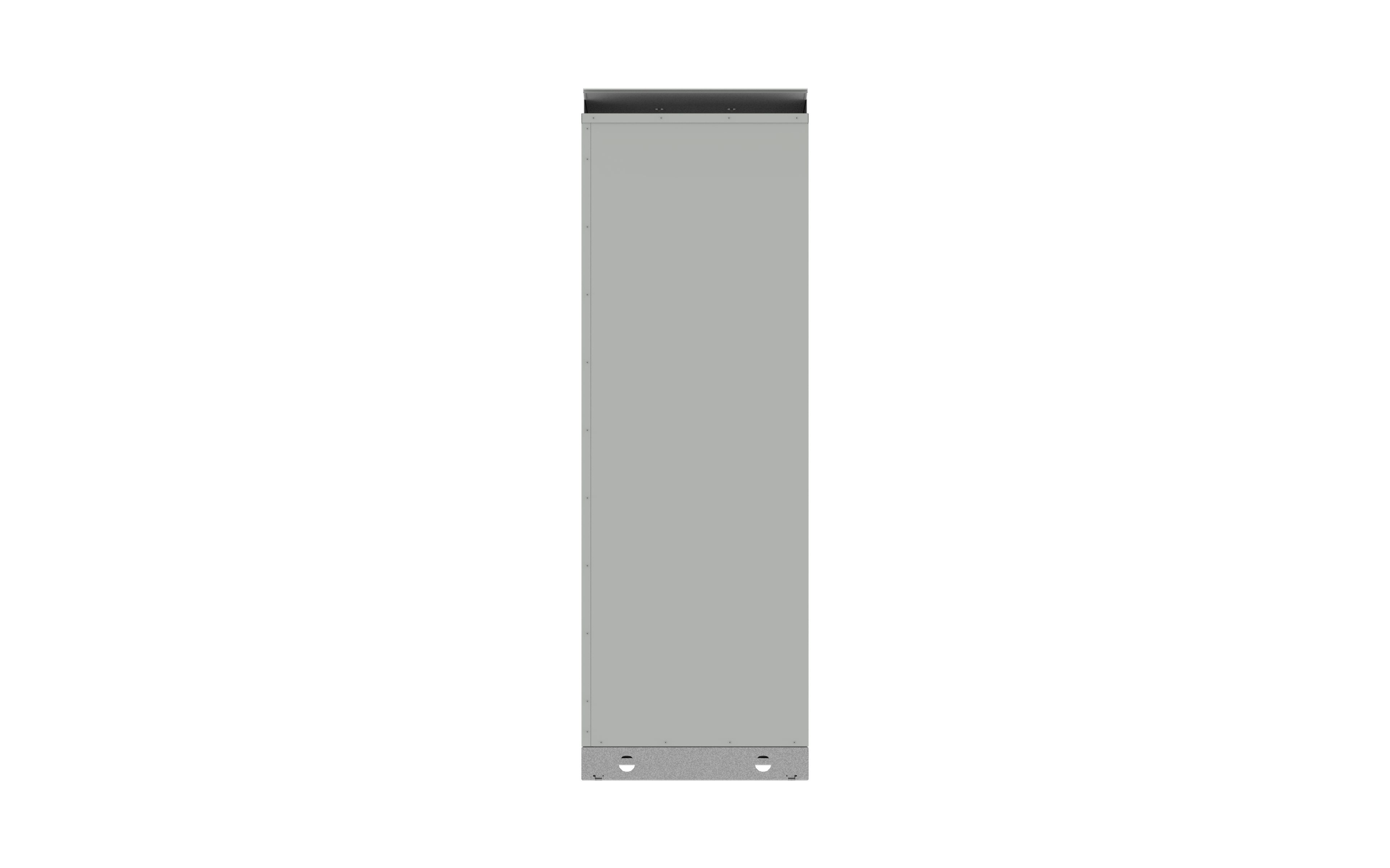

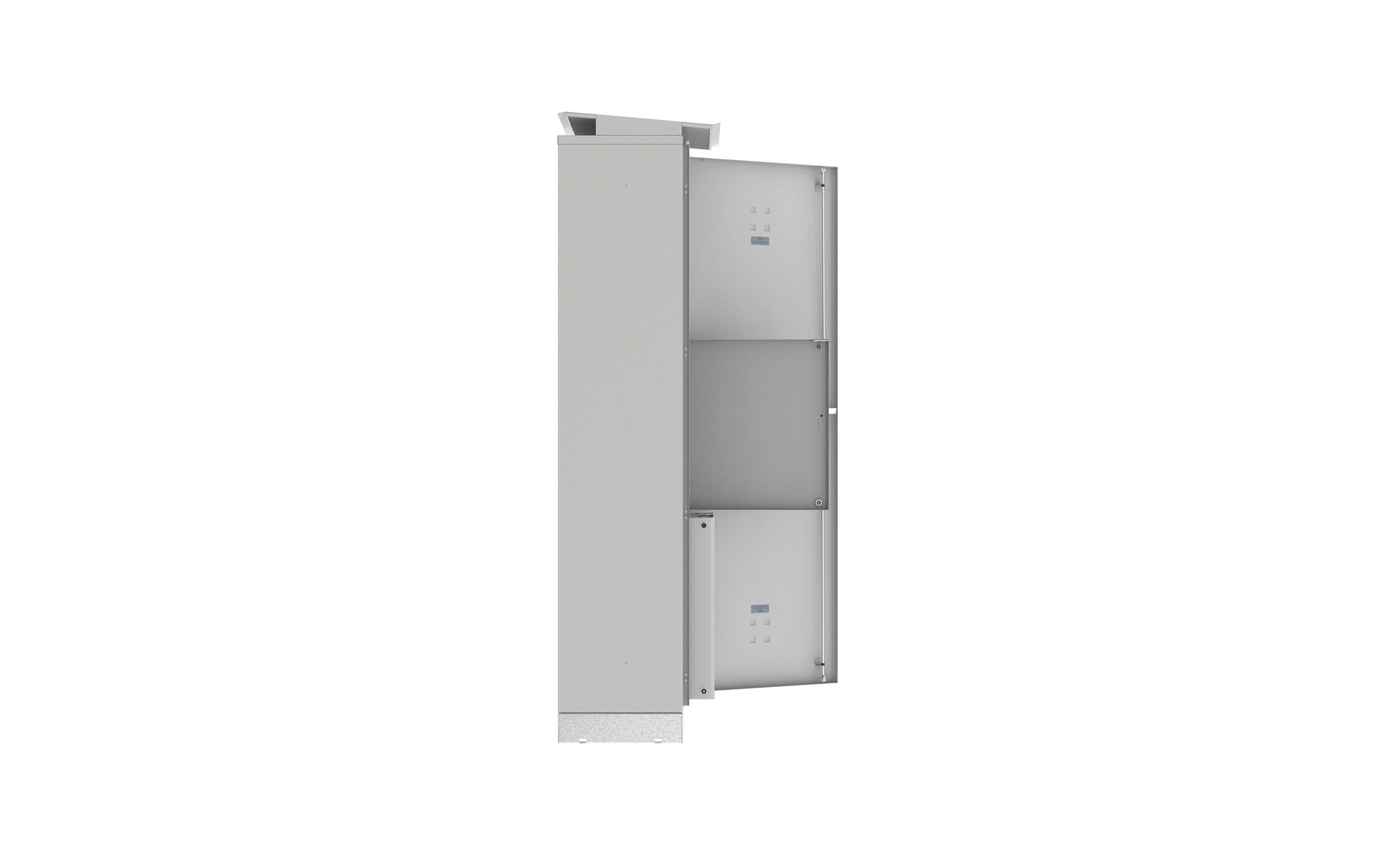

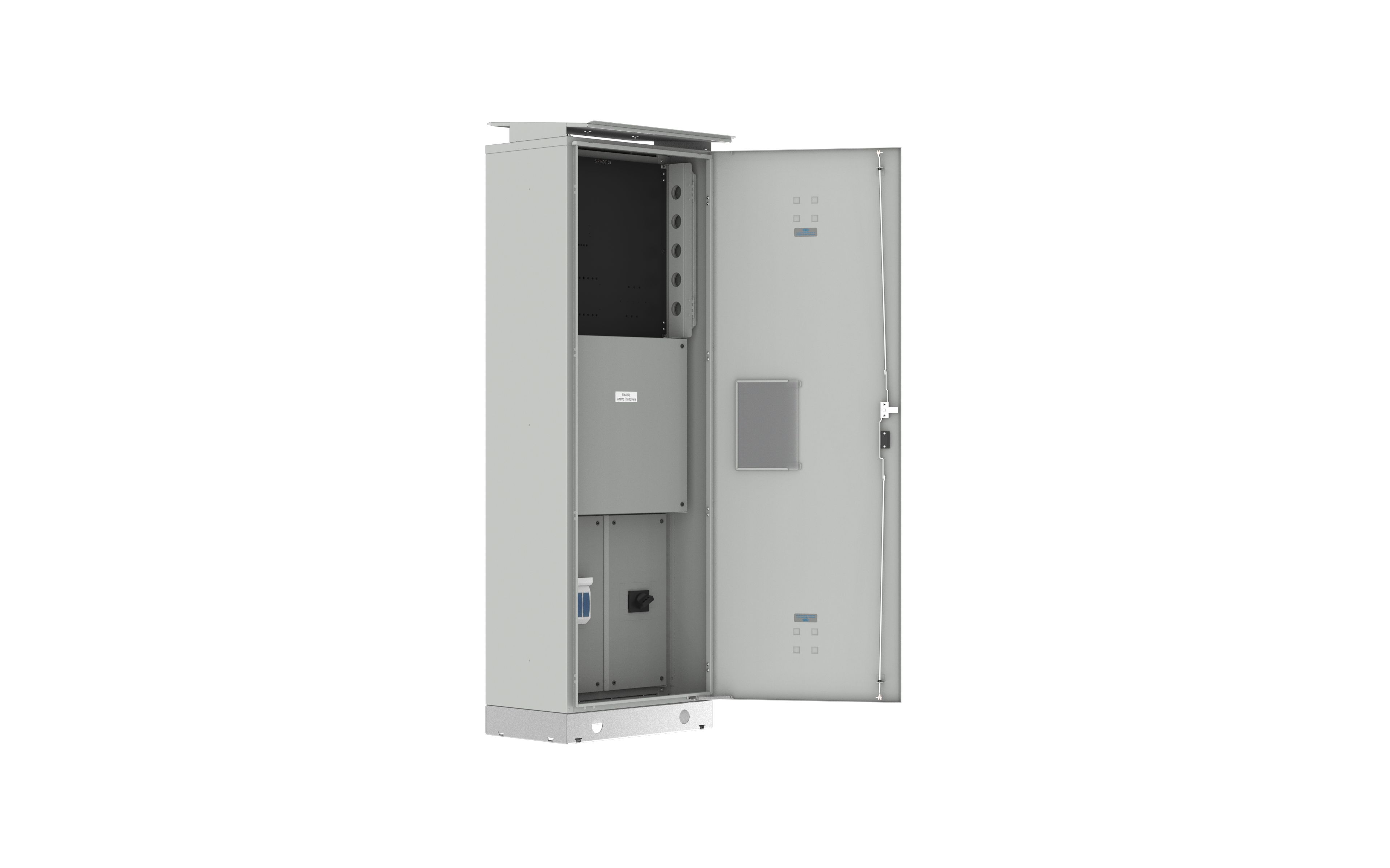

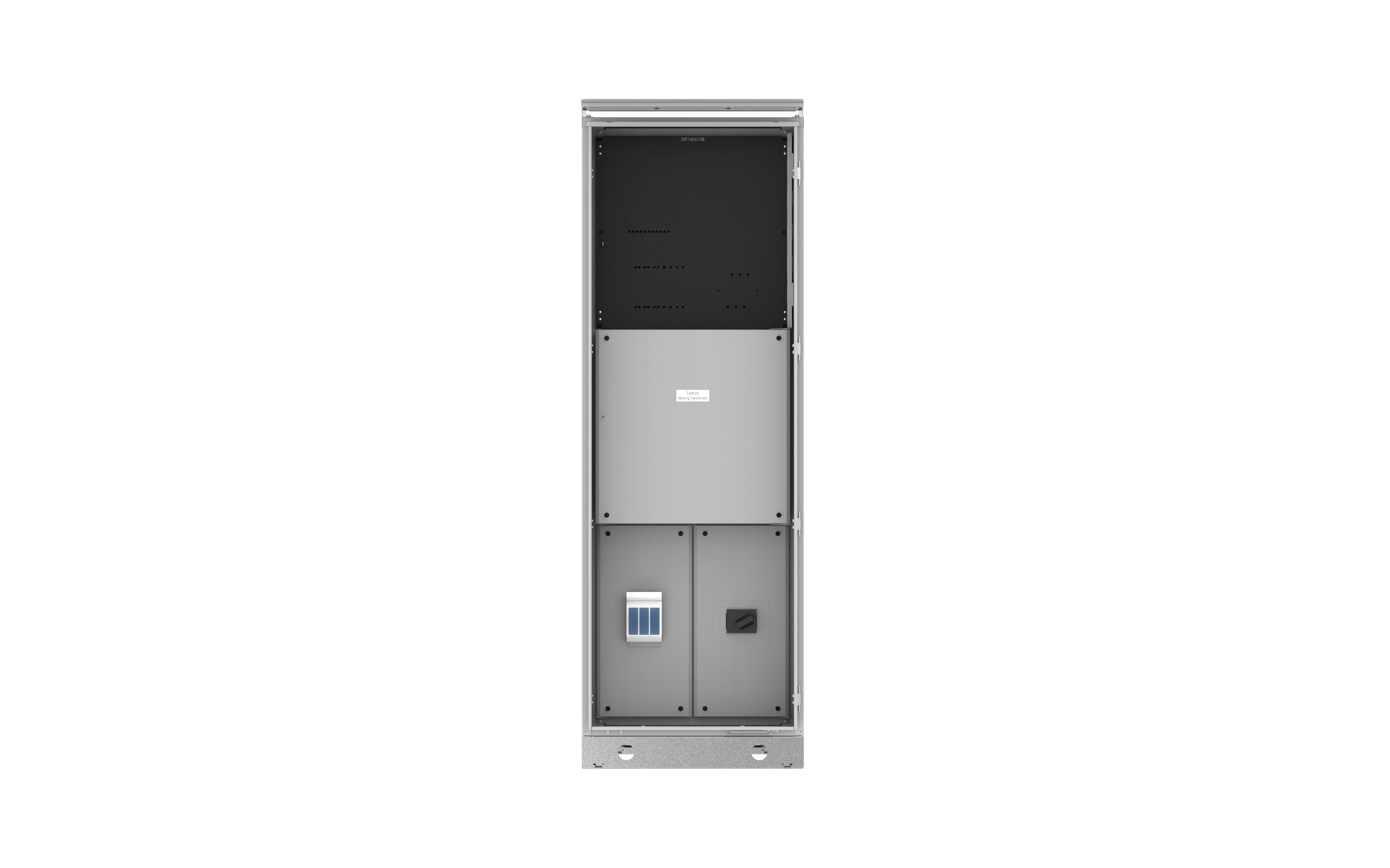

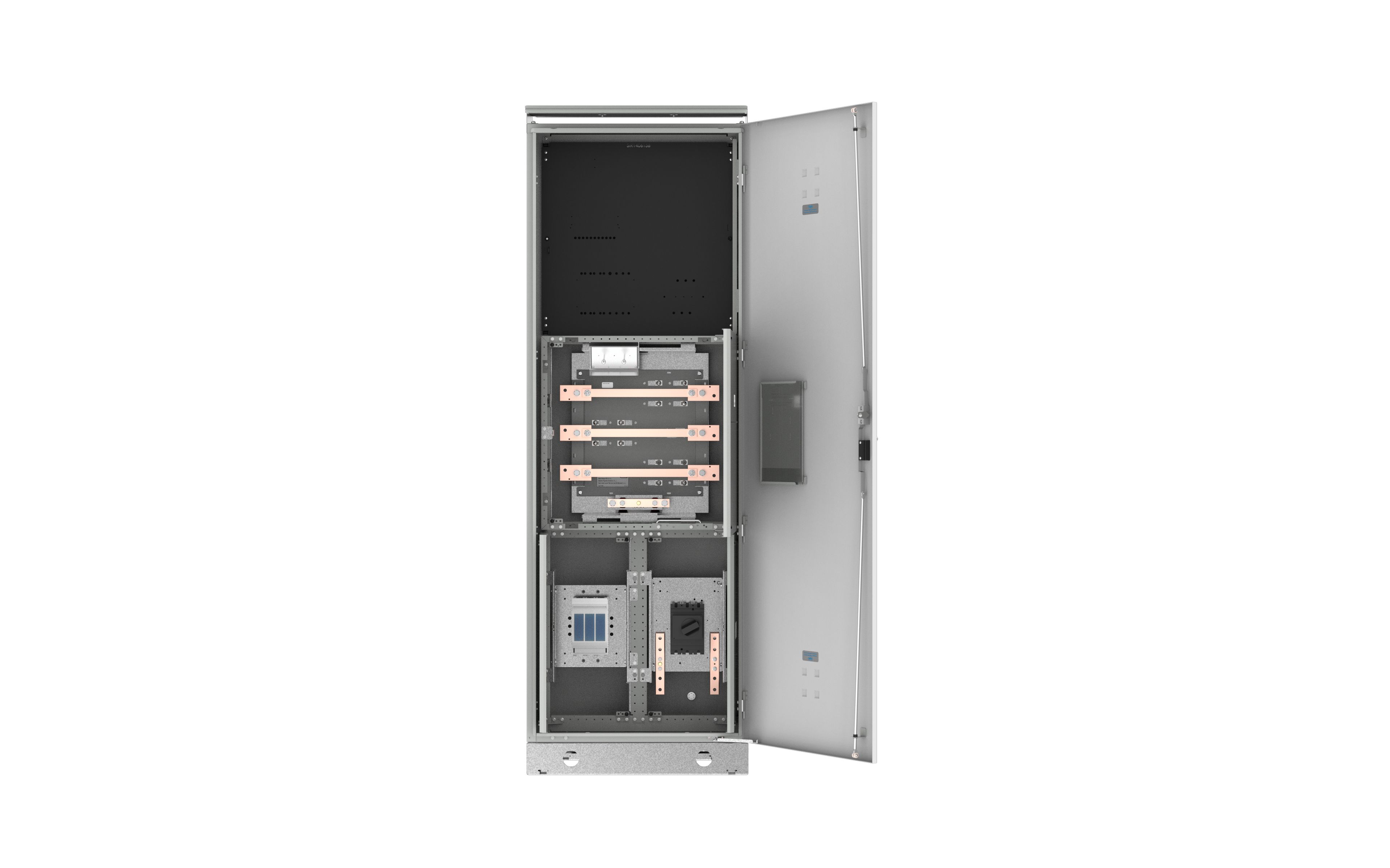

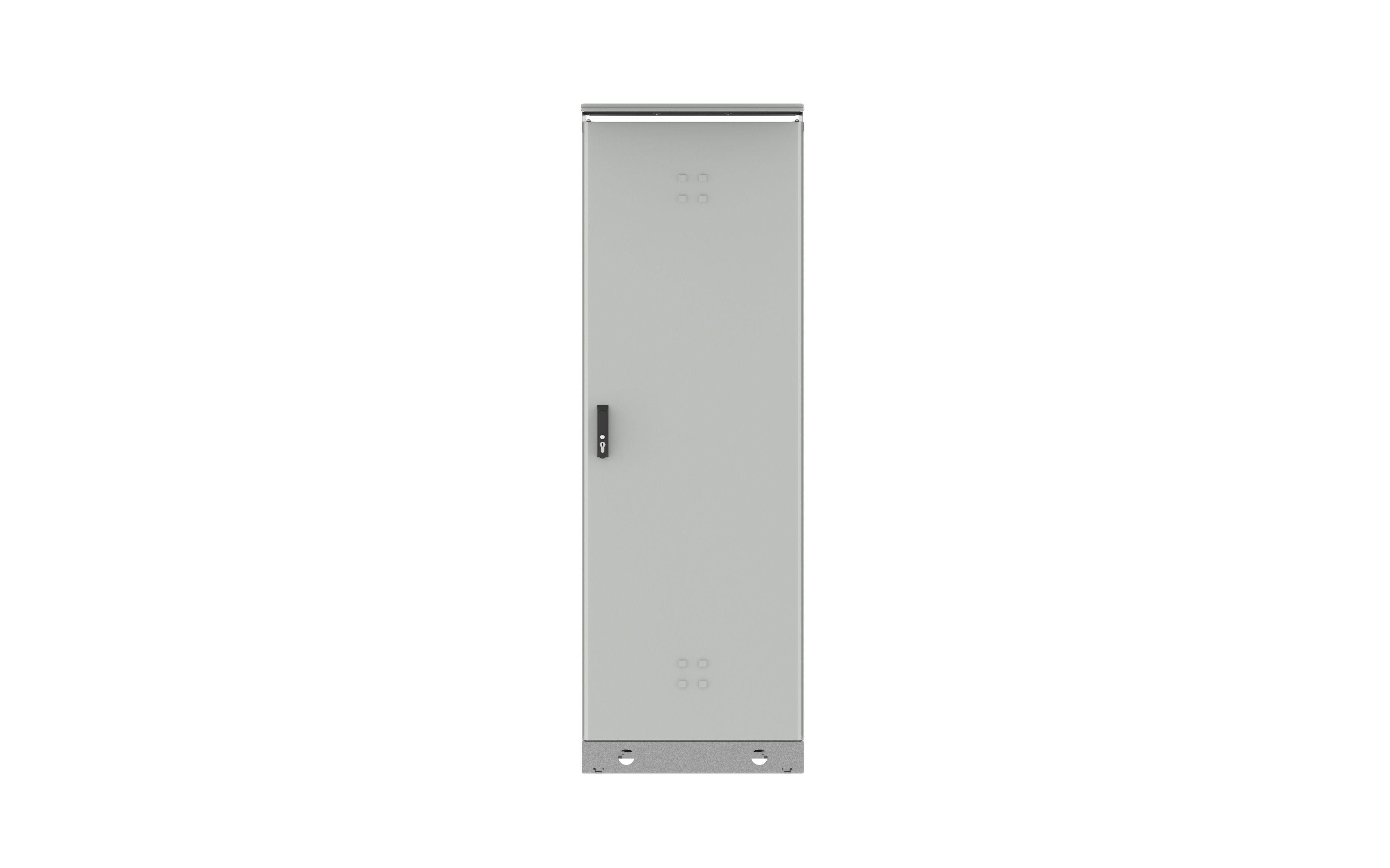

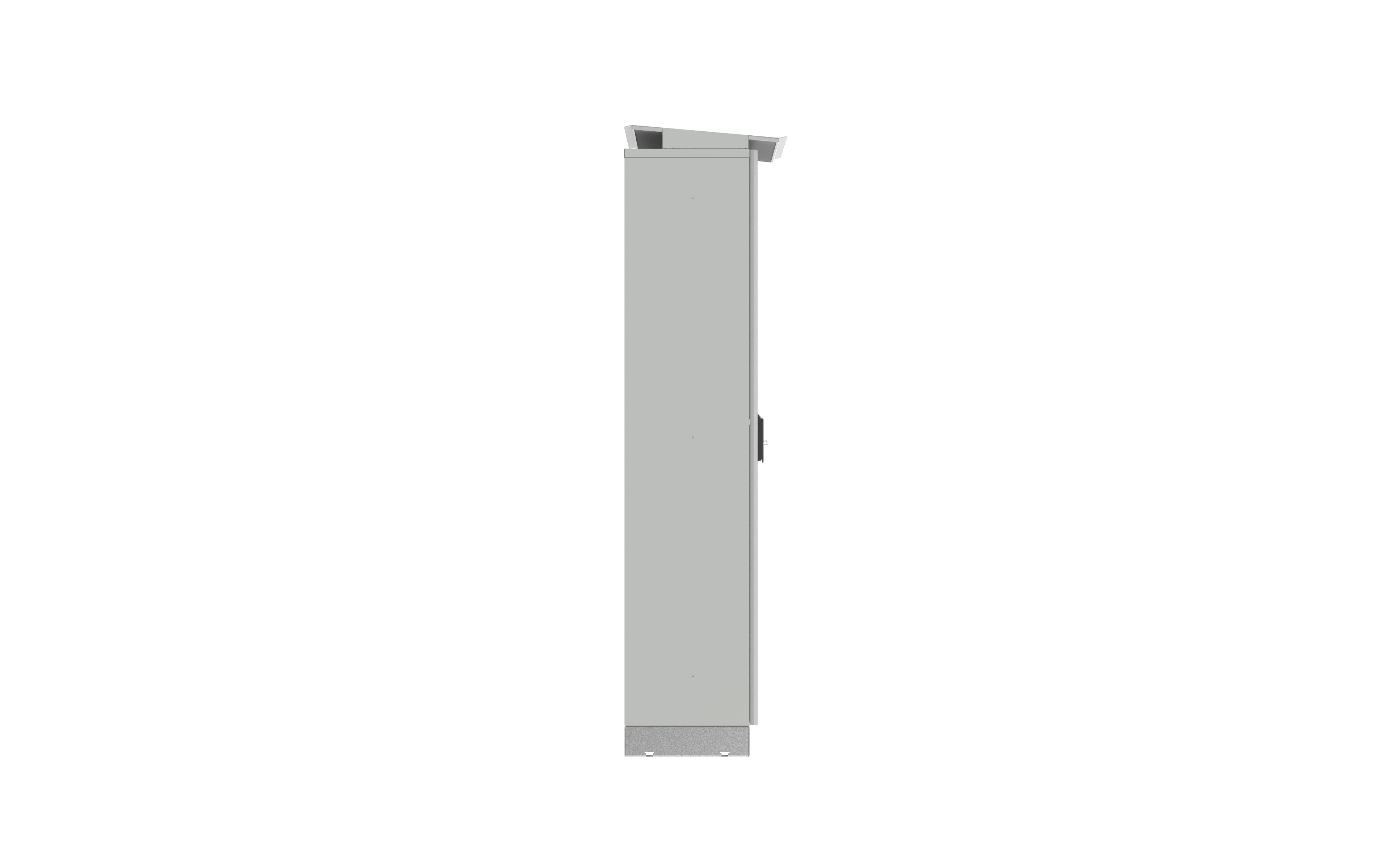

Infinity 3G – 2240Hx670Wx430D made from Zinc Coated Steel and rated to IP34. A pre-configured and pre-wired enclosure suitable for metering or power distribution in Victoria with all metalware assembled. This unit is plinth mounted on an included 100mm high plinth and is suitable for up to 1 x CT tenant. There is Supplied with Schneider NSX160B 160A Micro 2.2 (C16B32D160), MBP00160A3P (33200) SPD, DIN 00 size 160A fuses (N00160) main switch section and a submain section containing Direct connect to CT chamber.
Part Number:
TGXVCT160/CWSPD
Error: Unable to load accounts at this time.
| IP Rating | IP34 |
|---|---|
| Inclusions | 3-point locking, 3mm aluminium gland plate, Available metering configurations – 1 x CT tenant, DIN 00 size 160A fuses (N00160), Document Holder, Main Switch Section – Supplied with Schneider NSX160B 160A Micro 2.2 (C16B32D160), MBP00160A3P (33200) SPD, Multiple Earth Neutral provided, Plinth, Recessed padlockable swing handle keyed 92268, Roof Sunshade, Stainless Steel Door Hinges, Sub Main Section – Direct connect to CT chamber, Typical Incomer (mm2) – 50 |
| Approvals | AS/NZS 61439, IP34 Region C AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 powdercoated, Solid Steel Hinged Door |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
