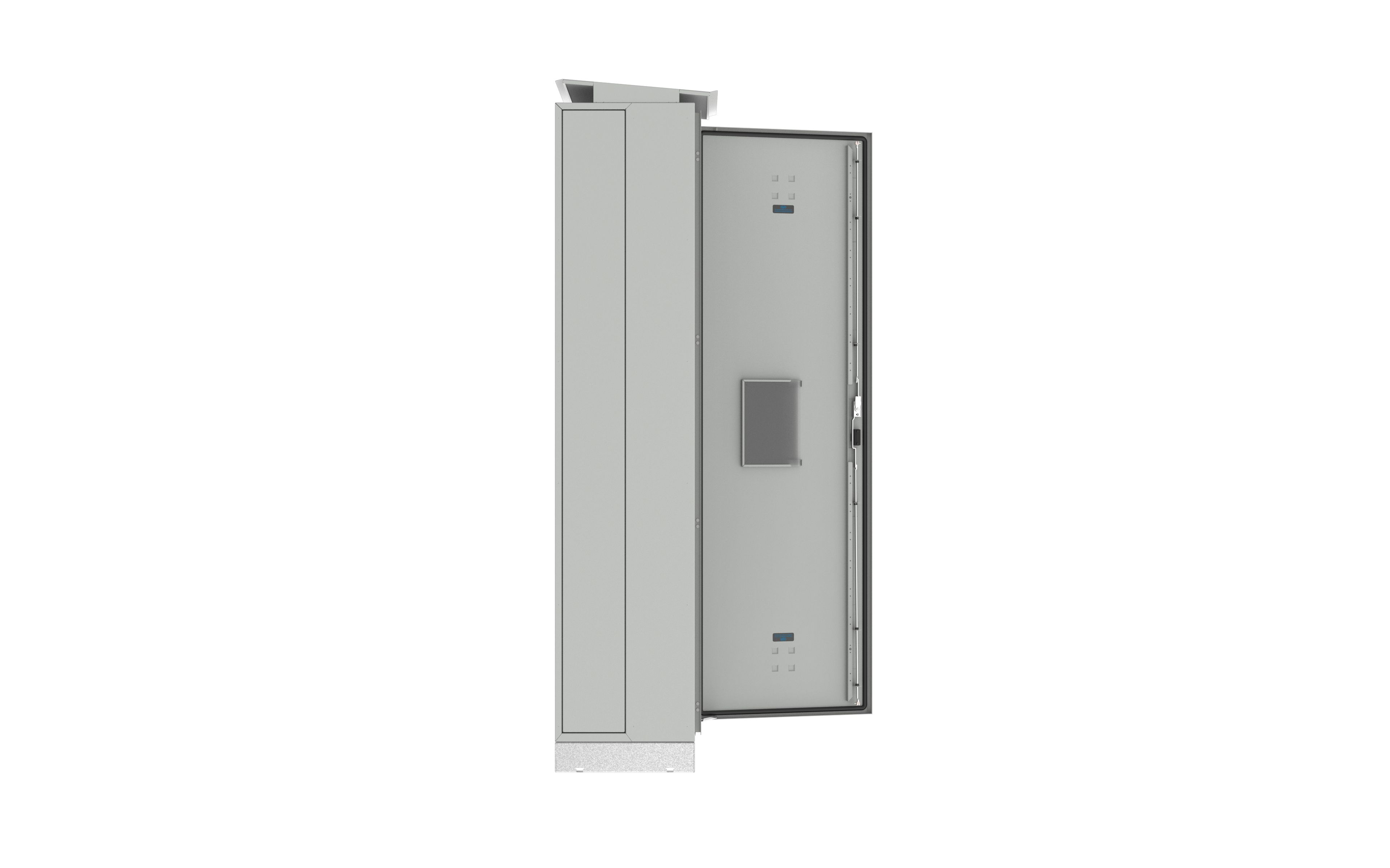

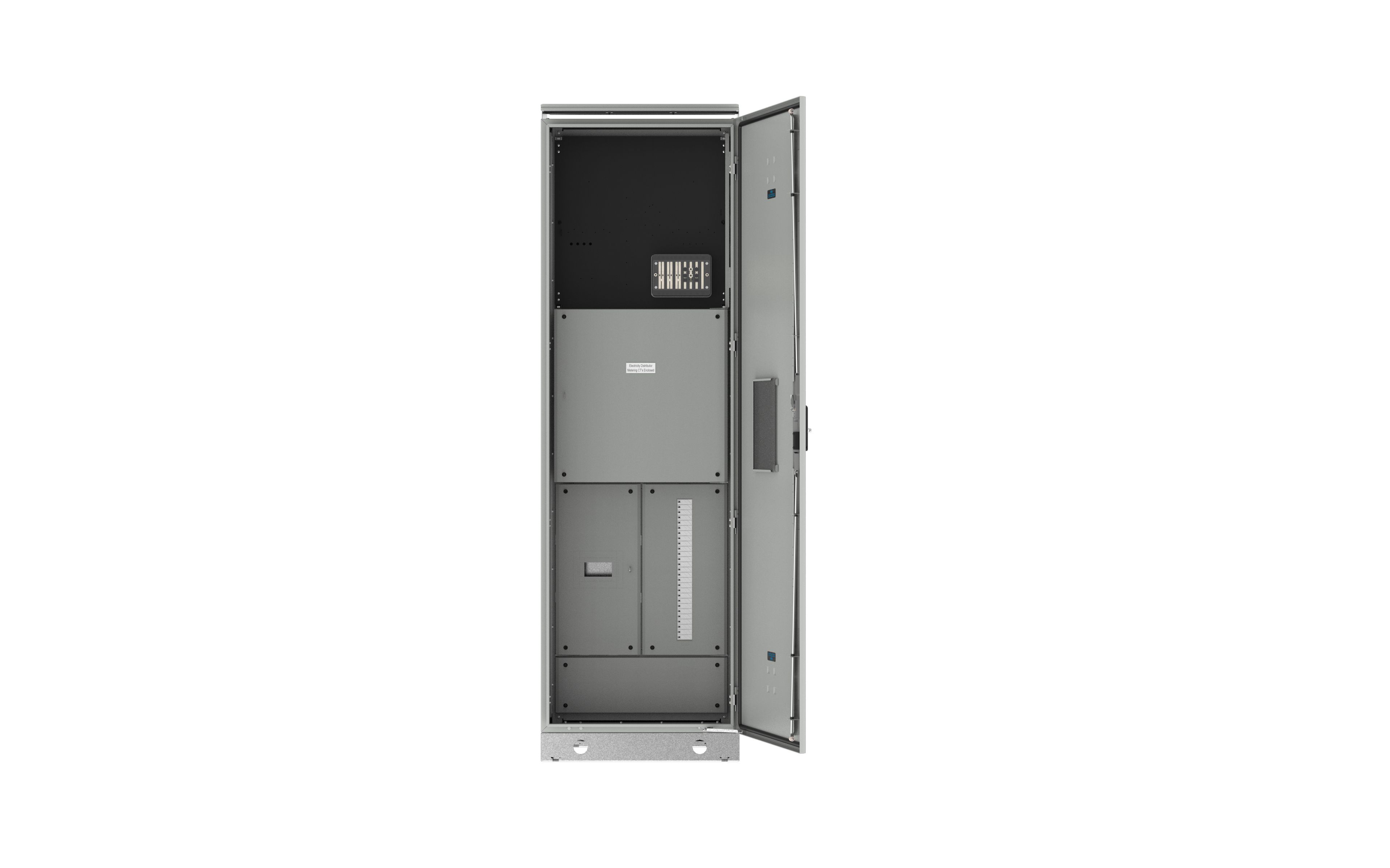

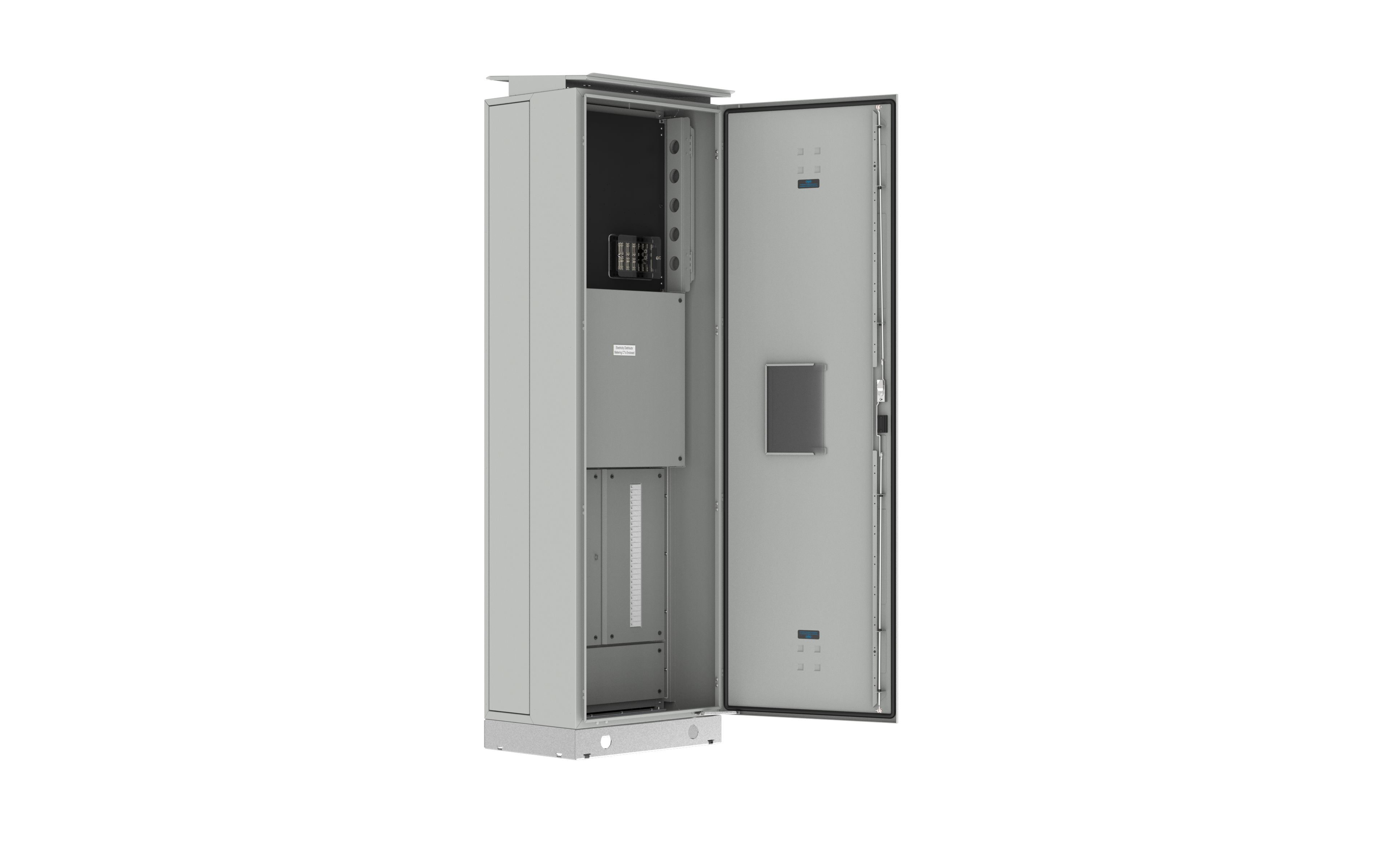

Infinity 3G – 2240Hx670Wx480D made from Zinc Coated Steel and rated to IP66. A pre-configured and pre-wired enclosure suitable for metering or power distribution in New South Wales with all metalware assembled. This unit is plinth mounted on an included 100mm high plinth and is suitable for 1 x CT tenant. Test block and CTs mounted. It is Supplied with Schneider 250A MCCB main switch section and a submain section containing 27-pole DIN (no devices included). A sunroof is also supplied to be fitted on site and is recommended for all CT metering applications. Also supplied with the following switchgear – 1 x NSX rotary handle, 2 x NSX terminal shield, 1 x NSX 250B 25kA
Part Number:
TGXNCT250/CW
Error: Unable to load accounts at this time.
| IP Rating | IP66 |
|---|---|
| Inclusions | 1 x NSX 250B 25kA, 1 x NSX rotary handle, 12 x MCB 6kA, 12 x MCB padlock device, 2 x NSX terminal shield, 3-point locking, 3mm aluminium gland plate, Available metering configurations – 1 x CT tenant. Test block and CTs mounted, Document Holder, Main Switch Section – Supplied with Schneider 250A MCCB, Multiple Earth Neutral provided, Plinth, Recessed padlockable swing handle, Roof Sunshade, Stainless Steel Door Hinges, Sub Main Section – 27-pole DIN (no devices included), Typical Incomer (mm2) – 95 |
| Approvals | AS/NZS 61439, IP66 Region C AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 powdercoated, Solid Steel Hinged Door |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
