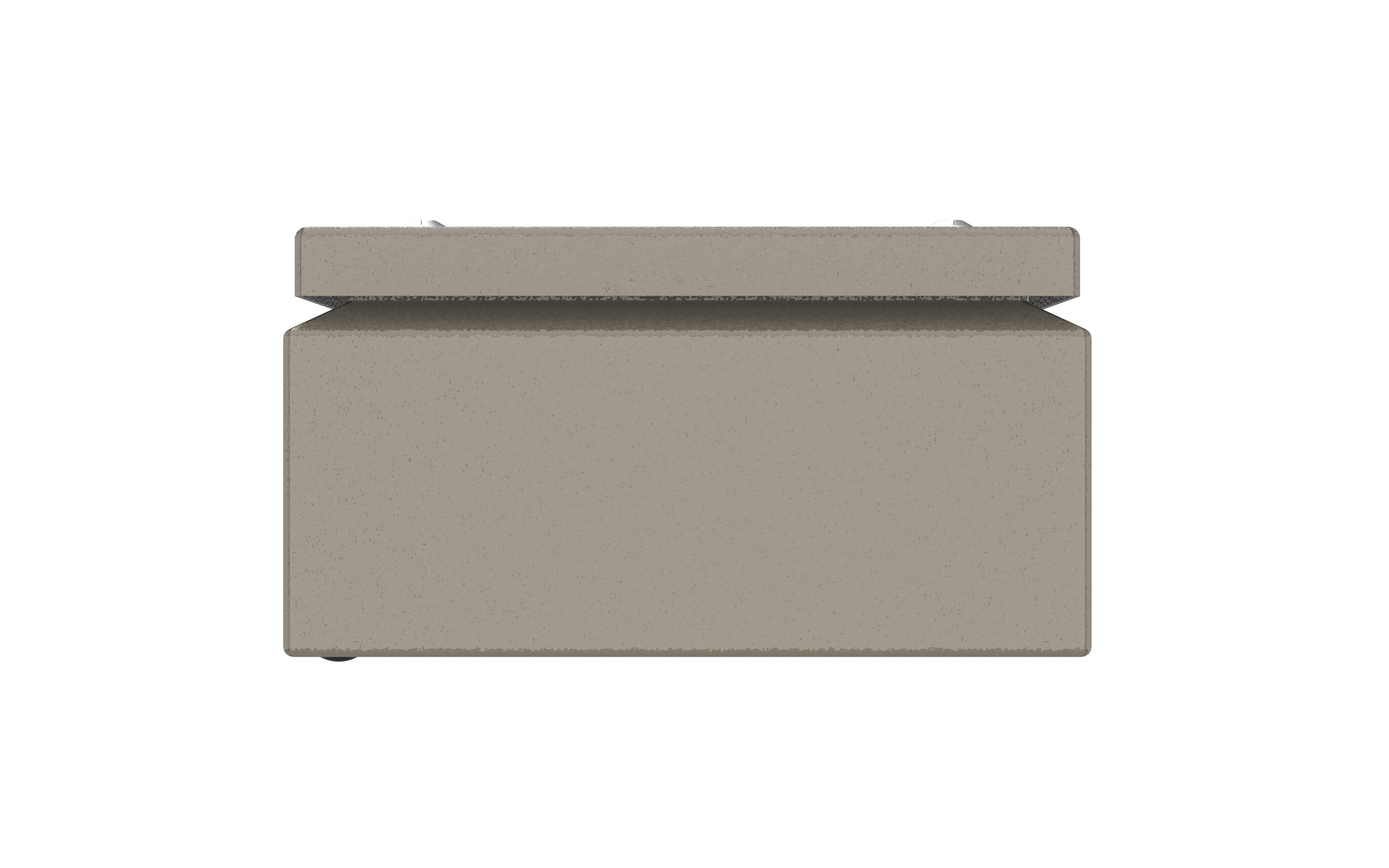

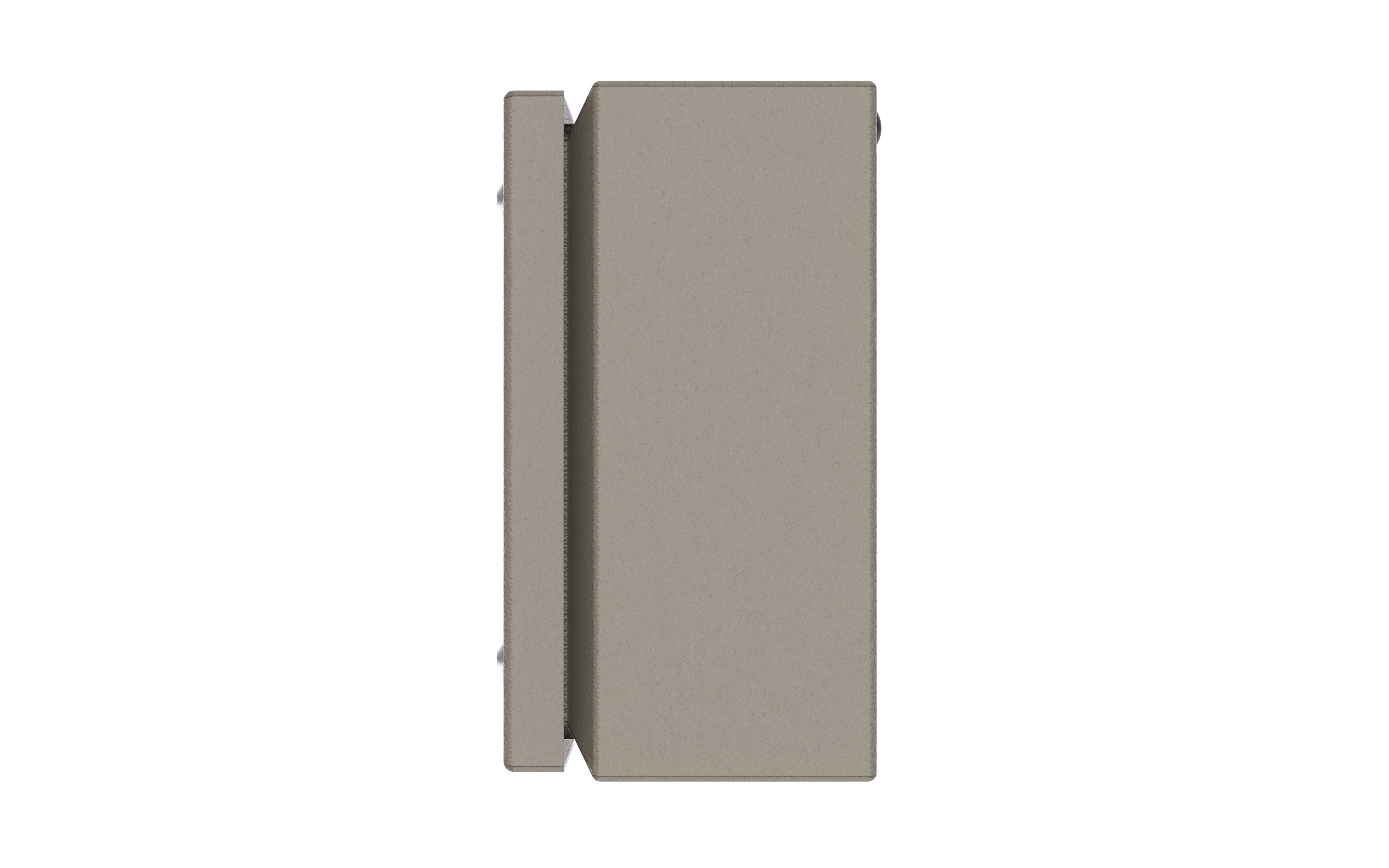

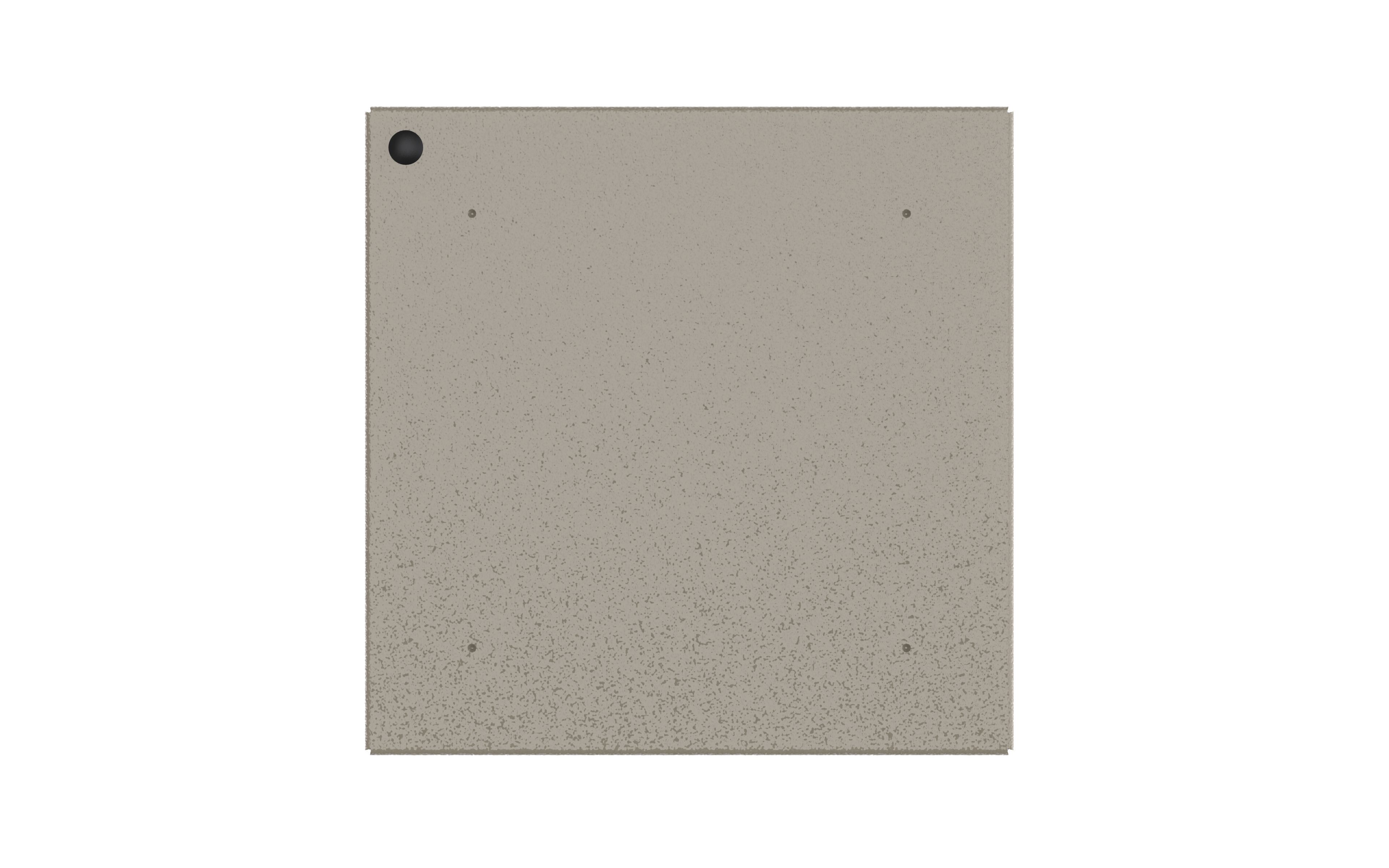

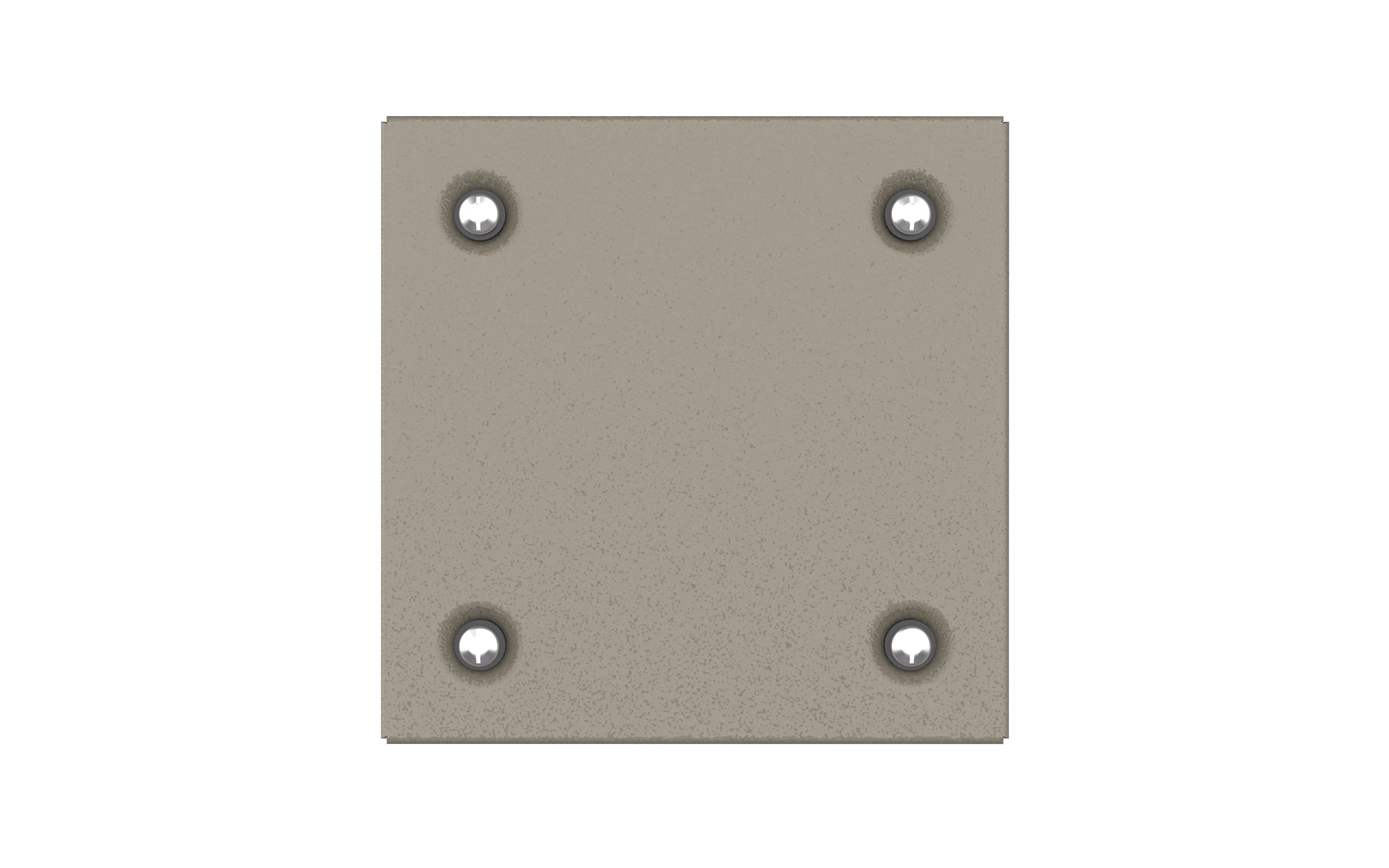

Enclosure – Connector TE – 150Hx150Wx80D – Steel – TE1108

Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 2
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 3
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 4
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 5
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 1
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 2
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 3
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 4
Enclosure - Connector TE - 150Hx150Wx80D - Steel - TE1108 - 5

A 150Hx150Wx80D IP66 enclosure with a screwed lid, zinc coated steel with a powdercoated RAL7032, suitable for many applications where smaller enclosures are required and for installation of a mounting pan or DIN rail (supplied as optional extras).

Part Number:

TE1108

Error: Unable to load accounts at this time.

Add to quote

Download PDF of this page
Details
Dimensions

150 x 150 x 80mm
IP Rating

IP66
Weight (kg)

1.2
Inclusions

Earth strap kit
Approvals

Lloyds Register
Construction

1.2mm Zinc Coated Steel, Formed in place gaskets, Lid closing, Powdercoated RAL 7032
Features
  • IP66 protection rating – more info on IP ratings
  • Captive 316 stainless steel combo head screws, used to prevent loss when fastening
  • Provision for mounting DIN rail or a mounting pan, increasing the application flexibility
  • Flat face gutter system
Downloads
CAD
Accessories
Category
Din Rail
Equipment Panel
Mounting Pan
Mounting Feet
Reset

TED1

TE DIN Rail for TE1108(S or MF/S) – 140mm long

Add to quote

TEMP11

Mounting Pan for TE1108(S or MF/S) – 123H x 120W

Add to quote

MEB/S

Wall Mounting Brackets (set of 4), 316 stainless steel for Universal NI, Monarch IP and Connector TE ranges

Add to quote
