Enclosure – Incline SR – 635Hx400Wx200D – Stainless Steel, X15 Orange – SR04042/SRO

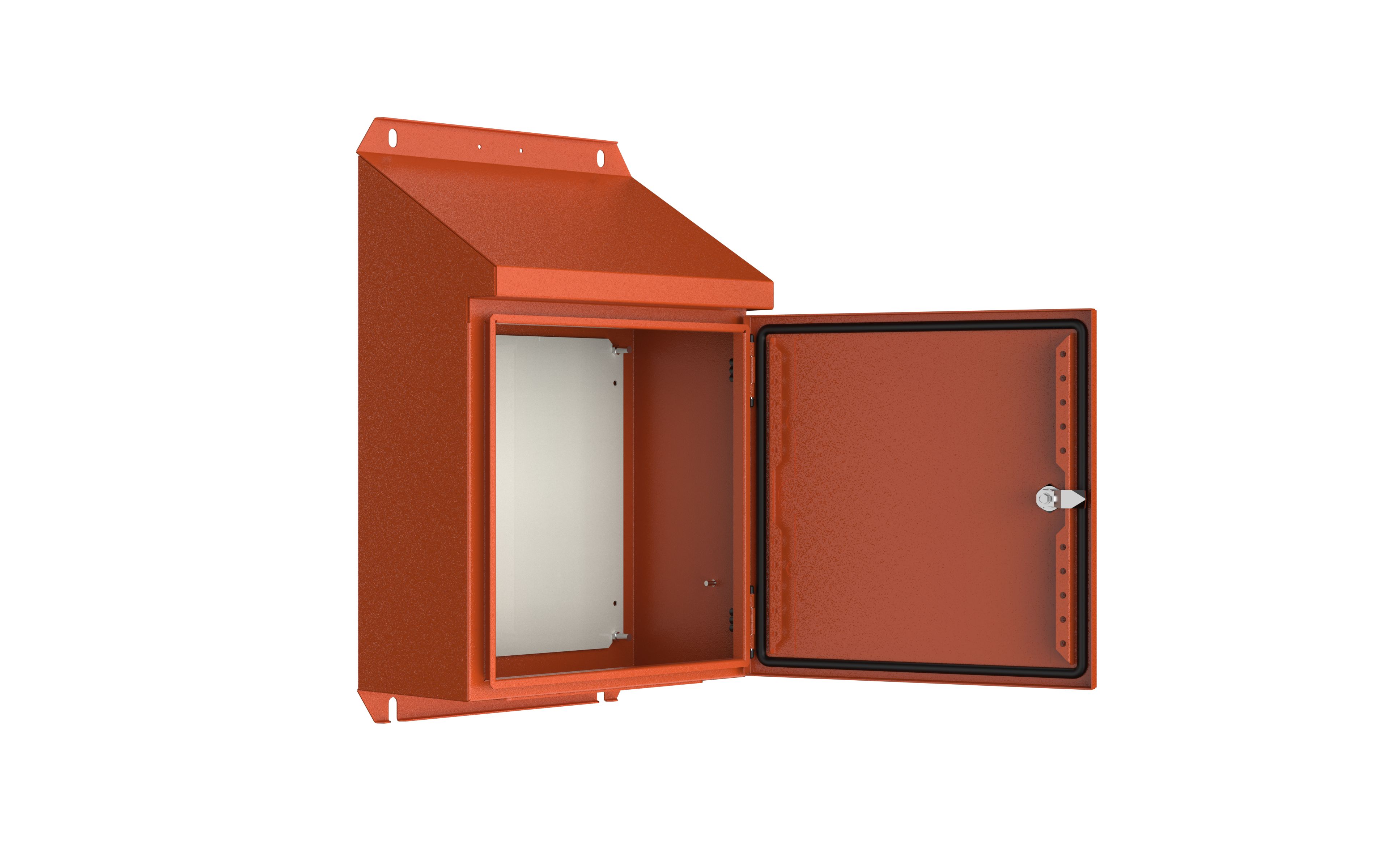

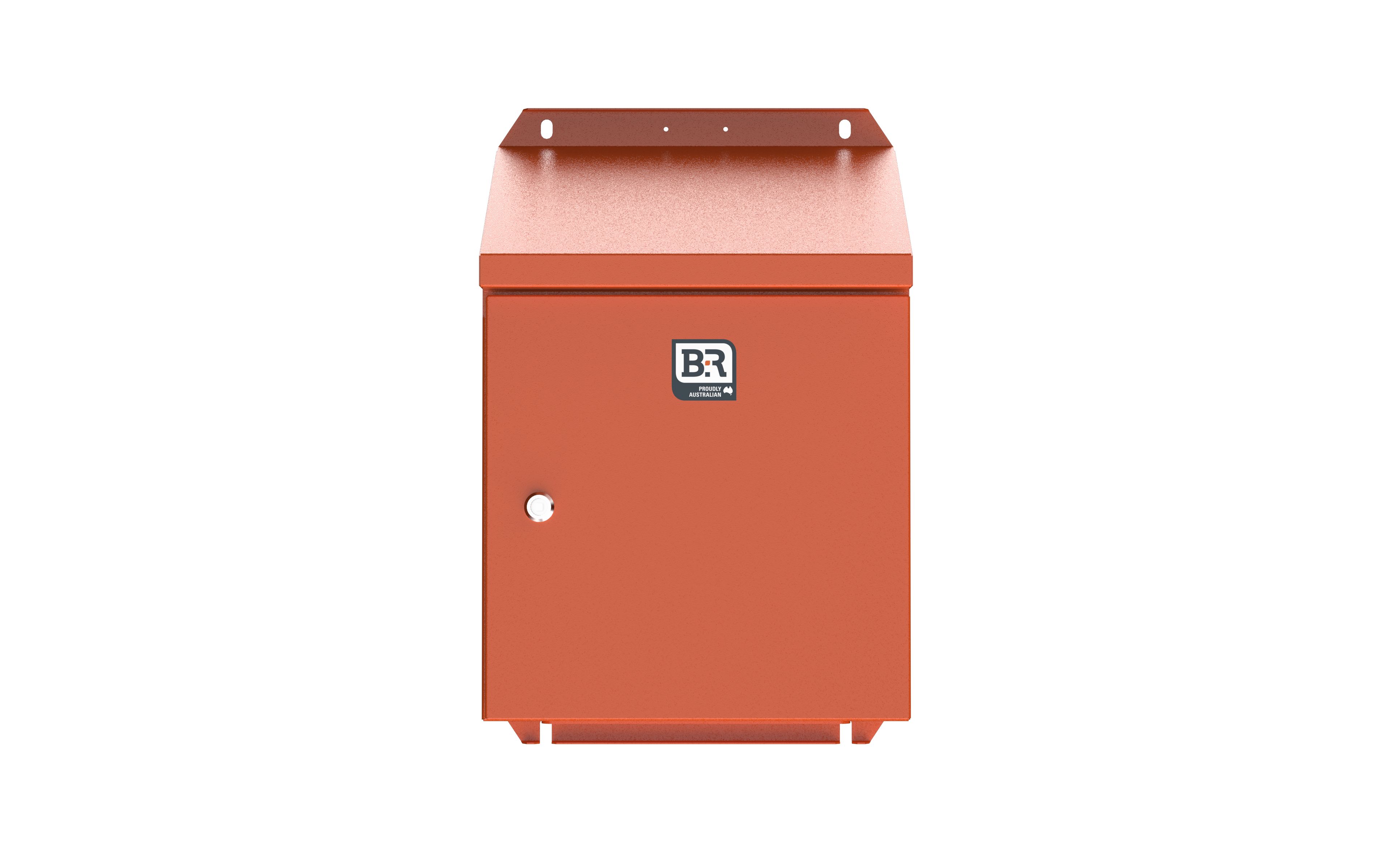

A 400H x 400W x 200D IP66, 30 degree sloping roof enclosure with a total height of 635 (including sloping roof), manufactured in 316 stainless steel powdercoated X15 orange and complete with a 250 x 120mm x 1.5mm 316SS gland plate and metal mounting pan. Incline SR are often used on mine sites, sugar mills and other dusty environments.

Part Number:

SR04042/SRO

Error: Unable to load accounts at this time.


Download PDF of this page
Details
Dimensions

400 x 400 x 200mm (635mm total height)

Weight (kg)

12.7

Inclusions

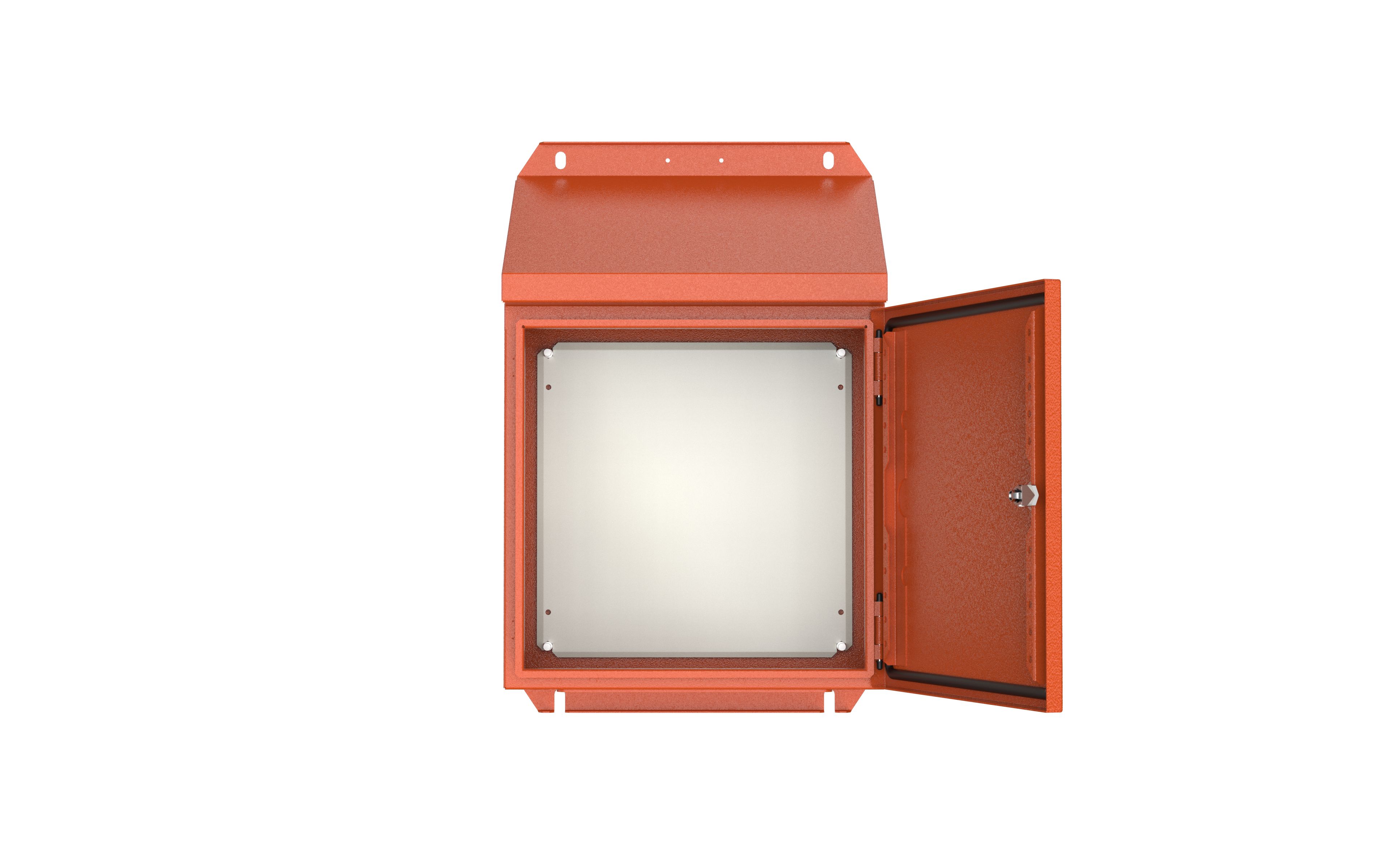

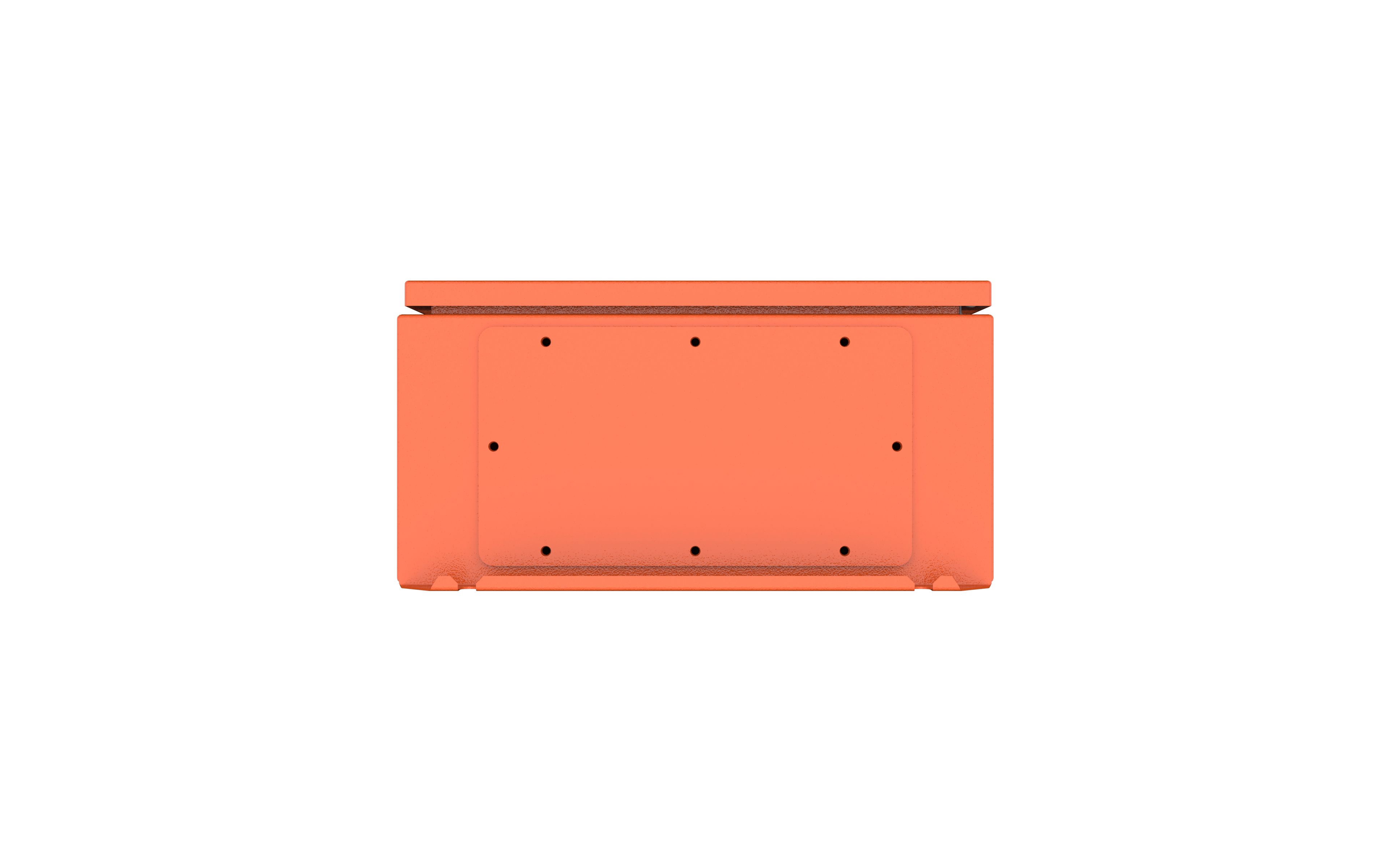

2mm steel mounting pan – 350 x 350 (HxW) – white, 4 Mounting points on mounting flanges, Door Rails – 2x vertical, Earth strap kit, Gland Opening – 250 x 120mm with gland plate, Stainless steel lock with 7mm stainless steel insert (NI020/S)

Approvals

AS/NZS 61439, Lloyds Register #08/10007 (E2), Region D Wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

Body – 1.5mm Stainless Steel, Surface finish – powdercoated X15 Orange

Closing (Door / Lid)

Hinged Door

Features
  • IP66 protection rating – more info on IP ratings

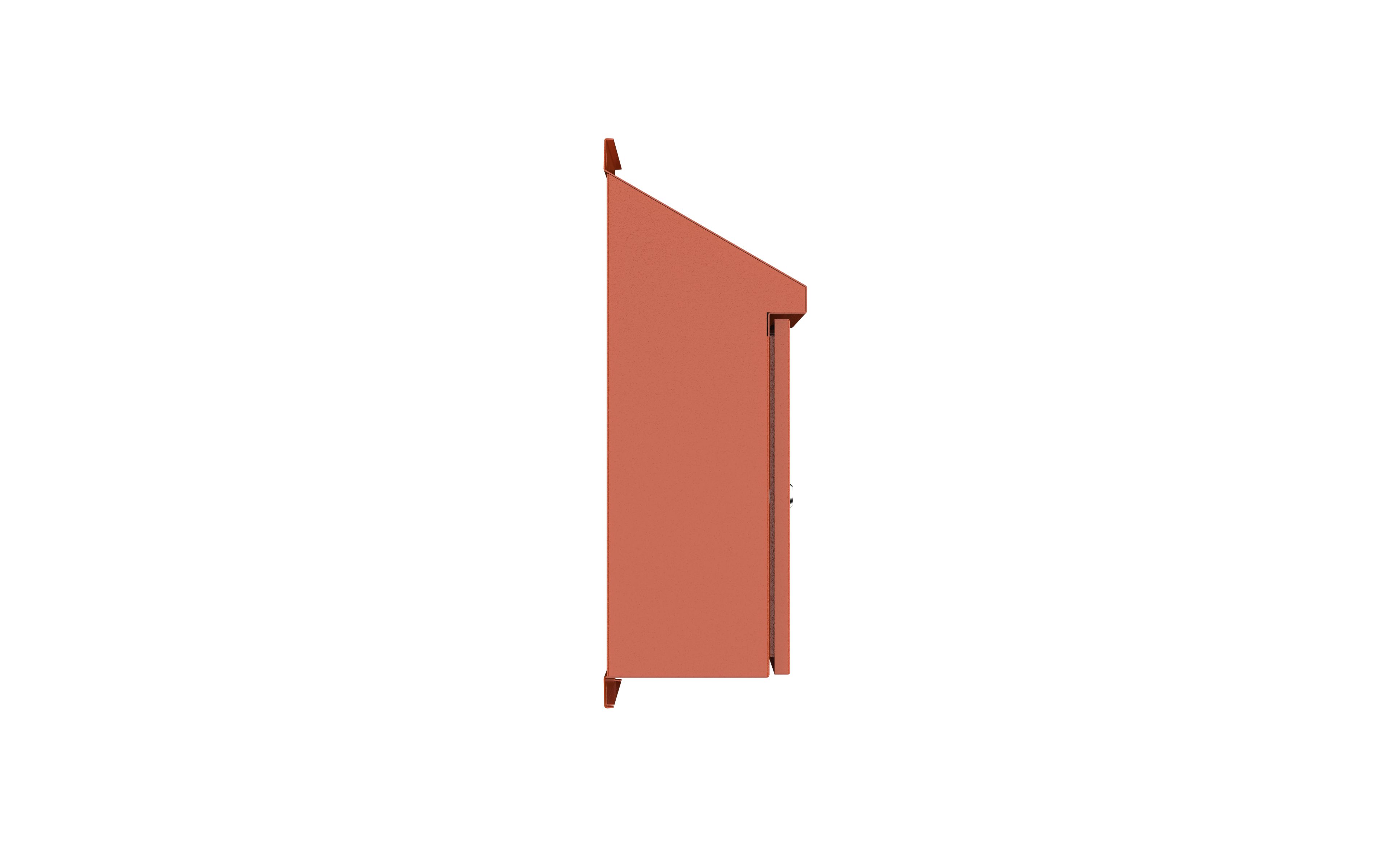

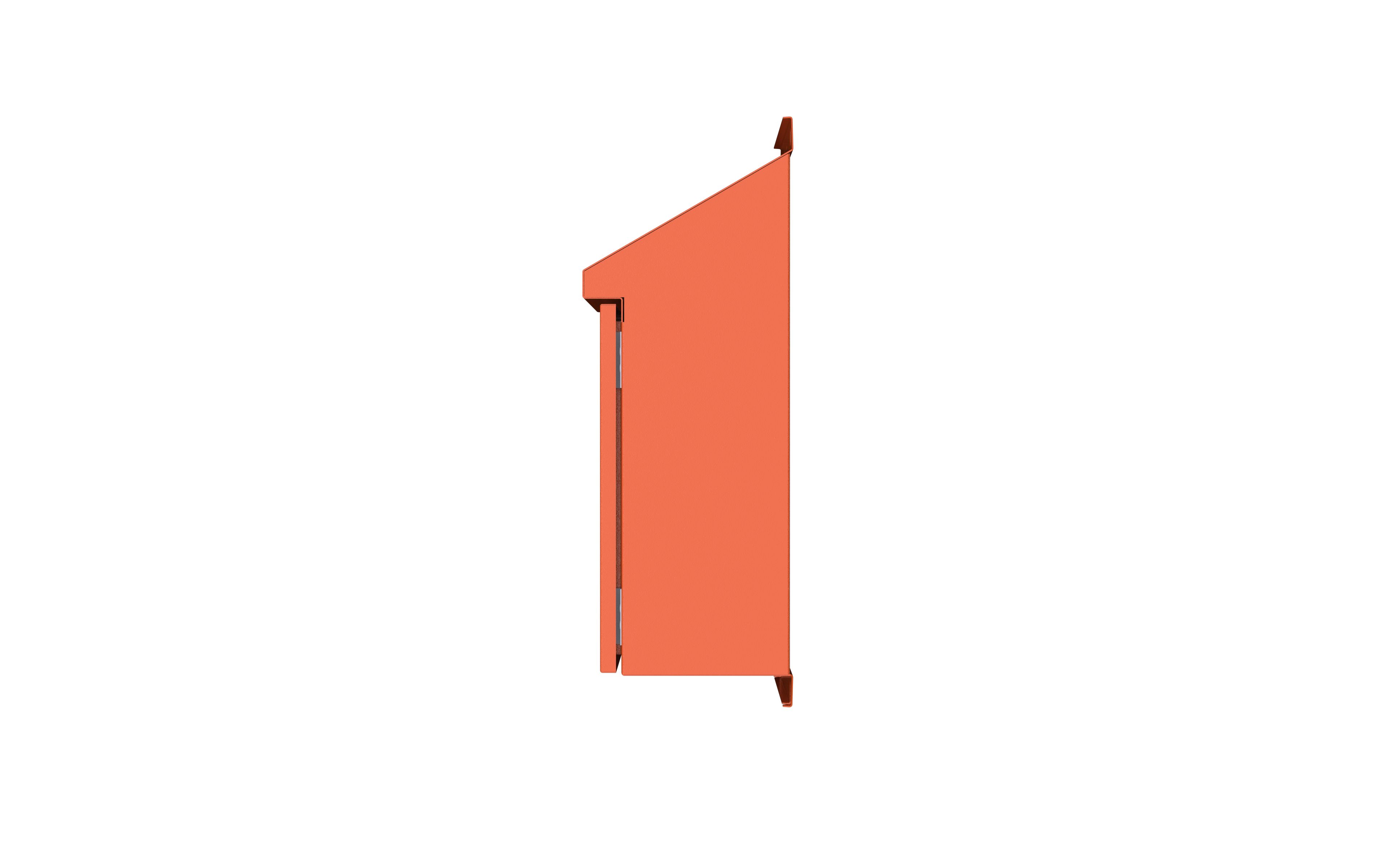

  • 30º sloping roof designed to prevent solids from building up on the surface

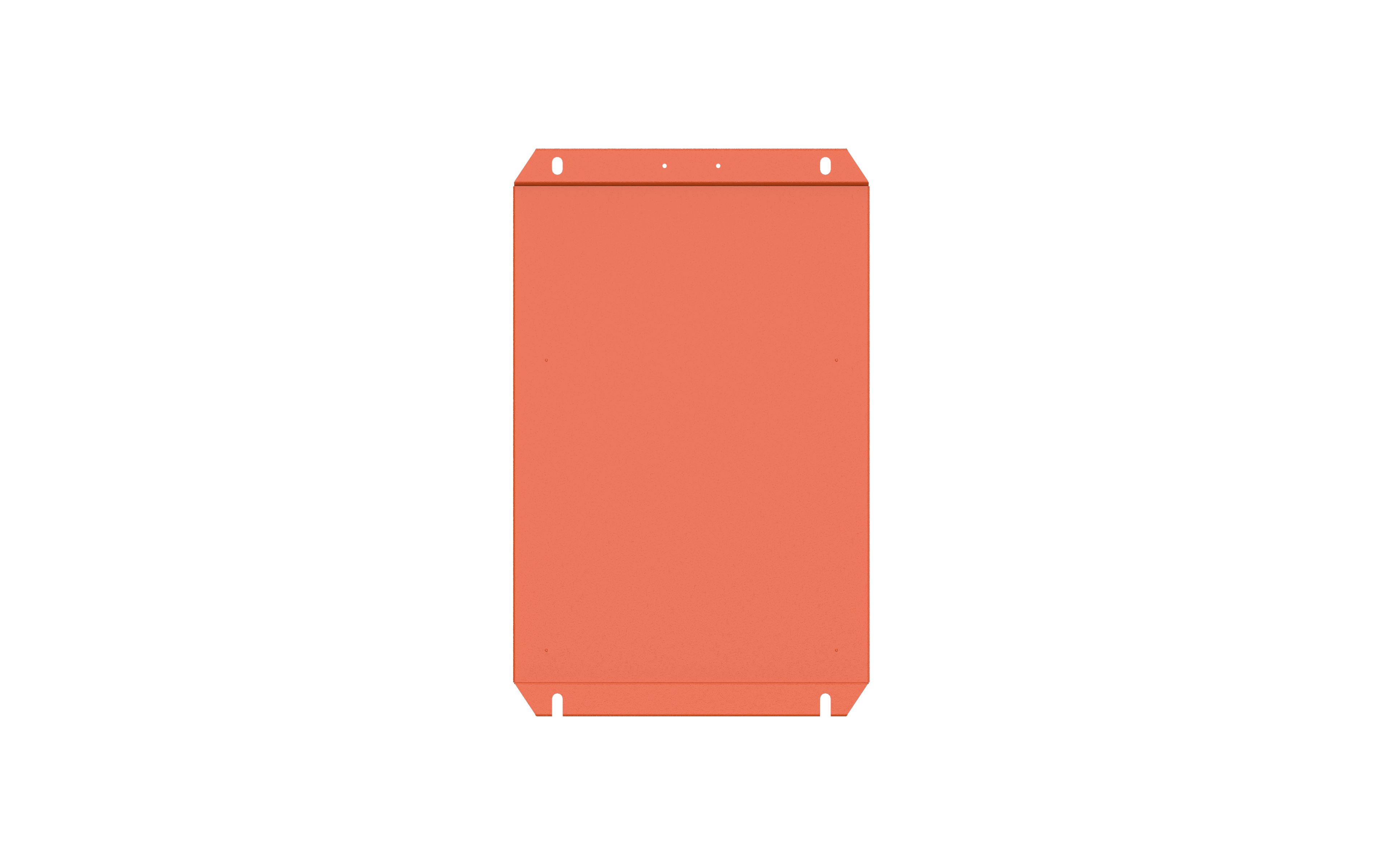

  • Easy installation with top and bottom mounting flanges
  • Fully welded construction
  • Corrosion resistant 1.5mm thick 316 stainless steel
  • Flexible equipment mounting options including door rails (units 400mm wide or over) and steel mounting pan
  • Specially designed gutter system featuring a 20mm extended roof
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
Downloads
Accessories
Category
Equipment Panel
Gland Plate
Mounting Pan
Key
Lock
Vent Kit
Reset

NIMP0404

Mounting pan for Universal NI / Incline SR – metal, 350H x 350W

SRIMP044

Mounting pan for Incline SR – insulated, 350H x 350W x 6mm thick

SRBGP3/2

Gland plate for Universal NI / Incline SR – brass, 290H x 160W x 3mm thick

SRBGP6/2

Gland plate for Universal NI / Incline SR – brass, 290H x 160W x 6mm thick

SRSGP/2

Gland plate for Incline SR – 316 stainless steel, 290H x 160W x 1.5mm thick

SRAGP6/2

Gland plate for Universal NI / Incline SR – aluminium, 290H x 160W x 6mm thick

IPVK/SRO

Vent kit (louvres) 130 x 130mm – 316 stainless steel, X15 orange powdercoated to suit Monarch IP, Universal NI and Incline SR ranges

NI/H

Replacement hinge kit for Universal NI / Incline SR

TUP/P24

Touch Up Paint (300g) – X15 orange

NI020/S

Turnbuckle lock – 7mm square stainless steel insert for Universal NI, Incline SR, Hedland PH and Bowen range (option)

NI028S/S

Turnbuckle lock – 8mm slotted square stainless steel insert for Bowen Series and option for Universal NI, Incline SR and Hedland PH

NI030

Wing knob – lockable – key code 92268 for Universal NI, Incline SR, Forte FR, Bowen and Hedland PH

NI030/CL001

Wing knob – lockable – key code CL001

NI030/L003

Wing knob – lockable – key code L003

NI032/S

Wing knob – padockable – stainless steel

NI111

Wing knob – Non-lockable

NI040

T-handle – lockable – key code 92268 for Universal NI, Incline SR, Bowen and Hedland PH

NI040/CL001

T-handle – lockable – key code CL001

NI050/S

L-handle – lockable – stainless steel -key code 92269 for Universal NI, Incline SR, Hedland PH, Bowen and Finucane FI (sunshade)

NI050/S/L003

L-handle – lockable – stainless steel -key code CL001

NI052/S

L-handle – padlockable – stainless steel for Universal NI, Incline SR, Hedland PH and Bowen

NI060/S

Swing Handle – padlockable – stainless steel for Universal NI, Incline SR and Bowen

NI020/DC

Dust cap for turnbuckle lock

LKINS8SS/S

Lock insert – 8mm slotted square – Stainless steel for NI020/S or IP020/S lock

LKINS3P/S

Lock insert- 3mm double bit pin – Stainless steel, for NI020/S or IP020/S lock

LKINS8S/S

Lock insert – 8mm square – Stainless steel for NI020/S or IP020/S lock

LKINS8T/S

Lock insert – 8mm triangle – Stainless steel for NI020/S or IP020/S lock

SKZ

Spare key – Zinc alloy 4 way for turnbuckle locks

SK8

Spare key – Metal key 3 insert – 17852

SK3

Set of keys for key locable wing knobs (03 type), T-handles (040 type) and L-handle (050 type) locks.

LPC221

Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 215W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss

LPC231

Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 315W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
