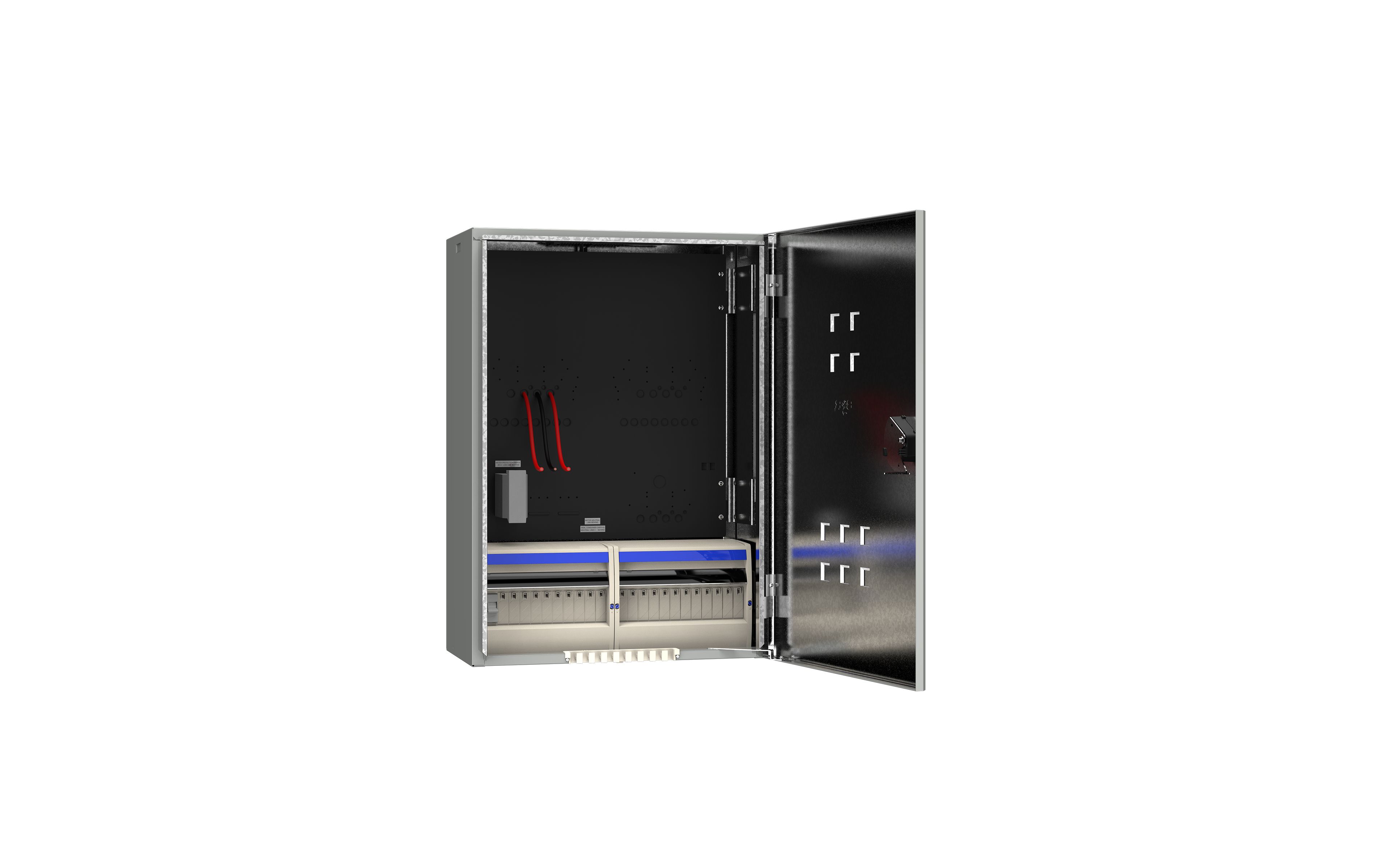

Horizon Meter Box for Queensland, single phase applications with an IP23 rating. Manufactured from Galvanised Steel and Powdercoated Light Grey RAL7035. The meterbox is 690Hx485Wx278D to better fit inside standard stud framing and has 24-pole of DIN space, includes a meter isolator link, E9P Earth and N18P Neutral Link and Earthing Stud along with ID labels. The Q20/1PCW has also been designed to be compliant for construction sites as standard and comes complete with innovative features like a flush gravity catch, safety cord retainer and RotaDIN, rotatable and removable DIN rails system to make cabling and inspection much easier.
This unit is pre-wired for a single residence and single phase with a 63A Schneider main switch and complies with QLD Supply Authority Rules and Regulations as well as AS/NZS3012. It comes complete with a 3.75m main earth tail, isolation link and a pre-wired meter neutral.
Part Number:
Q20/1PCW
Error: Unable to load accounts at this time.
| IP Rating | IP23 |
|---|---|
| Inclusions | 24-pole of DIN space, 3.75m main earth tail, 480H x 461W Meter Panel (75mm depth behind), 63A Schneider main switch, Captive Panel Retainer, Circuit identification label area with cover, Cord Retainer, Earth Link (E9P type), Earthing Stud, External Frame Mounting Brackets, Insulated Escutcheons, Main Neutral Link (N18P), Meter Isolator Link, Padlock Facility, Pre-wired meter neutral, RotaDIN rotating / removable DIN section, Self-closing Gravity Catch, Shut-off Slide (ratchet) on Top Cable Entry, Weatherproof Installation Label |
| Approvals | AS/NZS3000 compliant weatherproof installation label, AS/NZS3012, AS1170.2-2002: Structural design actions – wind actions, IP23, QLD SIR's |
| Construction | Body – 1mm Galvanised Steel, RAL7035 powdercoat external surface finish |
| Material | Galvanised Steel |
| Colour | RAL7035 |
Horizon Q Series Builders Pole. Supplied complete with 50mm capped PVC tube for insertion into slab. Allows metering enclosure to be mounted on site as a temporary power supply for construction work. It is easily removed and reusable.
Horizon Meter Box Accessory – Roof – to suit 35Hx485Wx340D galvanised steel enclosure powdercoated to RAL7035. The roof is 35H at the highest point x 485W x 340D so includes an overhange to keep water away from the enclosure door.
Horizon Meter Box Accessory – Plinth – to suit 485W x 278D galvanised steel enclosure powdercoated to RAL7035. The plinth is 690mm high for easy access.
Horizon Meter Box Accessory – Flush Mount Kit – to suit 690H x 485W galvanised steel enclosure powdercoated to RAL7035
