Enclosure – Polynova PU – 300Hx250Wx140D – Plastic – PU302514

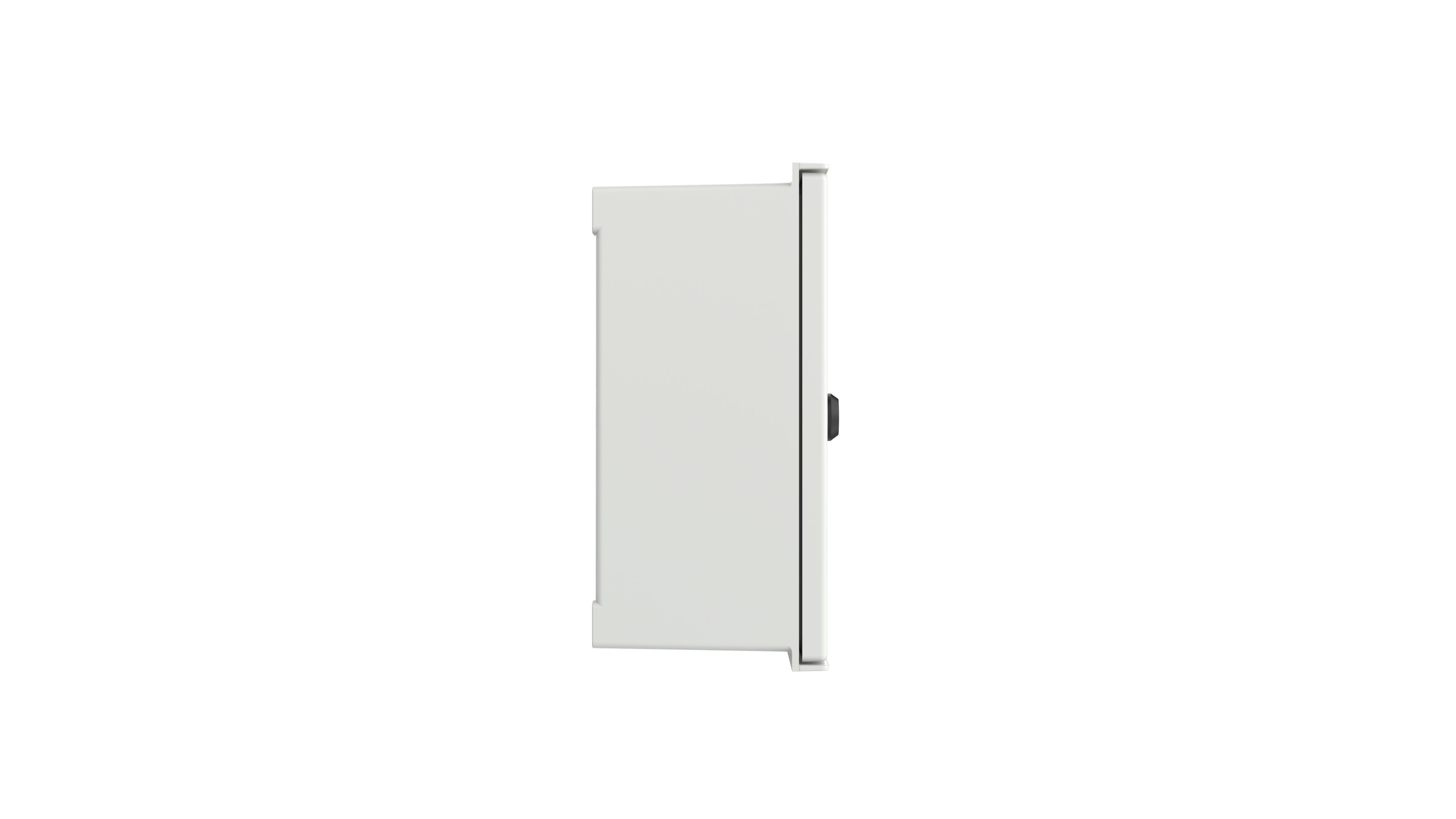

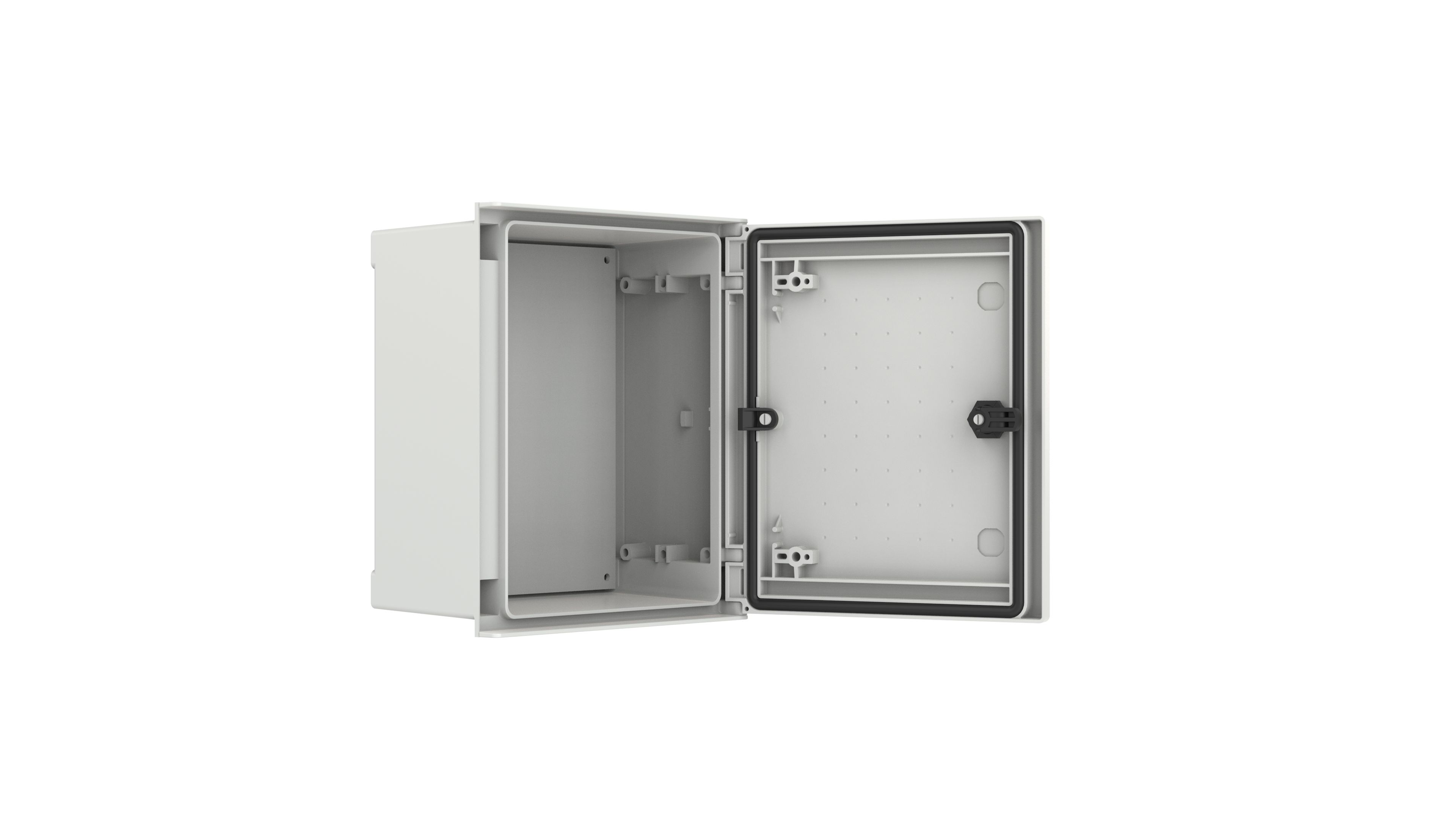

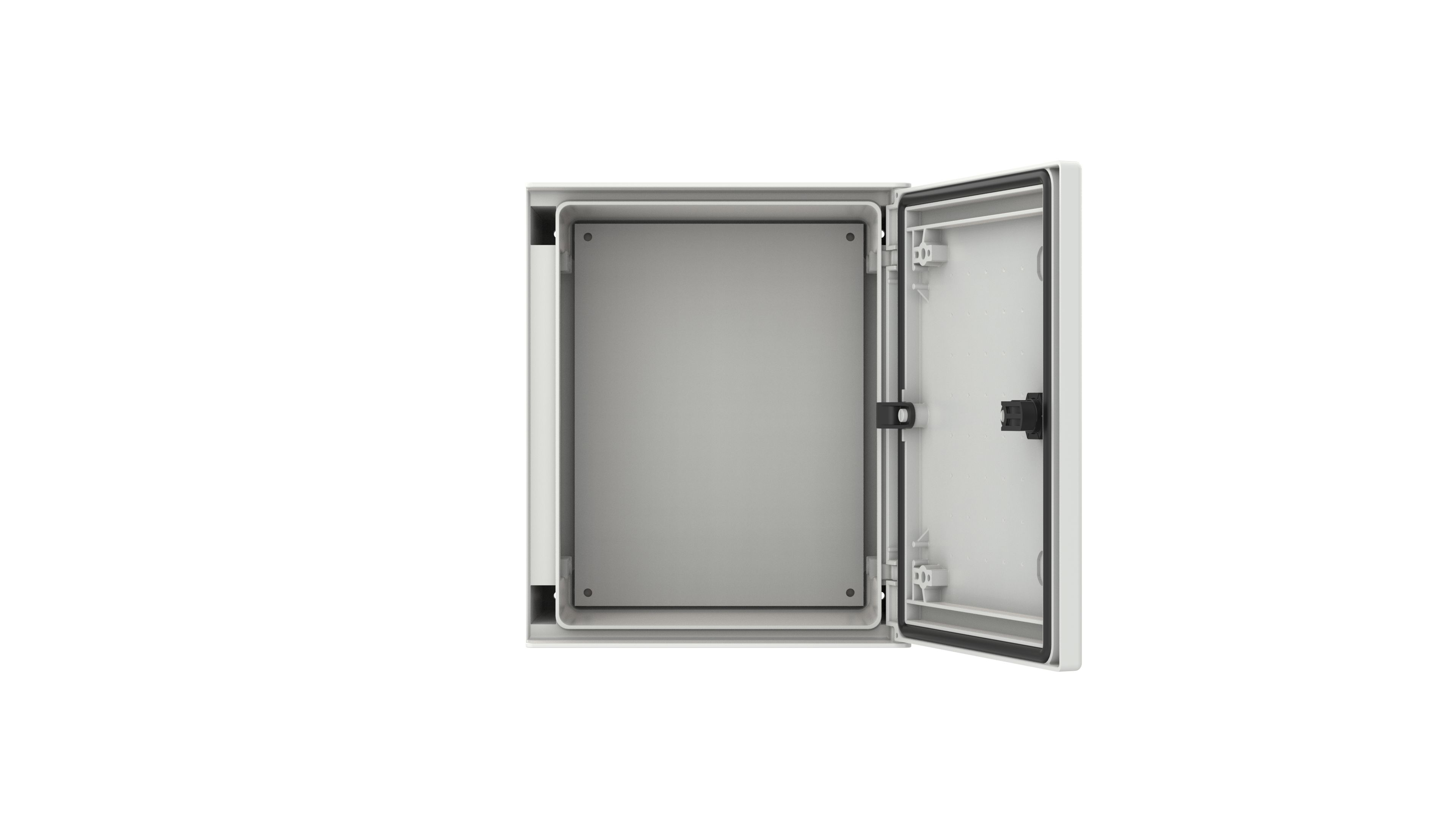

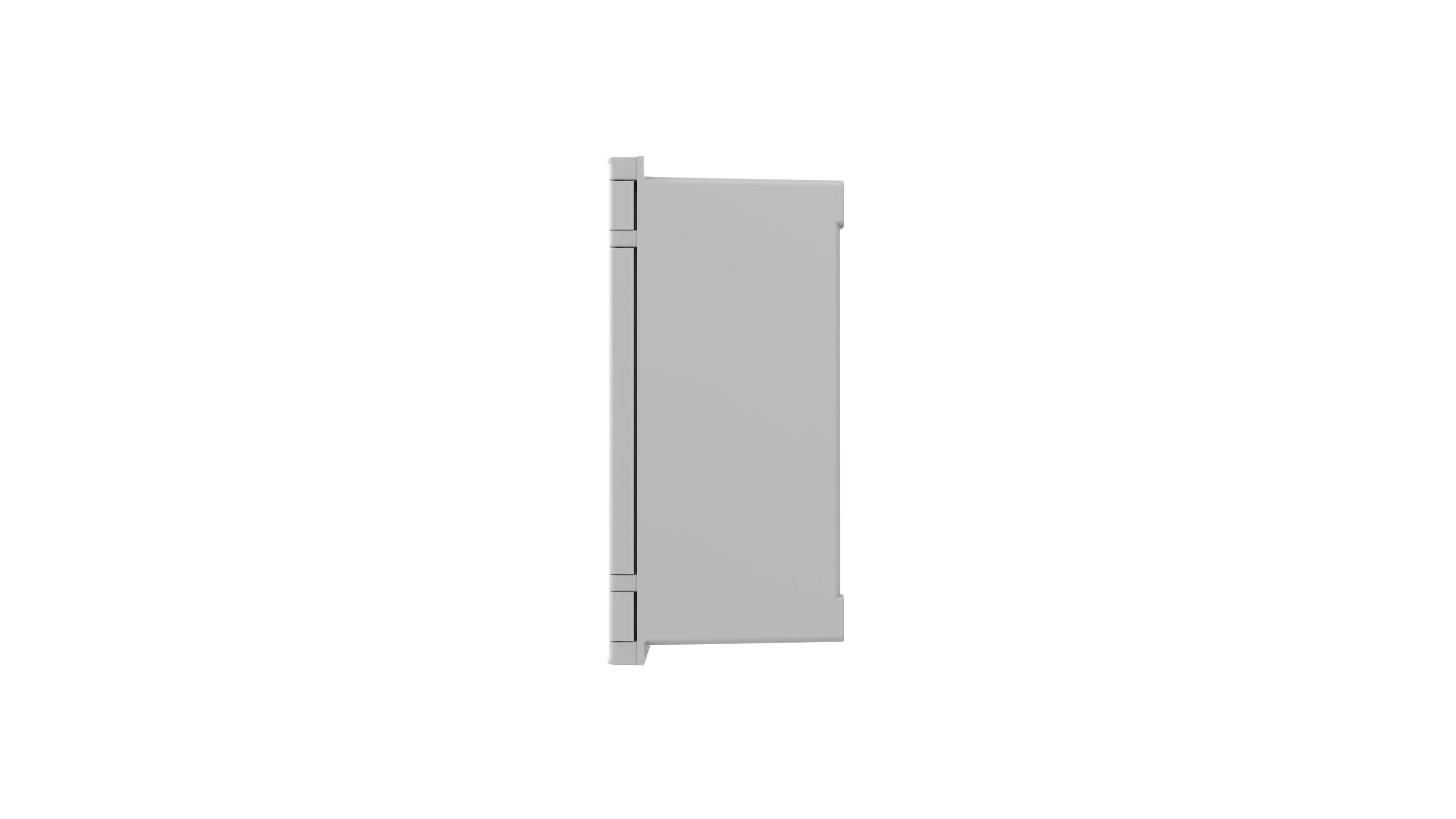

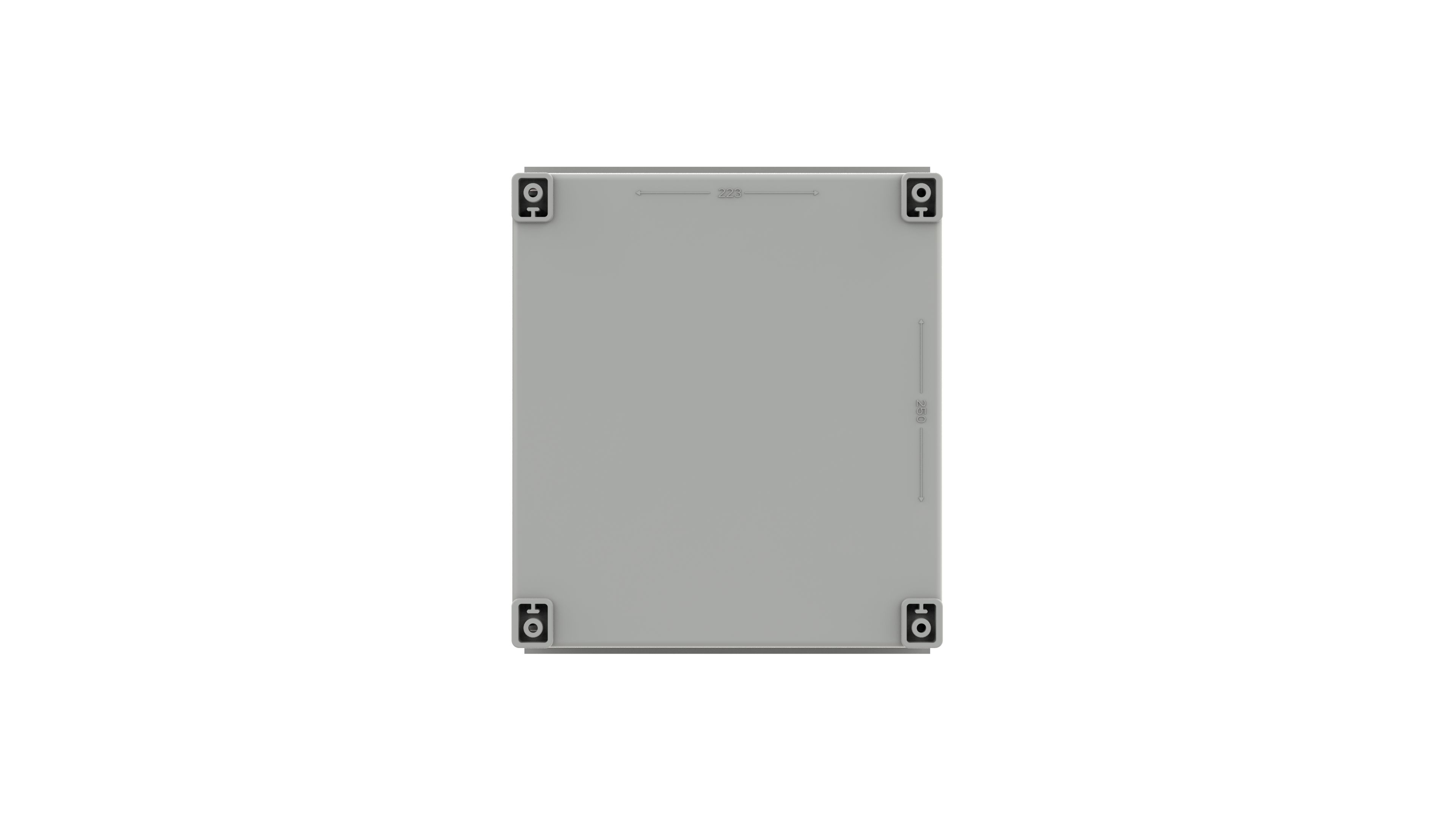

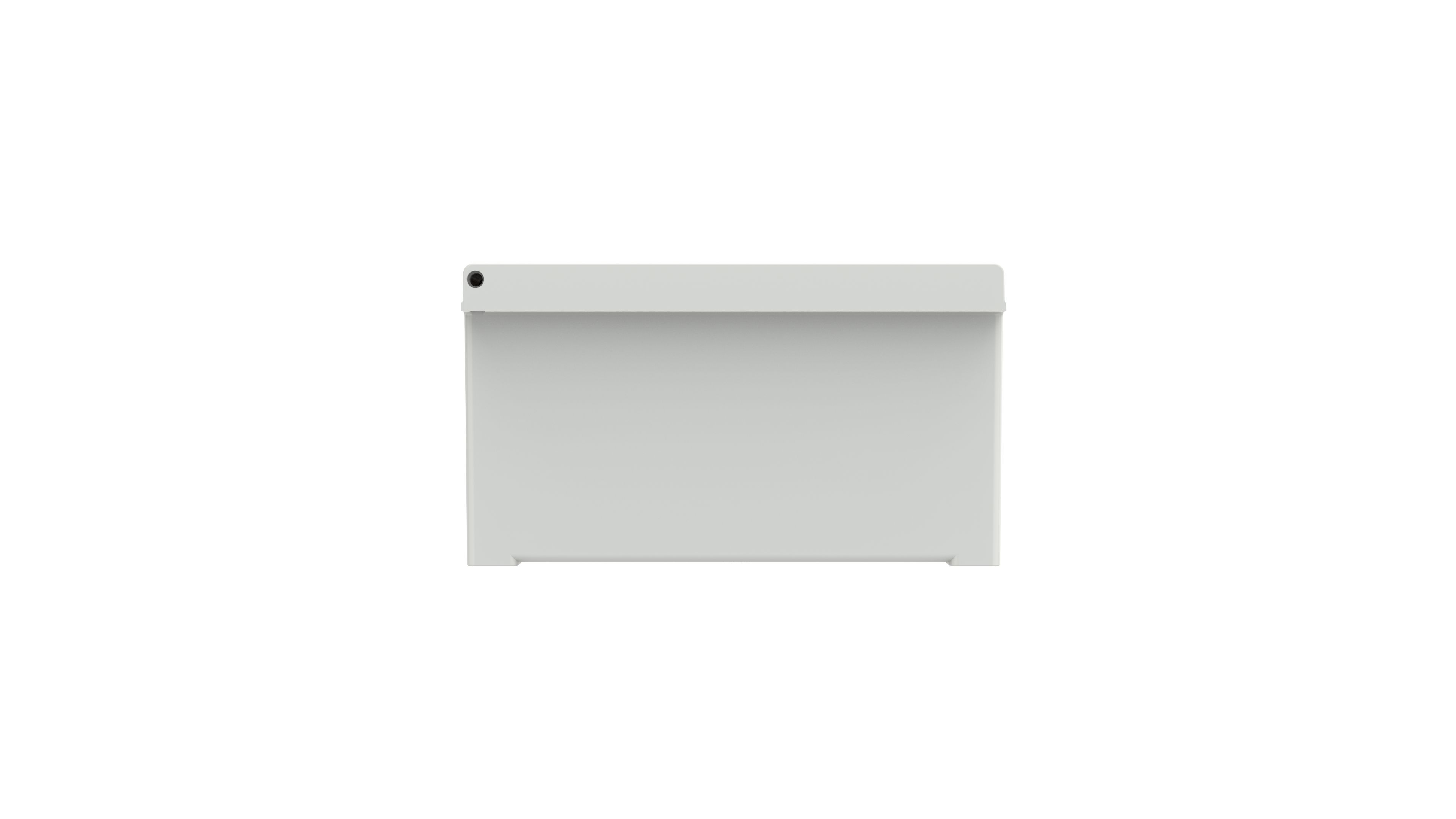

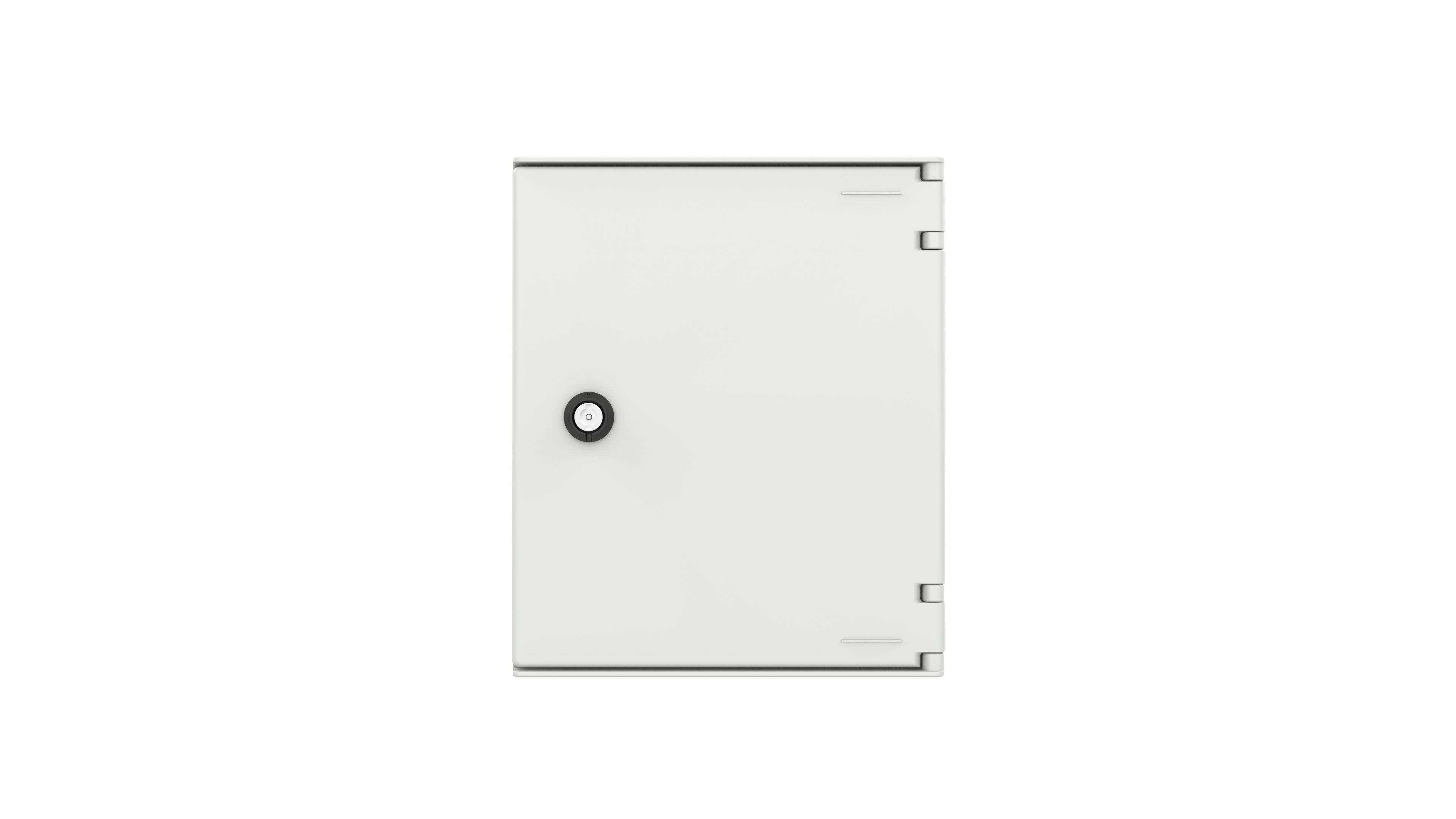

A 300 x 250 x 140mm (HxWxD) non-metal, IP66 enclosure suitable for harsh environments where easy visual inspection is required. Suitable for low voltage (LV) double insulated applications. The enclosure is fitted with a turnbuckle – single point lock and plain opaque door.

Part Number:

PU302514

Error: Unable to load accounts at this time.


Download PDF of this page
Details
Dimensions

300 x 250 x 140mm

IP Rating

IP66

Weight (kg)

1.9

Inclusions

Insulated mounting pan, Lock – Turnbuckle – Single Point, Roof extends over door opening

Approvals

Halogen free (LSZH), IEC695-2-1: 960º Glow Wire Test, UL94, UL94 – V1 rating, V1 rating

Construction

Body – Plastic – UV stabilised glass reinforced polyester, Surface finish – RAL7035

Features
  • Swing handle keyed to 92268 with a 3-point lock as standard (PU302514 have single 1/4 turn lock).
  • Plain or window door options
  • Insulated mounting pan
  • Roof extends over door opening
  • UV stabilised
Downloads
Accessories
Category
Mounting Pan
Lock
Mounting Feet
Reset

PU3025/M

Mounting pan for Polynova PU – metal 262 x 198 x 2mm thick

PU3025/I

Mounting pan for Polynova PU – insulated 262 x 198 x 4mm thick

PU/WMB

Wall mounting brackets for Polynova PU – set of 4 (max 50kg)

PU/LCK

Lock insert for turnbuckle lock on PU302514(/W) – Insert key locking

PU/LCK8S

Lock insert for turnbuckle lock on PU302514(/W) – Insert 8mm square

PU/LCK8T

Lock insert for turnbuckle lock on PU302514(/W) – Insert 8mm triangle

PU/PL

Lock insert for turnbuckle lock on PU302514(/W) – padlock attachment
