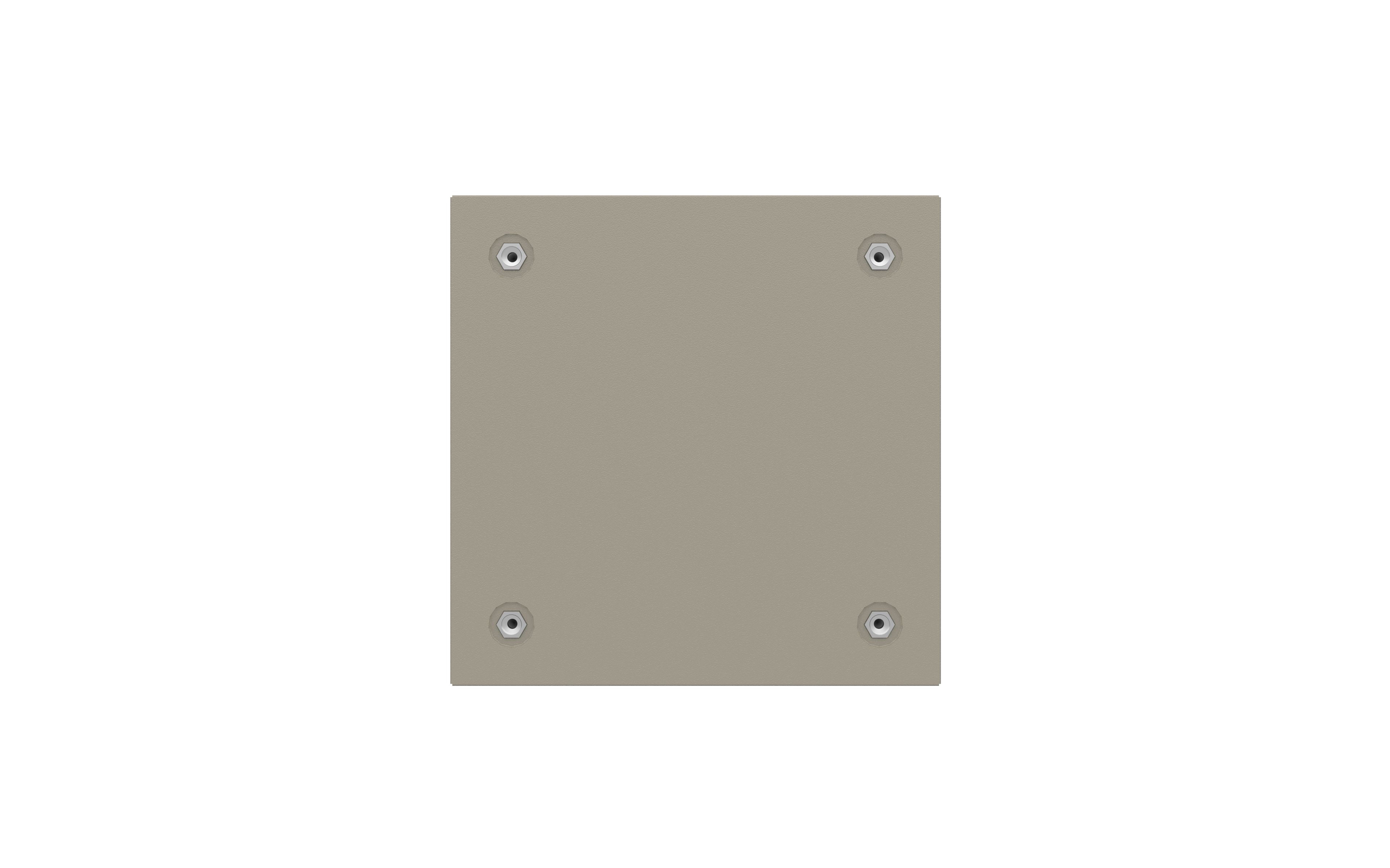

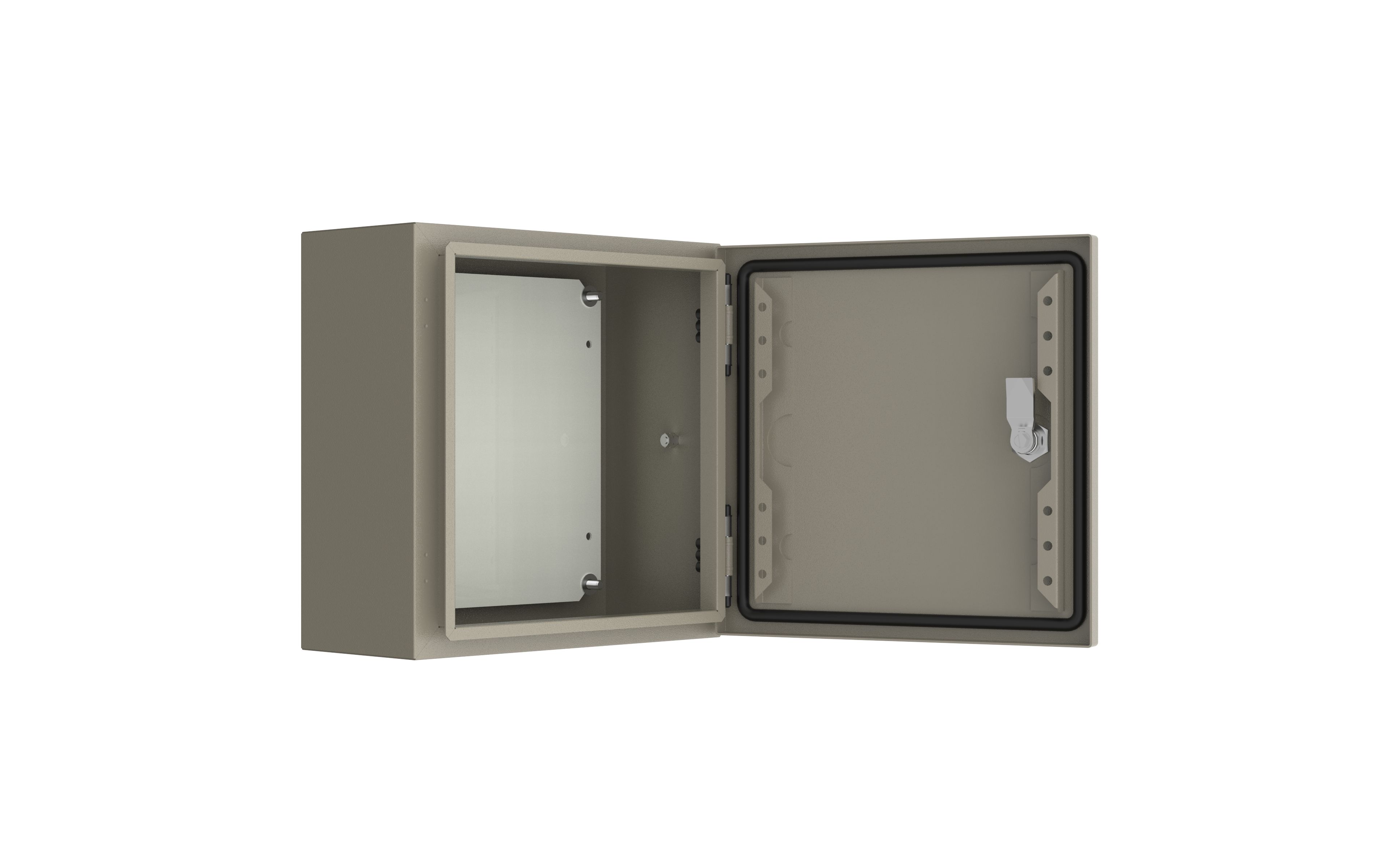

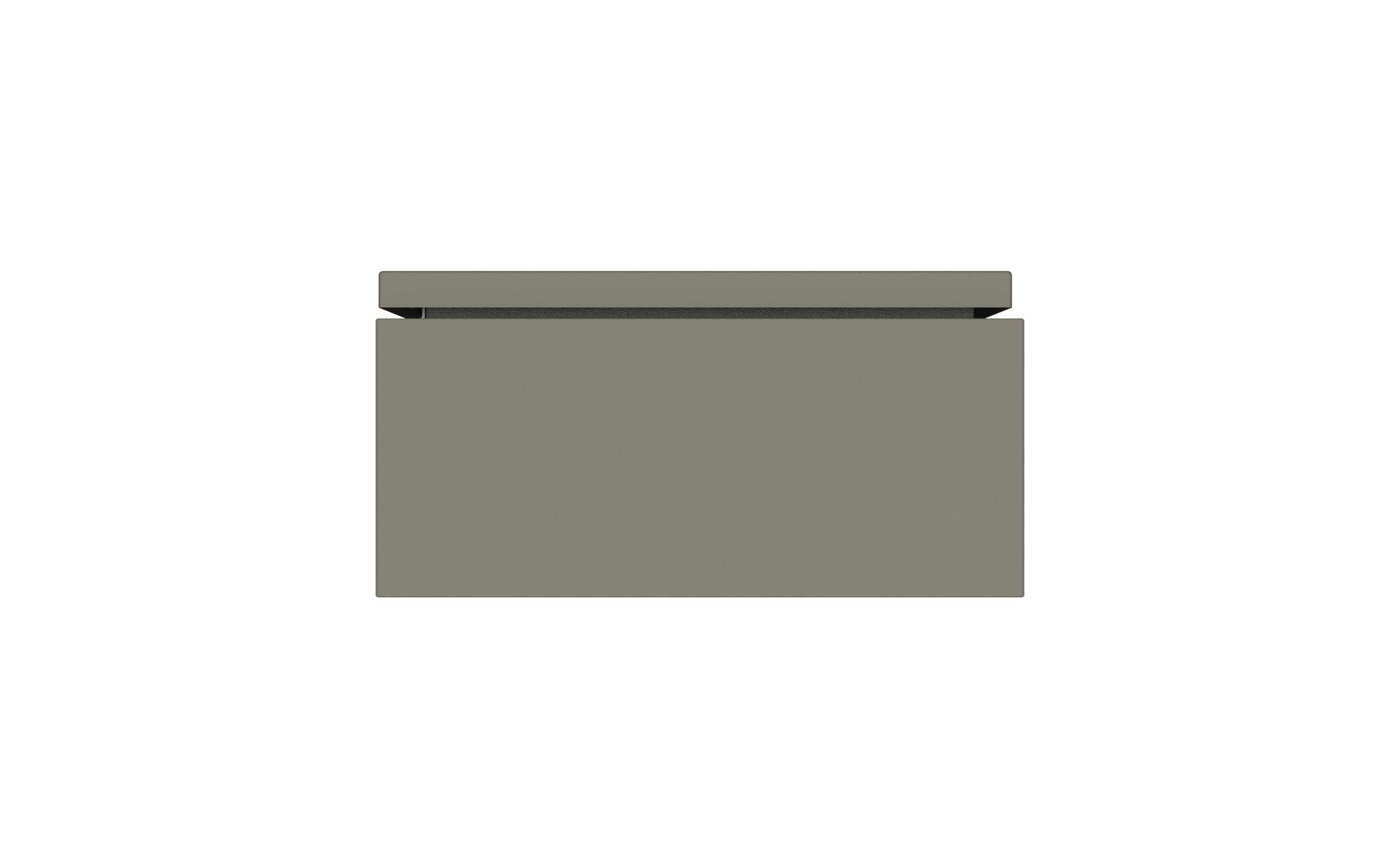

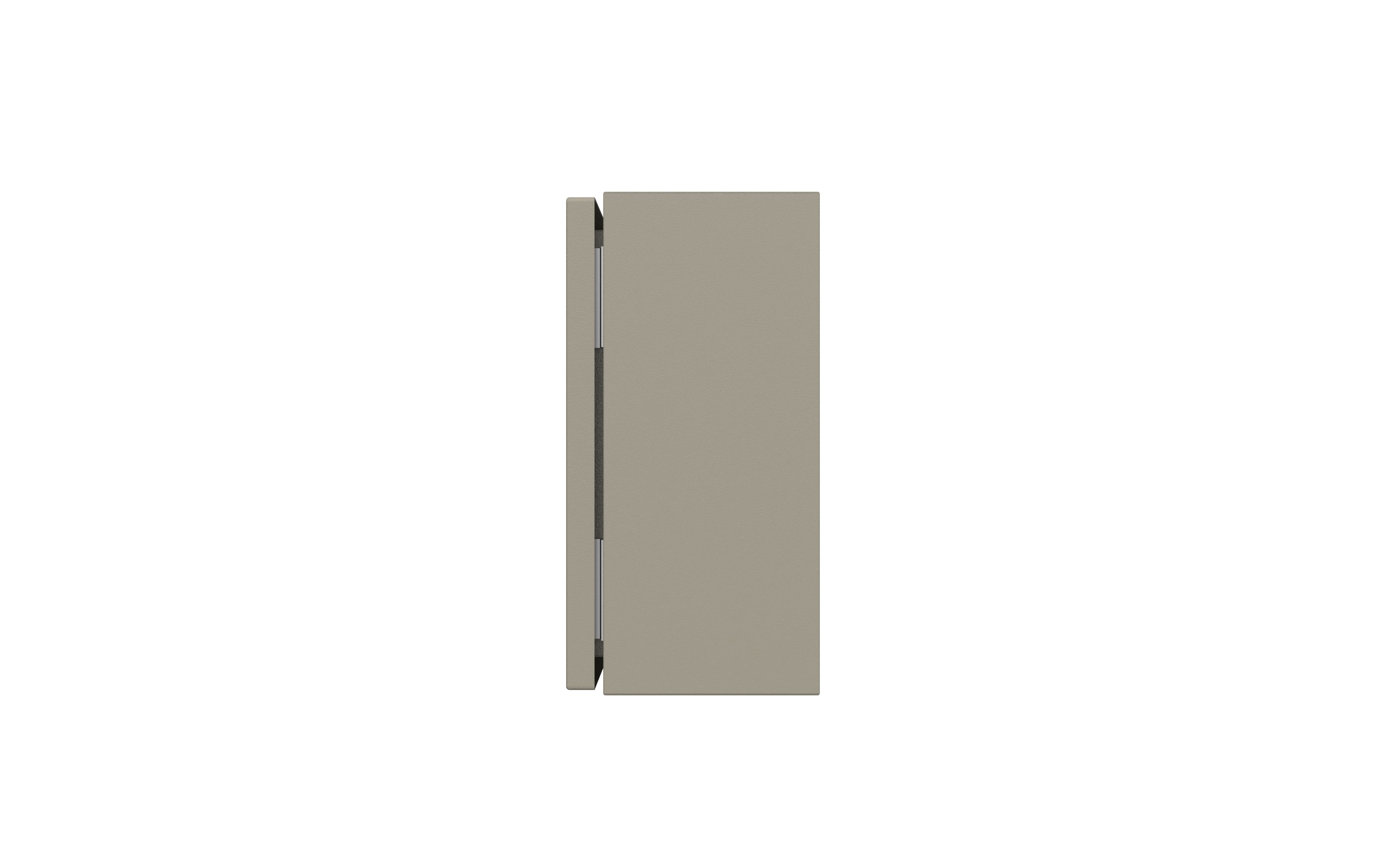

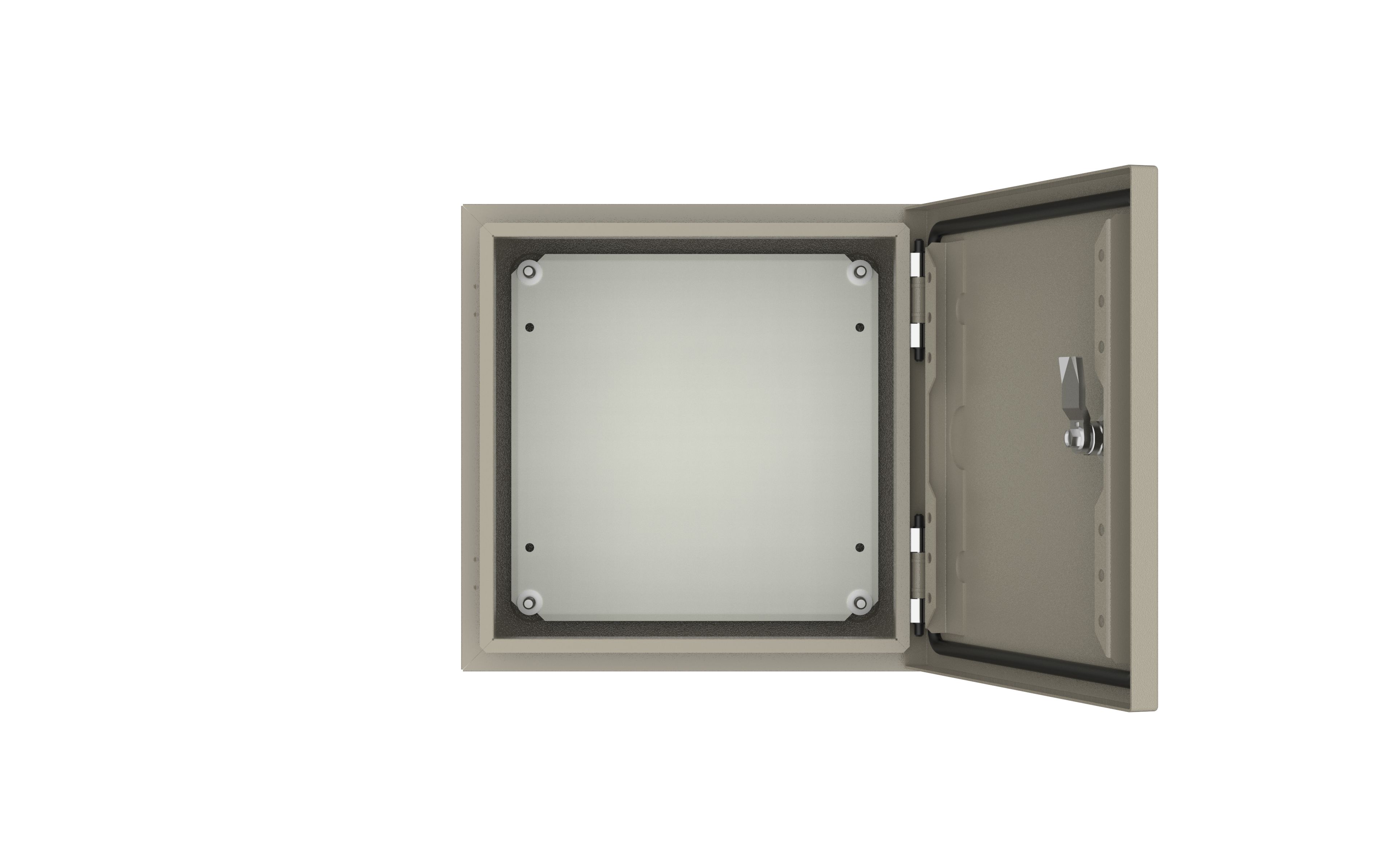

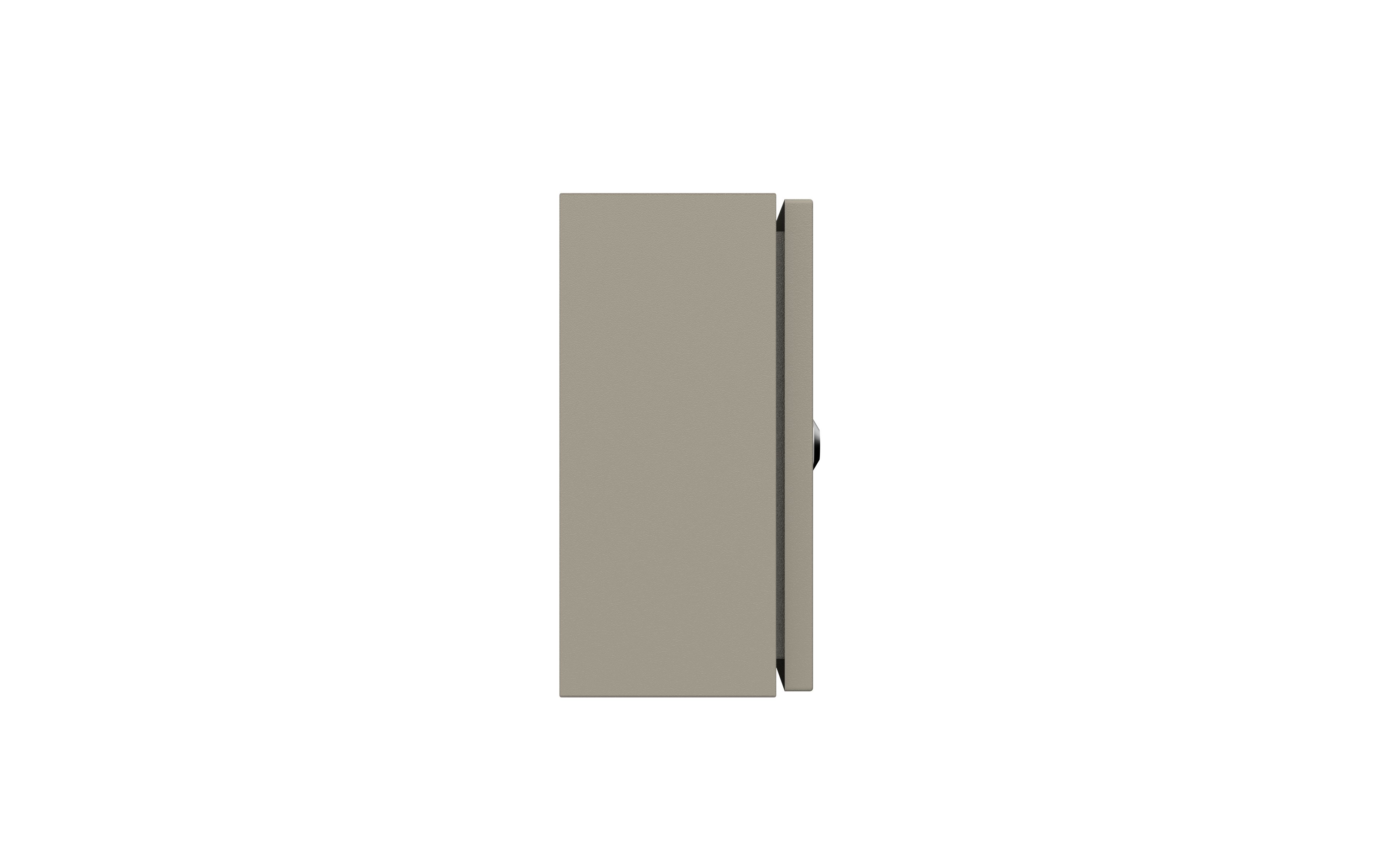

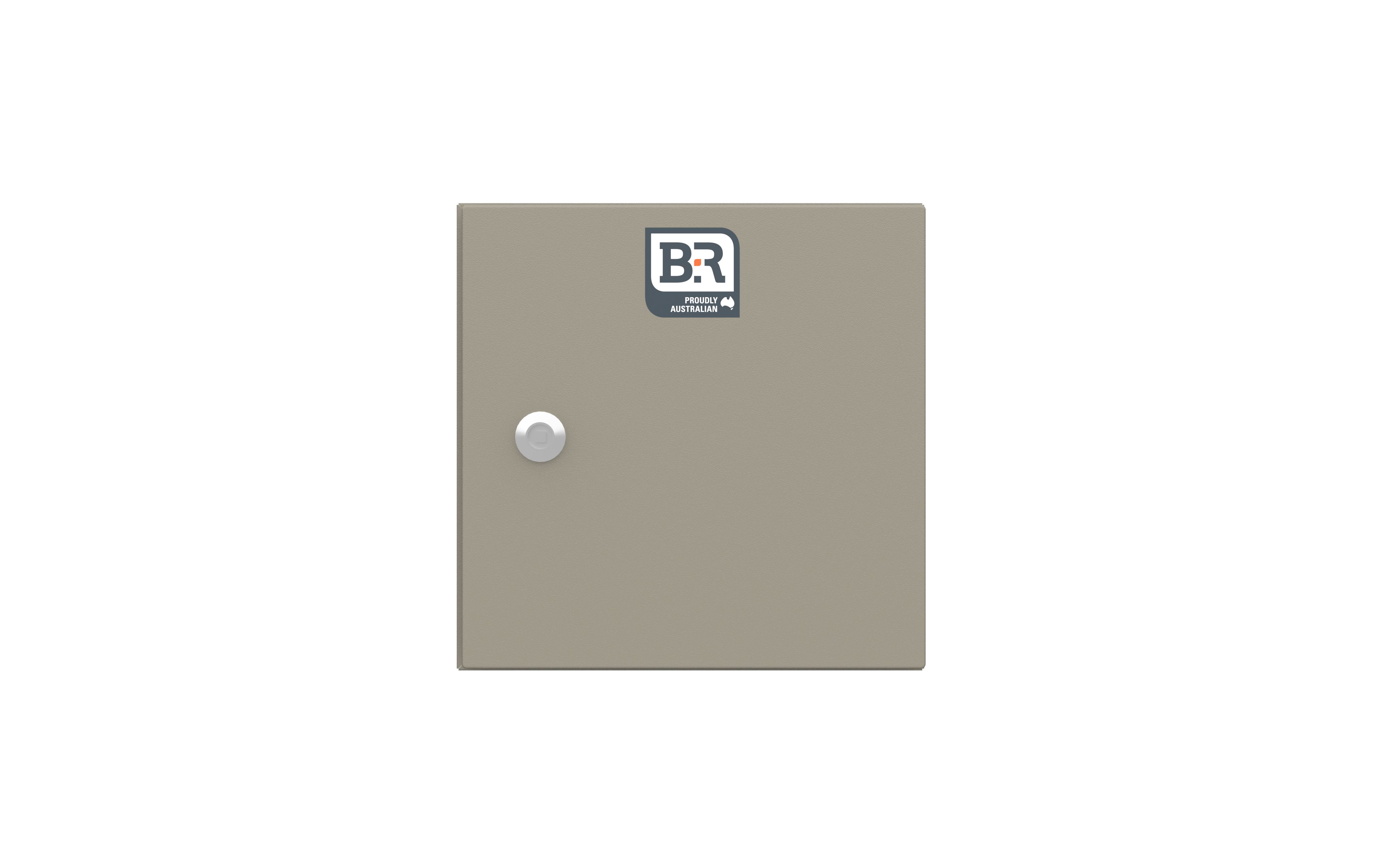

A 300 x 300 x 150mm (HxWxD) zinc coated steel, IP66 enclosure, powder coated to RAL7032 and with integrated threaded sockets for wall mounting. It is designed to maximise life in service and built for industrial or demanding environments.
Part Number:
NI03031
Error: Unable to load accounts at this time.
| Dimensions | 300 x 300 x 150mm |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 5 |
| Inclusions | 2mm steel mounting pan – 250 x 250mm (HxW) – white, 4 x M8 Mounting points on rear of enclosure, Chromed steel lock with 7mm square steel insert (NI020), Earth strap kit, Gland Opening – None |
| Approvals | AS/NZS 61439, Lloyds Register #06/10007 (E2), Region D Wind rated to AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.2mm Zinc Coated Steel, Surface finish – RAL7032 |
Rainhood for Universal NI – 30 x 300 x 175mm (HxWxD), zinc coated steel with RAL7032 surface finish.
Wall Mounting Brackets (set of 4), 316 stainless steel for Universal NI, Monarch IP and Connector TE ranges
Mounting flange kit for Universal NI – 316 stainless steel, for 300mm height or width enclosure sides
Wing knob – lockable – key code 92268 for Universal NI, Incline SR, Forte FR, Bowen and Hedland PH
Set of keys for key locable wing knobs (03 type), T-handles (040 type) and L-handle (050 type) locks.
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 215W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
