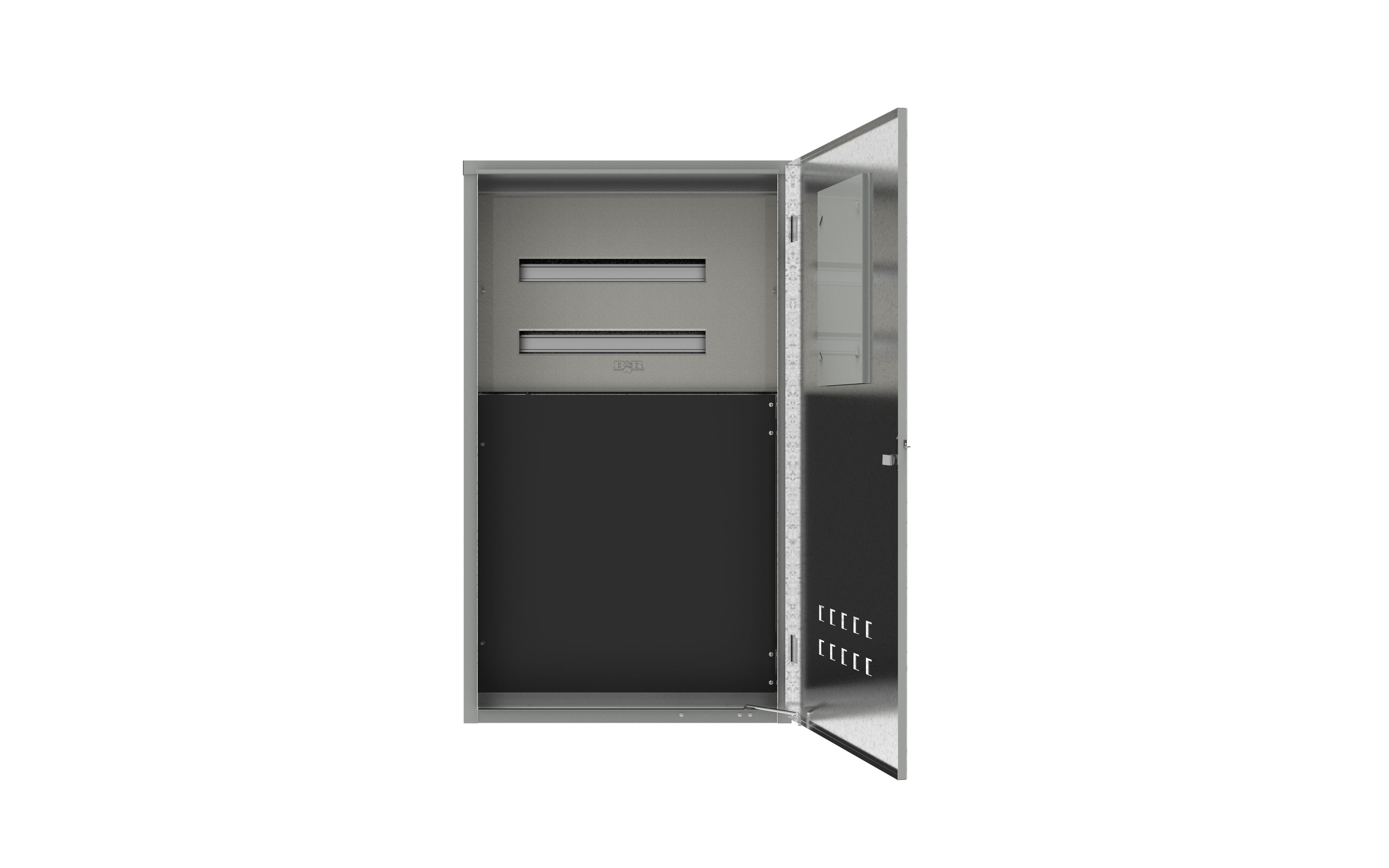

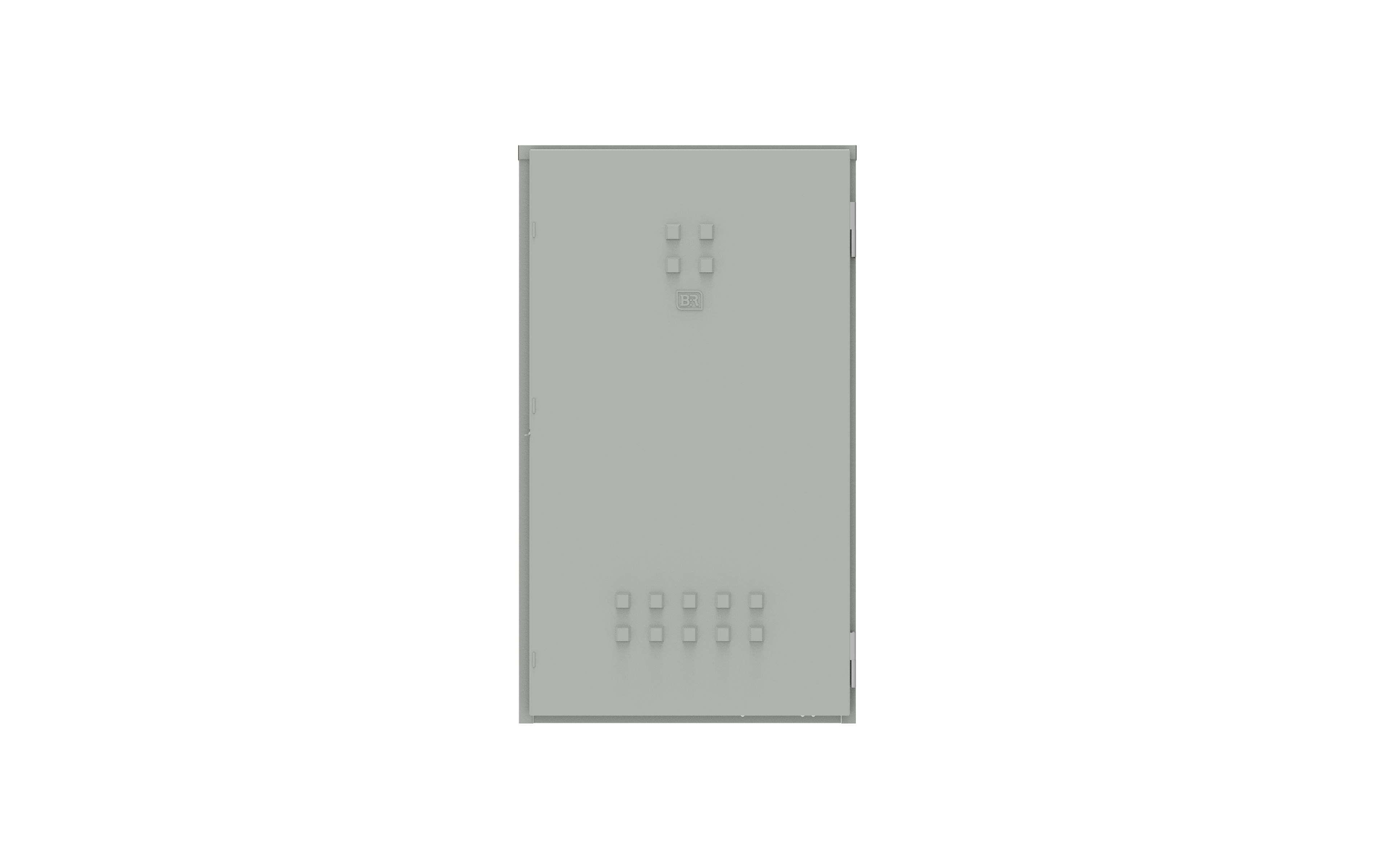

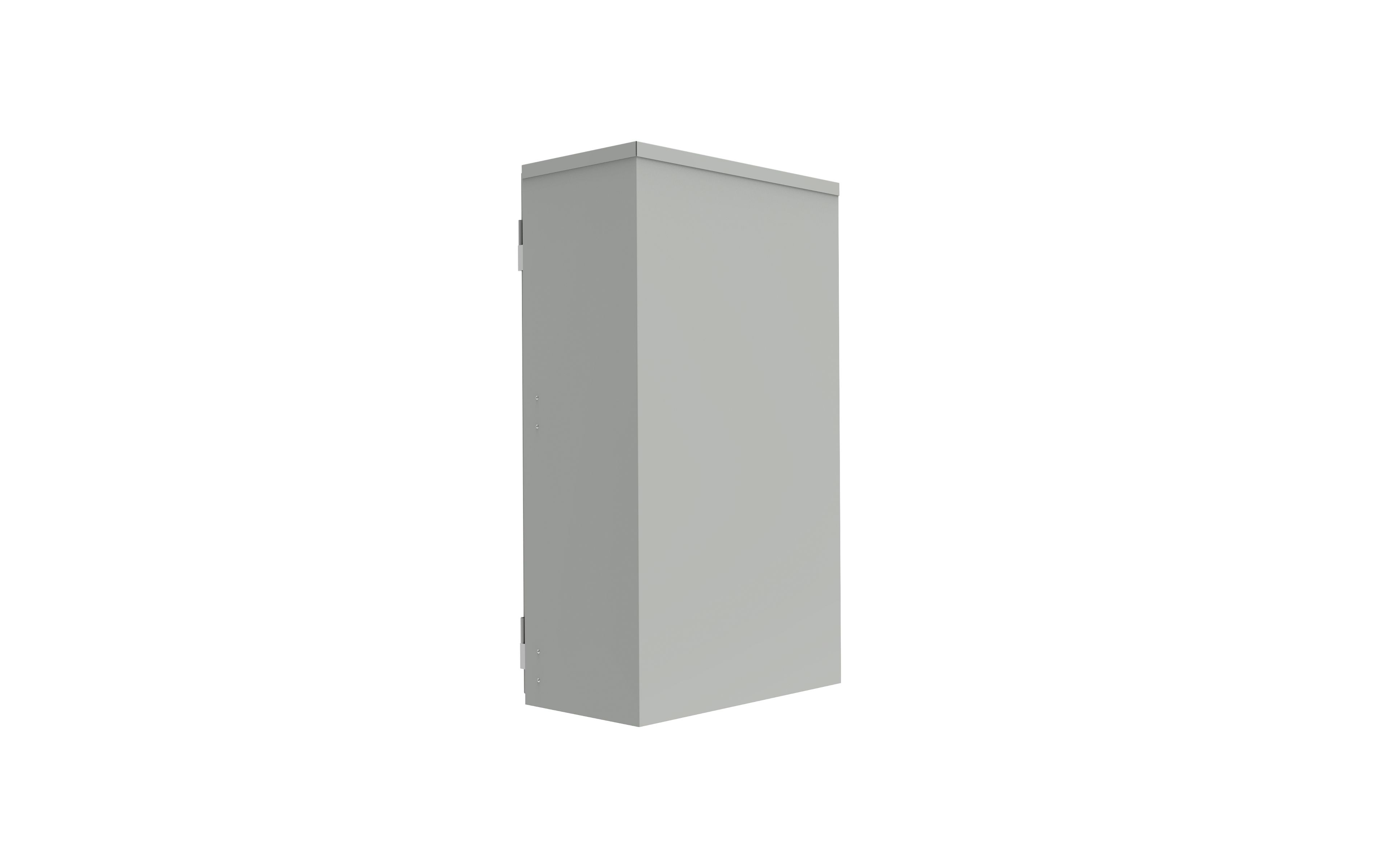

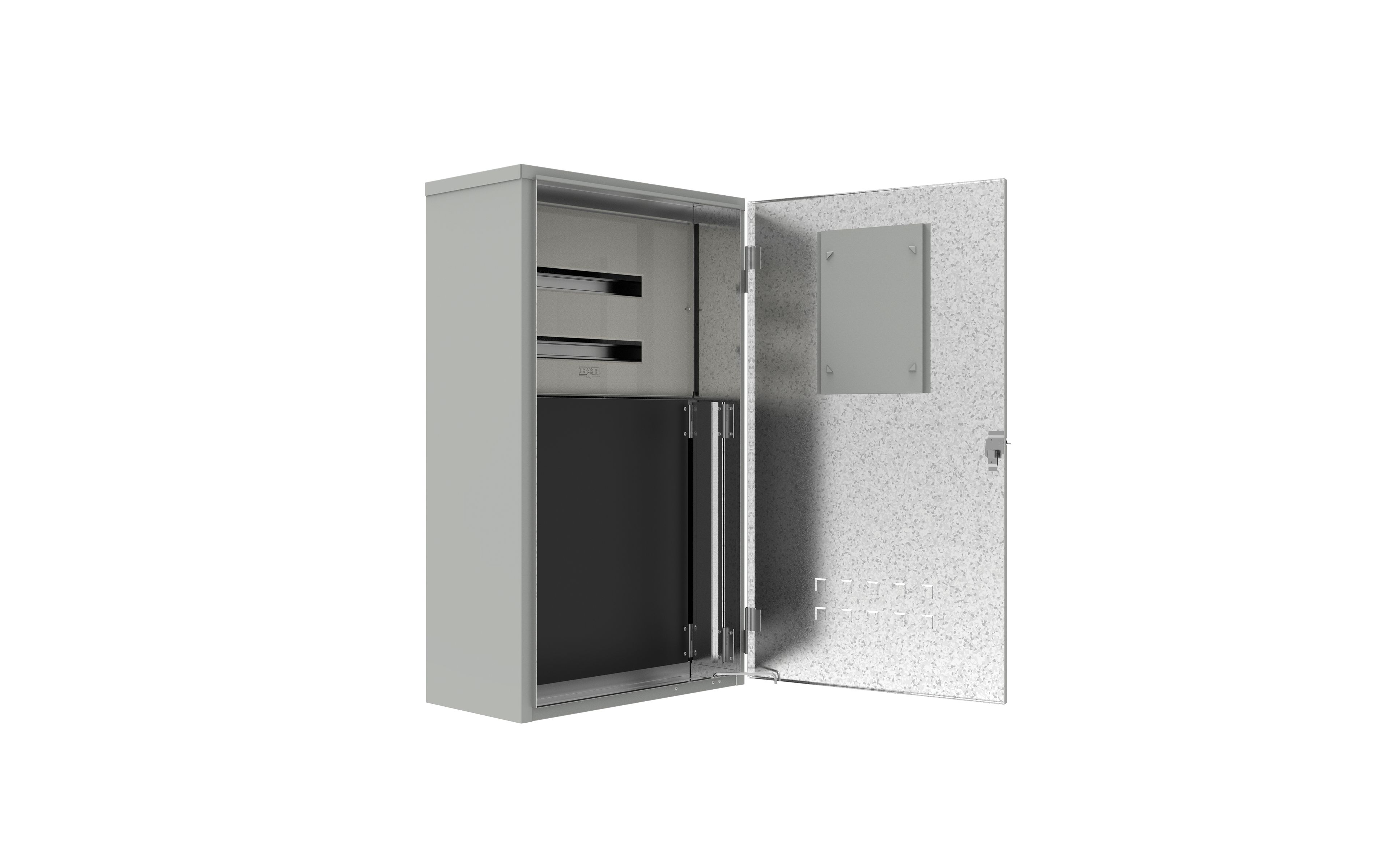

Victoria MD Series with a 6 meter panel (150mm behind) with 42-pole DIN space – IP23 – 1085Hx630Wx335D. The enclosure is manufactured from Galvanised Steel to Z275 powdercoated RAL7035 and has VSIR Approval #SIR9640597B Suitable for a maximum of 9 fuses and 9 meters in single phase, or 9 fuses and 3 meters in 3 phase.
Part Number:
MD064201
Error: Unable to load accounts at this time.
| IP Rating | IP23 |
|---|---|
| Inclusions | 42-pole of DIN space, 600H x 600W 6 Meter Panel (150mm depth behind) |
| Approvals | IP23, SIR9640597B |
| Construction | Body – 1mm Galvanised Steel to Z275, RAL7035 powdercoat surface finish |
| Material | Galvanised Steel to Z275 |
| Colour | RAL7035 |
