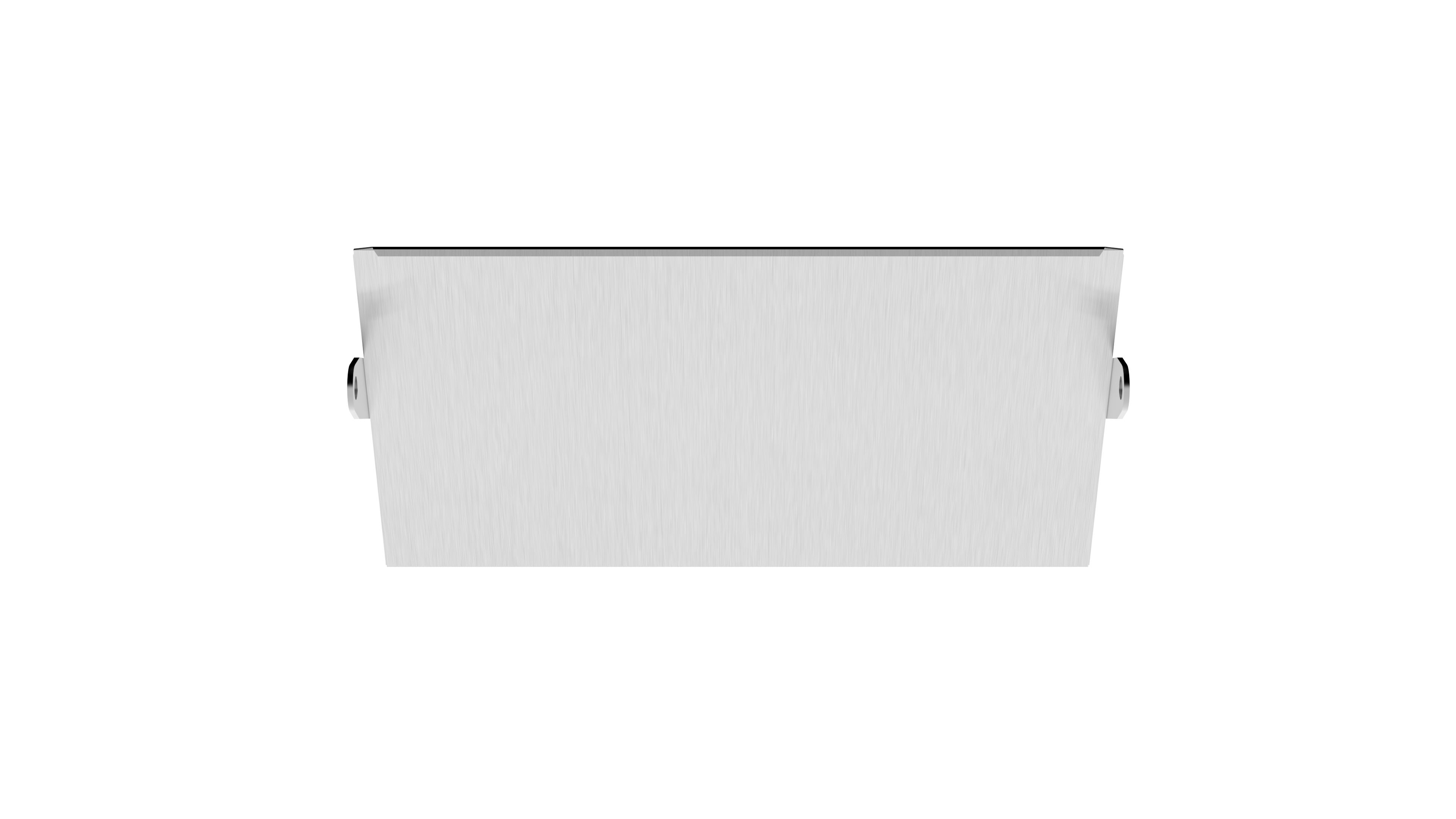

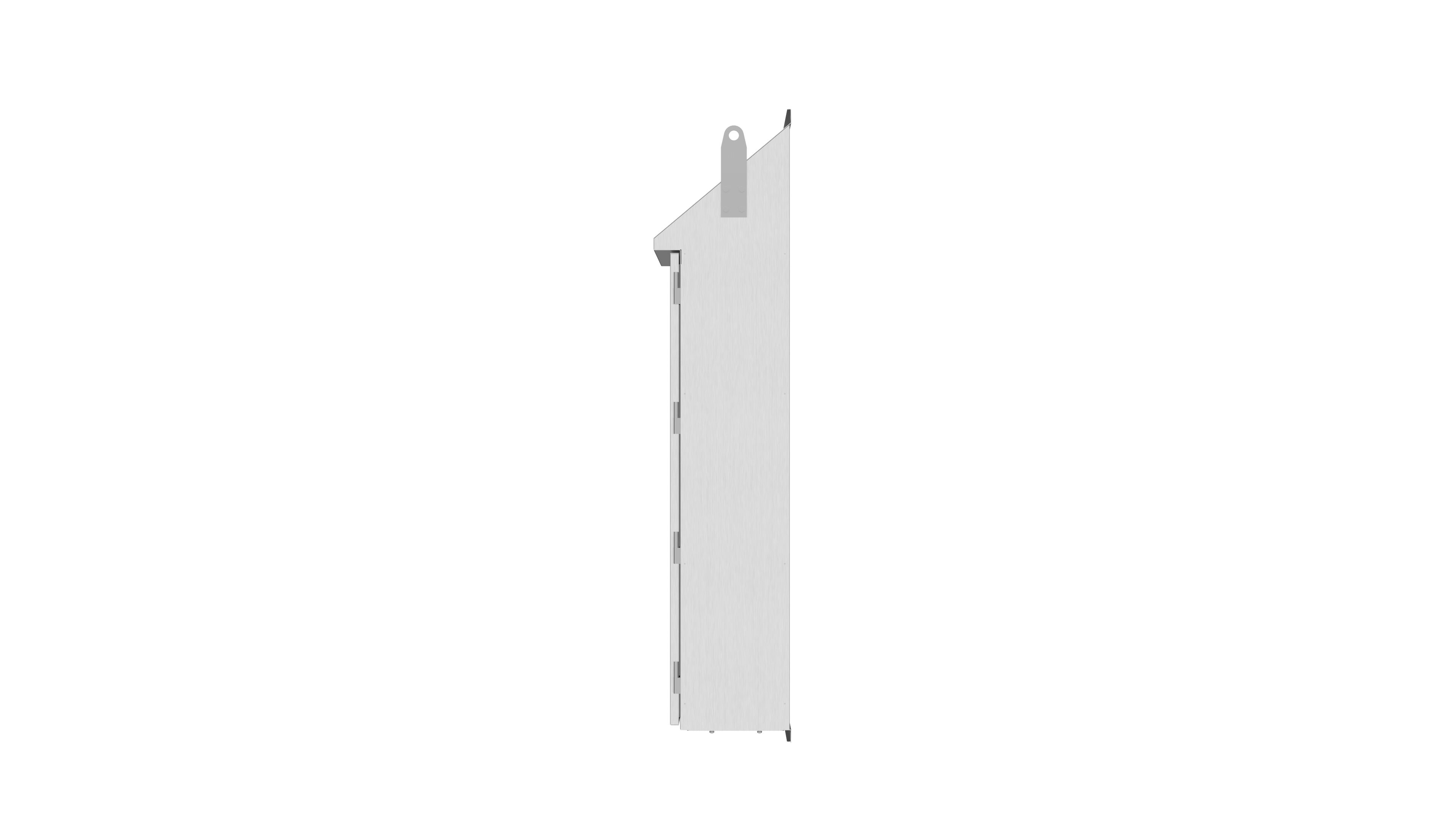

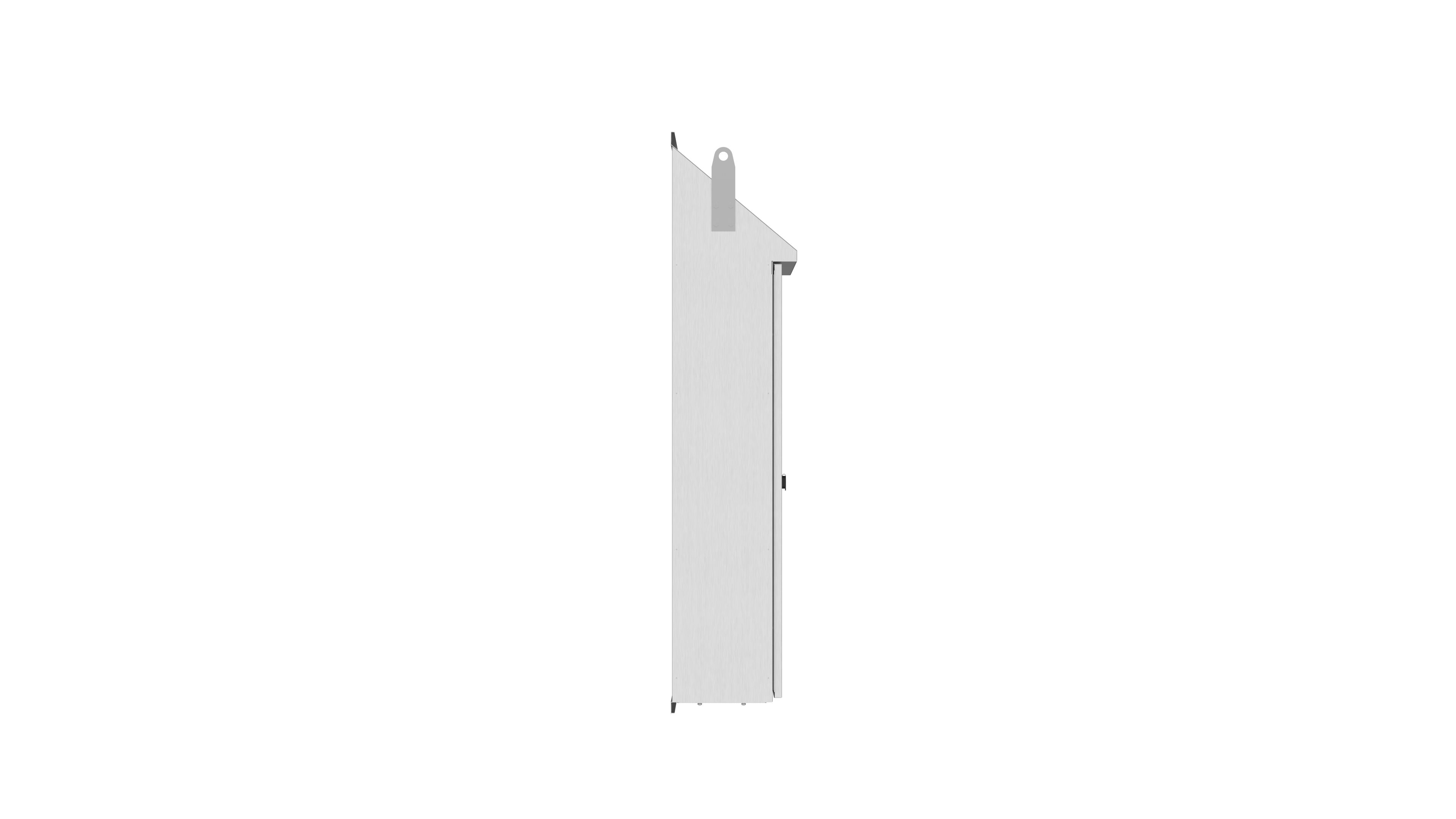

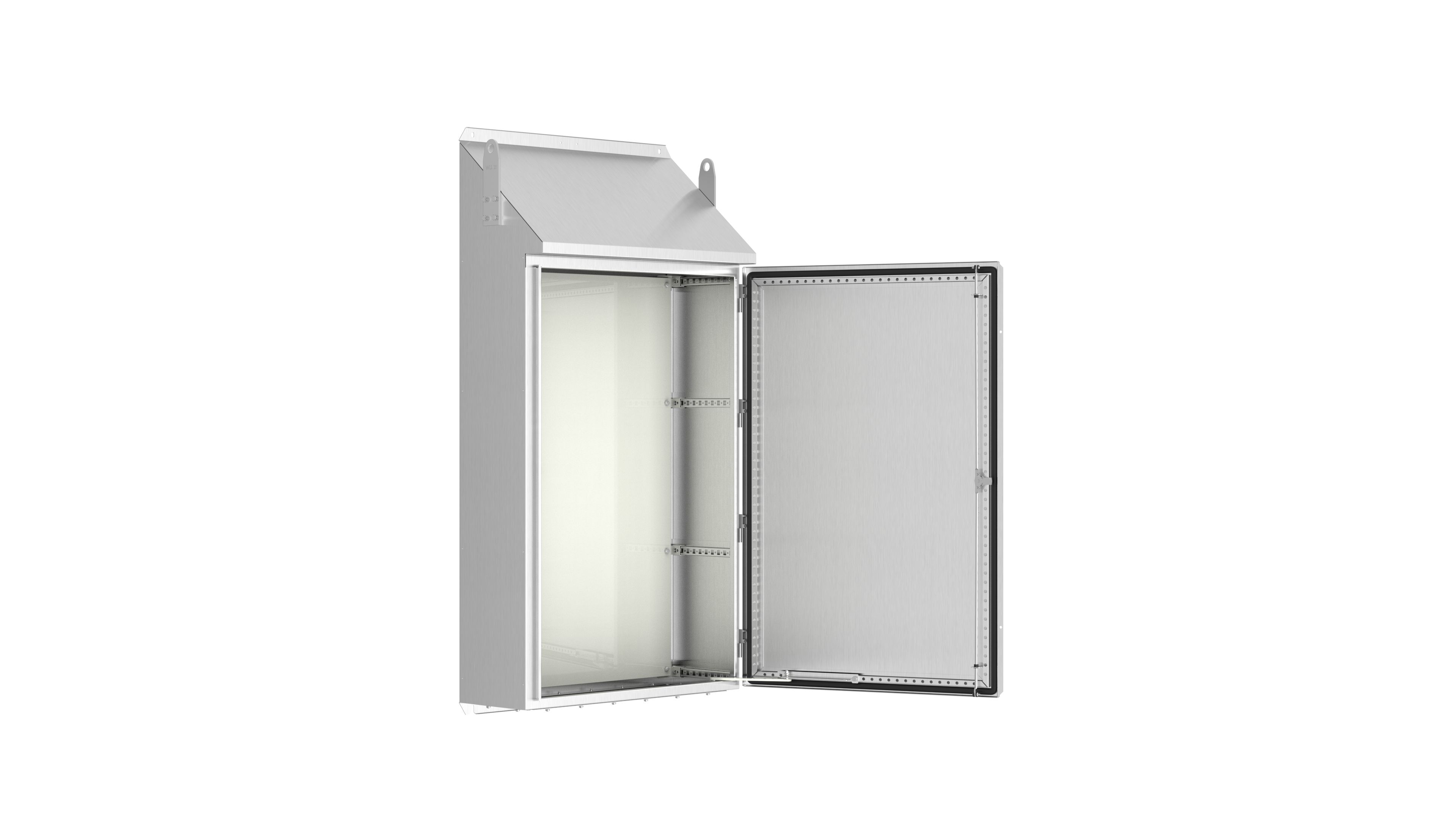

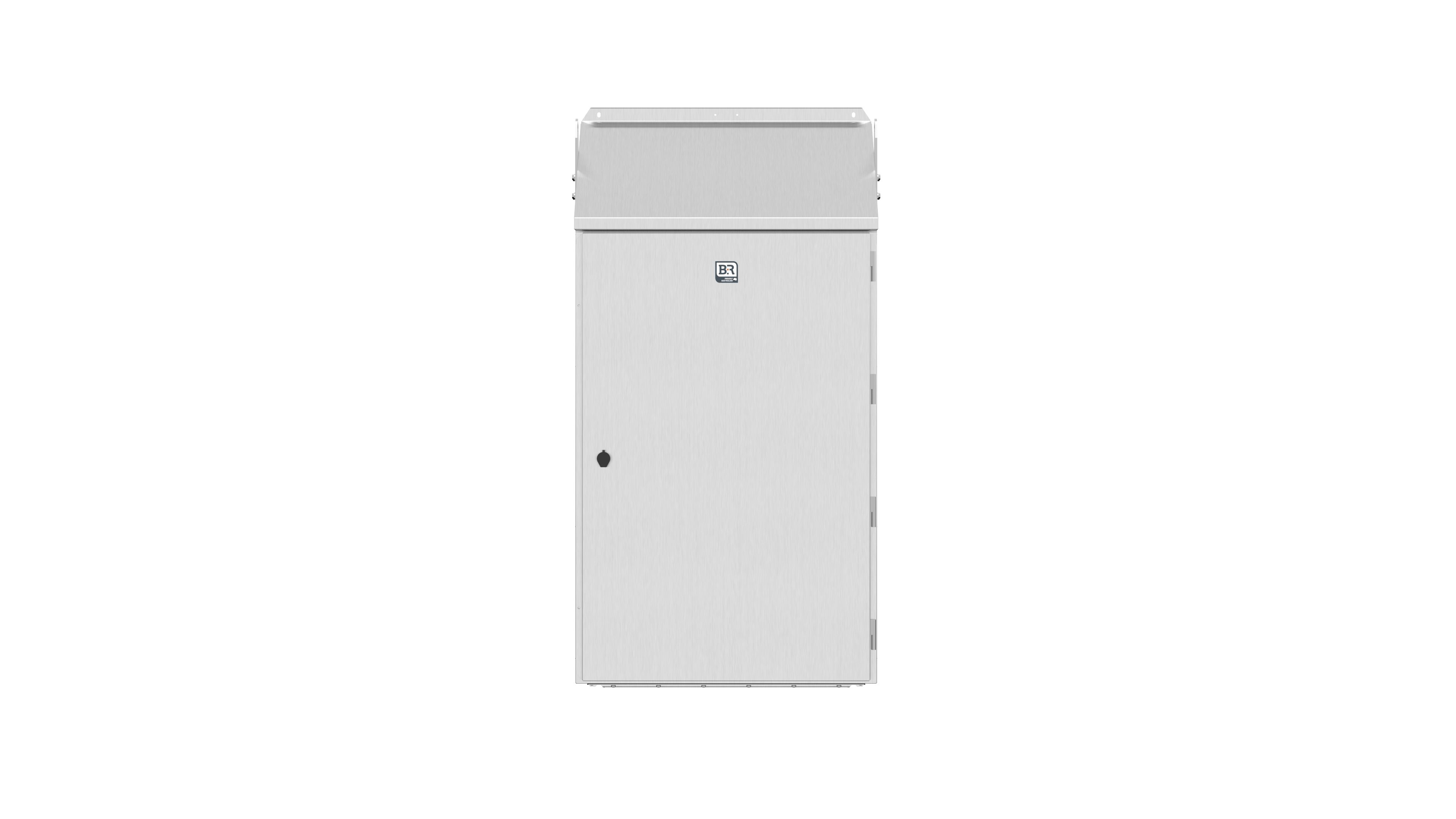

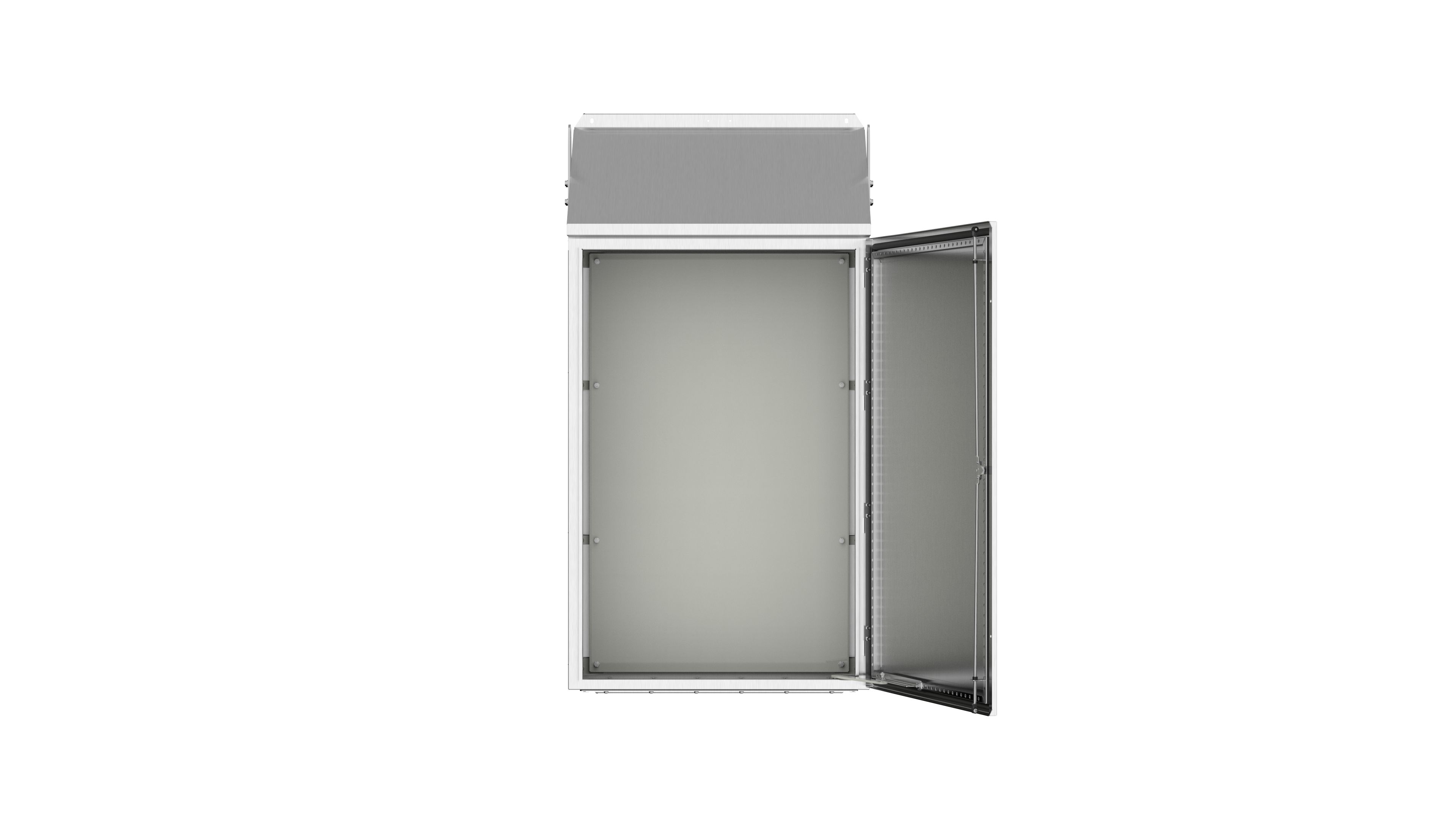

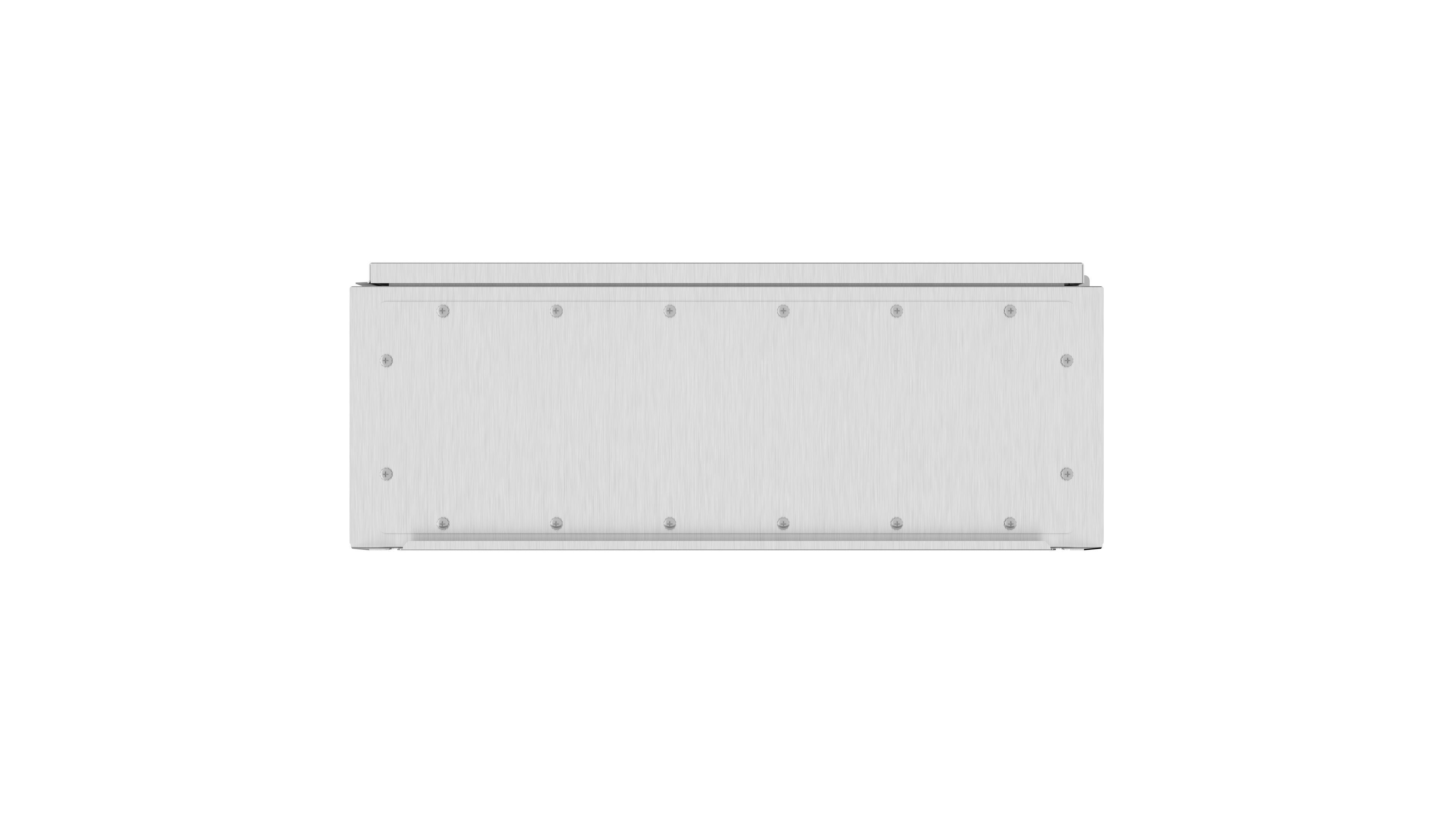

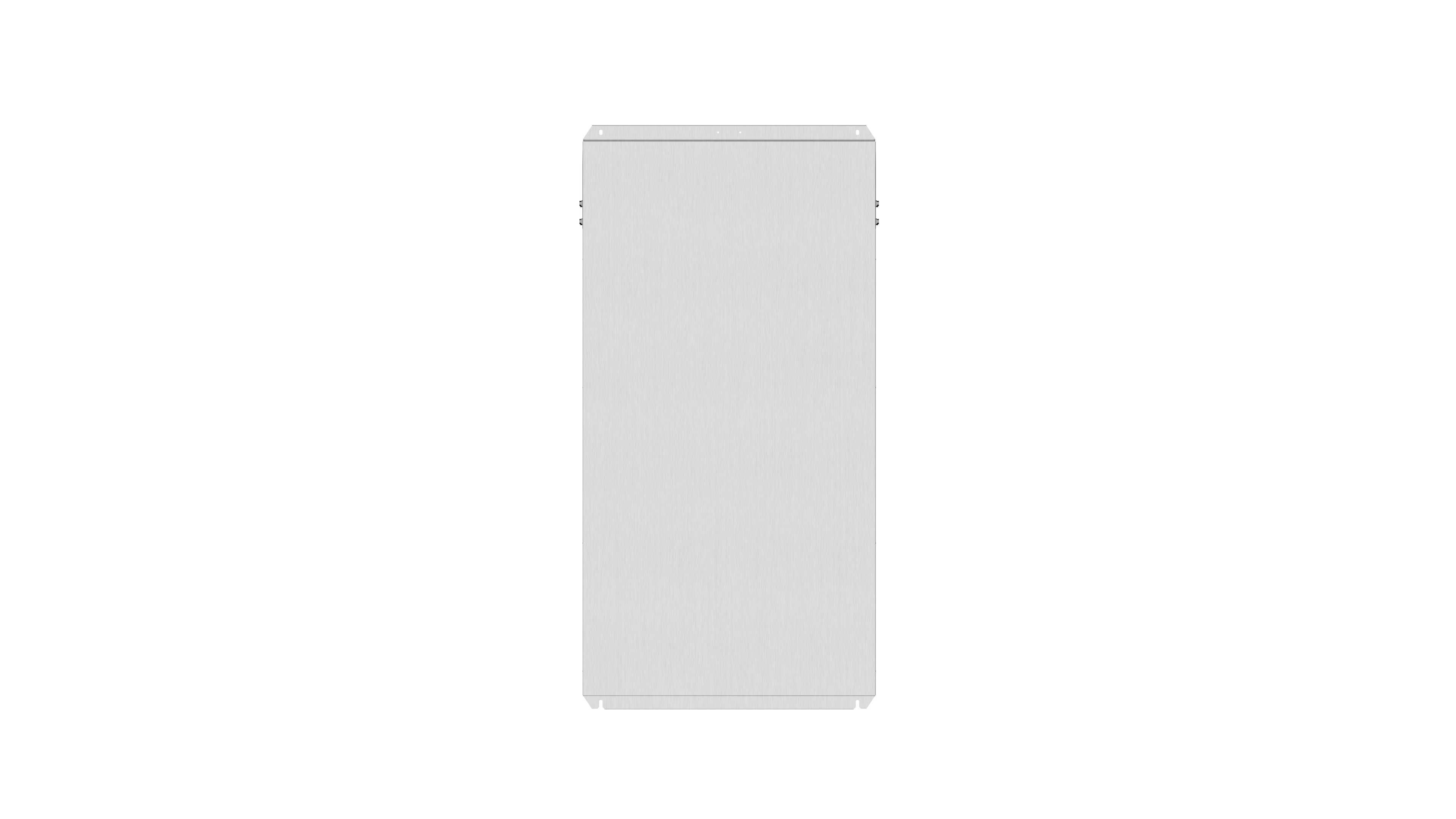

An IP66, 40 degree sloping roof enclosure manufactured from 1.5mm 316 stainless steel and designed for rugged, dusty industrial applications. The enclosure comes complete with a metal – 1145 x 710 (HxW) – 2mm thick mounting pan and 760 x 265mm x 2mm stainless steel gland plate (700 x 205mm opening). The enclosure comes complete with top and bottom mounting flanges for wall mounting, door rails, removable doors (with pintle hinges) and 3 point locking with turnbuckle (IP028/S) lock and dust cap.
Part Number:
BL120830/S
Error: Unable to load accounts at this time.
| Dimensions | 1200 x 800 x 300mm (1593mm total height) |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 90 |
| Inclusions | 2mm steel mounting pan – 1145 x 710 (HxW) – 2mm thick – white, Door rails, Door stay, Gland Opening – 700 x 205mm gland opening with 2mm thick stainless steel plate, Internal 6mm earth stud, Removable lifting lugs, Stainless steel Turnbuckle with 8mm square insert (IP028S/S), Top and bottom mounting flanges |
| Approvals | AS/NZS 61439, Lloyds Register #06/10007 (E2) |
| Construction | Body – 1.5mm 316 Stainless Steel, N4 Surface Finish |
Turnbuckle lock – 7mm square stainless steel insert for Universal NI, Incline SR, Hedland PH and Bowen range (option)
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 215W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 315W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 615W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
