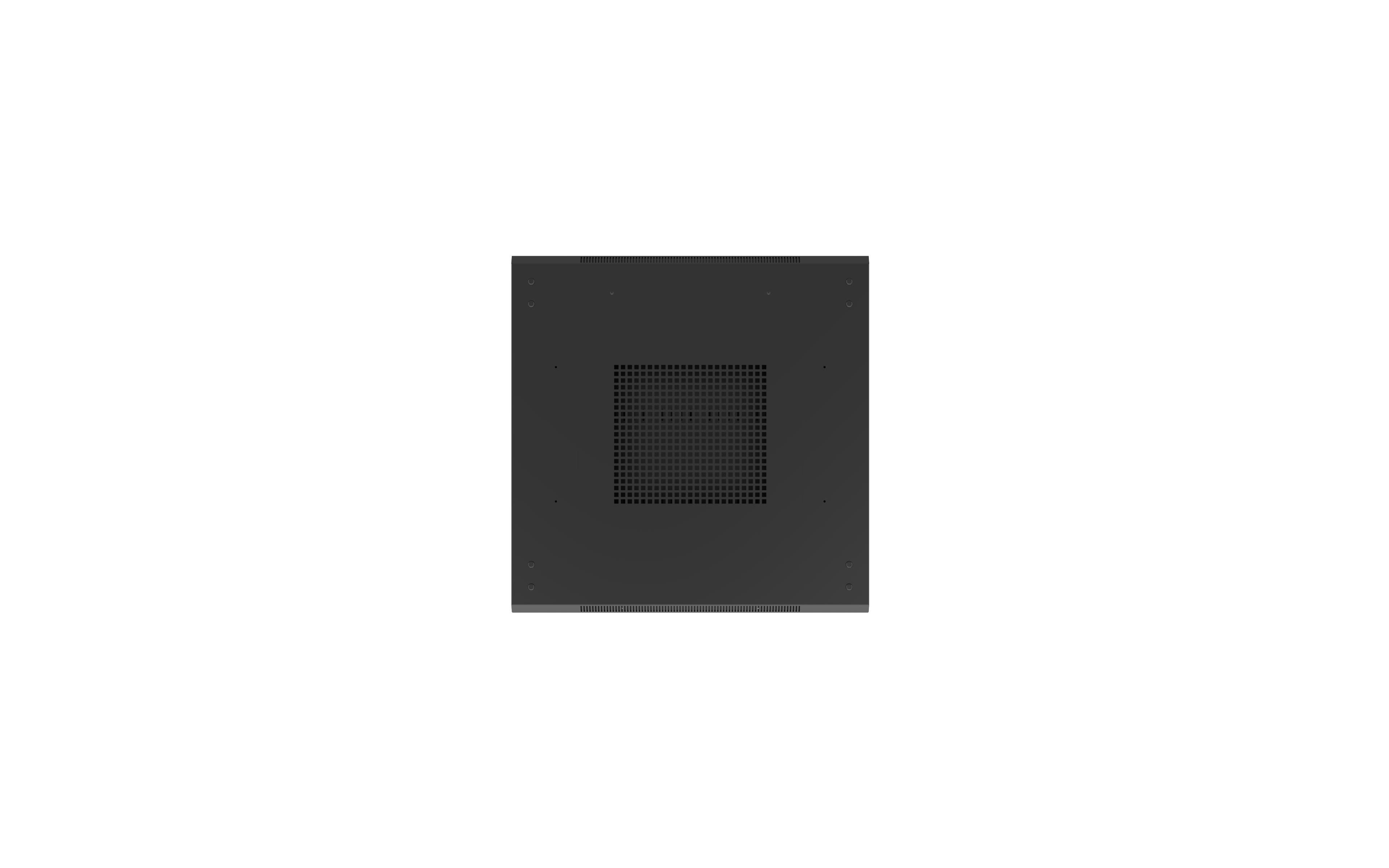

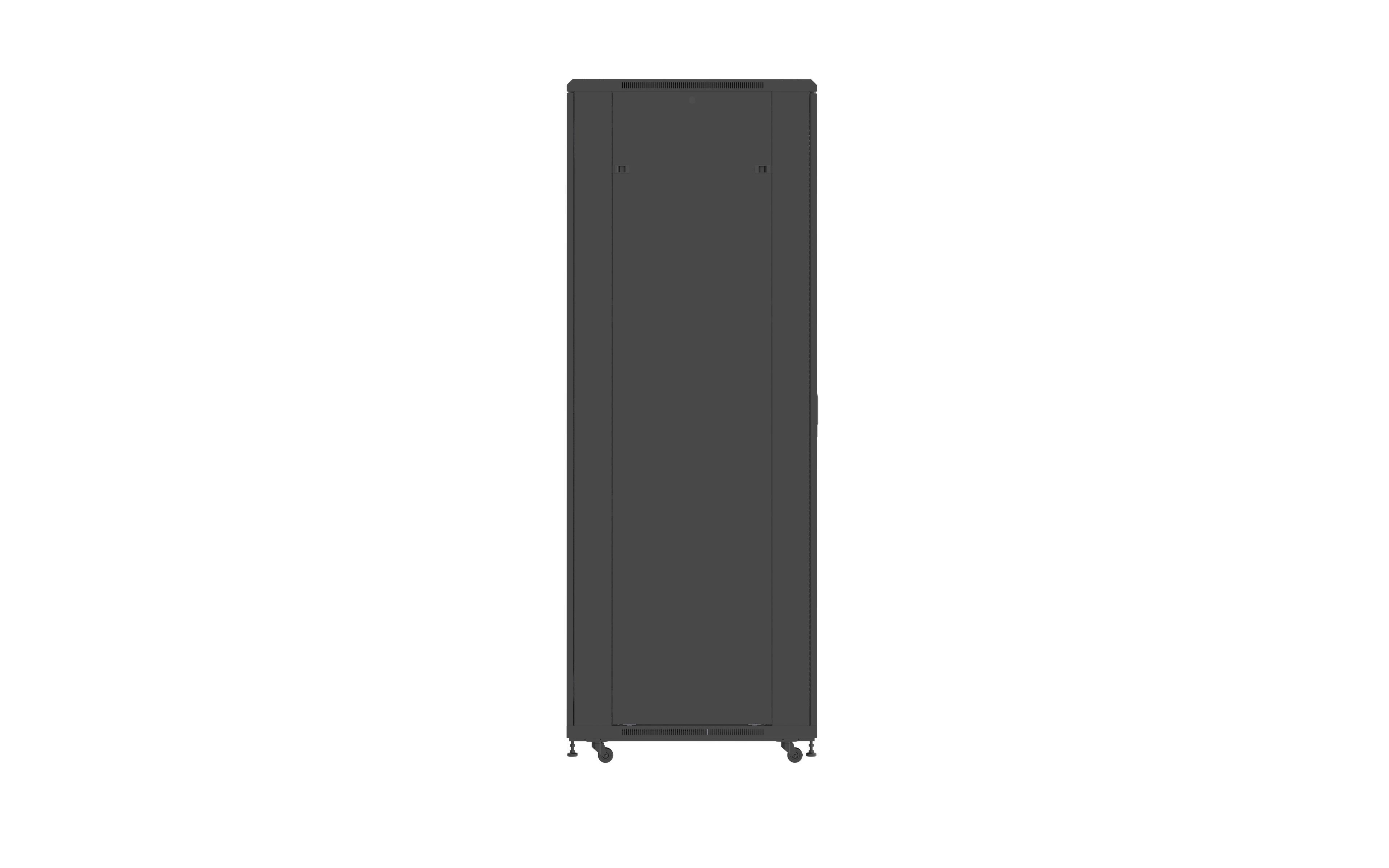

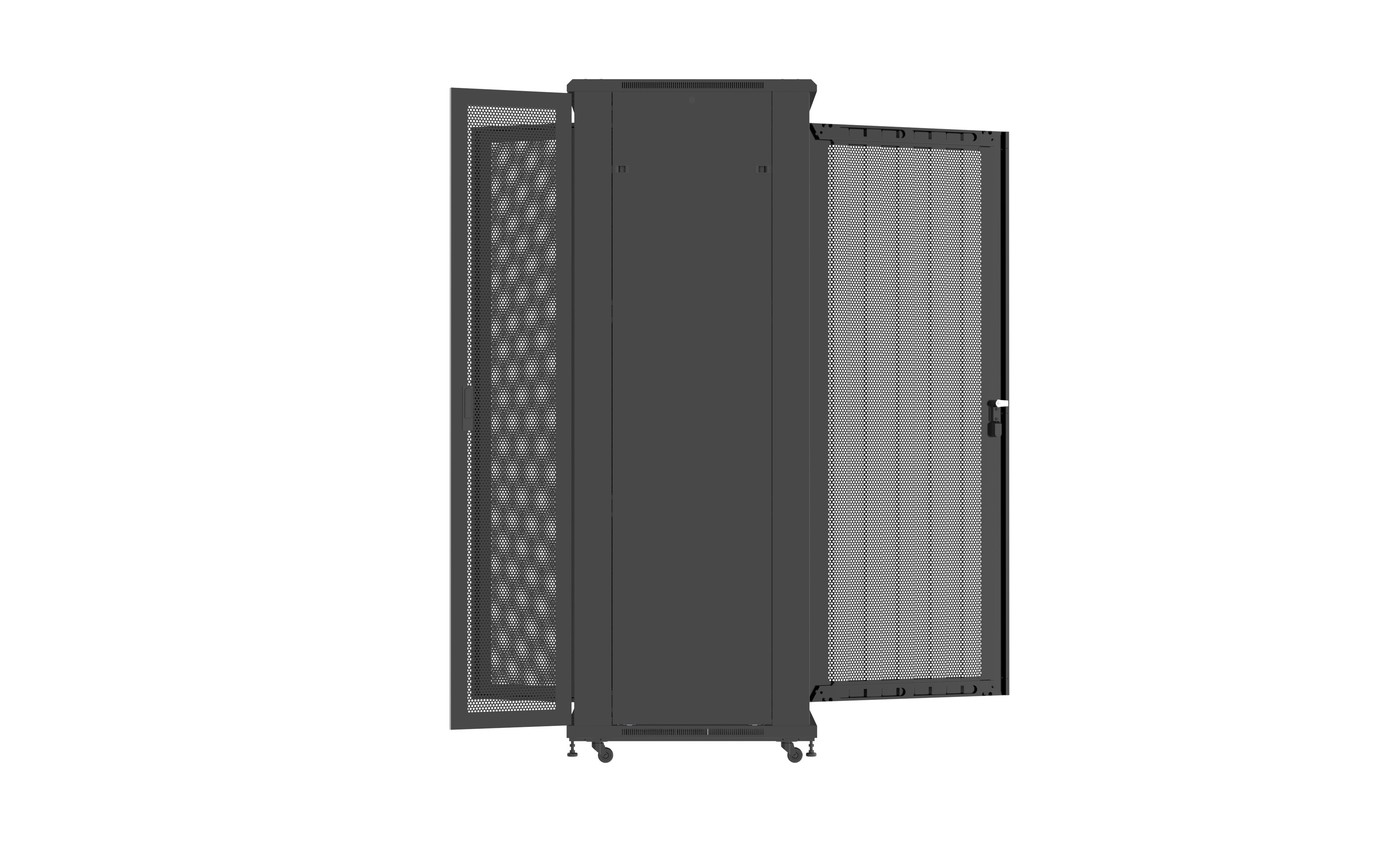

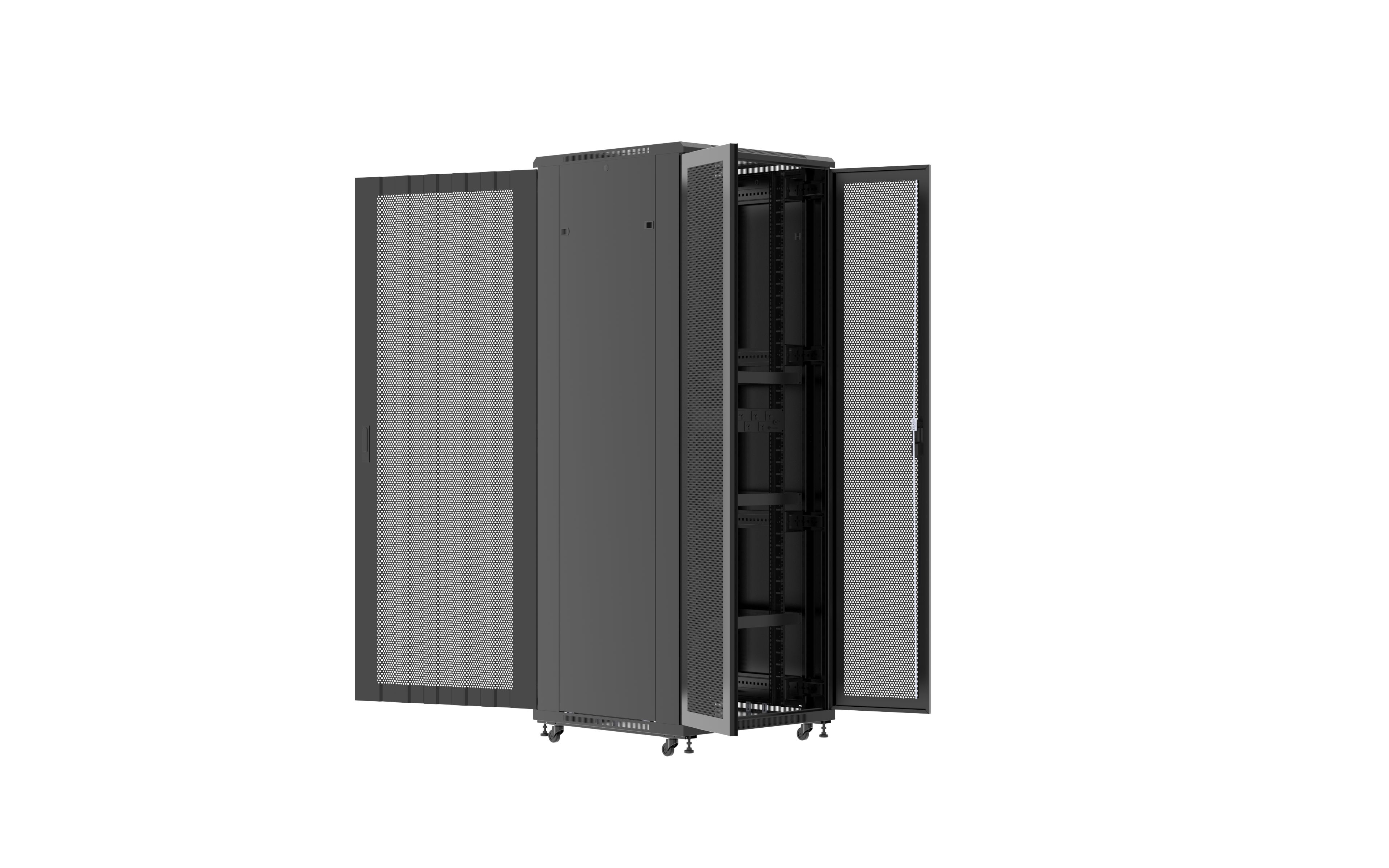

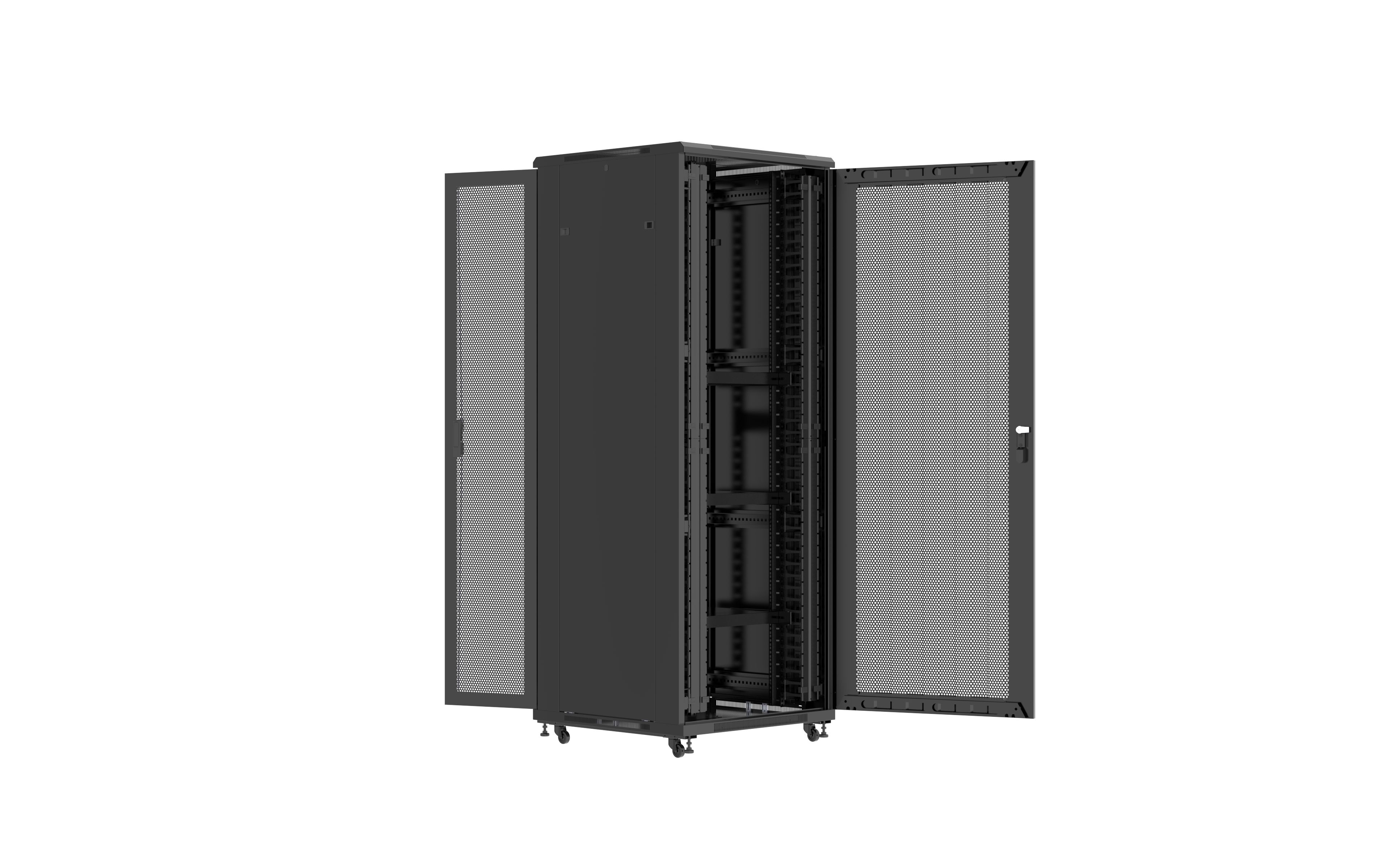

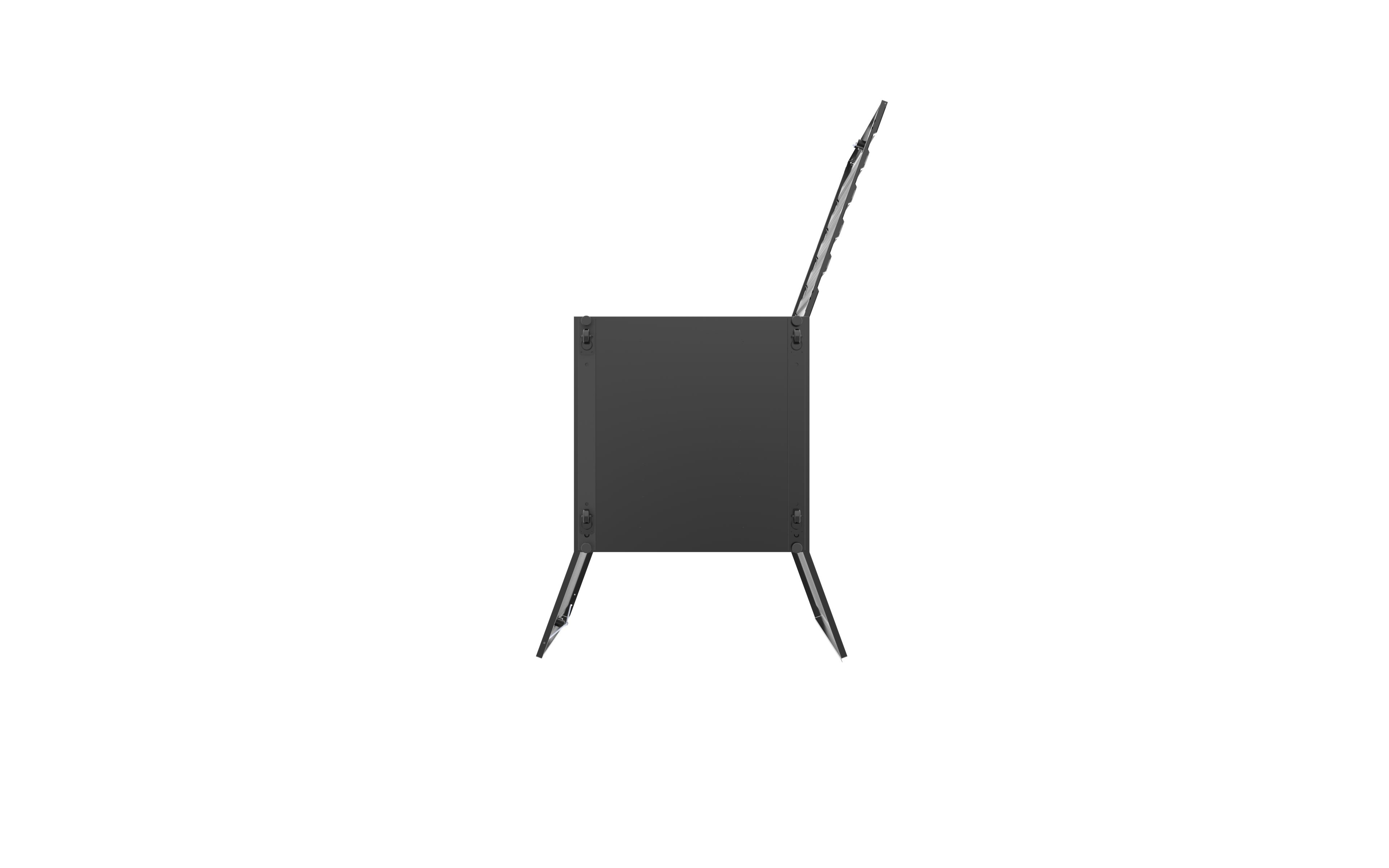

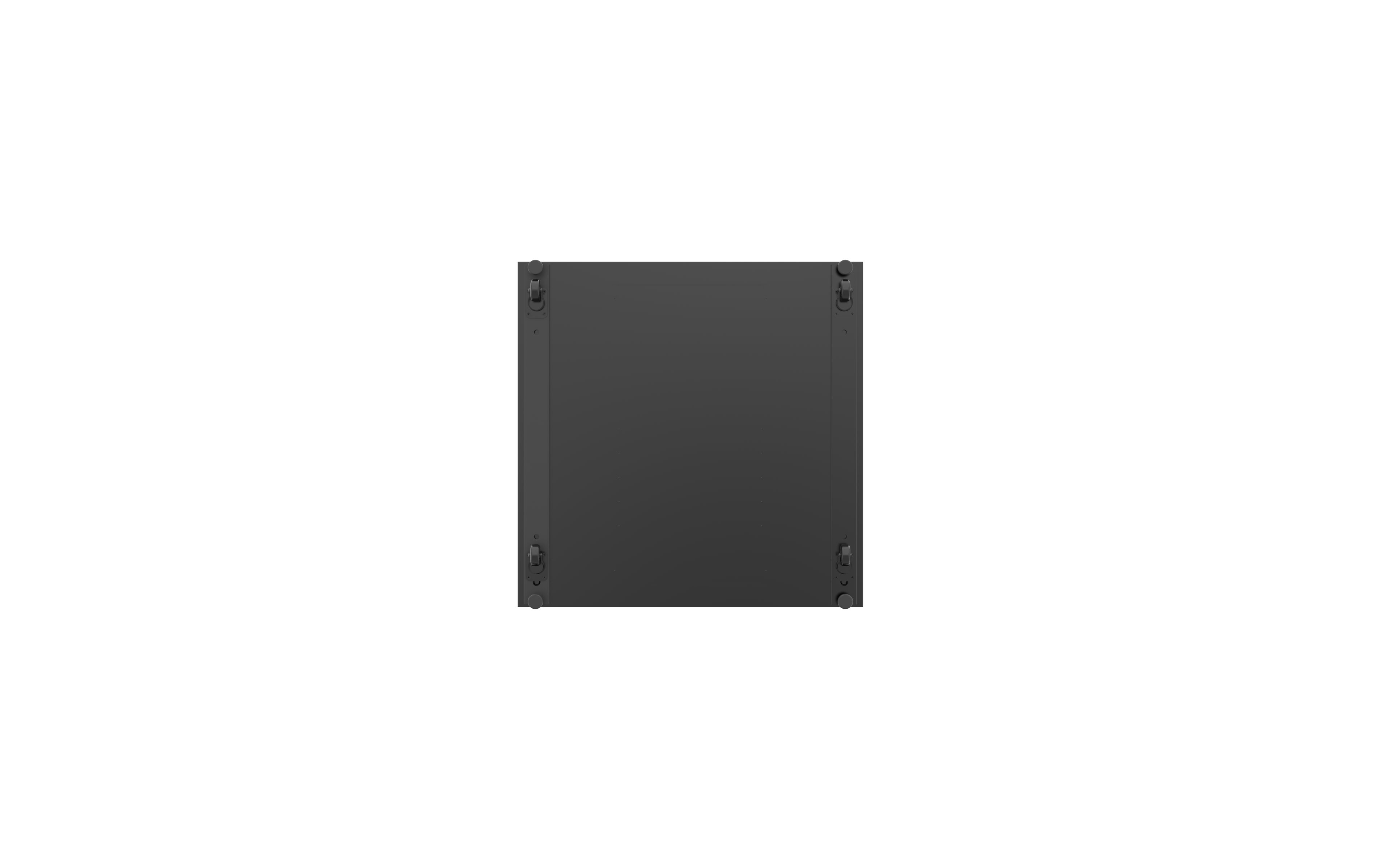

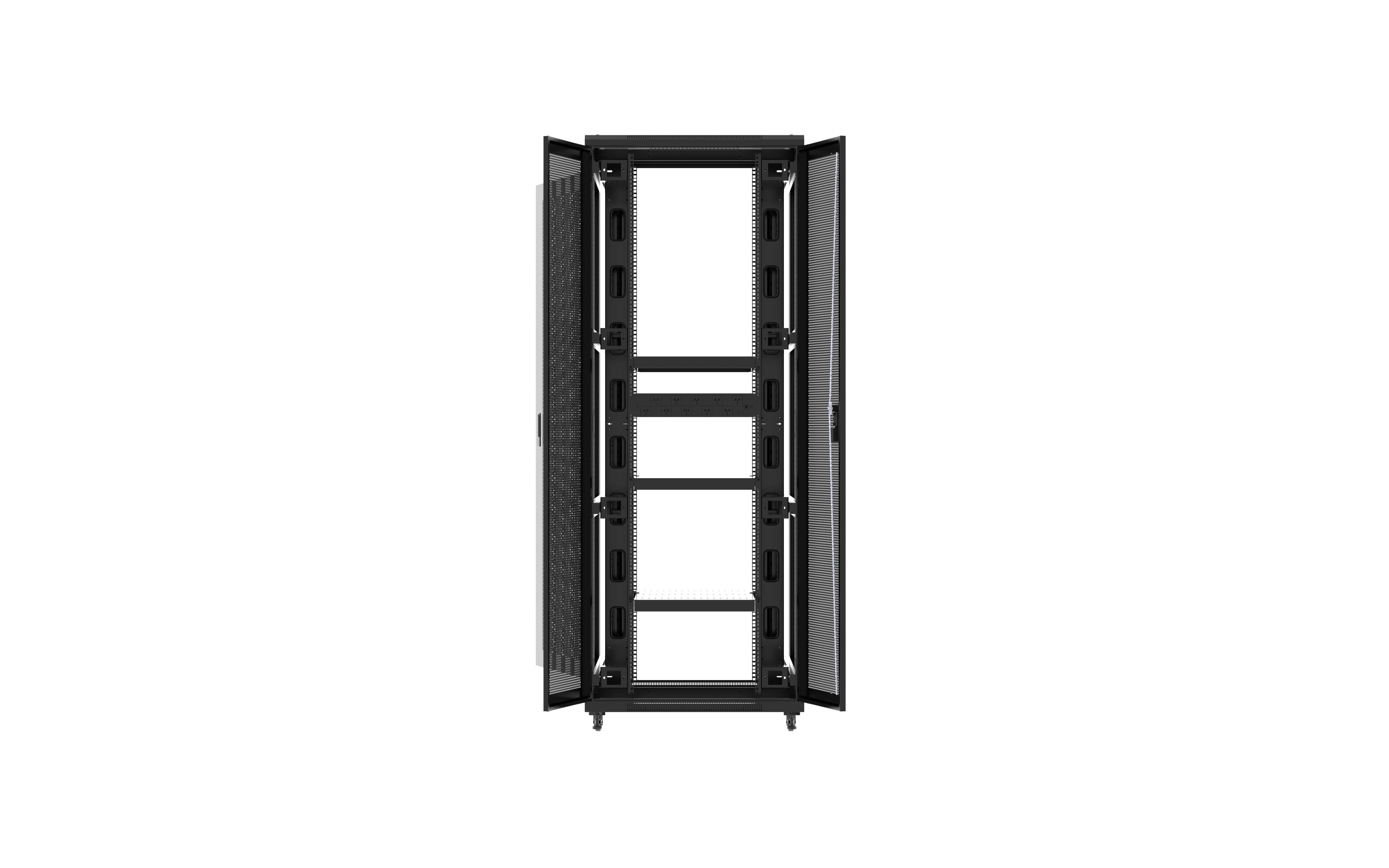

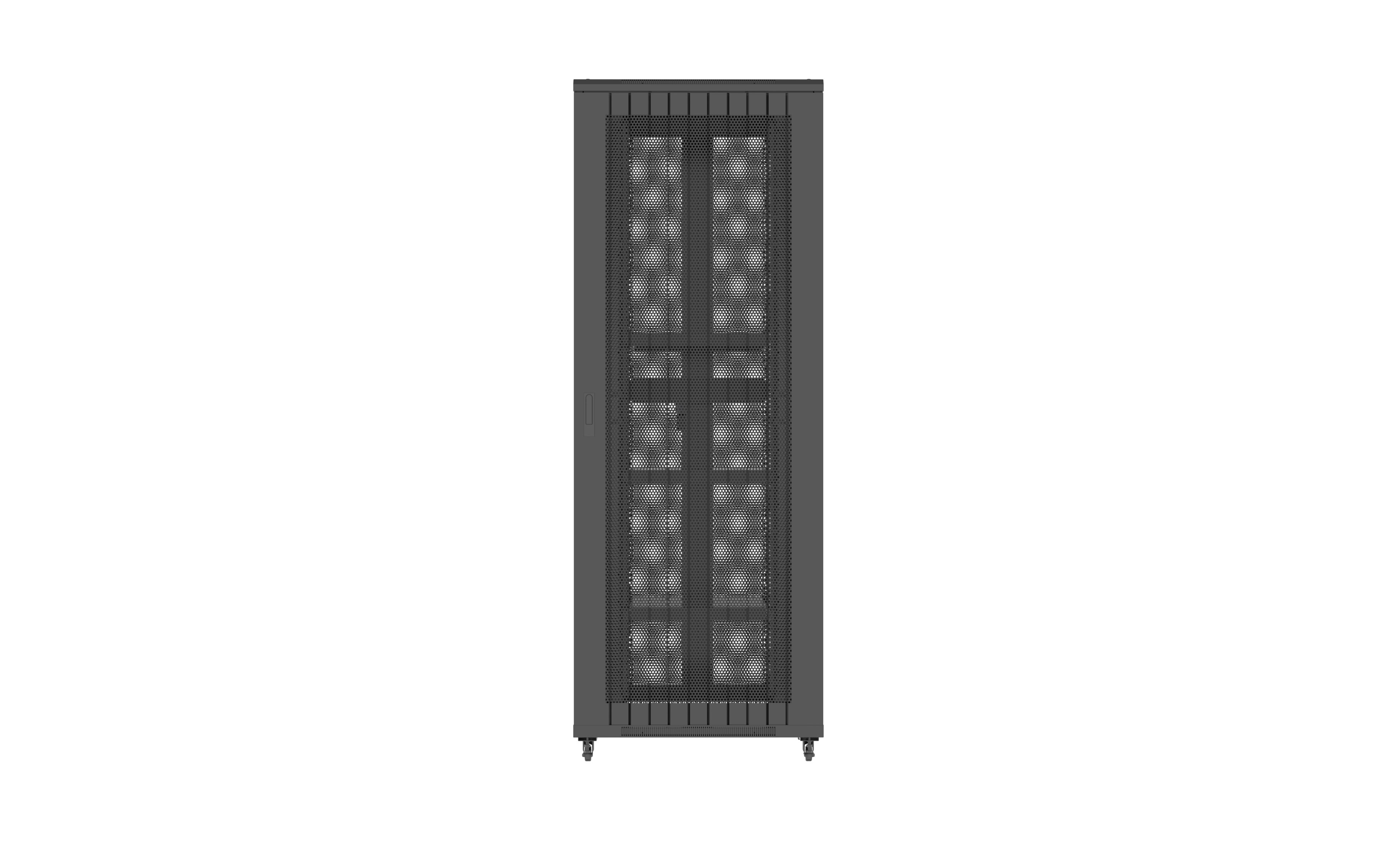

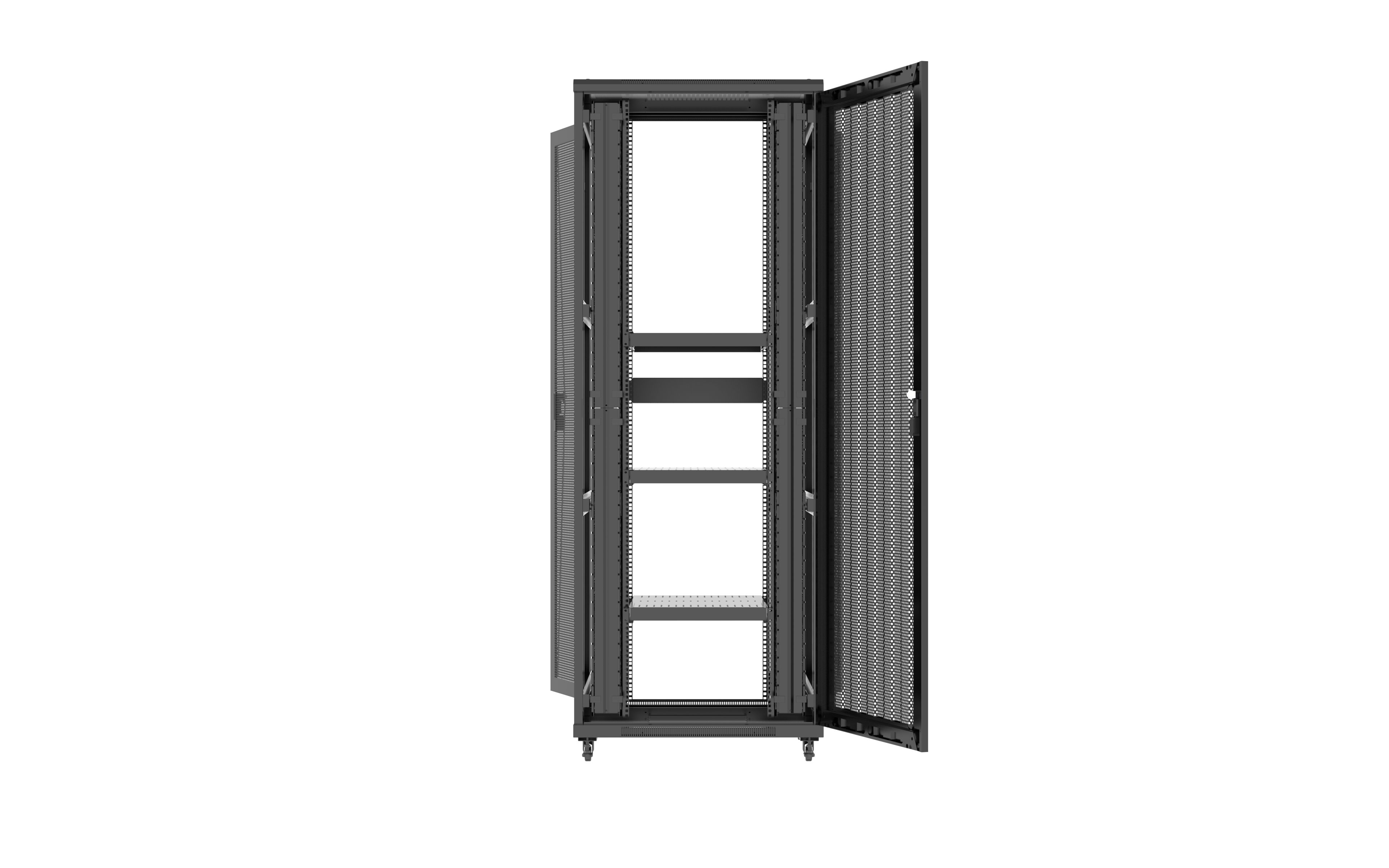

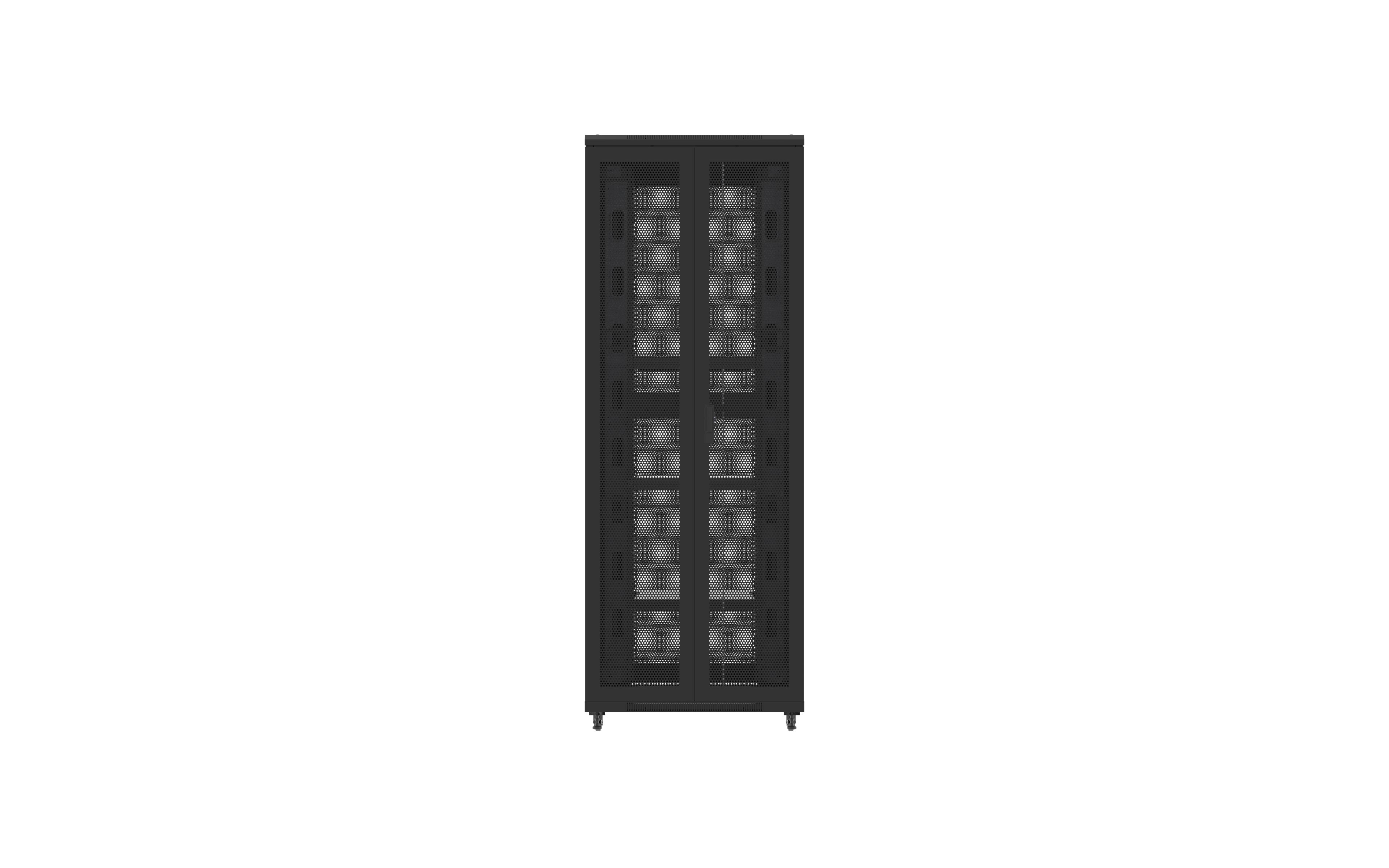

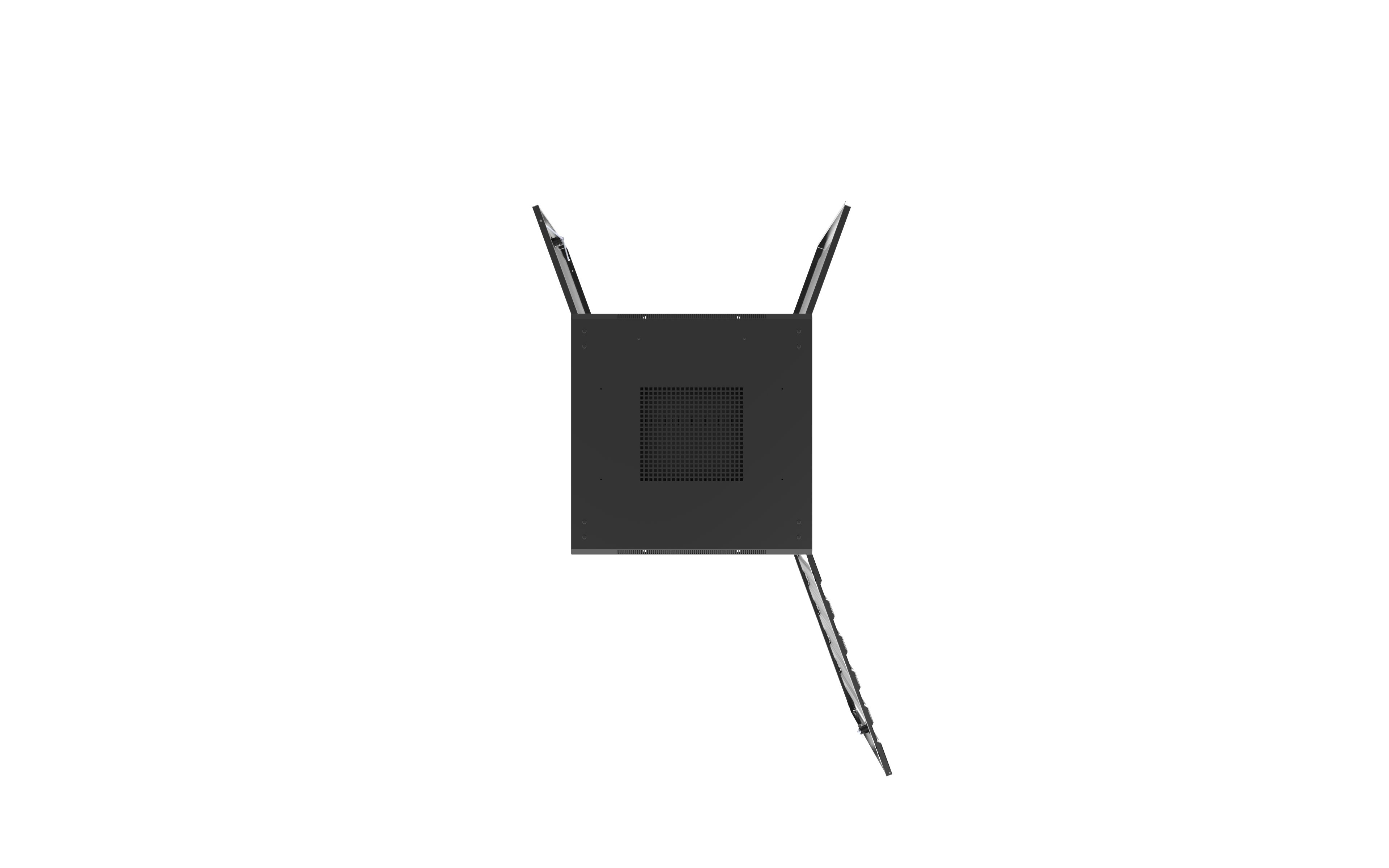

onyX Floor Server 19 inch Cabinet, 2130H x 800W x 800D, 45RU, SPCC rolled steel Powdercoated textured matt black with Front – Mesh Door, Back – Split Mesh Door and steel side panels. The unit includes 4 x 2mm thick 19inch depth adjustable rails and a 1.2mm thick 4 post frame tested to a static load of 1000kg. onyX Floor Server also includes a 10-way power rail, adjustable feet and a braked castor kit, 3 fixed shelves and a 4-way roof mounted fan kit. Doors include key lockable swing handles keyed to 92268.This cabinet also comes complete with 4 x full height cable management systems with snap covers and internal cable rings
Part Number:
ARSX80845U
Error: Unable to load accounts at this time.
| Dimensions | 2130 x 800 x 800mm |
|---|---|
| RU | 45 |
| Weight (kg) | 163 |
| Inclusions | 10-way horizontal power rail (Australian 3-pin), 4 corner posts, 4 x RU marked and notched adjustable 19 inch rails, Adjustable Feet, Braked castors, Cage nuts (x20) and screws with insertion / removal tool, Fan unit roof mounted with thermostat (4-way), Fixed shelf (x3), Key lockable swing handles, Mesh front door, Side panels (x2), Split mesh rear door (2 doors locking at centre), Vertical cable management system with snap cover and cable management rings |
| Approvals | AS62208-2006 – load rating, Australian Standards, EIA-310-D Compliant, SSI Compliant |
| Construction | 1.2mm SPCC rolled steel frame, 2 point locking on doors, 2mm thick 19 inch rails, 4 post, 4 rail, 600mm wide, Adjustable rail position, Back Split Mesh Door, Black, Corner posts, Flat top cover, Front Mesh Door, Indoor, Keylockable Swing Handle (92268), Network cabinet, Steel side panels |
Brush strips – Ezibrush with tool-less installation. Supplied as 5 x 1RU brush strips. The brush overhangs the 1RU size by 5mm.
Cable management – Horizontal Network Cabinet – 90mm finger length – 2RU – Mounts on 19 inch rails.
Metal Horizontal Cable management ring for 19 inch Cabinet – 120mm x 41.5mm ring. Occupies 1RU of rack space.
Metal Horizontal Cable management ring for 19 inch Cabinet – 120mm x 83mm ring. Occupies 2RU of rack space.
Plastic Horizontal Cable management ring for 19 inch Cabinet – 55mm x 30mm ring. Occupies 1RU of rack space.
onyX Floor Server Mesh Door – 45RU – 800 wide. Used for onyX Foor and Floor Server racks and features a 60% mesh for improved air flow.
onyX Floor Server Split Mesh Door – 45RU – 800 wide. Used for onyX Foor and Floor Server racks and features a 60% mesh for improved air flow. Used where locations do not allow opening of full width doors.
Set of keys for key locable wing knobs (03 type), T-handles (040 type) and L-handle (050 type) locks.
Horizontal Power Rail with 6 x 10A SAA Outlets, 10A plug – 1RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 6 x 10A SAA Outlets, 15A plug – 1RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 10 x 10A SAA Outlets, 10A plug – 2RU. Suitable for all 19 inch cabinets and racks.
Horizontal Power Rail with 10 x 10A SAA Outlets, 15A plug – 2RU. Suitable for all 19 inch cabinets and racks.
Surge Protected Horizontal Power Rail with 6 x 10A SAA Outlets, 10A Plug – 1RU. Suitable for all 19 inch cabinets and racks.
Surge Protected Horizontal Power Rail with 6 x 10A SAA Outlets, 15A Plug – 1RU. Suitable for all 19 inch cabinets and racks.
Full Extension Telescopic Shelf for 19 inch Cabinet – 45Hx483Wx450D. Suitable for loads up to 20kg and for 600mm racks/cabinets
Half Extension Telescopic Shelf for 19 inch Cabinet – 45Hx483Wx450D. Suitable for loads up to 40kg and for 600mm racks/cabinets
Keyboard Pivot Tray Network Cabinet – for Half Extension Telecopic Shelf. 2RU high when fitted to shelf and finished in Textured matt black
Cantilever Shelf for onyX Wall rack – 450mm deep – 2RU – suitable for 600mm deep enclosures, 700mm deep including the swing frame.
Keyboard Shelf for onyX Floor rack – 550mm deep – 1RU – suitable for 800mm deep cabinets and has a load rating of 10kg
Fixed Shelf for onyX Floor rack – 550mm deep – 1RU – suitable for 800mm deep cabinets and has a load rating of 20kg
Light Duty Fixed Shelf for 19 inch Cabinet – 45Hx483Wx650D. Suitable for loads up to 50kg and for 800mm racks/cabinets
Heavy Duty Fixed Shelf for 19 inch Cabinet – 45Hx483Wx650D. Suitable for loads up to 160kg and for 800mm racks/cabinets
