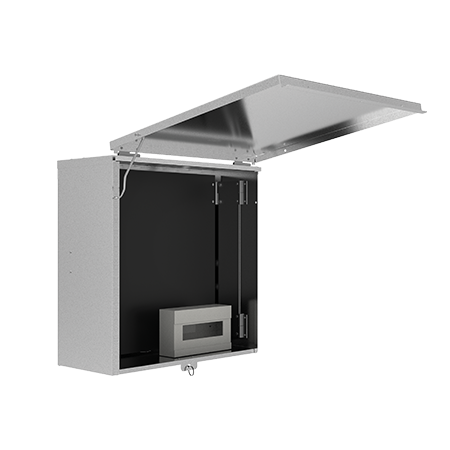

New South Wales Series

An IP23 residential metering enclosure suitable for domestic and light commercial installations in New South Wales applications.

nsw_bp

Product Information

Applications

Complying with the NSW supply authority rules and regulations, the NSW series is designed for both single and multi-phase installations.

Features

  • Suitable for domestic and light commercial installations
  • Provides versatility with a large range of products and accessories
  • Top hinged door and side hinged panel
  • NSW/DIN has 18 pole MCB DIN section cut into panel
  • Earth and neutral links NOT included

Construction

  • Manufactured from 1.0mm or 1.2mm galvanised steel to Z275

Associated Products

Part No. Height (mm) Width (mm) Depth (mm) Material Colour
NSW/BD/GD10 600 600 270 Galvanised Steel to Z275
NSW/BP/GD10 600 600 270 Galvanised Steel to Z275
NSW/U/13 600 600 330 Galvanised Steel to Z275

Downloads

Product Technical Leaflet
Residential Commercial Catalogue

Accessories

[table id=100 hide_columns=1,5-27 filter=nswseries column_widths=60px|60px|60px /]
+While stocks last
