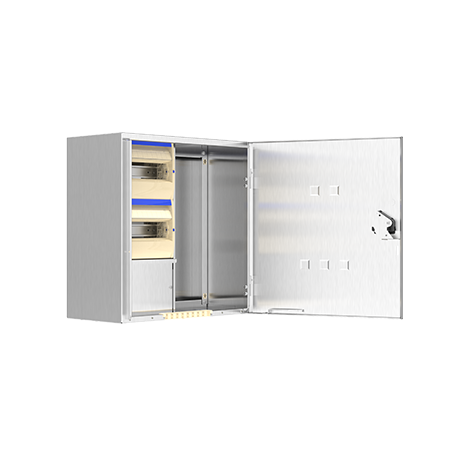

An IP24 Horizon W Series residential metering enclosures series for WA applications.
Product Information
Applications
Providing safety, quality and performance, the Horizon W Series of enclosures are suitable for domestic and light commercial metering installations. Complying with the WA Supply Authority Rules and Regulations, the W Series is designed for both single and multi-phase installations.
Features
Designed for both single and multi-phase installations
AS/NZS 3012 compliant for construction sites as standard
Provide safety, quality and performance
Suitable for domestic and light commercial metering applications
Self closing gravity catch
RotaDIN rotating / removable DIN section
Cord retainer for easy retention of extension cords
Circuit identification label area with protective cover
Weatherproof installation label for AS/NZS3000 compliance
Padlockable facility
External frame mounting brackets
Region D wind rated to AS1170.2-2002: Structural
design actions – Wind actions
Construction
Manufactured from 1.0mm galvanised steel or 316 stainless steel
Powdercoated Light Grey RAL7035 or N4 surface finish
[table id=100 hide_columns=1,5-13,16-27 filter=horizonw column_widths=60px|60px|80px|60px|60px /]
+While stocks last
^For more information on the HZN/COM enclosure range Click Here!
