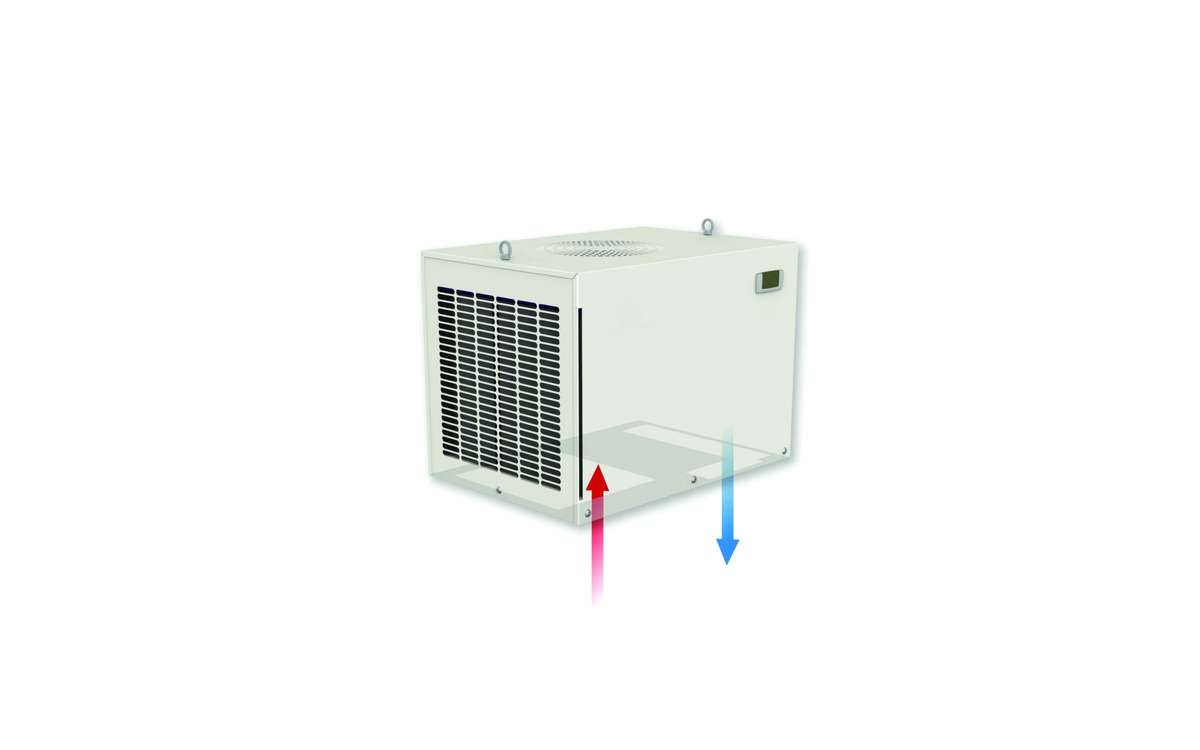

Roof Mounted Air Conditioners

The range of roof mounted air conditioners have been designed to cool electrical enclosures to prevent failure of installed equipment.

dek

Product Information

Applications

The DEK range of roof mounted air conditioners have been designed to cool electrical enclosures to prevent failure of installed equipment. They are quick and easy to install with simple cutouts and a drilling template supplied with each unit. Once installed the enclosure can be rated to IP54, which prevents dust entering in sufficient quantities that may cause interference with the installed equipment, and prevents damage from splashed water.

Inclusions

  • All mounting hardware
  • External digital temperature display and controls

Features

  • Easy installation
  • Electronic controller
  • Suitable for use where the internal temperature of the cabinet is required to be lower than the ambient temperature.
  • Ability to interface with PLC’s
  • Minimal maintenance
  • Ozone friendly R1134a or R407C refridgerant

Construction

  • Manufactured from mild steel
  • Powdercoated Light Grey RAL7035 (Pebble Grey RAL7032 while stocks last)

Associated Products

Part No. Product Description
TX-AADFM12 Filter Metal – aluminium, for TX-DEK12, TX-DEK15, TX-DEK20, pack of 1 – TX-AADFM12
TX-AADFM30 Filter Metal – aluminium, for TX-DEK30, TX-DEK40, pack of 1 – TX-AADFM30
TX-AADFP12 Filter Polyurethane, for TX-DEK12, TX-DEK15, TX-DEK20, pack of 5 – TX-AADFP12
TX-AADFP30 Filter Polyurethane, for TX-DEK30, TX-DEK40, pack of 5 – TX-AADFP30
TX-DEK04BT0B Roof Mounted Air Conditioner, 260H x 481W x 259D, 230V AC 1ph, 410W Cooling – TX-DEK04BT0B
TX-DEK08BT0B Roof Mounted Air Conditioner, 339H x 600W Cooling x 341D, 230V AC 1ph, 820W Cooling – TX-DEK08BT0B
TX-DEK12BT0B Roof Mounted Air Conditioner, 415H x 572W x 401D, 230V AC 1ph, 1150W Cooling – TX-DEK12BT0B
TX-DEK15BT0B Roof Mounted Air Conditioner, 415H x 572W x 401D, 230V AC 1ph, 1550W Cooling – TX-DEK15BT0B
TX-DEK20BT0B Roof Mounted Air Conditioner, 415H x 572W x 401D, 230V AC 1ph, 2050W Cooling – TX-DEK20BT0B
TX-DEK20LT0B Roof Mounted Air Conditioner, 415H x 572W x 401D, 400V AC 1ph, 2050W Cooling – TX-DEK20LT0B
TX-DEK30BT0B Roof Mounted Air Conditioner, 496H x 784W x 492D, 230V AC 1ph, 2900W Cooling – TX-DEK30BT0B
TX-DEK30LT0B Roof Mounted Air Conditioner, 496H x 784W x 492D, 400V AC 1ph, 2900W Cooling – TX-DEK30LT0B
TX-DEK40BT0B Roof Mounted Air Conditioner, 496H x 784W x 492D, 230V AC 1ph, 3850W Cooling – TX-DEK40BT0B
TX-DEK40LT0B Roof Mounted Air Conditioner, 496H x 784W x 492D, 400V AC 1ph, 3850W Cooling – TX-DEK40LT0B
